ACME LED-635S Manuel utilisateur

Intelligent Scanner

Professional Lighting Technology

User Guide

Please read the instructions carefully before use

INDEX

1. Safety Introduction

2. Technical Specification

3. How To Control The Unit

4. DMX512 Configuration

5. DMX512 Connection

6. Troubleshooting

7. Fixture Cleaning

Широкий ассортимент оборудования ACME

на www.maxlight.ru

Intelligent Scanner

Professional Lighting Technology

User Guide

Please read the instructions carefully before use

INDEX

1. Safety Introduction

2. Technical Specification

3. How To Control The Unit

4. DMX512 Configuration

5. DMX512 Connection

6. Troubleshooting

7. Fixture Cleaning

Широкий ассортимент оборудования ACME

на www.maxlight.ru

1. Safety Introduction

WARNING

y Please keep this booklet with the unit for future consultation. If you sell the unit

to another user, be sure that the new user also receives this instruction booklet

thus giving them the necessary information about the use and general warnings

regarding the unit.

y Before the initial start-up, please unpack and carefully check all components in

case any damage may have occurred during shipping.

y Locate a suitable spot for your device where there is good ventilation. Also,

make sure that no ventilating fans or slots are blocked.

y Protect our environment! Please dispose of the packing boxes properly.

y The electrical work that is necessary for installation must done by qualified

personnel.

y Always remember to unplug the unit from the main power before any service is

done. Do not open the unit. There are no serviceable parts inside.

y It is very important to ground the yellow/green conductor to earth in order to

meet regulations for safety.

y Check the surrounding area and make sure there are no flammable liquids,

water or metal objects that could enter the fixture. If a foreign object enters the

unit, immediately disconnect the main power. Also, place the fixture in a well-

ventilated room at about 15 cm from the walls.

y Do not touch any wires during operation, as high voltage is hazardous.

y In the event of serious operating problems, stop using the unit immediately.

Never try to repair the unit yourself. Repairs carried out by unqualified

personnel can lead to damage or malfunction. Please contact the nearest

authorized Technical Assistance Center. Always use genuine spare parts.

Please read the instructions carefully which include important

information about the installation, operation and maintenance.

2. Technical Specification

y Voltage

AC 100V-240V 50-60Hz

y LED

Red: 16pcs, Green: 12pcs, Blue: 12pcs, white: 12pcs

y Dimension

385×170×122mm(LED-635S)

405×170×122mm(LED-635B)

y Weight

2.6KG(LED-635S)

3KG(LED-635B)

y The unit is a DMX512 scanner. It features full DMX512 control, 10

gobos/colors plus open and white, focus adjustable accurate optics system

and stepper motor with blackout feature. Fan cooled.

y It can be operated by DMX512 control or can be used as an individual unit

without controller.

y It can be linked together as many as required in master/slave mode, and

perform the great built-in programmed lighting shows triggered by music.

y Please use a 3 pin XLR cable/plug when connecting them together.

y It features different pre-programmed chase patterns.

1. Safety Introduction

WARNING

y Please keep this booklet with the unit for future consultation. If you sell the unit

to another user, be sure that the new user also receives this instruction booklet

thus giving them the necessary information about the use and general warnings

regarding the unit.

y Before the initial start-up, please unpack and carefully check all components in

case any damage may have occurred during shipping.

y Locate a suitable spot for your device where there is good ventilation. Also,

make sure that no ventilating fans or slots are blocked.

y Protect our environment! Please dispose of the packing boxes properly.

y The electrical work that is necessary for installation must done by qualified

personnel.

y Always remember to unplug the unit from the main power before any service is

done. Do not open the unit. There are no serviceable parts inside.

y It is very important to ground the yellow/green conductor to earth in order to

meet regulations for safety.

y Check the surrounding area and make sure there are no flammable liquids,

water or metal objects that could enter the fixture. If a foreign object enters the

unit, immediately disconnect the main power. Also, place the fixture in a well-

ventilated room at about 15 cm from the walls.

y Do not touch any wires during operation, as high voltage is hazardous.

y In the event of serious operating problems, stop using the unit immediately.

Never try to repair the unit yourself. Repairs carried out by unqualified

personnel can lead to damage or malfunction. Please contact the nearest

authorized Technical Assistance Center. Always use genuine spare parts.

Please read the instructions carefully which include important

information about the installation, operation and maintenance.

2. Technical Specification

y Voltage

AC 100V-240V 50-60Hz

y LED

Red: 16pcs, Green: 12pcs, Blue: 12pcs, white: 12pcs

y Dimension

385×170×122mm(LED-635S)

405×170×122mm(LED-635B)

y Weight

2.6KG(LED-635S)

3KG(LED-635B)

y The unit is a DMX512 scanner. It features full DMX512 control, 10

gobos/colors plus open and white, focus adjustable accurate optics system

and stepper motor with blackout feature. Fan cooled.

y It can be operated by DMX512 control or can be used as an individual unit

without controller.

y It can be linked together as many as required in master/slave mode, and

perform the great built-in programmed lighting shows triggered by music.

y Please use a 3 pin XLR cable/plug when connecting them together.

y It features different pre-programmed chase patterns.

3. How To Control The Unit

(1) Master/Slave operation

The unit can be linked together in daisy chain as many as you need in

master/slave mode to perform the great built-in pre-programmed lighting shows

triggered by music.

In Master/Slave mode refer to the DMX settings below:

Master unit: DMX start address MUST be set to 001. (first DIP switch = ON,

all other are OFF)

Slave units: DMX start address may have any value but NOT 001 (example:

set the first 3 DIP switches to ON)

＊ 2-light show

Dipswitch 10 “off” means the unit works normally and “on” means inversion. In

order to create a great light show, you can set dip switch 10 “on” on any unit that is

linking to the master unit to get contrast movement to the master unit, even if you

have two units only. Dipswitch 10 on the first ( Master ) unit is no use for the 2-light

show as it is the master unit that operates the light show.

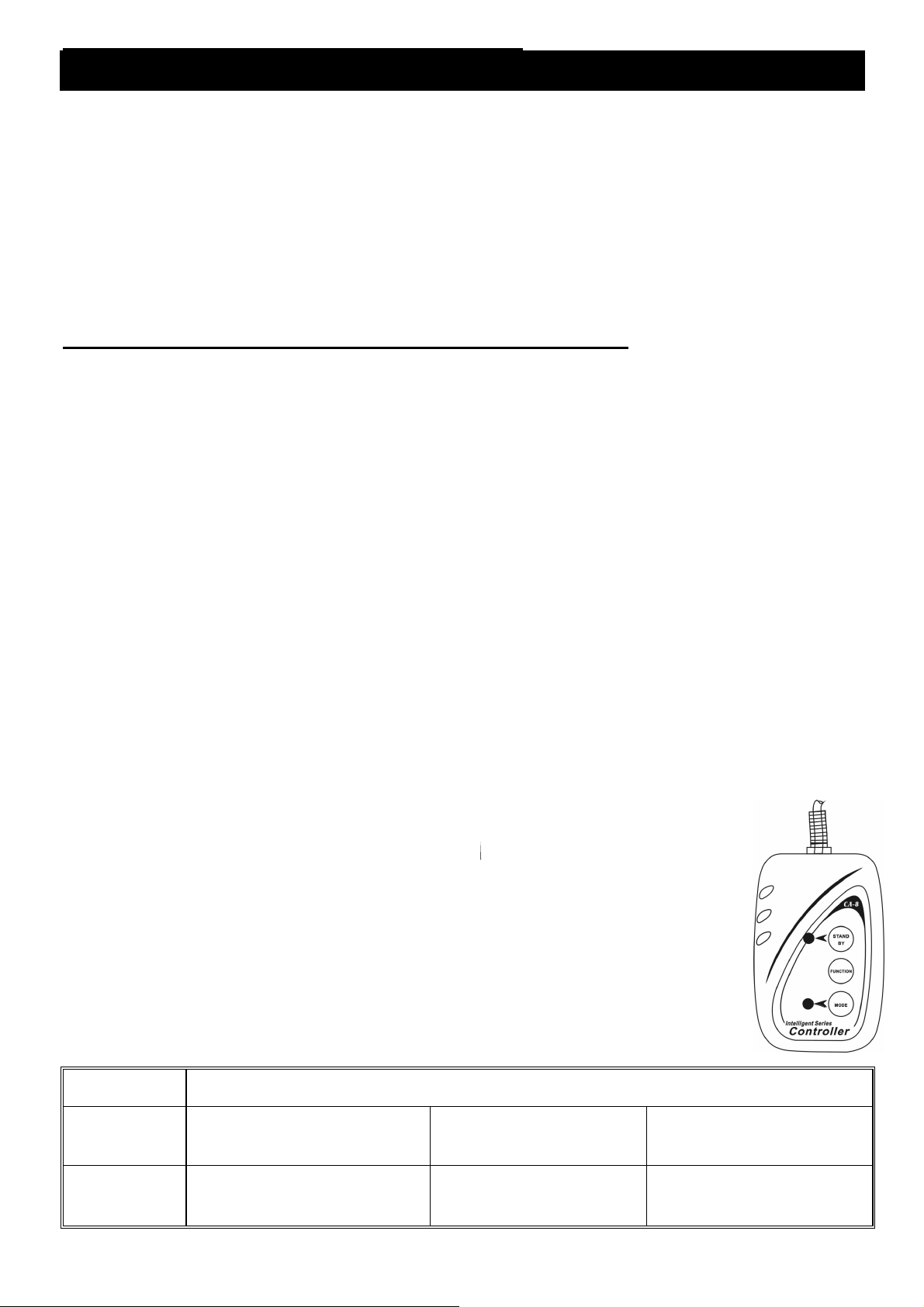

(2) By easy controller

The easy remote control is used only in master/slave mode. By

connecting to the 1/4” microphone jack of the first unit (its DMX input

plug is not used), you will find that the remote control on the first unit

will control all the other units for Stand by, Function and Mode.

Built-in lighting shows triggered by Easy Controller:

Stand by Blackout the unit

Function 1. Sync. Strobe

2. Sound Strobe Select pattern Select Chase

Mode Sound

(LED OFF)

Pattern

(LED ON)

Chase

(LED Slow Strobe)

(3) Universal DMX controller

When using a universal DMX controller to control the chain of units, you have to

set DMX address by Dip switches from 1 to 9 to make sure all the units will

receive its DMX signal. Please refer to the following diagram to know how to

address your DMX 512 system in the binary code.

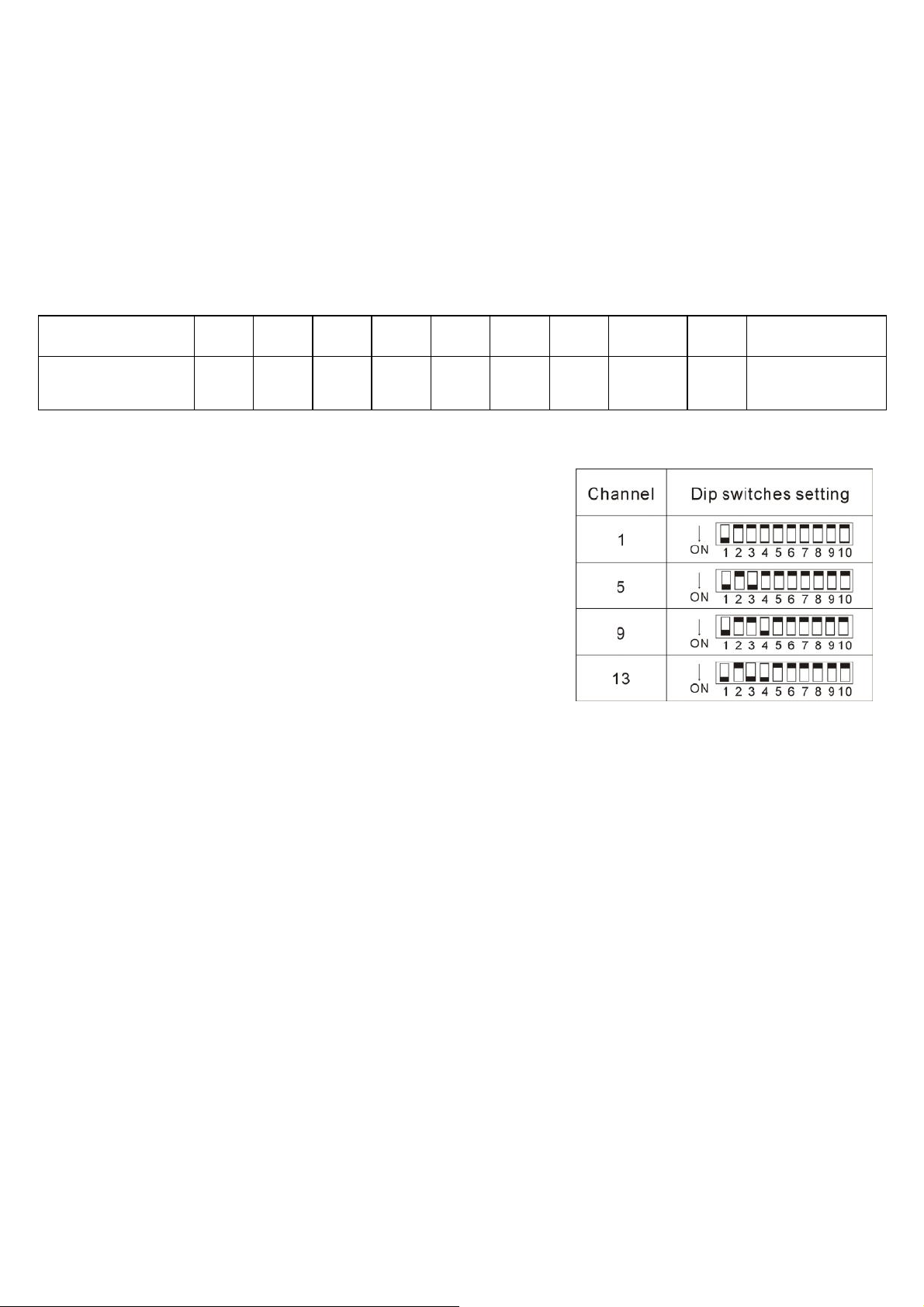

DMX 512 Address Chart:

Dip-switches # 1 # 2 # 3 # 4 # 5 # 6 # 7 # 8 # 9 #10

Value 1 2 4 8 16 32 64 128 256 2-light show

• Examples:

Channel 01：dip / on : #1（=1）

Channel 05：dip / on : #1, #3（1+4=5）

Channel 09：dip / on : #1,#4（1+8=9）

Channel 13：dip / on : #1,#3,#4（1+4+8=13）

3. How To Control The Unit

(1) Master/Slave operation

The unit can be linked together in daisy chain as many as you need in

master/slave mode to perform the great built-in pre-programmed lighting shows

triggered by music.

In Master/Slave mode refer to the DMX settings below:

Master unit: DMX start address MUST be set to 001. (first DIP switch = ON,

all other are OFF)

Slave units: DMX start address may have any value but NOT 001 (example:

set the first 3 DIP switches to ON)

＊ 2-light show

Dipswitch 10 “off” means the unit works normally and “on” means inversion. In

order to create a great light show, you can set dip switch 10 “on” on any unit that is

linking to the master unit to get contrast movement to the master unit, even if you

have two units only. Dipswitch 10 on the first ( Master ) unit is no use for the 2-light

show as it is the master unit that operates the light show.

(2) By easy controller

The easy remote control is used only in master/slave mode. By

connecting to the 1/4” microphone jack of the first unit (its DMX input

plug is not used), you will find that the remote control on the first unit

will control all the other units for Stand by, Function and Mode.

Built-in lighting shows triggered by Easy Controller:

Stand by Blackout the unit

Function 1. Sync. Strobe

2. Sound Strobe Select pattern Select Chase

Mode Sound

(LED OFF)

Pattern

(LED ON)

Chase

(LED Slow Strobe)

(3) Universal DMX controller

When using a universal DMX controller to control the chain of units, you have to

set DMX address by Dip switches from 1 to 9 to make sure all the units will

receive its DMX signal. Please refer to the following diagram to know how to

address your DMX 512 system in the binary code.

DMX 512 Address Chart:

Dip-switches # 1 # 2 # 3 # 4 # 5 # 6 # 7 # 8 # 9 #10

Value 1 2 4 8 16 32 64 128 256 2-light show

• Examples:

Channel 01：dip / on : #1（=1）

Channel 05：dip / on : #1, #3（1+4=5）

Channel 09：dip / on : #1,#4（1+8=9）

Channel 13：dip / on : #1,#3,#4（1+4+8=13）

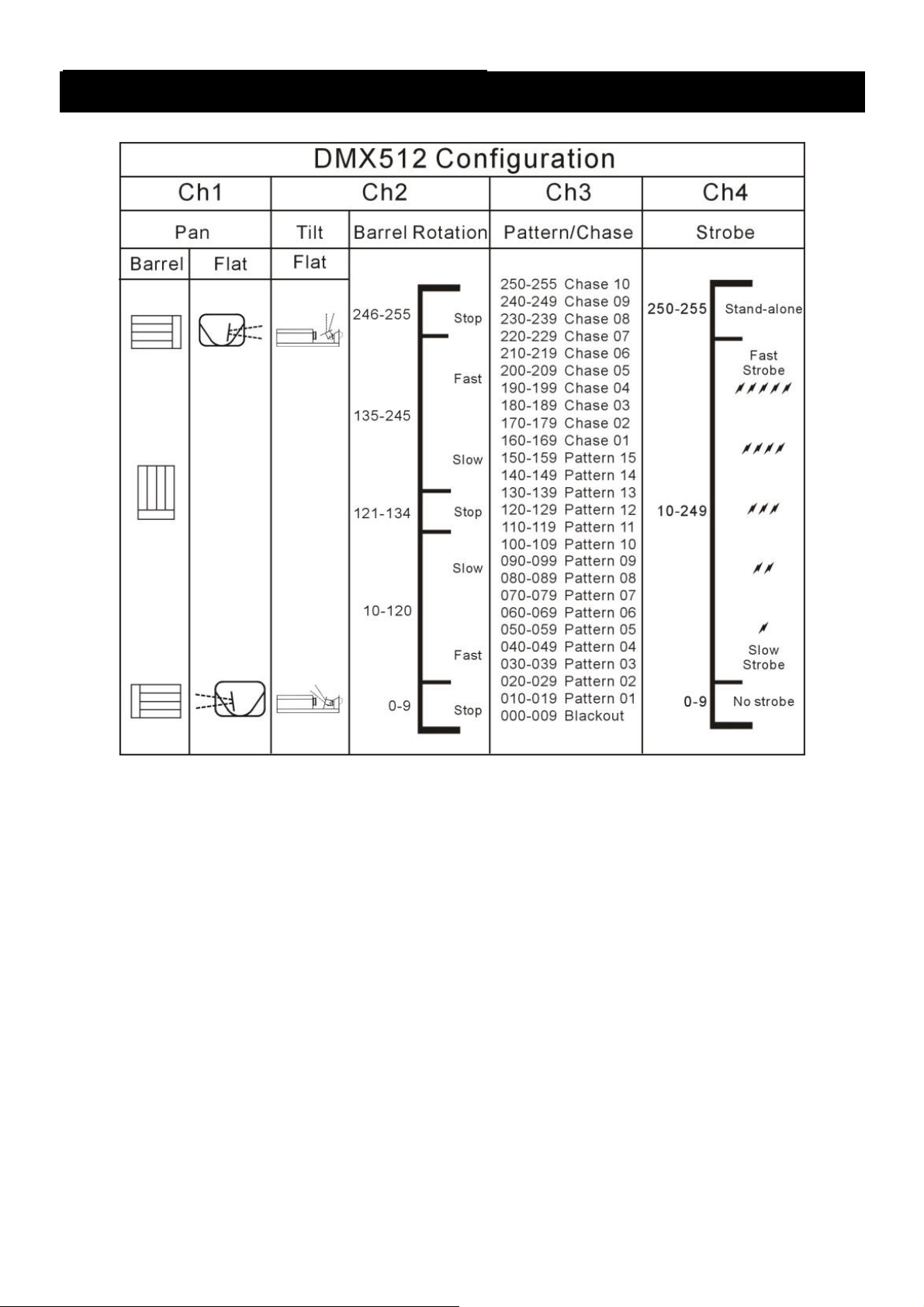

4. DMX512 Configuration

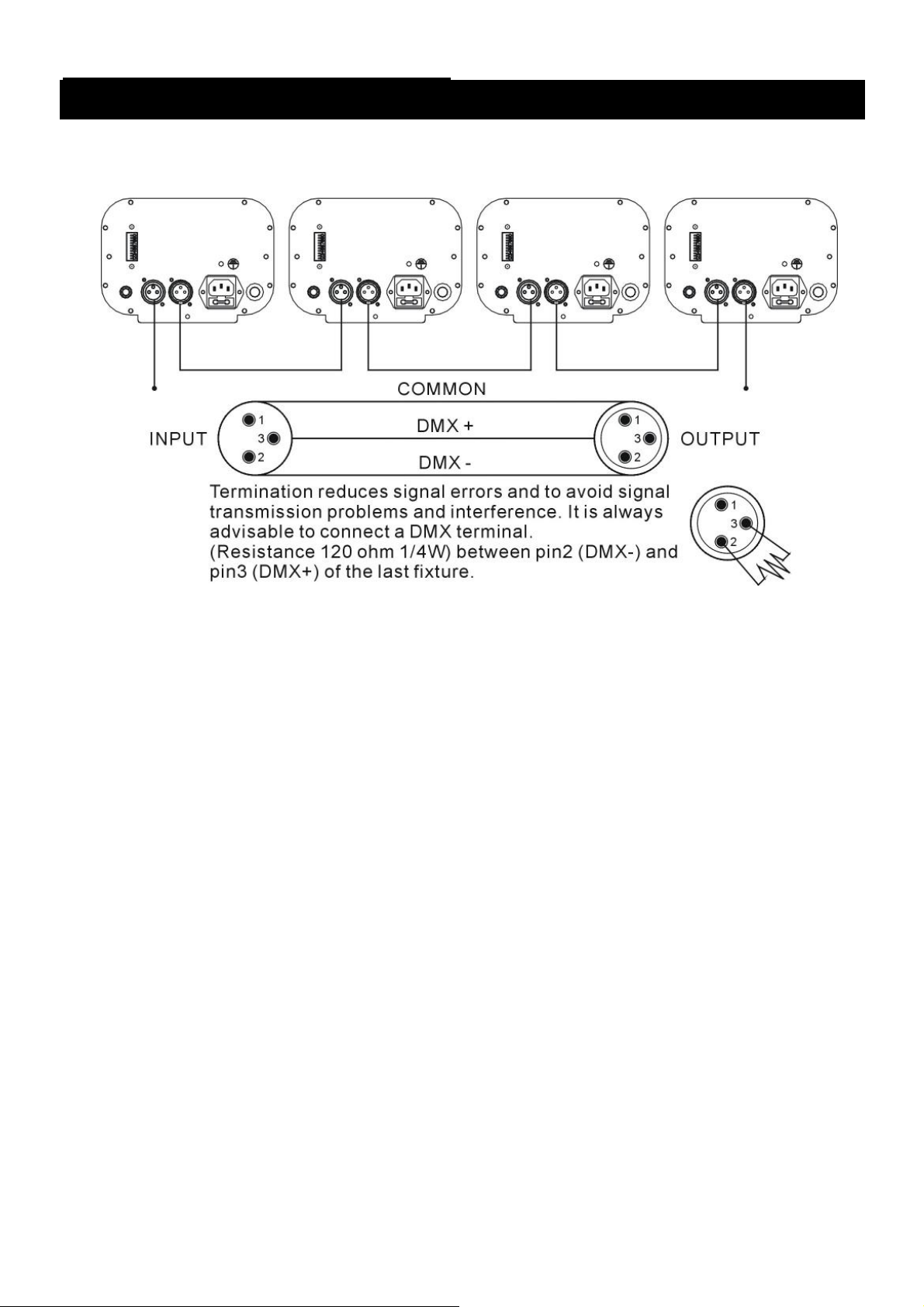

5. DMX512 Connection

The DMX512 is widely used in intelligent lighting control, with a maximum of 512

channels.

y A DMX512 system requires a controller, lighting equipment and cable. These

are connected together in a “daisy chain” with the terminator at the end. The

cable cannot be branched or split to a “Y” cable.

y The terminator requires a 90-120 Ohm 1/4 Watt resistor soldered between

two signal cables.

y The DMX512 uses a very high-speed signal. Inadequate or damaged cables,

bad solder joints or corroded connectors can easily distort the signal and shut

down the system. A reliable DMX512 system starts with good quality cables.

y Each lighting unit needs to have an address set to receive the data sent by

the controller. The address number is between 0-511. The end of the

DMX512 system should be terminated reducing signal errors.

y 3 pin XLR connectors are more popular than 5 pin XLR.

3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)

5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)

4. DMX512 Configuration

5. DMX512 Connection

The DMX512 is widely used in intelligent lighting control, with a maximum of 512

channels.

y A DMX512 system requires a controller, lighting equipment and cable. These

are connected together in a “daisy chain” with the terminator at the end. The

cable cannot be branched or split to a “Y” cable.

y The terminator requires a 90-120 Ohm 1/4 Watt resistor soldered between

two signal cables.

y The DMX512 uses a very high-speed signal. Inadequate or damaged cables,

bad solder joints or corroded connectors can easily distort the signal and shut

down the system. A reliable DMX512 system starts with good quality cables.

y Each lighting unit needs to have an address set to receive the data sent by

the controller. The address number is between 0-511. The end of the

DMX512 system should be terminated reducing signal errors.

y 3 pin XLR connectors are more popular than 5 pin XLR.

3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)

5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)

6. Troubleshooting

Following are a few common problems that may occur during operation.

Here are some suggestions for easy troubleshooting:

A. The unit does not work, no light and the fan does not work

1. Check the connect power and main fuse.

2. Measure the mains voltage on the main connector.

3. Check the power on LED.

B. Not responding to DMX controller

1. DMX LED should be on. If not, check DMX connectors, cables to see if link

properly.

2. If the DMX LED is on and no response to the channel, check the address

settings and DMX polarity.

3. If you have intermittent DMX signal problems, check the pins on connectors or

on PCB of the unit or the previous one.

4. Try to use another DMX controller.

5. Check to see if the DMX cables run near or run alongside to high voltage

cables that may cause damage or interference to DMX interface circuit.

C. Some units don’t respond to the easy controller

1. You may have a break in the DMX cabling. Check the LED for the response

of the master/ slave mode signal.

2. Wrong DMX address in the unit. Set the proper address.

D. No response to the sound

1. Make sure the unit is not receiving DMX signal.

2. Check microphone to see if it is good by tapping the microphone.

E. One of the channels is not working well

1. The stepper motor might be damaged or the cable connected to the PCB is

broken.

2. The motor’s drive IC on the PCB might be out of condition.

7. Fixture Cleaning

The cleaning of internal and external optical lenses and/or mirrors must be carried

out periodically to optimize light output. Cleaning frequency depends on the

environment in which the fixture operates: damp, smoky or particularly dirty

surroundings can cause greater accumulation of dirt on the unit’s optics.

x Clean with a soft cloth using normal glass cleaning products.

x Always dry the parts carefully.

x Clean the external optics at least once every 20 days. Clean the internal

optics at least every 30/60 days.

EC Declaration of Conformity

We declare that our products (lighting equipments) comply with the

following specification and bears CE mark in accordance with the

provision of the Electromagnetic Compatibility (EMC) Directive

89/336/EEC.

EN55014-2: 1997 A1: 2001, EN61000-4-2: 1995; EN61000-4-3: 2002;

EN61000-4-4: 1995; EN61000-4-5: 1995, EN61000-4-6: 1996,

EN61000-4-11: 1994.

Harmonized Standard

EN60598-1: 2000+ALL: 2000+A12: 2002

Safety of household and similar electrical appliances

Part 1: General requirements

Innovation, Quality, Performance

6. Troubleshooting

Following are a few common problems that may occur during operation.

Here are some suggestions for easy troubleshooting:

A. The unit does not work, no light and the fan does not work

1. Check the connect power and main fuse.

2. Measure the mains voltage on the main connector.

3. Check the power on LED.

B. Not responding to DMX controller

1. DMX LED should be on. If not, check DMX connectors, cables to see if link

properly.

2. If the DMX LED is on and no response to the channel, check the address

settings and DMX polarity.

3. If you have intermittent DMX signal problems, check the pins on connectors or

on PCB of the unit or the previous one.

4. Try to use another DMX controller.

5. Check to see if the DMX cables run near or run alongside to high voltage

cables that may cause damage or interference to DMX interface circuit.

C. Some units don’t respond to the easy controller

1. You may have a break in the DMX cabling. Check the LED for the response

of the master/ slave mode signal.

2. Wrong DMX address in the unit. Set the proper address.

D. No response to the sound

1. Make sure the unit is not receiving DMX signal.

2. Check microphone to see if it is good by tapping the microphone.

E. One of the channels is not working well

1. The stepper motor might be damaged or the cable connected to the PCB is

broken.

2. The motor’s drive IC on the PCB might be out of condition.

7. Fixture Cleaning

The cleaning of internal and external optical lenses and/or mirrors must be carried

out periodically to optimize light output. Cleaning frequency depends on the

environment in which the fixture operates: damp, smoky or particularly dirty

surroundings can cause greater accumulation of dirt on the unit’s optics.

x Clean with a soft cloth using normal glass cleaning products.

x Always dry the parts carefully.

x Clean the external optics at least once every 20 days. Clean the internal

optics at least every 30/60 days.

EC Declaration of Conformity

We declare that our products (lighting equipments) comply with the

following specification and bears CE mark in accordance with the

provision of the Electromagnetic Compatibility (EMC) Directive

89/336/EEC.

EN55014-2: 1997 A1: 2001, EN61000-4-2: 1995; EN61000-4-3: 2002;

EN61000-4-4: 1995; EN61000-4-5: 1995, EN61000-4-6: 1996,

EN61000-4-11: 1994.

Harmonized Standard

EN60598-1: 2000+ALL: 2000+A12: 2002

Safety of household and similar electrical appliances

Part 1: General requirements

Innovation, Quality, Performance

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ACME Matériel de DJ

ACME

ACME E-10C WW DXX Manuel utilisateur

ACME

ACME CW-108 Manuel utilisateur

ACME

ACME FARANDOLE AM-BAR Manuel utilisateur

ACME

ACME IM-5S-ELC Manuel utilisateur

ACME

ACME MP-90 RGBW Manuel utilisateur

ACME

ACME CA-DD12 II Manuel utilisateur

ACME

ACME O2 Oxygen Manuel utilisateur

ACME

ACME MH-575S Manuel utilisateur

ACME

ACME iMove 50SR Manuel utilisateur

ACME

ACME MH-640S-ELC Manuel utilisateur

ACME

ACME LED-RC8 Manuel utilisateur

ACME

ACME Junior Series Manuel utilisateur

ACME

ACME DVS-2500 Manuel utilisateur

ACME

ACME CP-56U Manuel utilisateur

ACME

ACME ENERGY HYBRID Manuel utilisateur

ACME

ACME Eventx 100 Manuel utilisateur

ACME

ACME LED-245 II Manuel utilisateur

ACME

ACME BP-40 QW S DXX Manuel utilisateur

ACME

ACME ELLIPSOIDAL E-300 Manuel utilisateur

ACME

ACME WHACK XP-231 BEAM Manuel utilisateur

ACME

ACME LED-920D Manuel utilisateur

ACME

ACME XA-500 Manuel utilisateur

ACME

ACME LED-ST1000 Manuel utilisateur

ACME

ACME LED-BL4B Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
