SafeRing / SafePlus

Retrofit of opening coil Y1 and auxiliary switch S7

F, C and SI Modules with latched mechanism

Installation instructions

www.abb.com

Edition

1.0 Document status

RELEASED Responsible

NODIS

Location Date Name

Language

EN/NO

Prepared NODIS 2008-12-11 BJGU/GUSO

Checked NODIS 2008-12-16 MARE

Approved NODIS 2008-12-16 OLGR

Title

SAFERING / SAFEPLUS

RETROFIT OF

OPENING COIL Y1 AND

AUXILIARY SWITCH S7

F, C AND SL MODULES

ABB ABB Technology Ltd. Document No.

1VDD200027 Sheet No.

1/15

We reserve all rights in this document and in the information contained therein: Reproduction, use or disclosure to third

parties without express authority is strictly forbidden. © ABB Technology Ltd.

General Safety Instructions!

- Check that the installation, putting into service and

maintenance of this apparatus is carried out by qualified

personnel with knowledge of the apparatus to be installed. All

the procedures as laid out in this installation and service

instruction manual must be known.

- To perform the following installation requires a vocational

training (electrician, electrical engineer) and some years of

experience.

- Make sure the standard and legal prescriptions are adhered to

during the installation, putting into service and maintenance.

All procedures must be carried out in strict compliance to the

rules of good working practice and safety at the work site.

- Please read this instruction manual and plan the work before

starting the installation.

- Strictly follow the information given in this instruction manual.

- Pay special attention to the danger notes as indicated in this

manual by the following symbol:

- Check and ensure that the personnel operating the apparatus

have the instruction manual at hand, as well as the necessary

information for correct installation.

- Before starting the retrofit upgrade the switchgear must be de-

energized. The switchgear is de-energized by operating the

switches to disconnected position.

- Check that all mechanism springs are discharged. If in doubt,

close and open the switch.

ABB ABB Technology Ltd. Edition

1.0 Document No.

1VDD200027 Sheet No.

2/15

We reserve all rights in this document and in the information contained therein: Reproduction, use or disclosure to third

parties without express authority is strictly forbidden. © ABB Technology Ltd.

Sikkerhetsinstruks!

- Sørg for at installasjon, idriftsettelse og vedlikehold er utført

av kvalifisert personell som har kjennskap til utstyret som blir

installert. Vedkommende må også kjenne til prosedyrer som

er beskrevet i dette installasjonsheftet.

- For å utføre følgende installasjon kreves yrkesfaglig erfaring

som elektriker, elektroingeniør eller liknende.

- Sørg for at sikkerheten rundt installasjonsarbeidet er ivaretatt

i henhold til nasjonale normer og forskrifter. Arbeidet utføres

av en fagperson.

- Les manualen nøye før arbeidet påbegynnes.

- Utfør installasjonen nøyaktig som beskrevet i denne

manualen.

- Vær spesielt nøye med å lese og følge anvisninger når det er

indikert med fare symbolet:

- Sørg for at betjeningspersonell har dette installasjonsheftet

og har fått nødvendig informasjon når de betjener det

installerte utstyret.

- Før installasjonen påbegynnes, sørg for at avgangen det skal

jobbes på er strømløs og at bryterne er utkoblet.

- Alle fjærer på mekanismene må være avspent. For å forsikre seg

om dette kan bryteren lukkes og åpnes.

ABB ABB Technology Ltd. Edition

1.0 Document No.

1VDD200027 Sheet No.

3/15

We reserve all rights in this document and in the information contained therein: Reproduction, use or disclosure to third

parties without express authority is strictly forbidden. © ABB Technology Ltd.

Installation procedure

The pictures and drawings are for an F module, but this document is also valid for C and Sl modules

with latched mechanism

Bilder og tegninger er av et F-felt, men dette dokumentet er også gyldig for C- og Sl-felt med forspent

fjær

Operating

springs

not charged

Koblingsfjærer

ikke forspent

Operating

springs

charged

Koblingsfjærer

forspent

Operating

springs

not charged

Operating

springs

charged

Koblingsfjærer

ikke forspent Koblingsfjærer

forspent

Used until May 2007

Brukt inntil mai 2007 Existing front covers

Dagens frontdeksler

1. Operate the switch-fuse-disconnector to open position

Betjen lastbryteren til utkoblet stilling

2. Verify that the operating springs are not charged

Kontroller at koblingsfjærene ikke er forspente

3. Operate the earthing switch to closed position

Betjen jordslutter til innkoblet posisjon

4. Unscrew the fixing screw and remove the upper front cover

Løsne festeskruen og fjern det øvre frontdekselet

5. Open the lower front cover

Åpne det nedre frontdekselet

ABB ABB Technology Ltd. Edition

1.0 Document No.

1VDD200027 Sheet No.

4/15

We reserve all rights in this document and in the information contained therein: Reproduction, use or disclosure to third

parties without express authority is strictly forbidden. © ABB Technology Ltd.

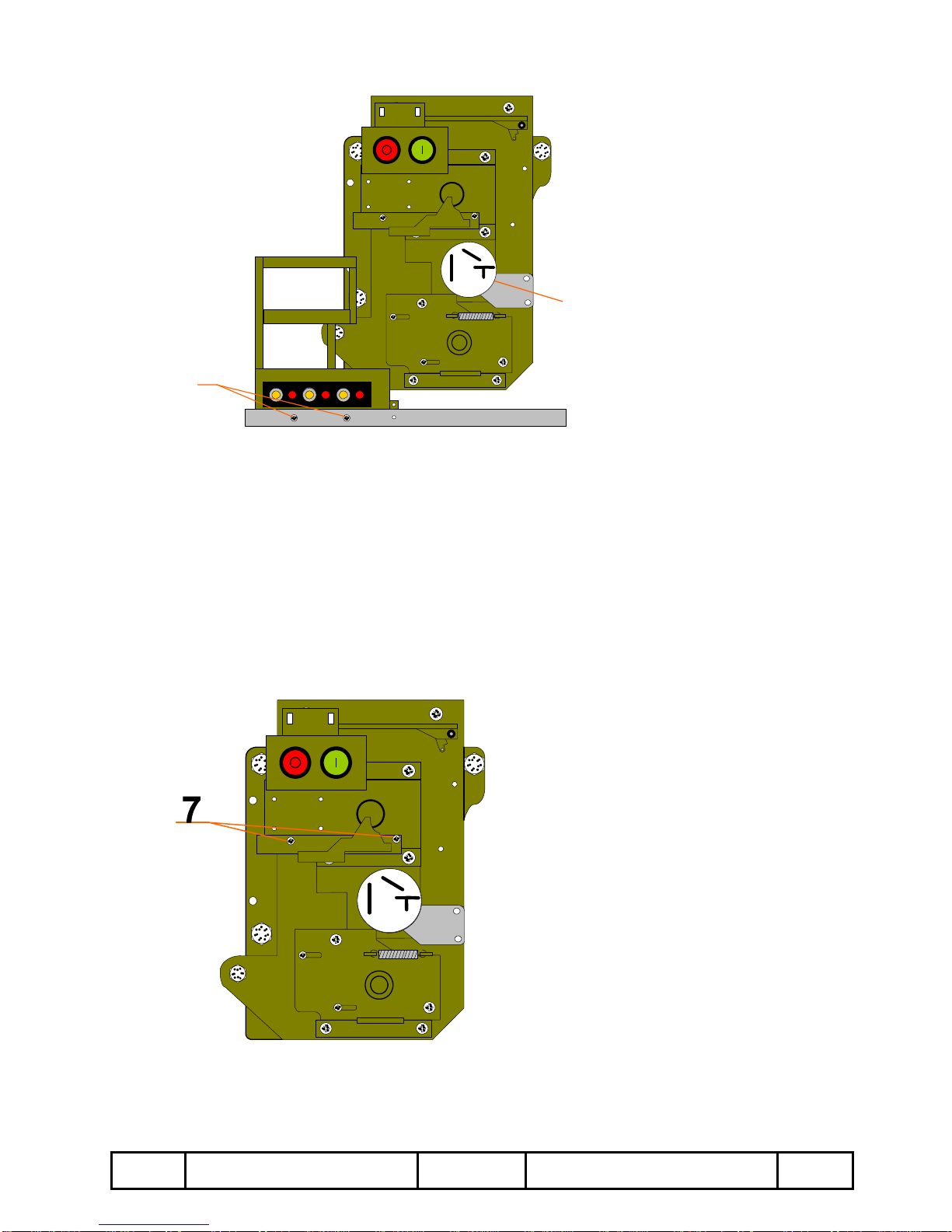

6. Unscrew and remove the bracket for capacitive voltage indication

Skru av braketten for kapasitiv spenningsindikering

*Depending on SafeRing / SafePlus production year, the position

indicator may be different compared to the drawing above. Please

refer to Appendix A, if your position indicator is different

*Avhengig av når SafeRing / SafePlus anlegget er produsert, kan

stillingsindikeringen være forskjellig fra tegningen over. Hvis dette er

tilfelle, vennligst se Appendix A for eldre stillingsindikatorer

7. Unscrew and remove the padlock bracket

Skru av hengelåsbraketten

ABB ABB Technology Ltd. Edition

1.0 Document No.

1VDD200027 Sheet No.

5/15

We reserve all rights in this document and in the information contained therein: Reproduction, use or disclosure to third

parties without express authority is strictly forbidden. © ABB Technology Ltd.

8. Unscrew and remove the bracket for the push buttons

Skru av braketten for trykknapper

9. Snap on protection on the edges of the mechanism to avoid

damage of wires

Monter kantbeskyttelse på mekanismen for å unngå skade på

ledninger

ABB ABB Technology Ltd. Edition

1.0 Document No.

1VDD200027 Sheet No.

6/15

We reserve all rights in this document and in the information contained therein: Reproduction, use or disclosure to third

parties without express authority is strictly forbidden. © ABB Technology Ltd.

10.Pull the position indicator maximum 2 mm out and fit the bracket for the

auxiliary switch marked S7 behind the camshaft, as shown in the picture

Fix the auxiliary switch with 2 pieces of M4x10 screws

Dra ut stillingsindikeringen maksimalt 2 mm og vipp braketten med

signalvenderen merket S7 bak kamakselen, som vist in på bildet

Fest signal-venderen med 2 stk M4x10 skruer

11.Fix the bracket for the terminals marked X1 to the mechanism with

2 pieces of M6x10 screws

Fest braketten med rekkeklemmene merket X1 til mekanismen med

2 stk M6x10 skruer

ABB ABB Technology Ltd. Edition

1.0 Document No.

1VDD200027 Sheet No.

7/15

We reserve all rights in this document and in the information contained therein: Reproduction, use or disclosure to third

parties without express authority is strictly forbidden. © ABB Technology Ltd.

ABB ABB Technology Ltd. Edition

1.0 Document No.

1VDD200027 Sheet No.

8/15

12.Fix the opening coil marked Y1 to the mechanism using a lock

washer and 2 pieces of M5x10 screws

Snap on electrical connections X4 to terminals X1

Strap wires away from moving parts

Fest utspolen Y1 til mekanismen ved hjelp av en låseskive og 2

stk M5x10 skruer

Koble hurtigkobling X4 til rekkeklemme X1

Strips ledningene vekk fra bevegelige deler

M5x10

Lock washer

Låseskive

We reserve all rights in this document and in the information contained therein: Reproduction, use or disclosure to third

parties without express authority is strictly forbidden. © ABB Technology Ltd.

13.Re-place the bracket for the push-buttons, which was removed during step 8

Skru fast braketten med trykknapper som ble fjernet i punkt 8

14.Re-place the padlock bracket, which was removed during step 7

Skru fast hengelåsbraketten som ble fjernet under punkt 7

S10

15.Re-place the bracket for the capacitive voltage indication

Sett tilbake braketten for den kapasitive spenningsindikatoren

ABB ABB Technology Ltd. Edition

1.0 Document No.

1VDD200027 Sheet No.

9/15

We reserve all rights in this document and in the information contained therein: Reproduction, use or disclosure to third

parties without express authority is strictly forbidden. © ABB Technology Ltd.

16.Re-place and fix the front covers

Sett tilbake og fest frontdekslene

ABB ABB Technology Ltd. Edition

1.0 Document No.

1VDD200027 Sheet No.

10/15
