ABB FDNA-01 Manuel d'installation

Options for ABB drives, converters and inverters

Quick installation and start-up guide

FDNA-01 DeviceNet adapter module

Safety instructions

WARNING! Obey the safety instructions. If you ignore them, injury or death, or damage to the

equipment can occur. See the user’s manual.

Mechanical installation

Electrical installation

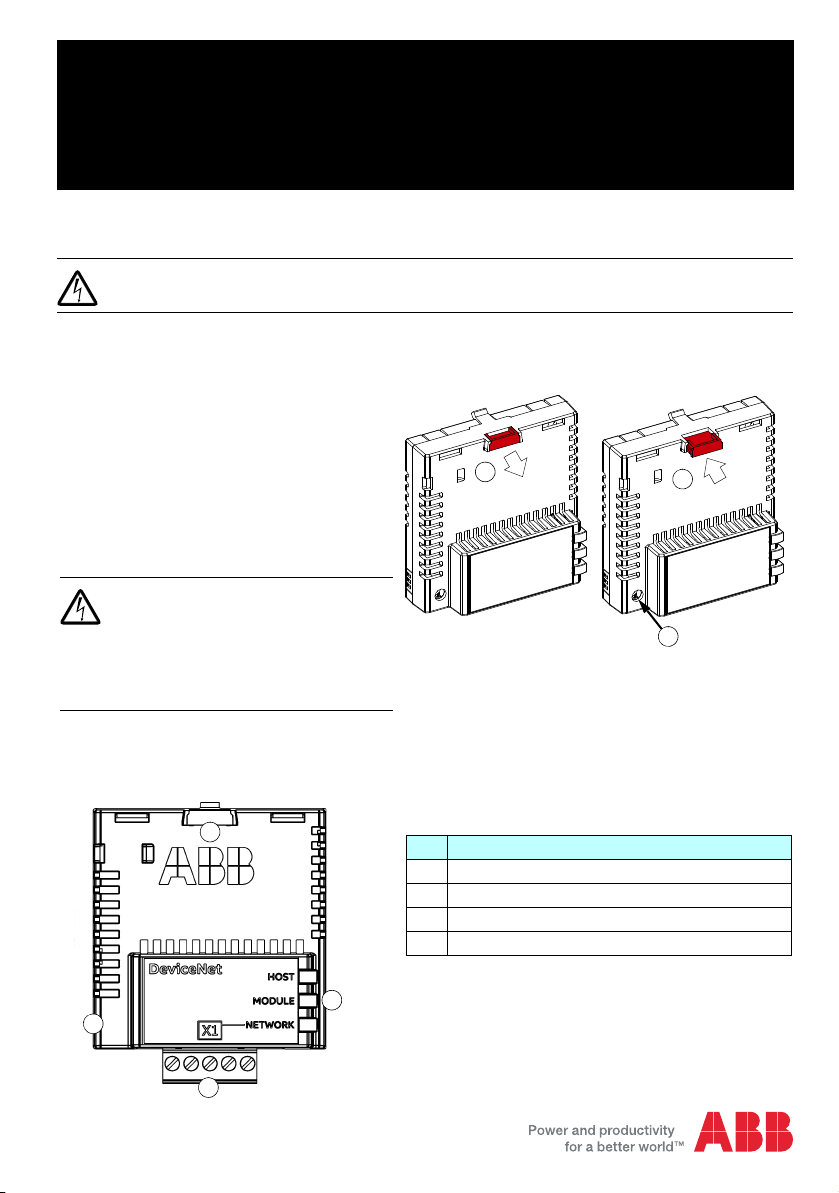

Layout of the module

1. Pull out the lock.

2. Install the module carefully to an option

module slot of the drive. See the drive

hardware manual.

3. Push in the lock.

4. Tighten the screw to torque 0.8 N·m using

a Torx TX10 screwdriver.

WARNING! Do not use excessive force,

or leave the screw too loose. Over-

tightening can damage the screw or

module. A loose screw decreases the EMC

performance, and can even cause an operation

failure.



No. Description

1Lock

2 Mounting and grounding screw

3 Bus connector [X1]

4 Diagnostic LEDs

Start-up

When the module is connected to the drive, the drive control program sets the applicable parameters.

See the appropriate drive manual.

Basic parameter settings

To take the settings into use, validate and refresh the parameters with parameter 51.27 FBA par refresh.

Further information

Index Name Value

20.01 Ext1 commands Fieldbus A

22.11 Speed ref1 source FBA A ref 1

28.11 Frequency ref1 source FBA A ref 1

50.01 FBA A enable Enable (or select the option slot in which the module is installed).

This activates the communication module. The HOST LED becomes green.

50.02 FBA A comm loss func Fault

51.02 MAC ID Set the MAC ID number for the drive.

See the latest version of FDNA-01 DeviceNet adapter

module user's manual (3AFE68573360 [English]) in ABB

library (www.abb.com/drives/documents).

For more information on fieldbus options and protocols

provided by ABB Drives, see the fieldbus

communications web page

(new.abb.com/drives/connectivity/fieldbus-connectivity).

Pin allocation for [X1] Bus termination

The module does not provide bus termination. The DeviceNet

network should be terminated at both ends of the trunk cable with

a 121 ohm, ¼ W, 1% metal film resistor.

Connect the resistor between the two signal wires (CAN_H,

CAN_L) on the DeviceNet cable, as shown in this figure.

Pin Description

1 V- Network power supply

ground (0V DC)

2 CAN_L CAN_L bus line

3 SHLD Network cable shield

4 CAN_H CAN_H bus line

5 V+ Network power supply

source (24V DC)

12345

Node 1 Node n

121



CAN_H

CAN_L

Scanner

121



Metal Film

1/4 W

Metal Film

1/4 W

…

3AXD50000158515 Rev A (EN) 2017-11-23
