ZyXEL Communications X6004 Manuel utilisateur

Benefits

IP PBX

X6004

ˍġSIP Proxy, Registrar and Redirect

Server (RFC 3261)

ˍġDSP Supporting Rich Call

Features and Codec Transcoding

ˍġOptional Trunking Interfaces

Supporting FXO, FXS, ISDN-BRI,

T1, E1 and SIP Trunks

ˍġVoice Mail with E-mail

Forwarding

ˍġFirewall-transparent Softphone

and Web Phone

ˍġUpgradeable N-way Meet-Me

Conference

ˍġWeb-based Management for

System and Personal

Configurations

ˍġAuto-provisioning

ˍġZyXEL SmartExpand Stackable

Mechanism

Stable Telephony Services

ZyXEL X6004 uses IP PBX DSP to prevent unpredictable service break-offs.Smart Expand allows users to

stack many X6004 to gain in capacity and system availability.

Premium Voice Quality

Dedicated DSP resource and QoS mechanism guarantee premium voice quality and performance.With

wideband CODEC, ZyXEL VoIP solution provides excellent voice quality.

Excellent Mobility and Productivity

The X6004’s soft phone and personal web phone enable the road warriors with complete telephony

service as working in office. Firewall transparent VoIP communications ensures the best portability.

Easy Management

The intuitive web-based management,wizard program and centralized dashboard ease the

administration hassle. Besides, auto provisioning minimize the effort of deploying all sorts of ZyXEL IP

phones, ATAs and VoIP gateways.

Expandable Design Protects Customer Investments

Modular design of trunk interfaces, features, and DSP ensure incremental investment to fit glowing

needs.The X6004 can also work as a trunk gateway as well to construct a multi-site VoIP service

environment with other X6004s.

Seamless Integration with Telco, ITSP Services, and Legacy PBX

The X6004 supports the versatile trunking expansions, including FXO, FXS, ISDN,T1 and E1. The users can

easily fit into all sort of telephony environment.Furthermore,standard SIP trunks and trusted peers

make the X6004 seamlessly integrated with ITSP services.

Value-added Services Enrich VoIP Applications in Enterprise

With click-to-talk call center, 64-line meet-me conference and video conference, the X6004 enables the

brand new working style through converged and unified communications. Leveraging Microsoft Office

Exchange Server, the X6004 makes E-mail and VoIP as a complete UC application.

Enterprise-Grade IP PBX System for

Small and Medium Businesses

Specifications

System Specifications

Standard Protocols

• SIP Proxy,SIP Registrar and SIP Redirect

Server (RFC 3261)

• SIP Outbound Proxy Server

• SDP (RFC 2327), RTP (RFC 1889), RTCP (RFC

1890)

Basic Call Services

• Caller ID

• Call Waiting

• Call Hold and Retrieve

• Call Park and Retrieve

• Call Pickup (Group/Direct)

• Call Forward (No Answer, Busy, Unconditional)

• Do Not Disturb (DND)

• Call Transfer

• Call Back on Busy

• Distinctive Ringing: 12 Kinds of Ring Tones for

3 Types of Calls

• Intercom

• Call Detail Record (CDR) Database

• Phonebook:

- Automatically Synchronized with LDAP Server

- Locally Manipulated Phonebook

• Cross-subnet Group Paging

• Music-On-Hold

• SIP Presence

Outbound Call Handling

• Call Emergency

• Least Cost Route (LCR)

• Group Control

• Call Access Code

• Call Screening

• SIP Trunks and Trusted Peer for ITSP Services

Incoming Call Handling

• Call Blocking

• Hunt Group:

- Ring Algorithm: Ring All, Round Robin,

Least Recent, Fewest Calls,and Random

• Direct Inward Dialing (DID/DDI)

• Night Service:

- Auto-attendant

- Call Forwarding

- Hunt Group

Voice Mail and Auto Attendant

• 10 x 10 x 10 Auto Attendant (AA) Profiles and

Interactive Voice Response (IVR)

• Voice Mail (VM) with E-Mail Forwarding

• Message Waiting Indicator (RFC 3842)

Advanced

• Meet Me Conference: Support Up to 64 Lines

per Conference (with optional 64-CH DSP

expansion module)

• Click to Dial: Contact in Personal Web Portal

• Personal IVR

• Firewall Transparent Web Phone and

Soft Phone

• Compact Click-to-Talk Call Center

• PC-based Attendant Console

• SIP Surveillance

Codec/DSP

• Voice Codec and Support DSP Trans-coding:

- G.711a/µ

- G.729a/b

- G.726 (32 Kbps)

- G.723.1 (5.3 Kbps)

• Wideband Voice Codec Pass-through:

- G.722

- G.722.2 AMR-WB

• Video Codec Pass-through:

- H.261

- H.263

- H.264

- MPEG-4 SP/ASP

• G.168 Echo Cancellation

• G.711 PCM Fax/Modem Detection and

Pass-through

• Voice Activity Detection (VAD)

• Comfort Noise Generation (CNG)

• Dynamic Jitter Buffer

• DTMF Detection and Generation

• DTMF Relay:

- In-Band

- RFC 2833

- SIP Info

• Auto Gain Control (AGC)

Management

• Web-based Management for System and

Personal Configuration

• ZyXEL SmartExpand Dashboard

• Intuitive Wizard for IP PBX Administration

• Group-oriented Authority Management

• Quality of Service: IPTOS and DiffServ

• DSP Channel Allocation

• Sys Log

• Auto Provision

• myZyXEL.com Online Service Subscription

• E-mail Notification:

- CDR Rotation & Alert

- System Log Rotation & Alert

• Multi-lingual Web GUI and Voice Prompts

Reliability

• Full Redundancy: Active-Active and

Active-Standby

• Backup Power Module (BPM)

• FXO Lifeline

Flexibility and Scalability

• ZyXEL SmartExpand Mechanism

• Optional Trunking Expansion Modules:

- 4-port FXO

- 4-port FXS

- 2-port FXO and 2-port FXS with Lifeline

- 1-port ISDN PRI (T1/E1 configurable)

- 4-port ISDN BRI/ST (NT/TE configurable)

• Optional DSP Expansion Modules: 16, 32,and

64 Channels

• Optional Advanced Media Storage

• Detachable Slide-in Fan Module

• Detachable Power Module

System Capacity

• Max. Extensions: 128

• Max.Voice Mail:

- Without Advanced Media Storage: 90 Minutes

- With Advanced Media Storage: 1,000 Hours

(Optional)

• ZyXEL SmartExpand Up to 5 Units

Trunk Compliance

• ISDN PRI (T1/E1):

- Alcatel-Lucent, Avaya, Siemens, and Nortel PBXs

• SIP Trunk:

- Nokia Siemens, Nortel, Broadsoft, and Huawei

Soft Switches

Hardware Specifications

• Embedded Network Processor

• Memory 256 MB SDRAM

• Built-in 32 DSP Voice Channels

• Storage:

- Default 256 MB Flash

- Advanced Media Storage Expansion Slot: 1

• Network:

- WAN: 10/100M Auto MDI/MDIX, Ethernet: 1

- LAN: 10/100M Auto MDI/MDIX, Ethernet: 1

• Trunking Expansion Slots: 4

• DSP Expansion Slots: 2

• DB9 RS-232 Port for Console Configuration: 1

• Restore Factory Defaults/Reboot Button

• LED Status Indicators: SYSTEM, ALARM, HDD

and POWER

• Power:

- Full-Range 75 W PSU (100 ~ 240 V/50 ~ 60 Hz)

- Detachable Power Module

- BPM Socket: 1 (ZyXEL BPS,120 W 12 V DC)

- Max. Operational Power Consumption:40 W

• Slide-in Fan Module Slot: 1

Physical Specifications

• Dimensions: 437 (W) x 310 (D) x 66 (H) mm

• Weight:5.6 Kg (without expansion)

Environmental Specifications

• Operating Temperature: 0ºC ~ 40ºC

• Operating Humidity: 20% ~ 95% RH

• Storage Temperature: -30ºC ~ 60ºC

• Storage Humidity: 20% ~ 95% RH

Component List

• System: X6004

• Trunking Expansion Modules:

- M6FO4

- M6FS4

- M6FO2FS4

- M6BRI4

- M6T1E1

• DSP Expansion Modules:

- M6D16

- M6D32

- M6D64

• Advanced Media Storage Modules:

- M6AMS

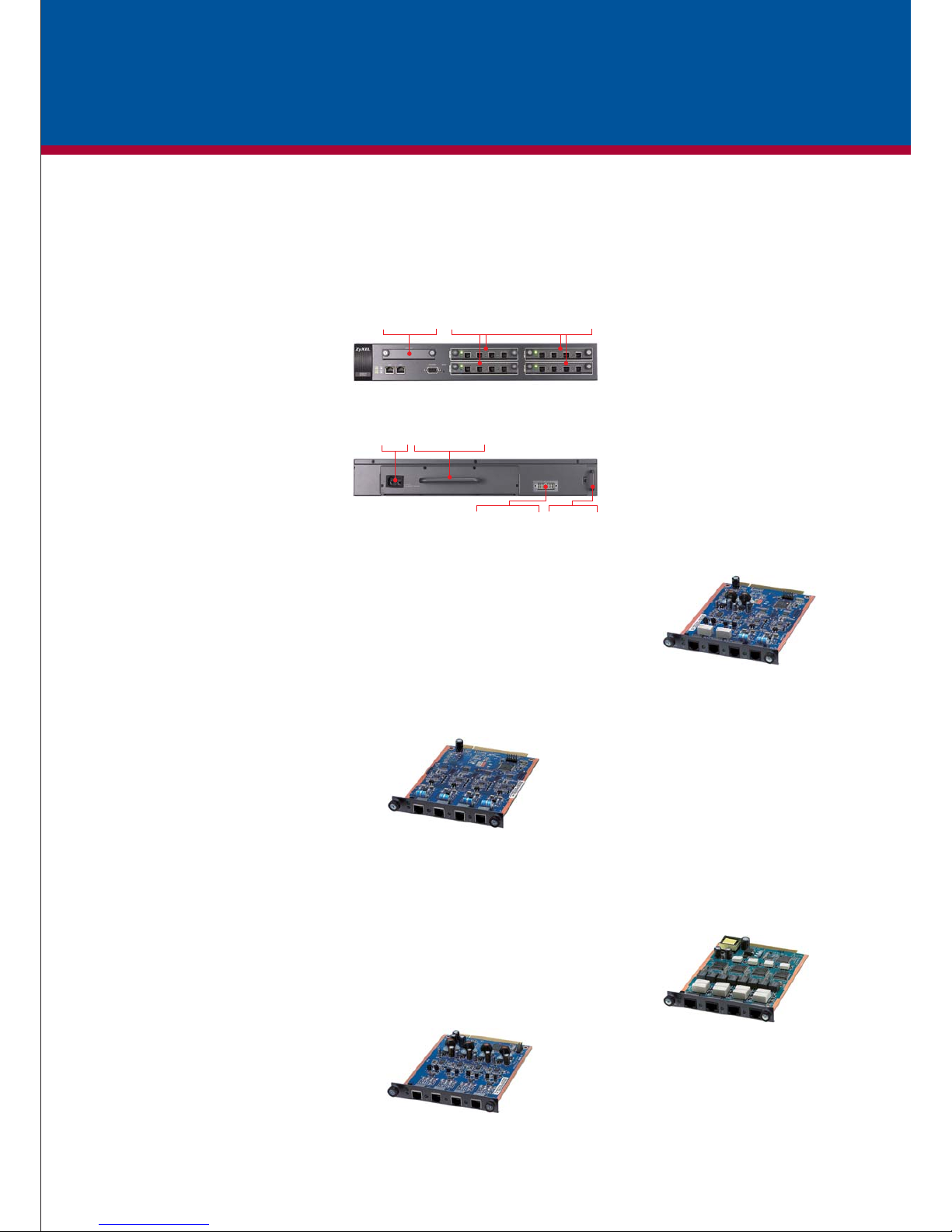

A Quick Look at X6004

X6004 Hardware View (Front)

X6004 Hardware View (Rear)

M6FO4

• ZyXEL IPPBX Outbound Trunk

• Interface Type: Foreign eXchange Office (FXO)

• Signaling Formats:Ground Start and Loop Start

• Address Signaling Formats: In-band DTMF

• Physical Connector: RJ-11

• Number of Connectors: 4

• Dimensions: 119 (W) x 152 (D) x 18 (H) mm

• Weight: 107.6 g

M6FS4

• ZyXEL IPPBX Analog Phone Interface

• Interface Type: Foreign eXchange Station (FXS)

• Signaling Formats:Loop Start

• Address Signaling formats:In-band DTMF

• REN: 5 per port

• Physical Connector: RJ-11

• Number of Connectors: 4

• Dimensions: 119 (W) x 152 (D) x 18 (H) mm

• Weight: 121.6 g

M6FO2FS2

• ZyXEL IPPBX Outbound Trunk and Analog

Phone Interface with Lifeline

• Interface Type: Foreign eXchange Office (FXO)

and Foreign eXchange Station (FXS)

• Signaling Formats:

- FXO: Ground Start and Loop Start

- FXS: Loop Start

• Address Signaling Formats: In-band DTMF

• FXS REN: 5 per port

• Physical Connector: RJ-11

• Number of Connectors:

- FXO: 2

- FXS: 2

• Dimensions: 119 (W) x 152 (D) x 18 (H) mm

• Weight: 126.6 g

M6BRI4

• ZyXEL IPPBX Outbound Trunk

• Per-port Configurable Mode: NT (Network

Termination) and TE (Terminal Equipment)

• Protocol: I.430

• Switch Type: 5ESS (US), DMS100 (US), NI1 (US),

NET3 (Europe), INS64 (Japan), AUS (Australia)

• Supplementary Services: CLIP, DDI, and MSN

• Interface Type: ISDN BRI S/T

• Physical Connector: RJ-48

• Number of Connectors: 4

• Dimensions: 119 (W) x 152 (D) x 18 (H) mm

• Weight: 161.4 g

Power

Jack

Detachable

Power Module

BPS Connector

(BPS-120)

Detachable

Fan Module

HDD Module Trunking Expansion Module

M6T1E1

• ZyXEL IPPBX Outbound Trunk

• Configurable Mode: NT (Network Termination)

and TE (Terminal Equipment)

• Protocol: I.431, Q.921, Q.931, and Q.SIG

• Switch Type: 4ESS (US), 5ESS (US), DMS (US),

NI2 (US), NET5 (Europe), INS (Japan), AUS

(Australia), Q.SIG

• Supplementary Services: CLIP and DDI

• Interface Type:T1/E1

• Physical Connector: RJ-48

• Number of Connectors: 1

• Dimensions: 119 (W) x 152 (D) x 18 (H) mm

• Weight: 108.2 g

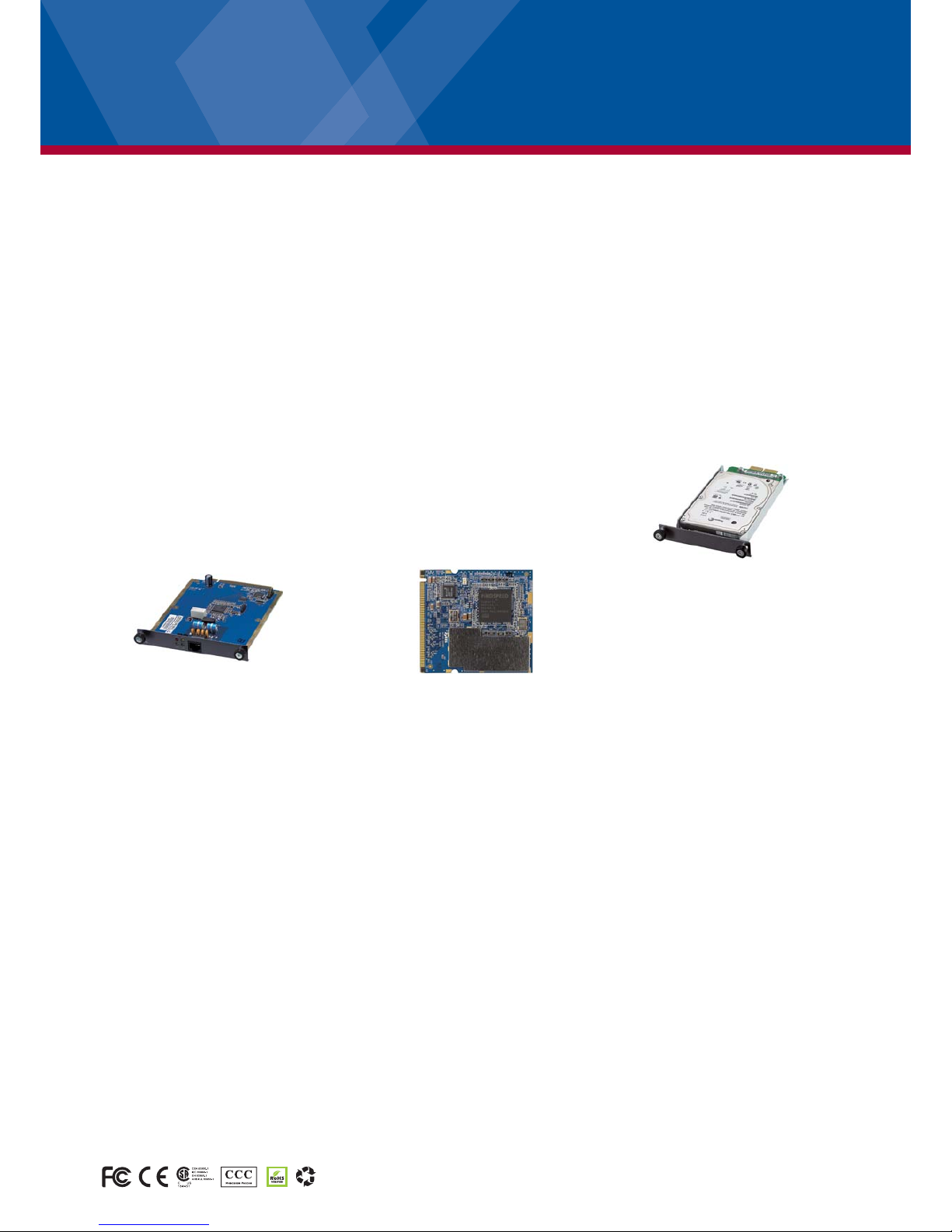

M6D16/32/64

• ZyXEL IP-PBX DSP Expansion Module

• Complete VoIP Processing from TDM to Ethernet

• Packet Processing:

- QoS Pre-router

- VoIP: RTP/UDP/IP/Ethernet

- RTCP

- DTMF: RFC2833

• G.165/G.168 Echo Cancellation with Echo Path

Change Detection

• Voice Codecs: G.711 u/A law,G.726, G.729A/B,

and G.723.1

• Number of Channel: 16/32/64

• Dimensions: 59 (W) x 64 (D) x 5 (H) mm

• Weight: 16.2 g

M6AMS

• ZyXEL IP-PBX Advanced Media Storage Module

• 2.5”SATA HDD: 80 GB

• Added-On Feature:

- Voice Mail: 1,000 Hr

- Call Recording: 100 Hr

- CDR Database: 20M records

- IVR: 100 Hr

• Dimensions: 94 (W) x 155 (D) x 18 (H) mm

• Weight: 189.2 g

For more product information, visit us on the web at www.ZyXEL.com

65-100-600402B 04/08

Communications Corp.All other brands, product names, or trademarks mentioned are the property of their respective owners.

All specifications are subject to change without notice.

Autres manuels pour X6004

Table des matières

Autres manuels ZyXEL Communications Matériel réseau

ZyXEL Communications

ZyXEL Communications Network Storage Appliance NSA-220 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications NSA-2401 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications NSA-2400 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications UNS2300 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications P-2802HWL-I - V3.70 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications ZYWALL OTPV2 - Manuel utilisateur

ZyXEL Communications

ZyXEL Communications IES-708 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications Multi-service Access Platform MSAP2000 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications 2-Slot 10GBase-CX4 10Gigabit Module EM-412 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications Internet Security Gateway ZyWALL 100 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications Network Storage Appliance NSA-220 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications NXC Series Mode d’emploi

ZyXEL Communications

ZyXEL Communications Prestige 971M Manuel utilisateur

ZyXEL Communications

ZyXEL Communications WAP6405 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications P-2602HWNLI Manuel utilisateur

ZyXEL Communications

ZyXEL Communications PM7516-R0 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications ZyAIR B-320 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications ZyAir G-100 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications Centralized Network Management Vantage CNM Manuel utilisateur

ZyXEL Communications

ZyXEL Communications NSA-2400 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications POE-12 Guide de référence

ZyXEL Communications

ZyXEL Communications ONU-6040BBF-22 - V1.00 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications NSA-220 Plus Manuel utilisateur

ZyXEL Communications

ZyXEL Communications EOC350 Series Manuel utilisateur

Manuels Matériel réseau populaires d'autres marques

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuel utilisateur

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuel utilisateur

Yudor

Yudor YDS-16 Manuel utilisateur

D-Link

D-Link ShareCenter DNS-320L Manuel utilisateur

Samsung

Samsung ES1642dc Instructions d'utilisation

Honeywell Home

Honeywell Home LTEM-PV Instructions de montage

evertz

evertz 7700 Series Manuel utilisateur

D-Link

D-Link ShareCenter DNS-343 Manuel utilisateur

Asante

Asante AsanteBridge 1012 Manuel utilisateur

FireBrick

FireBrick FB2700 Manuel utilisateur

Audiovox Electronics

Audiovox Electronics ARWH2T Manuel utilisateur

ADC

ADC DSX-1 Manuel

NetComm

NetComm NF2 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 5620 Manuel utilisateur

Dell EMC

Dell EMC XC6420 Series Manuel utilisateur

Lanner

Lanner NCA-1020A Manuel utilisateur

Allied Telesis

Allied Telesis AT-TN121-A Manuel utilisateur

Arista

Arista CCA-ETM-Q12 Manuel utilisateur
