ZyXEL Communications NSA-2401 Manuel utilisateur

Ł

Storage capacity of up to 8 TB

Ł

Dual Gigabit LAN ports support failover/load balancing/link aggregation

Ł

Volume encryption with 256-bit AES

Ł

Disk configurations: JBOD, RAID0, RAID1, RAID5 and RAID10

Ł

Snapshot backup helps quickly recover previous versions of files

Ł

Supports encrypted remote replication, local backup and self volume to

volume backup

Ł

Hot spare and hot swappable

Benefits

High Performance

To facilitate file sharing between different users or platforms, the ZyXEL NSA-2401 network storage

appliance meets the need of small business users with outstanding performance and massive

capacity designed for mission-critical storage management. Its 800 MHz-grade CPU, 256 MB DDR II

memory and dual Gigabit LAN ports empower data reading/writing and network transmission

performance outperforming the competition with the best price/performance ratio.

High Availability

In addition to typical RAID functionalities, the NSA-2401 provides a“hot spare”feature (RAID1 + Spare,

RAID5 + Spare) to reduce down time in the event of driver failure.If any HDD failure occurs, the spare

HDD in the NSA-2401 will automatically take over from the failed one and continue to function

without corrupting the files, or interrupting regular NAS operations.

The NSA-2401 can also collaborate with an optional UPS device to protect files and databases from

sudden power failures or surges.With the NSA-2401 monitoring the power level from the UPS (via

USB) port, the IT staff can be informed of power failure or low UPS power level via e-mail in order to

backup/save important data or shutdown the system safely in time. All these features ensure

maximum device availability.

Energy-Saving Business NAS Server

with Dual GbE LANs, Volume

Encryption and Complete

RAID/Snapshot Backup Solutions

NSA-2401

Network Storage

Appliance

NSA-2401

Network Storage

Appliance

NSA-2401

Network Storage Appliance

NSA-2401

Network Storage Appliance

Easy Capacity Expansion

The IT staff can install cost-effective, low-capacity HDDs on the NSA-2401 for applications that require only a smaller capacity.When demand grows, the

RAID5/JBOD online capacity expansion feature will allow capacity addition through simply installing extra HDDs.

Energy Saving for the Environment

More energy consumption means more carbon dioxide released into the atmosphere.To better protect the environment, the NSA-2401 consumes less

power (only 58 W in access mode, 25 W in idle mode) with no compromise on performance. Compared to traditional NAS and storage servers (normally

consuming 200 W), the NSA-2401 uses 60% less power to save energy as well as the electricity cost.

In off hours such as night time, weekends or holidays with low data traffic, the NSA-2401 can be scheduled to automatically perform power management

according to specific date/time settings or idle time criteria for better power efficiency.

Enterprise-Class Backup Solutions

The NSA-2401 offers an integrated and enterprise-class backup and recovery solution to secure valuable files and databases to run the business smoothly

with less risks of data-loss disaster. It equips with the most popular backup features used by enterprises today,including snapshoot, remote replication,

local backup,instant/scheduled backup, PC client backup and Windows/SQL/Exchange server backup.With Snapshot backup,End-users can instantly

recover a previous version of the file or folder.

To lower the TCO (Total Cost Ownership) an unlimited number of licenses of the Genie Backup Manager Lite software is bundled with the NSA-2401 and

ZyXEL also provides one license for Genie Backup Manager Server software to backup your SQL/Exchange server databases.What used to be considered an

expensive luxury has now been made affordable for small business owners by ZyXEL.

Easy Recovery with Snapshot Backup

The IT staff routinely spends a considerable amount of time and resources dealing with data backup operations; worse yet, the time needed to backup

Terabytes or more of data on traditional tape or disks may becomes a serious headache when facing limited time and resources.To solve this,ZyXEL

presents Snapshot Backup technology.

The Snapshot Backup function creates special“Snapshot” folders in the file system at preset time intervals.The folders allow users to access files of previous

versions anytime when needed, and Snapshot folders can also be browsed and accessed like regular ones.To restore a previous file,simply copy it from the

Snapshot folders. It’s easy and fast.

Most Secure Volume Encryption

Important business files and databases should be securely stored or transmitted to prevent unauthorized access. Hacked or leaked critical information in

the wrong hands may jeopardize confidential information such as financial data, projects in development or sensitive customer information.

In addition to secure FTP/S and HTTP/S file transmission methods, the NSA-2401 also guards the system with Volume Encryption. Volumes or disks can be

encrypted with the robust 256-bit AES algorithm; only authorized personnel with the right password or USB key can access the encrypted data.

Easy Setup, Low Maintenance

Web-based device and disk setup Wizards can help non-technical users setup the NSA-2401 in merely 10 minutes.For first-time installation, the NSA-2401

Discovery Utility also helps with locating and managing the device’s IP address without changing the TCP/IP configuration.

The“S.M.A.R.T.”feature provides complete HDD information.This helps the IT staff pinpoint potential or critical disk issues and to prevent HDD failures or

critical data loss in advance.

Complete logs features, such as event log and Syslog, help the IT staff keep an eye on the system status, access histories and connection status. Should any

critical incident occur, the IT staff will be notified by emails and a buzzer will be activated immediately to warn the on-site personnel.

Specifications

System Specifications

Networking

• Network protocol

- CIFS/SMB, NFS (for Linux/Unix)

- FTP, HTTP, DFS (Distributed File System)

• Network settings

- DHCP client

- Static IP

- NTP with daylight saving option

OS & File System

• Embedded OS: Linux 2.6

• External HDD: EXT2/EXT3, FAT32, NTFS, XFS

(Journal file system)

• Internal HDD: XFS

Security Feature

• Encrypted network login

• FTP/S

• HTTP/S

• Volume encryption with AES-256

• Encrypted NSA to NSA network backup

with security

• Access control by users or groups

LAN Feature

• Dual Gigabit LAN

- 10/100/1000 Mbps Auto-MDIX

- Failover

- Link aggregation (IEEE 802.3ad compliant)

- Load balancing

- Jumbo frame up to 9K bytes

Backup Feature

• Snapshot backup

- Snapshot scheduler

- Snapshot rollback

- Snapshot space automatically expansion

• Remote replication

- Instant/Schedule backup manager

- NSA to NSA archive/full backup

- NSA to NSA incremental backup

- Support rsync for NSA to NSA and NSA to PC

- Backup task bandwidth control

• Local backup

- Local volume to volume backup

- Backup to USB disk

- Programmable backup button

- Recycle Bin

• Compatible backup utilities

- Genie Backup Manager Lite® (Free bundled

with unlimited license)

- Genie Backup Manager Server® (Free bundled

with one license)

RAID/DISK Feature

• RAID level

- JBOD (Just Bundle of Disk)

- RAID0 (Striping)

- RAID1 (Mirroring)

- RAID1 (Mirroring + Spare)

- RAID5 (Striped Set with Parity)

- RAID5 (Striped Set with Parity + Spare)

- RAID10 (Stripe of Mirrors)

• Hot spare

- A spare hard drive as hot spare in case of

disk failure

• Online expansion

- Online Expansion (JBOD/RAID5) with larger

drives capacity

• Disk maintenance

- Self-Monitoring, Analysis & Reporting

Technology (S.M.A.R.T)

- Automatically disk bad block scanning

USB Application

• Support Max two USB printer servers (by CIFS

protocol)

• Support external USB HDD

• Support memory stick and card reader

• Support USB UPS power monitoring and auto

shutdown

Power and Thermal Management

• Power control

- Idle mode

- Scheduled startup/shutdown/reboot

- Automated power on after power failure

• Thermal management

- Automatically fan speed control according to

temperature of internal chassis

- Fan failure alert/buzzer

- Email alert while high temperature

- Auto shutdown while high temperature

Management

• User & Group Management

- Max user accounts: 512

- Max groups: 32

- Max share folders: 100

- Concurrent connection: 64

- MS Active Directory Service (ADS)

- NTv4 domain

- Quota assignment per user

• Reset button

- Reset IP address and password to default

- Reset all device settings to default, but all the

data in HDD remains

• Device and disk setup

- Web-Based wizard for device setup and

disk setup

- NSA discovery utility

- Online help on each page

System Tools

• System maintenance

- System resource, session, status monitoring

- System configuration backup and restore

- Firmware upgrade

• Alarm/Buzzer

- System alert and health notification

• Logs

- Syslog

- Event logs

- Acton logs for read/write files, create/delete

directory

• Browsers supported

- IE 6.0+, Safari 3.0+, Firefox 2.0+

• Multilingual support

- English, French, Germany, Italian,Traditional-

Chinese

• Supported OS for Genie Backup Manager Lite®

- Windows® Vista/XP/2000/98/SE

• Supported OS for Genie Backup Manager

Server®

- Windows® 2000/2003 Server

Hardware Specifications

• Processor: Freescale 8543 800 Mhz

• Memory

- 256 MB Flash

- 256 MB DDR II SDRAM

• Drive bays

- Up to 4 internal HDDs

- Both SATA and SATA II interface supported

- Hot swappable

• LAN port

- 2 x Gigabit RJ-45 Ethernet port

- IEEE 802.3ab compliant

- IEEE 802.3ad compliant

- IEEE 802.3u compliant

- IEEE 802.3 compliant

• USB

- 2 x USB 2.0 high speed

- Type A female connector

• Buttons

- Power button

- Auto-copy button

- Reset button

• Smart fan: 2 x chassis Fan

• Buzzer: System warning

• Power consumption

- Idle mode: 25 W (with 4 x 250 GB HDD)

- Access mode: 58 W (with 4 x 250 GB HDD)

• Power supply

- Input: AC 100 ~ 240 V

- Output: DC 19 V

65-100-240108B 12/10

For more product information, visit us on the web at www.ZyXEL.com

ZyXEL Communications Corp. All other brands, product names, or trademarks mentioned are the property of their

respective owners. All specifications are subject to change without notice.

Application Diagram

NSA-2401

Network Storage Appliance

NSA-2401

Network Storage Appliance

Physical Specifications

• Item weight: 6.2 kg (13.7 lb)

• Item dimensions (WxDxH):

140 x 300 x 305 mm (5.51“ x 11.81”x 12”)

• Packing weight: 9 kg (19.84 lb)

• Packing dimensions (WxDxH):

440 x 440 x 276 mm (17.32“ x 17.32” x 10.86”)

Environmental Specifications

• Operating environment:

- Temperature: 0°C ~ 40°C/32°F ~ 104°F

- Humidity: 20% ~ 90%, RH (Non-condensing)

• Storage environment:

- Temperature: -30°C ~ 60°C/-22°F ~ 140°F

- Humidity: 20% ~ 95%, RH (Non-condensing)

Certification

Safety

• UL 1950

• CSA C22.2 No. 950

• EN60950, EN41003

EMC

• FCC Part 15 Class B

• EN 55022 Class B

Power Adapter

• CEC Efficiency Level V

Product Introduction

NSA-2401

Network Storage

Appliance

NSA-2401

Network Storage

Appliance

Switch/Router

Snapshot

Backup/Recovery

- Load Balance

- Link Aggregation

- Failover

Dual Giga LAN

Client

Backup

Printer

Sharing

UPS Power

Monitoring

Local

Backup

Secured

Remote Access

Remote

Replication

Server

Backup

Workgroup

Application

Ethernet

USB RAID Data

Redundancy

Volume

Encryption Remote Office

Exchange/SQL Server Home/Public Area

Disk 0 Disk 1

RAID

Internet

Workgroup

Power Button

Mechanism

2 x Smart

Chassis FAN

4 Hot

Swappable Trays

Hot Spare

for RAID1/5

Copy Button

Reset Button

Interface

2 x USB 2.0

19 VDC

100 ~ 240 VAC

LEDs

PWR

SYS

LAN1

LAN2

COPY

Interface

2 x Giga LAN

Power

Mechanism

Autres manuels pour NSA-2401

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ZyXEL Communications Matériel réseau

ZyXEL Communications

ZyXEL Communications Multi-service Access Platform MSAP2000 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications POE-12 Guide de référence

ZyXEL Communications

ZyXEL Communications IES-708 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications NSA-2401 Manuel utilisateur

ZyXEL Communications

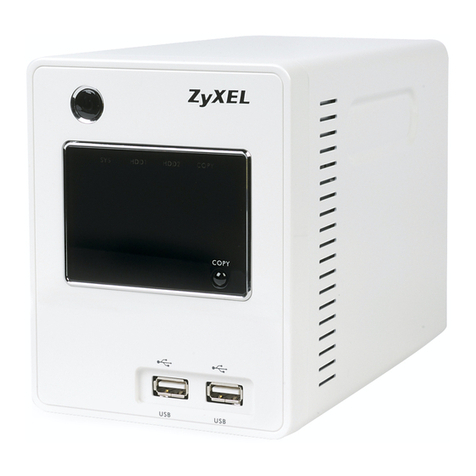

ZyXEL Communications NSA-220 Plus Manuel utilisateur

ZyXEL Communications

ZyXEL Communications Prestige 2602R Series Manuel utilisateur

ZyXEL Communications

ZyXEL Communications IES-6000 - ANNEXE 749 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications PLA450 Series Manuel utilisateur

ZyXEL Communications

ZyXEL Communications Prestige 2602R Series Manuel utilisateur

ZyXEL Communications

ZyXEL Communications IES-22A - Manuel utilisateur

ZyXEL Communications

ZyXEL Communications Network Device P-2602 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications IES-612-51A Manuel utilisateur

ZyXEL Communications

ZyXEL Communications WAP6405 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications PK5000Z Manuel utilisateur

ZyXEL Communications

ZyXEL Communications PM7516-R0 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications VES1724-56 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications NSA-2400 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications Prestige 1600 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications OLT2406 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications RS-1612 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications ATP Series Manuel utilisateur

ZyXEL Communications

ZyXEL Communications 2-Slot 10GBase-CX4 10Gigabit Module EM-412 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications VPN Series Manuel utilisateur

ZyXEL Communications

ZyXEL Communications FTU2000 Manuel utilisateur

Manuels Matériel réseau populaires d'autres marques

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuel utilisateur

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuel utilisateur

Yudor

Yudor YDS-16 Manuel utilisateur

D-Link

D-Link ShareCenter DNS-320L Manuel utilisateur

Samsung

Samsung ES1642dc Instructions d'utilisation

Honeywell Home

Honeywell Home LTEM-PV Instructions de montage

evertz

evertz 7700 Series Manuel utilisateur

D-Link

D-Link ShareCenter DNS-343 Manuel utilisateur

Asante

Asante AsanteBridge 1012 Manuel utilisateur

FireBrick

FireBrick FB2700 Manuel utilisateur

Audiovox Electronics

Audiovox Electronics ARWH2T Manuel utilisateur

ADC

ADC DSX-1 Manuel

NetComm

NetComm NF2 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 5620 Manuel utilisateur

Dell EMC

Dell EMC XC6420 Series Manuel utilisateur

Lanner

Lanner NCA-1020A Manuel utilisateur

Allied Telesis

Allied Telesis AT-TN121-A Manuel utilisateur

Arista

Arista CCA-ETM-Q12 Manuel utilisateur
