ZyXEL Communications VMG4005-B50B Guide d'installation

VMG4005-B50B

VDSL2 Bonding Single Line Bridge

Field Tech Overview Guide

22 April 2020

Illustrations & info based on firmware:

V5.13(ABRL.2)C0

●Introduction

●Installation

○About the VMG4005

○Bonded DSL

○Setup and LEDs

●Logging In

○Multi-Level Login

○Accessing the Web Interface

○Tired Account Access

○Connection Status Screen &

Menu System

●Configuration

○Bridged Setup

○Routed Setup

○IPv6 Routed Setup

○Advanced WAN Settings

○Using Multiple Services

○TR069 & Remote Management

○Time Settings

●Troubleshooting

○Using the LEDs

○Using the Web Interface

○Scenarios

○WAN Frame Capture

●Additional Support

Contents of this Presentation

Introduction

About the VMG4005

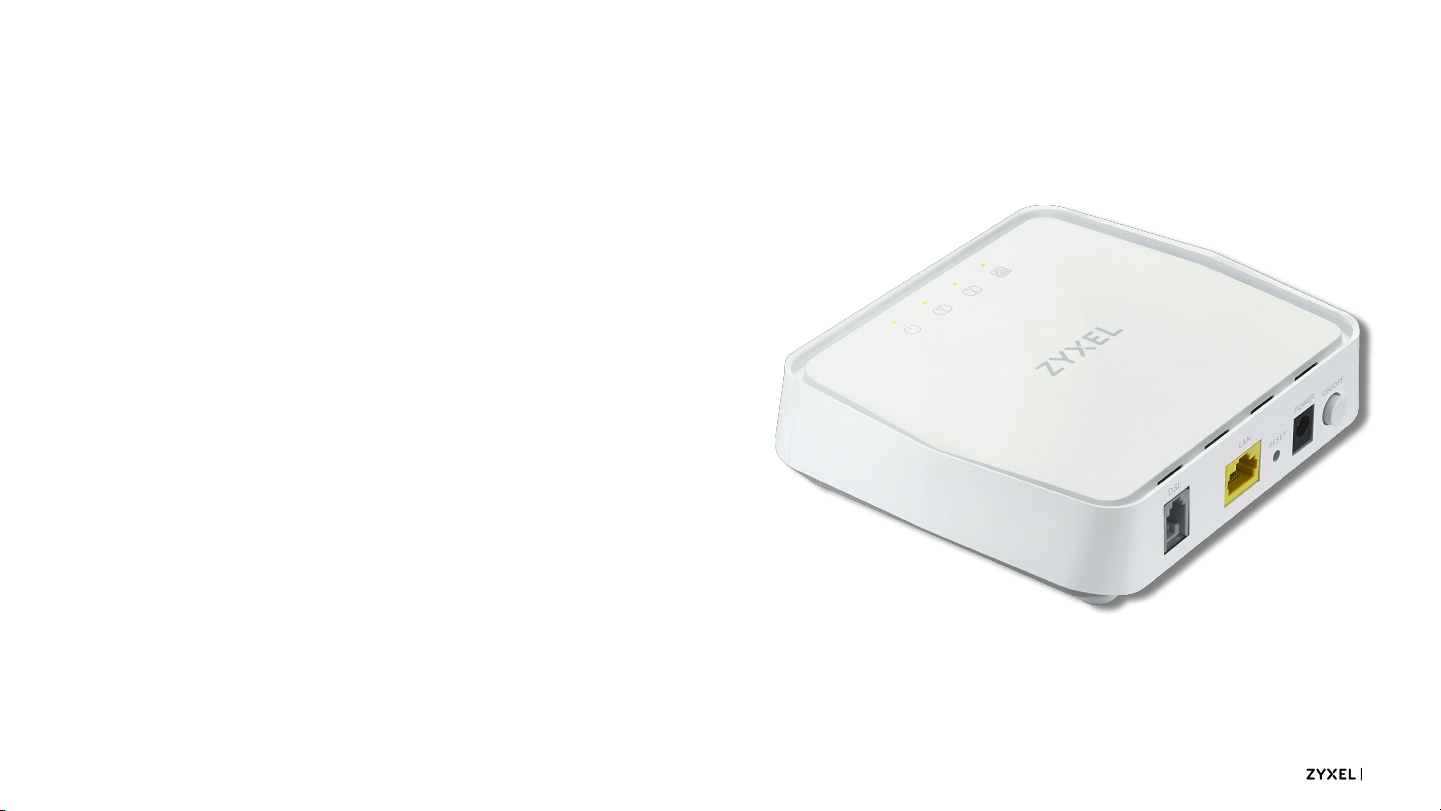

The VMG4005

VDSL2 Bonding Single Line Bridge

●Bonded VDSL2 Port

●Supports 17a and 35b

●Single Ethernet 1Gbps Port

●Modem or Single-port Router

Online References

Product Web Page

General product info

Quick Start Guide

For info on accessing the web interface, installation, and

mounting

Users Guide

Covers all aspects of the device’s functions

Bonded DSL

Introduction

•Bonding uses two (or more) DSL lines to provide one CPE with

more DSL bandwidth than provided by one DSL line alone.

•Zyxel CPEs support 2-line bonding.

•Two phone lines must be terminated between the CPE and

the curbside DSLAM to use bonding.

•Both the CPE and DSLAM must support IETF G.Bond for

bonding to occur.

•The DLSAM must have a bonding group created for the two

lines going to the CPE.

Overview of Bonded DSL

•Advantages:

•Multiplies single line rate.

•Increased bandwidth for bandwidth -hungry applications like multiple

Hi-Def IPTV feeds for multiple Set-Top Boxes.

•Typically cheaper than Fiber to the Home (FttH) installations.

•Disadvantages:

•Requires multiple telephone lines per CPE.

•Requires end-to-end G.Bond support.

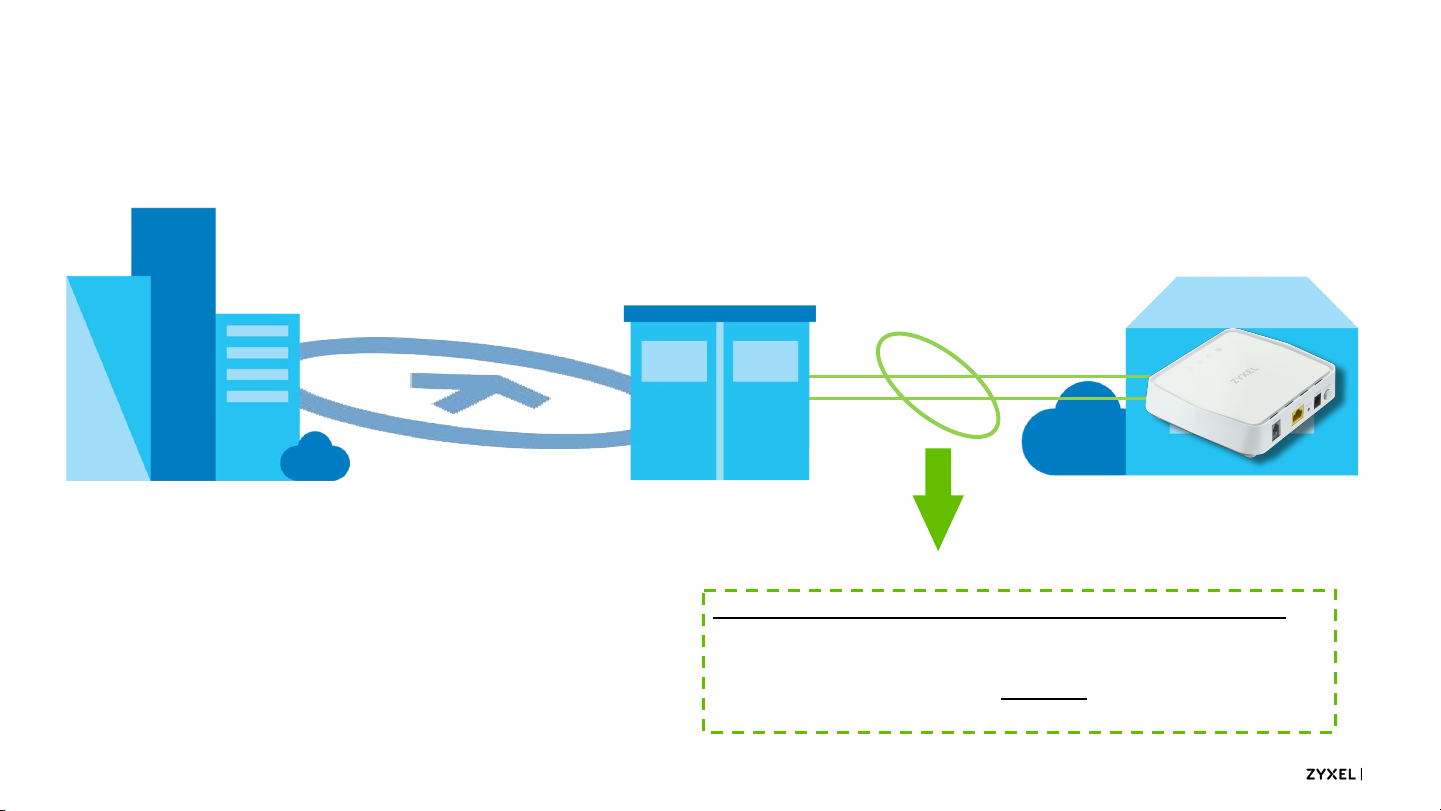

Overview of Bonded DSL (Cont’d)

ISP

Fiber Loop

Curbside DSLAM with

G.Bond support

G.Bond Bonded DSL

Pair

CPE with G.Bond

support

Ex. using VDSL Profile 17a (under excellent conditions):

Upstream Downstream

50Mbps 100Mbps

x2 lines

= 100Mbps 200Mbps

Diagram of DSL Line Bonding

Introduction

Setup and LEDs
