ZyXEL Communications UAG50 Manuel utilisateur

UAG50

Unified Access Gateway

Version 1.00

Edition 1, 05/2015

User’s Guide

Details

https://

172.16.0.1

User Name

admin

Password

1234

UAG50 User’s Guide

IMPORTANT!

READ CAREFULLY BEFORE USE.

KEEP THIS GUIDE FOR FUTURE REFERENCE.

Screenshots and graphics in this book may differ slightly from your product due to

differences in your product firmware or your computer operating system. Every effort

has been made to ensure that the information in this manual is accurate.

Related Documentation

• Quick Start Guide

The Quick Start Guide shows how to connect the UAG and access the Web Configurator.

It also contains a connection diagram and package contents list.

UAG50 User’s Guide

Contents

1. Introduction ...........................................................................................................6

1-1 Package Contents...................................................................................7

1-2 Features .................................................................................................7

1-3 Precautions ............................................................................................8

1-4 Outlook ..................................................................................................8

1-4-1 Printing a test page ......................................................................10

1-4-2 How to load paper rolls................................................................10

1-5 Technical Specifications .......................................................................11

1-5-1 Hardware Specifications ..............................................................11

1-5-2 Software Specifications................................................................12

2. Installation ...........................................................................................................15

2-1 Connecting the Antennas ....................................................................15

2-2 Installation Requirements....................................................................15

2-3 Getting Start.........................................................................................17

3. Configuring the UAG50 ........................................................................................19

3-1 Setting Wizard......................................................................................19

3-2 Advanced Setup ...................................................................................32

3-2-1 Authentication .............................................................................33

3-2-1-1 Authentication ...................................................................................................... 33

3-2-1-2 RADIUS .................................................................................................................. 35

3-2-2 Billing............................................................................................37

3-2-2-1 Billing..................................................................................................................... 37

3-2-2-2 Accounting............................................................................................................. 40

3-2-2-3 Credit Card ............................................................................................................ 47

UAG50 User’s Guide

3-2-3 Management................................................................................50

3-2-3-1 Syslog..................................................................................................................... 50

3-2-3-2 Session Trace ........................................................................................................ 57

3-2-3-3 Bandwidth............................................................................................................. 58

3-2-3-4 SNMP ..................................................................................................................... 60

3-2-4 Security ........................................................................................61

3-2-4-1 Pass Through......................................................................................................... 61

3-2-4-2 Filtering ................................................................................................................. 62

3-2-4-3 Secure Remote ...................................................................................................... 64

3-2-5 System..........................................................................................65

3-2-5-1 System ................................................................................................................... 65

3-2-5-2 WAN/LAN.............................................................................................................. 68

3-2-5-3 Server .................................................................................................................... 70

3-2-5-4 Customization ....................................................................................................... 73

3-2-5-5 Portal Page ............................................................................................................ 82

3-2-5-6 Advertisement....................................................................................................... 83

3-2-5-7 Walled Garden....................................................................................................... 84

3-2-5-8 DDNS...................................................................................................................... 86

3-2-5-9 Wireless................................................................................................................. 88

3-2-5-10 USB ...................................................................................................................... 91

3-2-5-11 Registration......................................................................................................... 91

3-3 System Status.......................................................................................92

3-3-1 System..........................................................................................92

3-3-2 Account List..................................................................................94

3-3-3 Account Log..................................................................................95

UAG50 User’s Guide

3-3-4 Current User.................................................................................95

3-3-5 DHCP Clients ................................................................................96

3-3-6 Session List ...................................................................................96

3-4 System Tools ........................................................................................98

3-4-1 Configuration ...............................................................................98

3-4-2 Firmware Upgrade .......................................................................99

3-4-3 Boot Code...................................................................................101

3-4-4 Controller Board Firmware ........................................................101

3-4-5 System Account..........................................................................102

3-4-6 SSL Certificate ............................................................................106

3-4-7 Ping Command...........................................................................107

3-4-8 Restart........................................................................................107

3-4-9 Logout ........................................................................................107

4. QR Code Service.................................................................................................108

4-1 QR code setting..................................................................................108

4-2 Additional information for QR code use............................................109

4-3 Use QR code to access the Internet...................................................110

Appendix A Signal Connection Arrangements...........................................................113

Appendix B Legal Information ...................................................................................114

UAG50 User’s Guide

1. Introduction

The UAG50 is a compact intelligent gateway. It provides Plug’ Play Internet access,

advanced security and network management.

The UAG50 is designed for service providers, system integrator or hotspot venue

operator without backend-RADIUS-Server to have integrated solution for rapid

deployment, which can start hotspot service quickly and easily and enhance service

performance.

The UAG50 is an ideal solution for hotel lobbies, coffee bars, airport lounges,

conference facilities and other sites that commonly host business travelers, and

offers instant high-speed Internet connections. With its IP Plug and Play technology,

it accepts any client configuration login, when client open browser the UAG50

immediately recognizes new end-user and redirects their browser to customized

Web pages. There’s no need for end-user to change any of their default network

(Static IP), e-mail (SMTP Server behind firewall), or browser settings (HTTP Proxy) or

load any special software to access hotspot service. It’s completely Plug’ Play with

any browser.

The UAG50 provides QR code service. You can install any QR code APP to your

mobile device, and then scan QR code on the ticket to get access of the Internet! You

could save the time to key in the account and the password.

UAG50 User’s Guide

1-1 Package Contents

Please inspect your package. The following items should be included:

One UAG50

UAG50

One Thermal papers (50 meter)

One Power Adapter

One Ethernet Cable (1.5 meter)

One Quick Installation Guide

Two Detachable Antennas

One Micro USB to RJ-45 converter

If any of the above items are damaged or missing, please contact your dealer

immediately.

1-2 Features

Wireless data rates up to 300 Mbps

Supports up to 50 simultaneous Users

IP Plug and Play (iPnP)

Comprehensive security

64/128-bit WEP encryption

WPA encryption

WPA2 Encryption

IP/URL filtering

Intelligent Management

Built-in AAA (Authentication/Accounting/Authorization) and Billing

mechanism

Internet access via QR code scanning

Note: The "iPnP" Function only can be used with TCP/IP-based Network.

UAG50 User’s Guide

1-3 Precautions

Never remove or open the cover. You may suffer serious injury if you touch

these parts.

Never install the system in the wet locations.

Use only the original fitting AC power adapter otherwise there is a danger of

severe electrical shock.

Avoid exposing the UAG50 to direct sunlight or another heat source.

Choose a well-ventilated area to position your UAG50.

1-4 Outlook

Figure 1-4-1 UAG50

UAG50 User’s Guide

Figure 1-4-3 Rear Panel

1. Paper roll housing

2. Printer Cover

3. Tear Bar, for paper cutting

4. Button A

5. Button B

6. Button C

7. Push Button, for printer cover opening

8. Reset Button

9. DC power supply connector

10. RJ45 port

11. Micro USB to RJ-45 LAN Port

12. WLAN LED (Green)

13. WAN LED(Yellow)

14. SMA connector

15. SMA connector

WLAN LED:

Off: The wireless is not ready.

Green light: The UAG50 has established a valid wireless connection.

Green Blinking: The wireless connection is active.

WAN LED:

Figure 1-4-2 Front Panel

UAG50 User’s Guide

Off: A port has not established any network connection.

Yellow light: A port has established a valid 10/100 Mbps network

connection.

Yellow Blinking: 10/100 Mbps traffic is traversing the port.

Reset Button: The UAG50 has a reset button at the rear panel of the device.

Use this function to reset the system back to factory defaults.

Power Jack: Used to connect the external power supply with the UAG50.

1-4-1 Printing a test page

After you have installed your printer, you should print a test page to make sure the

printer is functioning properly. To do this act as follows:

1. Turn the printer off.

2. Hold down the button A for approximately five seconds, and then turn the

printer on.

3. The printer will print a test page.

1-4-2 How to load paper rolls

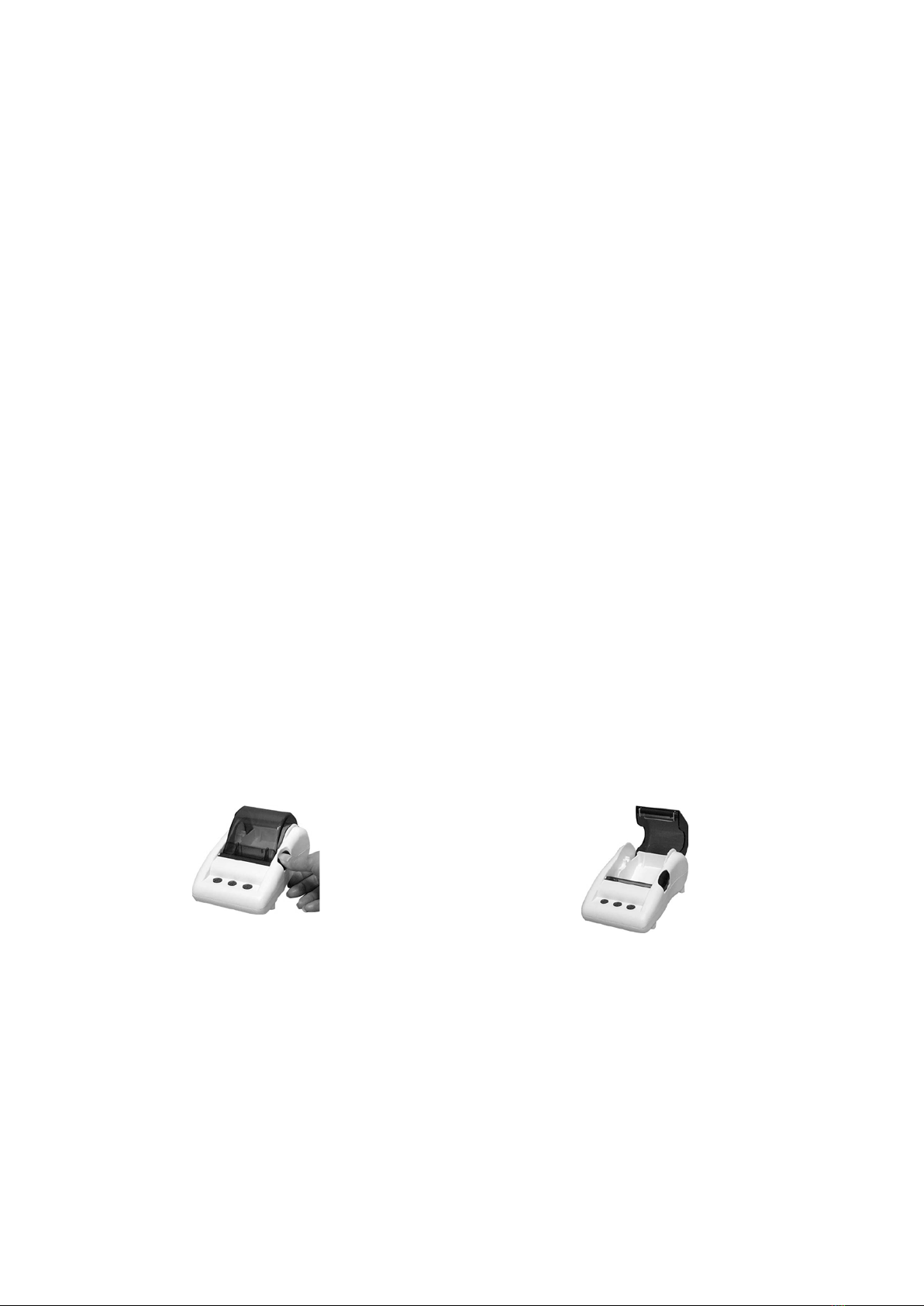

Please follow the steps to correctly load paper rolls.
