Quick Start

ADSL X6 Modem,

Wireless-G Router, Firewall,

and 4-Port Switch

Model 5590

This Quick Start contains instructions for using a Windows

computer to set up a wired and/or wireless network. Macintosh

and Linux users should refer to the User’s Guide on the CD.

About the ADSL X6

The Zoom ADSL X6 supports up to 253 Internet connections.

You can connect a computer or network device (for example, a

router, hub, or switch) into any of the unit’s four LAN ports, and

you can “connect” wireless devices via the unit’s wireless access

point.

We recommend that you first configure the modem and establish

an Internet connection using a Windows computer that is directly

connected to one of the modem’s LAN ports.

Then—once you are certain your connection is working—you

should set up your network.

2 ADSL X6 Quick Start

Package Contents

Your package contains the following items:

The CD contains the installation software, documentation,

information about security and other advanced features, the

warranty, and detailed Customer Support information. The most

complete and up-to-date information can normally be found at:

http://www.zoom.com/techsupport/adsl/adsl_x6.shtml

If anything is missing or damaged, please contact Zoom Customer

Support or whoever sold you the modem.

In addition, the package may include:

•A splitter to enable you to use a single ADSL wall jack for both

an Internet connection and for telephone service (certain

countries only)

•Phone-jack adapter to adapt the phone cord to a particular

phone jack (certain countries only)

•ADSL line filter(s) (certain models only)

Before You Begin

Before you begin installing the X6 modem using this Quick Start,

you must have the following available to you:

•ADSL service enabled on your telephone line. To do this,

you need to sign up with an ADSL service provider. Once this

service is enabled, you should have an ADSL-enabled

telephone wall jack to plug the X6 modem into. (Your service

provider may refer to “ADSL service” as “DSL service.”)

•A Windows computer (98/Me/2000/XP) with an

Ethernet port for setting up the X6. This is the computer

that you will physically connect to the X6 (using an Ethernet

cable), and then use to configure the modem.

•An Ethernet port for each additional computer that you

plan to plug into one of the unit’s LAN ports (or into a

network device that is plugged into one of the LAN

ports). The additional computers that connect can be

Windows, Macintosh, and/or Linux computers.

•Wireless capability for each desktop or notebook

computer that will make a wireless connection to the X6.

The X6 supports 802.11b- and 802.11g-compatible network

adapters.

•Additional Ethernet cables. If you plan to connect more

than one computer directly to the modem, you will need

additional Ethernet cables to make the connection. The

modem supports up to four direct connections via its four

LAN ports.

4 ADSL X6 Quick Start

Quick Start Instructions

Installing the X6 involves four steps: Installing the Software,

Installing the Hardware, Establishing Communication, and

Setting Up Your Wired and/or Wireless Network.

Step 1: Installing the Software

Regardless of how many computers you plan to use with the X6,

you only have to install the software on one of them.

You will install the software on a Windows computer that you

directly connect to the X6, and then use that computer to

configure the modem. This computer must have an Ethernet port.

If it does not, you can purchase a Network Interface Card to add

one.

Important!

If possible, use a computer that is centrally located in your home or

office and that has easy access to an ADSL line. If you do not have

a desktop computer located centrally in your home (for example, it

is in the basement), or you only have notebook computers, you

should still directly connect this desktop computer or one of your

notebooks to the X6 to configure it. Once the X6 is set up and

your Internet connection is working, you can unplug the computer

from the unit and move the X6 to a more central location.

1Turn on your computer (if it is not on already).

2Insert the supplied CD into the CD-ROM drive of your

computer. The CD should start automatically and the

Language Selection screen should appear. (If the CD does

not start automatically, on the Windows desktop, click the

Start button, click Run, and then type D:\setup.exe, where D

is the letter of your CD-ROM drive.)

3Select your language. The Main Menu screen opens.

4Click Installation Wizard to start the software installation,

then click Next when prompted.

5When the installation is complete, click Finish, then click

Exit.

6Close any applications that may be open, then remove the CD

from the CD-ROM drive.

7Shut down the computer.

Congratulations! You have installed the software. Now continue

with the next section, Installing the Hardware.

Step 2: Installing the Hardware

Be sure that you have already installed the software BEFORE

beginning this section.

1Shut down your computer (if it is not shut down already). This

is the computer on which you just installed the software.

2Rotate the antenna on the back of the modem to a vertical

position.

3Connect the modem to the computer’s Ethernet port.

Plug one end of the Ethernet cable into any one of the

X6 modem’s LAN ports (LAN 1, LAN 2, LAN 3, or LAN 4)

and plug the other end into your computer’s Ethernet port.

6 ADSL X6 Quick Start

4Plug the included power cube into a power strip or wall outlet

and then plug its other end into the modem’s power (PWR)

jack.

Important!

Only use the power cube shipped with the X6. Other power

cubes may damage your hardware.

The PWR and WLAN lights on the front panel of the modem

should become steady on, and the LINK light should blink. If

the PWR light does not turn on, make sure there is power at

the wall outlet or power strip where you plugged in the power

cube.

5Turn the computer on.

6Plug one end of the supplied phone cord into the

modem’s ADSL port and the other into the ADSL wall jack.

The blinking LINK light should become steady on. If it does

not, refer to Troubleshooting Tips on page 22.

Tip!

If your X6 came with an ADSL splitter, you can plug it into

the ADSL wall jack. This enables you to use the wall jack for

both your ADSL connection and for telephone service. The

splitter has two jacks, one labeled for your ADSL modem

connection and the other for your phone.

7Phone filters are not absolutely required, but we HIGHLY

RECOMMEND that you use a filter for EVERY phone

and fax that is sharing the ADSL phone line. (Do not plug

a filter between the ADSL wall jack and the X6.) Phone filters

block the ADSL frequencies so that someone making a normal

phone call will not hear modem noise on the line. They also

keep phone noise from interfering with ADSL performance.

You may have received ADSL phone filters with your X6. If

you did not, or if you need more filters, they are available at

most retail stores that carry consumer electronics.

Typically, you plug a phone or fax into the filter’s PHONE

jack and plug the filter’s LINE end into the wall jack.

Congratulations! You have installed the hardware. Now continue

with the next section, Establishing Communication.

Step 3: Establishing

Communication

You must set up the X6 so that it can communicate with your

Internet service provider. To do this, you must use the Zoom

Configuration Manager.

1Log in to the Zoom Configuration Manager from the

computer on which you installed the X6 software:

aOn your desktop, double-click the Zoom icon.

This icon should have been placed there automatically

when you installed the software earlier. (If the Zoom icon

is not there: Open your Web browser and, in its address

bar, type http://10.0.0.2 and then press the Enter key on

your keyboard.)

Note:

Even though you are not yet configured to browse the

Internet, your Web browser can access the Web interface

of the X6 modem.

8 ADSL X6 Quick Start

bOn the Enter Network Password dialog box, type the

following user name and password in the appropriate

boxes, then click OK. You must enter them using

lowercase letters.

User Name: admin

Password: zoomadsl

If you are not prompted for a User Name and Password,

do the following in this order: Recheck all connections;

restart the modem and computer; and reset the modem by

inserting a paper clip into the Reset pinhole in the center

of the modem’s back panel and pressing it three times.

Tip:

If you want to choose your own password, you can do so

later. For instruction on how to do this, see the User’s

Guide (located in PDF format on the CD).

The User Name and Password you enter here do not

serve the same purpose as any name and password that

your Internet service provider may have given you.

As you type your

password, it will

appear as bullets or

asterisks (depending

on your operating

system). This is to

protect your

password from being

seen by others.

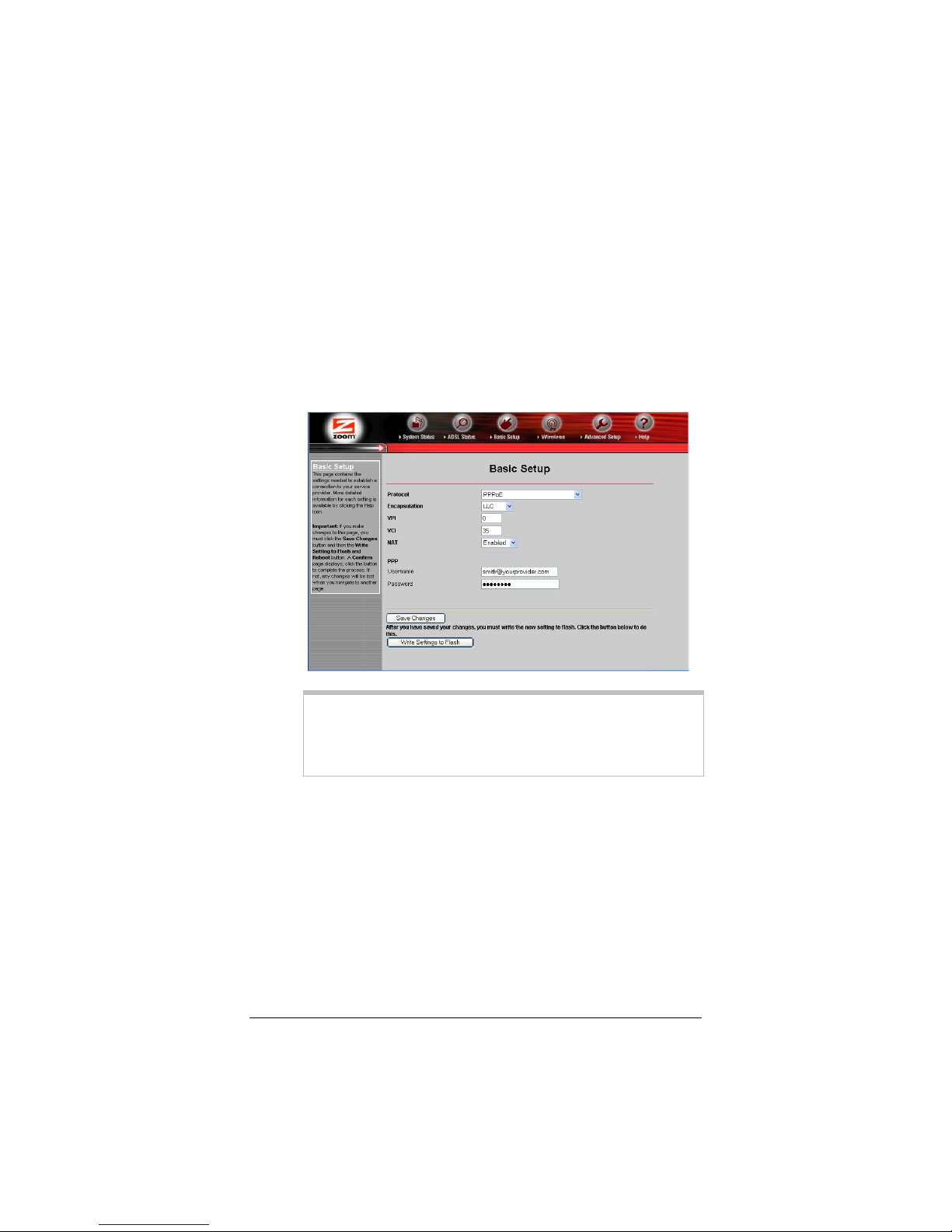

2The Zoom Configuration Manager opens and displays its

Basic Setup page.

Use this Web page to configure the modem so it can connect

with your Internet service provider. Do the following:

aEnter your Protocol, Encapsulation, VPI and VCI

settings in the appropriate boxes. If you do not know these

settings, refer to the tables on page 31 and look up your

service provider.

Tip!

If you refer to the tables and there is more than one listing

for your service provider, the most common is labeled (1),

the next (2), and so on.

NAT (Network Address Translation) is Enabled by

default. This feature lets multiple users access the Internet

sharing a single IP address.

Select Disable if users on your LAN have public IP

addresses and can access the Internet directly.

bDepending on the Encapsulation setting you selected, the

bottom half of the page will change so that you can enter

additional information.

10 ADSL X6 Quick Start

If you selected PPPoA or PPPoE, enter your ADSL

Username and Password in the appropriate boxes.

This information should have been given to you by

your Internet service provider. (Your Username is

typically your email address or the characters

preceding the @ sign in your email address. This is

NOT the same login you that you used earlier to open

the Zoom Configuration Manager.)

If you selected 1483 Bridged or 1483 Routed, you

have the option of using either dynamic or static IP

addressing. Depending on your situation, select the

appropriate option button:

−[MOST USERS] Ensure that Obtain an IP

address Automatically is selected if you are

using Dynamic Host Configuration Protocol (also

known as DHCP or dynamic IP addressing). This

option is selected by default because most Internet

service providers use dynamic IP addressing.

−Select Use the following IP Address if you have

a static IP address that you plan to use with the

X6. Then, in the boxes that appear, enter the IP

Address, Subnet Mask, Default Gateway, and

DNS that you plan to use. There is typically an

extra charge for a static IP address and you usually

have to make special arrangements with your

Internet service provider to get one.

cClick the Save Changes button, then click the Write

Settings to Flash button.

3Verify that your Internet connection is working. Open your

Web browser (i.e., Internet Explorer or Netscape Navigator)

and try to connect to a familiar Web address.

If you connect successfully, you are ready to set up the rest of

your wired and/or wireless Internet connections. (If you do

not connect, see the Troubleshooting Tips on page 15.)

Autres manuels pour 5590

Table des matières

Autres manuels Zoom Modem

Zoom

Zoom 5341J Manuel utilisateur

Zoom

Zoom ADSL X6v Manuel utilisateur

Zoom

Zoom 3GM1073 Manuel utilisateur

Zoom

Zoom ADSL Modem BRIDGE 5515 Manuel utilisateur

Zoom

Zoom 56K Manuel utilisateur

Zoom

Zoom X5V Manuel utilisateur

Zoom

Zoom 5011 Manuel utilisateur

Zoom

Zoom 10BaseT Manuel utilisateur

Zoom

Zoom 1065 Manuel utilisateur

Zoom

Zoom 5651A Manuel utilisateur

Zoom

Zoom 10/100BaseT Manuel utilisateur

Zoom

Zoom 4300 Manuel utilisateur

Zoom

Zoom X5V Manuel d'utilisation et d'entretien

Zoom

Zoom 5341J Manuel utilisateur

Zoom

Zoom IG 4165 Instructions d'utilisation

Zoom

Zoom 1090 Series Manuel utilisateur

Zoom

Zoom Ethernet Manuel utilisateur

Zoom

Zoom X7N Manuel utilisateur

Zoom

Zoom 4530 Series Manuel utilisateur

Zoom

Zoom 1099 Series Manuel utilisateur

Zoom

Zoom ComStar XT SVD Manuel utilisateur

Zoom

Zoom PCI Cable Modem Manuel utilisateur

Zoom

Zoom 1070 Series Manuel utilisateur

Zoom

Zoom 5510 Manuel utilisateur

Manuels Modem populaires d'autres marques

Davicom

Davicom DM562AP Manuel utilisateur

EpiValley

EpiValley TATA indicom SXC-1080 Manuel utilisateur

Zte

Zte WiMAX Manuel utilisateur

Intelimax

Intelimax MA-2060 Manuel utilisateur

SMC Networks

SMC Networks D3CM1604V Manuel d'utilisation et d'entretien

Telstra

Telstra Wi-Fi 4G Advanced Pro X Manuel utilisateur

Thrane&Thrane

Thrane&Thrane imarsat EXPLORER 300 Manuel utilisateur

Samsung

Samsung AceLink SAM-335A Manuel utilisateur

Enfora

Enfora Enabler-G Guide de configuration rapide

iRZ

iRZ ATM2-232 Manuel utilisateur

Zhone

Zhone 6310 Manuel utilisateur

Paradyne

Paradyne Hotwire 7976 Manuel utilisateur

US Robotics

US Robotics 3453C Manuel utilisateur

MaxTech

MaxTech Plug & Play Internal Voice/FAX/Data/SVD... Manuel utilisateur

Zte

Zte MF823 Manuel utilisateur

Four-Faith

Four-Faith F1403 Manuel utilisateur

Sierra Wireless

Sierra Wireless AIRLINK MP595W Manuel utilisateur

Gemtek

Gemtek WiMAX WIXFBR-103 Manuel utilisateur
