ZKTeco FaceDepot 7B Manuel utilisateur
Version: 1.0
Date: October 2018
Quick Start Guide
FaceDepot 7B-
Power
GND
+12V

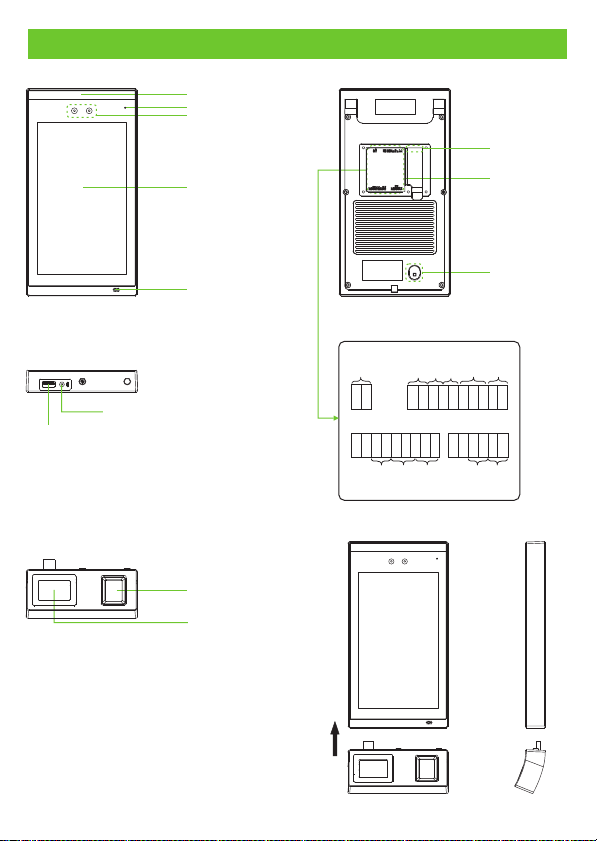

Overview
Flash
Camera
7 inch touch screen
Microphone
Fingerprint sensor
Card reading area
Magnetic
tamper switch
Speaker
FP & RFID Reader (Optional)
Connection
interface
Lock
AUX
Alarm
Exit
Button
Sensor
AL+
AL-
NC
COM
NO
BUT
GND
SEN
GND
Auxiliary
input
Wiegand
In
Wiegand
Out
+12V
GND
INWD0
INWD1
W0D
W1D
RS232
RS485
12V
485A
GND
TXD1
RXD1
GND
TXD2
RXD2
RS232
485B
Connection interface
Reset
USB port
Connection
interface
Device Installation
1.5m
1 2 3
①
②
①Attach the mounting template sticker to the wall, and drill holes according
to the mounting paper. Fix the back plate on the wall using wall mounting
screws.
②Attach the device to the back plate.
③Fasten the device to the back plate with a security screw.
Method 1: Installation on the wall
Please route the wire through the bracket before installation.
1. Drill a hole on the barrier gate.
Insert the bracket into the hole and fix it with a nut.2.
3. Adjust the angle of the device.
Method 2: Install on the barrier gate
Adjust the device
1. Adjust the angle of the device.
2. Fix the screws.
Note: If you want to install FP & RFID reader, please insert the reader after step .j
TCP/IP
Alarm
Smoke
detector
Lock
Exit Button
Door Sensor
Card
Reader
ZKBioSecurity

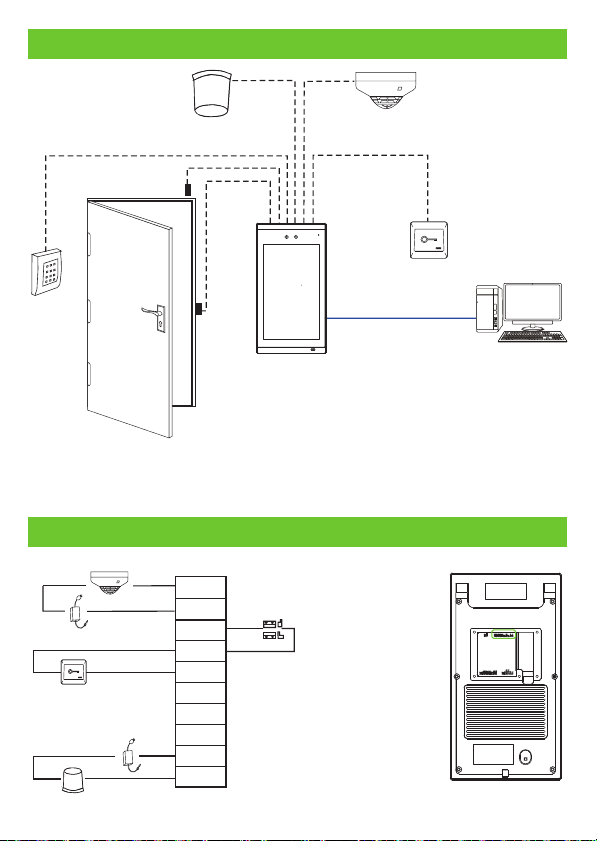

Standalone Installation
AUX
AL+
AL-
NC
COM
NO
BUT
GND
SEN
GND
-+
-+
+-
+
-
Door Sensor, Exit Button & Alarm Connection
Door Sensor
Alarm
Alarm's power switch
Exit Button
Smoke detector
Note: On this document, we just guide you to connect some normal components,
if you want more connection of SRB, external fingerprint reader and so on, please
check user manual document.

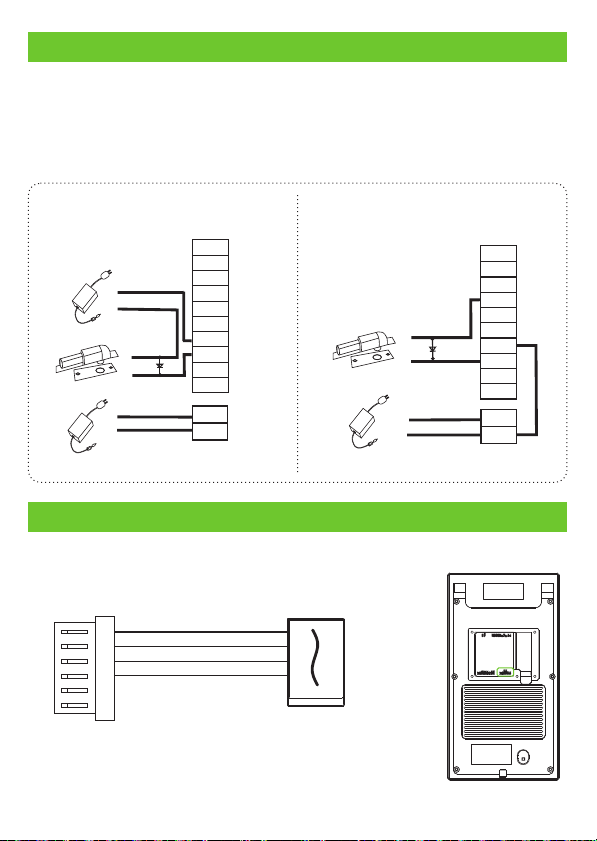

Lock Relay Connection
Wiegand Input Connection
The system supports Normally Opened Lock and Normally Closed Lock.
+
-
-
+
DC12V
+
-
GND
+12V
F 107R
AUX
AL+
AL-
NC
COM
NO
BUT
GND
SEN
GND
-
-
+
-
+
DC12V
+
-
+
GND
+12V
F 107R
AUX
AL+
AL-
NC
COM
NO
BUT
GND
SEN
GND
The NO LOCK (normally opened at power on) is connected with 'NO' and
'COM' terminals, and the NC LOCK (normally closed at power on) is connected
with 'NC' and 'COM' terminals. T NC Lock below:ake as an example
Normally Closed Lock
Normally Closed Lock
DC12V
1) Device not sharing power with
the lock
2) Device sharing power with
the lock
WD0
WD1
+12V
GND
Wiegand Reader
+12V
IDW1
IDW0
GND

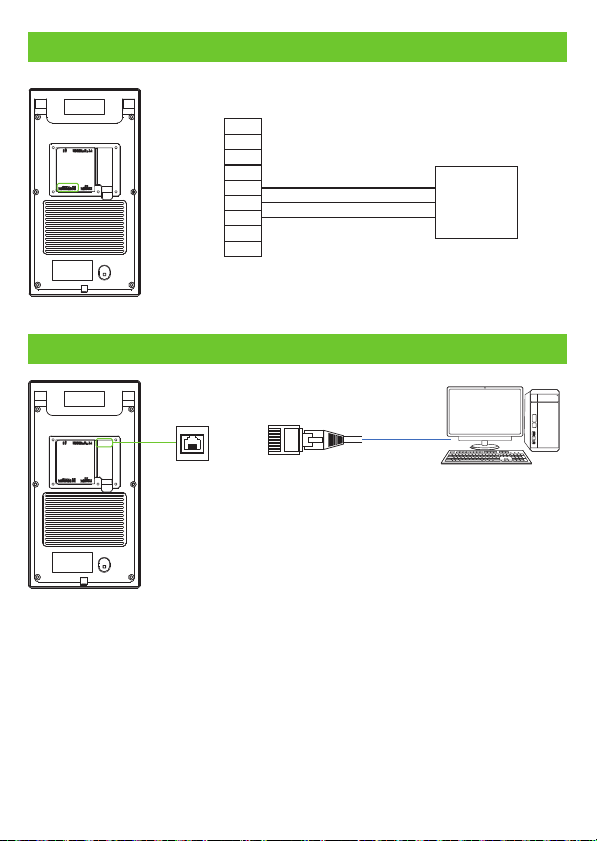

Barrier Connection
Ethernet Connection
Default IP address: 192.168.1.201
Subnet mask: 255.255.255.0
Click [Settings] > [Network Settings] > [TCP/IP Settings] > [DHCP], input the IP address
and click [OK].
IP address: 192.168.1.130
Subnet mask: 255.255.255.0
8
7
6RJ 45
5
4
3
2
1
ZKBioSecurity
Note: In LAN, IP addresses of the server (PC) and the device must be in the
same network segment when connecting to ZKBioSecurity software.
Barrier gate
12V
RXD2
TXD2
GND
RXD1
TXD1
485B
485A
GND

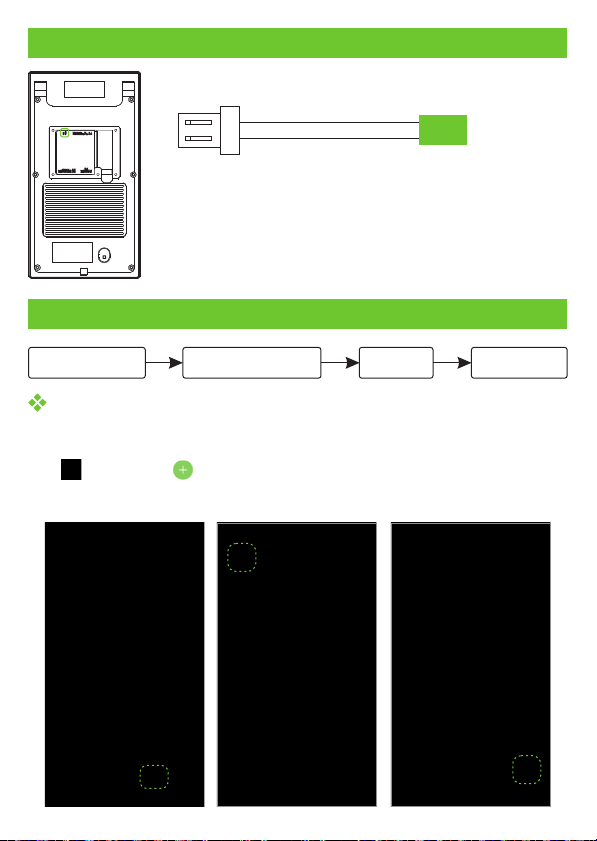

Quick Start
User Registration
User Authentication
View records
Verified
User registration
Register on the device
Click > Employee > to register new employee. Enter employee name, ID,
register face, fingerprint, badge number (fingerprint and ID card are optional), and
password.
LL
GND
12V DC
Recommended power supply
1) 12V ± 10%, at least 00mA.30
2) To share the power with other devices, use a power supply
with higher current ratings.
Power Connection
USB
Update
Access
Settings
Employee
LData
Manage System
Settings
Register on the software
1. Click [Access] > [Access Device] > [Device] > [Search Device] to add the device to
the software.
When the device has set the server address and port, in can be added automatically.
Step 1
Step 2
Step 3
Note:
1. It's recommended to register multiple administrators.
2. It's recommend enroll user's face in 0.5m distance, it's
good for 1.4~1.8m height person.
05m.
1.5m
14m18m.-.
We recommend use ZKBioSecurity 3.1.5.0 or above.
Please set the IP address and cloud service server address on the device.
Step 4
Register on the phone
Login onto http://X.X.X.X:XX/app/v1/adreg with mobile phone browser application
to register users.
Cloud server IP address Server port
The users will display in [Personnel] > [Temporary Personnel], click [Review].
2. Click [Personnel] > [Person] > [New] to register users in the software.
3. Add users to access levels.
4. Click [Access] > [Device] > [Device Control] > [Synchronize All Data to Devices].
For more details, please refer to the ZKBiosecurity User Manual.
Once ZKBioSecurity software installation, users could enroll face via broswer
application on their own mobile phone.
Note: The icons or in the standby interface indicates that the network
connection or the server is abnormal. Please check the network cable and network
connection.
View records
View records on the software
Click [Access] > [Report] on the software to view the records.
Verification is successful
User Authentication
Terminal could detect face in 0.3m to maximum
3m distance. The device switches to face
verification interface automatically once it detect
bright of environment change. The verification
result shows as right image.
ZK Building, Wuhe Road, Gangtou,
Bantian, Buji Town, Longgang
District, Shenzhen China 518129
Tel: +86 755-89602345
Fax: +86 755-89602394
www.zkteco.com
© Copyright 2018. ZKTECO CO., LTD. ZKTeco Logo is a registered trademark of ZKTeco or a
related company. All other product and company names mentioned are used for identification
purposes only and may be the trademarks of their respective owners. All specifications are
subject to change without notice. All rights reserved.
