ZKTeco EFace10 Manuel utilisateur
Quick Start Guide
EFace10
Version: 1.0
Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between the
actual product and the written information in this manual.
Flash
Camera
4.3-inch Touchscreen
Card Reading Area
1
Near-infrared Flash
Reset
USB
Speaker
Speaker
Lock
Ethernet
Power in
AUX
+12V
NC
COM
NO
BUT
SEN
GND
BAT
GND
Exit Button
Auxiliary
input
Door Sensor
Battery
Note: Features and parameters with mark are not available in all devices. ★
★
Overview
★
Heat Emission Hole
Installation Environment
INSTALL INDOORS
ONLY
Please refer to the following recommendations for installation.
AVOID DIRECT
SUNLIGHT
AND EXPOSURE
AVOID INSTALLATION
NEAR
GLASS WINDOWS
AVOID USE OF ANY
HEAT SOURCE
NEAR THE DEVICE
KEEP EFFECTIVE
DISTANCE OF
0.3-2m
Recommended Standing Position
2
TCP/IP
Smoke
Detector
Lock
Exit Button
Door Sensor
★
Standalone Installation
ZKBioAccess IV S
3
Ethernet Connection
Power Connection
Recommended AC Adapter
1) 12V ± 10%, at least 1500mA.
2) To share the power with other devices, use an AC Adapter with higher current
ratings.
Click on [COMM.] > [Ethernet] > [IP Address] , input the IP address and click on [OK].
Note: In LAN, the IP addresses of the server (PC) and the device must be in the
same network segment when connecting to the ZKBioAccess IVS software.
IP address: 192.168.1.130
Subnet mask: 255.255.255.0
Default IP address: 192.168.1.201
Subnet mask: 255.255.255.0
Connect the device and computer software over an Ethernet cable. As shown in the
example below:
ZKBioAccess IV S
4

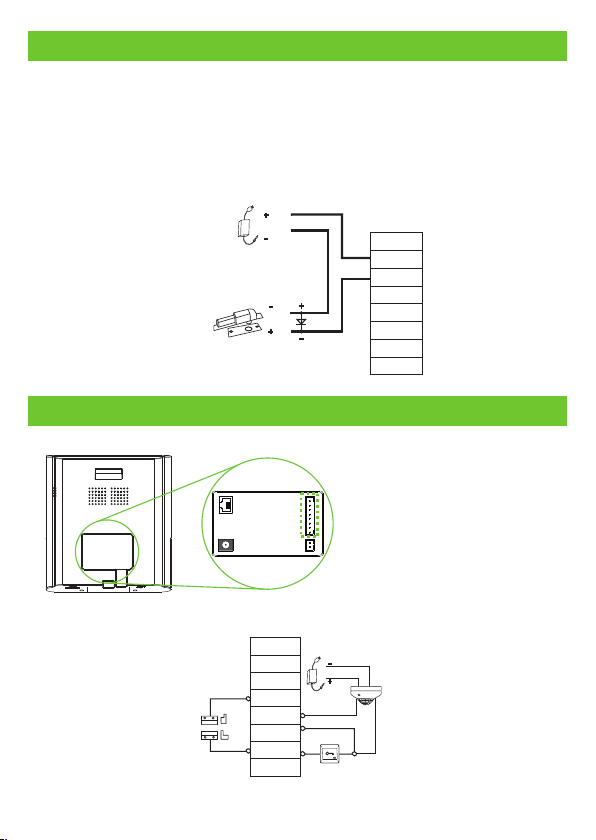

The system supports Normally Opened Lock and Normally Closed Lock.
The NO Lock (normally opened when powered) is connected with 'NO' and
'COM' terminals, and the NC Lock (normally closed when powered) is connected
with 'NC' and 'COM' terminals. An example with NC lock is shown below:
Door Sensor, Exit Button & Auxiliary Input Connection
Device not sharing power with the lock
FR107
Normally Closed Lock
DC12V
AUX
+12V
NC
COM
NO
BUT
SEN
GND
Lock Relay Connection
AUX
+12V
NC
COM
NO
BUT
SEN
GND
NO COM
Exit Button
Smoke
Detector
Sensor
Detector
Power
User Registration
Method 1: Registering on the device
When there s no super administrator set in the device, click on enter the menu. i to
Add a new user and set User Role to Super Admin, then thethe system requests for
administrator’s verification before entering the menu. It is recommended to register a
super administrator initially for security purposes.
Click on > [ ] > [ ] to register a new user. The options include User Mgt. New User
entering the user ID and Name, setting User Role and Verification Mode, registering
Face, Card Number , Password, and adding User Photo.★
5
L
L
L
6
Method 2: Register on ZKBioAccess IVS software
Please set the IP address and cloud service server address in the Comm. Menu option
on the device.
Click [Attendance] > [Attendance Device] > [Device] > [Search] to search the
device on the software. When an appropriate server address and port is set on the
device, the searched devices are displayed automatically.
1.
Attendance Device
Set Attendance By Area
Set Attendance By Person
Device
Attendance Point
Device Operation Log
Basic Information
Shift
Schedule
Exception
Calculate Report
Serial Number Device Name Attendance Area
The current query conditions None
Refresh Delete Search Control View / Get Clear Device Data
Serial Number Device Name Device Model Firmware Version IP Address Attendance Area Status Registration
Machine
Commands to be
Search
Search
Add
Total Progress
IP Address
Searched devices count:1
Number of devices added:1
Serial Number
IP Address Serial Number Device Type Operations
172.31.1.10 6698421030004
The current systen communication port is 8881, please make sure the device is set correctly.
Close
Step 1
Step 2
Step 3
Step 4
Step 5
172 31 1 10
6698421030004
Device Name
Serial Number
IP Address
Attendance Area
Time zone
Enrollment Device
6698421030004
Area Name
(UTC+8)Beijing,Chines
OK Cancel
Step 6
Click [Add] in operation column, a new window will pop-up. Select Attendance
Area and Time zone from each dropdowns and click [OK] to add the device.
2.
Click [Personnel] > [Person] > [New] and fill in all the required fields to register a
new users in the software.
3.
Click [Attendance Device] > [Device] > [Control] > [Synchronize Software Data to
the Device] to synchronize all the data to the device including the new users.
4.
For more details, please refer to the ZKBioAccess IVS User Manual.
7
Method 3: Register on the phone
Once the ZKBioAccess IVS software is installed, the users could enroll their face via a
browser application on their own mobile phone.
1. Click [Personnel] > [Parameters], input ‘’http://Server address: Port’’ in the QR Code
UGL bar. The software will automatically generate a QR code. Scan the QR code or
login onto ‘’http://Server address: Port/app/v1/adreg’’ by the mobile phone to
register users.
2. The users will be displayed in [Personnel] > [Pending Review], click on [Review]
option and assign a department and click [OK] to successfully add the user.
Personnel
Person
Department
Pending Review
Custom Attributes
Parameters
Personnel ID Setting
The Maximum Length:
Support Letters:
Personnel ID Auto-increment:
Card Setting
The Maximum Length:
Card Format Display:
Pending personnel settings
Enable Auto-audit:
Self-service Registration
QR Code URL:
Yes No
Yes No
Bits(Binary)
Decimal Hexadecimal
Yes No
http://Server address:Port/app/v1/adreg
Download QR code image
9
32
Card Management
Personnel Registration
Personnel Registration
Personnel ID
First Name
Last Name
Last Name
Mike
4835
OK
Enable the declaration of health information: Yes No
L
❶
❷
L
Ethernet and Cloud Server Settings
Click on > [COMM.] > [Ethernet] to set the network parameters. If the TCP/IP
communication of the device is successful, the icon will be displayed in the
upper right corner of the standby interface.
Click on > [COMM.] > [Cloud Server Setting] to set the server address and server
port, that is, the IP address and port number of the server after the software is
installed. If the device communicates with the server successfully, the icon will be
displayed in the upper right corner of the standby interface.
Note:
While pairing the device with ZKBioAccess IVS software. Make sure that the option
Enable Domain Name is disabled and the correct server address and port are entered.
Server Address: Set as the IP address of the ZKBioAccess IVS server.
Server Port: Set as the service port of ZKBioAccess IVS.
8
L
Attendance Record
Click on > [Attendance ] > [ Record] to enter the record query Attendance
interface, input the user ID and select the time range, the corresponding attendance
record will be displayed.
Access Control Setting
Click on to enter the access control management interface and > [Access Control]
set relevant parameters of access control.
L
9
L
