ZKTeco ProCapture-WP Manuel utilisateur

QUICK START GUIDE

Applicable Models: ProCapture-WP

Version: 1.0

Date: July, 2017

Safety Precautions

Before installation, please read the following safety precautions for user

safety and to prevent product damage.

Do not install the device in a place subject to direct sun light, humidity, dust

or soot.

Do not place a magnet near the product. Magnetic objects such as magnet,

CRT, TV, monitor or speaker may damage the device.

Do not place the device next to heating equipment.

Do not to let liquid like water, drinks or chemicals leak inside the device.

Do not let children touch the device without supervision.

Do not drop or damage the device.

Do not disassemble, repair or alter the device.

Do not use the device for any purpose other than those specified.

Clean the device often to remove dust on it. In cleaning, do not splash water

on the device but wipe it out with smooth cloth or towel.

Contact your supplier in case of a problem!

Device Overview

2.4-Inch Color Screen

Touch Keypad

Doorbell & LED Indicator

Fingerprint Sensor & Card

Reader Area

Reset Button

Front

Left Side

Back

Product Dimensions & Installation

Product Dimensions

Mounting the Device on Wall

7.96 in

(202.3 mm)

3.81 in

(96.8 mm)

1.38 in

(35mm)

7.34 in

(186.5 mm)

3.0 in

(76.1 mm)

Fix the back plate onto the wall using wall mounting screws.

Note: We recommend drilling the mounting plate screws into solid

wood (i.e. stud/beam). If a stud/beam cannot be found, use supplied

drywall plastic anchors.

Insert the device to back plate.Use security screws to fasten the

device to back plate.

0.51 in

(13 mm)

Power Connection

Without UPS

With UPS (Optional)

Recommended Power Supply

12V DC Adaptor

GND

+12V

12V DC Adaptor

12V±10%, at least 500MA.

To share the power with other devices, use a power supply with higher

current ratings.

Ethernet Connection

LAN Connection

Network Cable Adaptor

Ethernet Cable

Note: The device can be connected to PC directly by Ethernet cable.

RS485 Connection

RS485 Fingerprint Reader Connection

RS485 Fingerprint Reader

DIP Settings

1. There are six DIP switches on the back of RS485 fingerprint reader,

switches 1-4 are for RS485 address, switch 5 is reserved, switch 6 is for

reducing noise on long RS485 cable.

2. If RS485 fingerprint reader is powered from the terminal, the length of

wire should be less than 100 meters or 330 ft.

3. If the cable length is more than 200 meters or 600 ft., the number 6

switch should be ON as below.

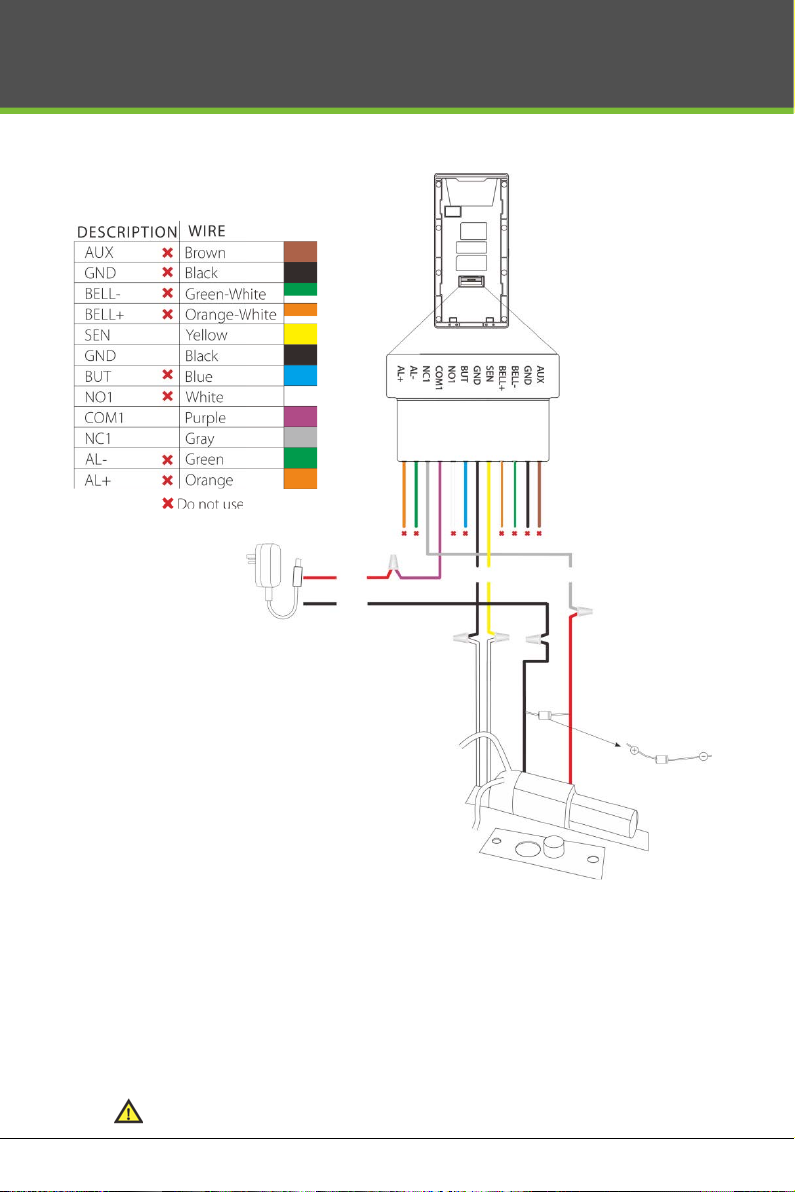

Lock Relay Connection

Device Not Sharing Power with the Lock

COM1

+12V

GND

GND Sensor NC1

FR107

Diode

12V DC Adaptor

Normally Closed Lock

Notes:

1. The system supports NO LOCK and NC LOCK. For example the NO

LOCK (normally opened at power on) is connected with 'NO1' and

'COM1' terminals, and the NC LOCK (normally closed at power on) is

connected with 'NC1'and 'COM1' terminals.

2. When electrical lock is connected to the Access Control System, you

must parallel one FR107 diode (equipped in the package) to prevent

the self-inductance EMF from affecting the system.

Do not reverse the polarities.

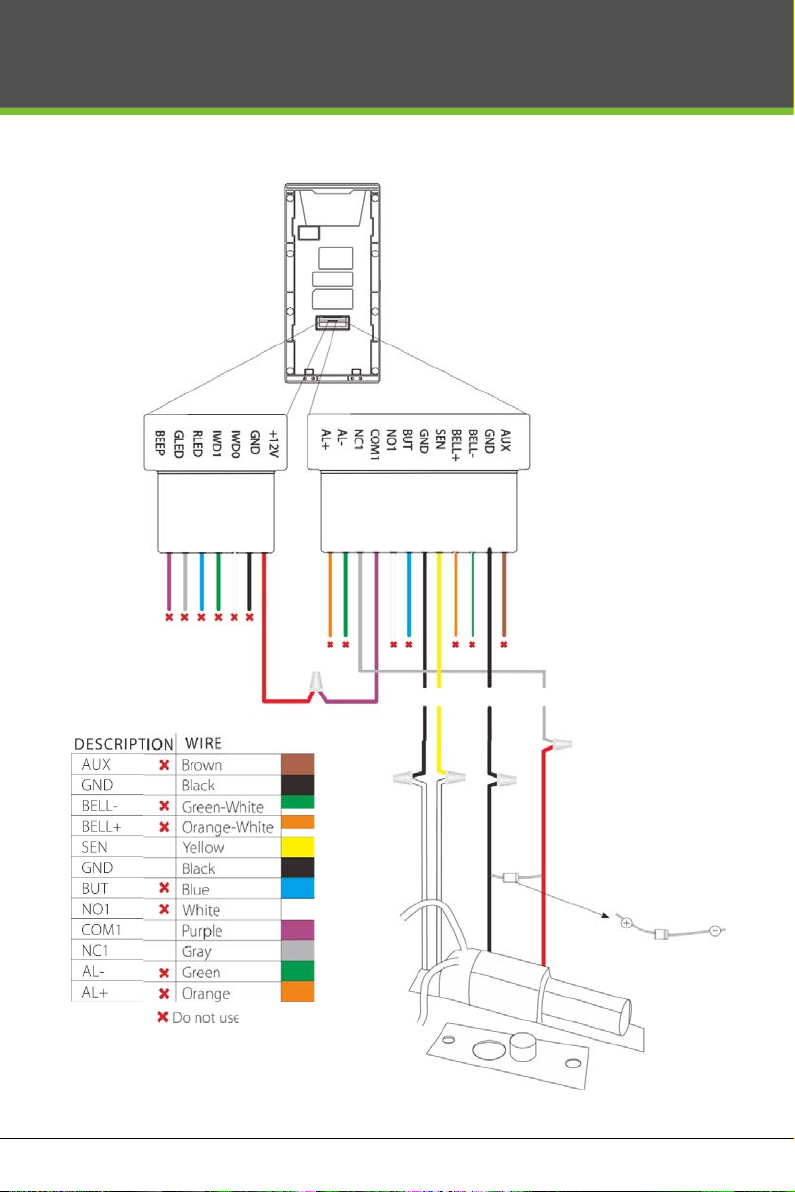

Lock Relay Connection

Device Sharing Power with the Lock

COM1

+12V GND

Sensor NC1

FR107

Diode

Normally Closed Lock

GND

Wiegand Output Connection

WD0

WD1 GND
