ZKTeco F18 Manuel utilisateur

Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between

the actual product and the written information in this manual.

Version: 1.0

F18

Quick Start Guide

1 Overview

USB Slot

Reset Button

Speaker

Side

正面

Back Bottom

Tamper Alarm Button

Star-shaped screw hole for ﬁxing

device to the back plate

Front

+12V

GND

IWD1

IWD0

RLED

GLED

BEEP

+12V

GND

BELL-

BELL+

SEN

GND

BUT

NO1

COM1

NC1

NO2

COM2

485+

GND

485-

RXD

GND

TXD

WD0

WD1

RJ45-1

RJ45-2

RJ45-3

RJ45-6

Terminal Block:

2.4 Inch TFT LCD

Keypad & RF Card Read Area

Door Bell & LED Indicator

Fingerprint Sensor

Before the installation, please connect the cables to the connectors.

1) Fix back plate to the wall.

2) Mount the device on the back plate.

3) Secure the device and back plate.

2 Installation of Wall-mount

3 Cautions

1) Power cable is connected after other wirings, and shut down the power ﬁrstly, when

making some necessary checking.

2) We recommend that use the DC 12V/3A power supply.

3) Please read the terminals description carefully and wiring by rule strictly.

4) Please connect the GND before other wirings especially under the serious electrostatic

environment.

5) Do not install the device in a place subject to direct sunlight, humidity or dust.

4 Wiring Diagram

U Disk

TCP/IP

Server

Lock Door

Sensor

Alarm

Exit Button RS485 Reader



Wiegand CardReader

Door Bell

Door

5 Lock Connection

The system supports Normally Opened Lock and Normally Closed Lock.

The NO LOCK (normally opened at power on) is connected with 'NO1' and 'COM' terminals,

and the NC LOCK (normally closed at power on) is connected with 'NC1' and 'COM' terminals.

Take NC Lock as an example below:

BELL-

BELL+

SEN

GND

BUT

NO1

COM1

NC1

NO2

COM2

FR107

+12V

GND

Normal Close Lock

DC12V BELL-

BELL+

SEN

GND

BUT

NO1

COM1

NC1

NO2

COM2

+12V

GND

Normal Close Lock

FR107

DC12V

Power

1)Device not sharing power with the lock 2)Device sharing power with the lock

6 Door Bell Door Connection & Sensor & Exit Button & Alarm

Alarm Power

Exit Button

Alarm

Bell Power

Door Bell

BELL-

BELL+

SEN

GND

BUT

NO1

COM1

NC1

NO2

COM2

Door Sensor

TXD

RXD

GND

RS232

Printer

485+

485-

GND

RS485

Reader

WD0

WD1

GND

RXD

TXD

GND

485+

485-

7 RS485 and RS232 Connection

+12V

GND

IWD1

IWD0

RLED

GLED

BEEP

8 Wiegand Reader Connection

Wiegand Card Reader

+12V

GND

WD0

WD1

Note: RS232 for TA push ﬁrmware connect to the Printer.

9 Power Connection

12VDC

GND

12V

Recommended power supply:

1 12V ± 10%, at least 500mA.)

2) To share the power with other devices, use a power supply with higher current ratings.

10 Ethernet Connection

6RJ 45

IP address: 192.168. .1301

Subnet mask: 255.255.255.0

IP address: 192.168. .2101

Subnet mask: 255.255.255.0

Press M/OK on the initial interface. Select COMM. and press M/OK. Then, select Ethernet

on the Comm. Interface, press M/OK to set the IP address and gateway of the device.

Note: The IP address should be able to communicate with the ZKBioAccess IVS server,

preferably in the same network segment with the server address.

11 User Registration

When there is no super administrator set in the device, press M/OK to enter the menu. After

setting the super administrator, the system will request for the administrator’s veriﬁcation

before entering the menu. For the security purpose, it is recommended to register a super

administrator at the ﬁrst time you use the device.

Select User Mgt. > New User and press M/OK to register a new user. Settings include

entering user ID and name, registering ﬁngerprint, password and card, setting user role.

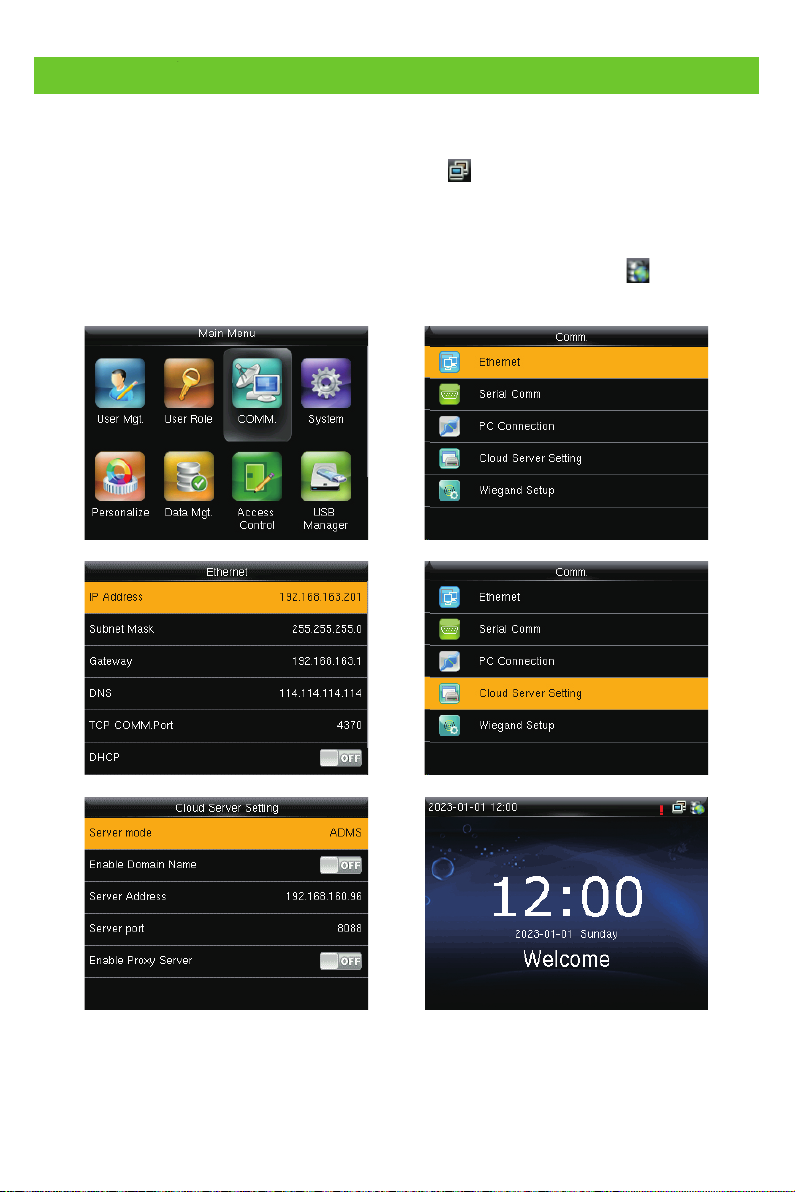

12 Ethernet and Cloud Server Setting

Press M/OK on the initial interface. Select COMM. and press M/OK. Then, select Ethernet on

the Comm. Interface, press M/OK to set the network of the device. If the TCP/IP

communication of the device is successful, the icon will be displayed in the upper right

corner of the standby interface.

Press M/OK on the initial interface. Select COMM. and press M/OK. Then, select Cloud

Server Settings on the Comm. Interface, press M/OK to set the cloud server address and

server port. If the device communicates with the server successfully, the icon will be

displayed in the upper right corner of the standby interface.

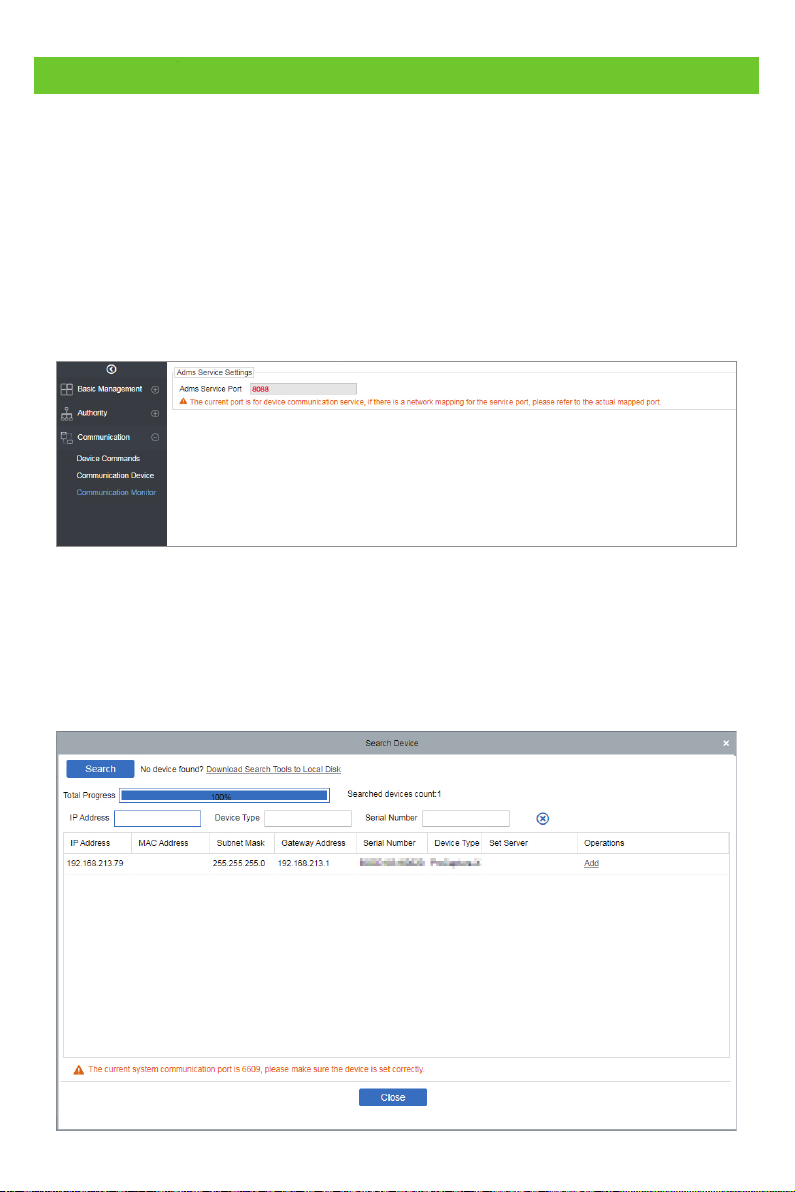

13 Connect to ZKBioAccess IVS Software

Device Side:

Set ethernet and cloud server parameters refer to chapter 12.

Note: The IP address should be able to communicate with the ZKBioAccess IVS server,

preferably in the same network segment with the server address.

Server address: Set the IP address as of ZKBioAccess IVS server.

Server port: Set the server port as of ZKBioAccess IVS (The default is 8088).

Software Side:

Monitor to set the ADMS service port, as shown in the ﬁgure below:

Add Device on the Software

Add the device by searching. The process is as follows:

1) Click to open the Search interface in the Access Control > Device > Search Device

software.

2) Click , and it will prompt “ .Search Searching……”

3) After searching, the list and total number of access controllers will be displayed.

4) Click Add in operation column, a new window will pop-up. Select Icon type, Area, and

Add to Level f OKrom each dropdown and click to add the device.

Add Personnel on the Software

1) Click Personnel > Person > New.

2) Fill in all the required ﬁelds and click OK to register a new user.

3) Click to Access > Device > Device Control > Synchronize All Data to Devices

synchronize all the data to the device including the new users.
