ZAVIO Fisheye Camera

Quick Installation Guide

Please follow the installation steps below to set up your IP Camera.

Check the package contents with the list below. See P.2

Physical overview. See P.3

I/O Terminal Block Circuit. See P.4

I/O Terminal Block Pin Definition. See P.4

LED Indicator Definition. See P.5

Power mode. See P.5

Installation of hardware and connection of all cables. See P.5

Windows: Go to Zavio website and download Camera Installation Tool. See P.9

Access the IP Camera using Camera Installation Tool. See P.9

MAC OS: using Safari Browser. See P.12

Lighting environment. See P.14

Change language of the web interface. See P.14

Application of IP Camera. See P.15

Package Contents

Camera

IP Camera

Quick Installation Guide

Brief product information and quick installation

Accessory

6 pin cable for DI/DO and audio, 2 pin I/O

terminal block, plastic plate and screw pack for

wall and ceiling mounting, L-type hex key

wrench, alignment sticker, desiccant

Software

The following software and information are available online:

-Video Management Software

-Camera Installation Tool

-User manuals

-Camera Language Packs

You may download the above at http://www.zavio.com/downloads.php or you

may scan the below QR-Code.

To activate Video Management Software, please enter the license key below.

Physical overview

Top cover

Ethernet Socket

Lens

MicroSD/SDHC

Reset

Power LED Indicator

Network LED Indicator

External I/O connector

DC 12V/1A

Routing hole

I/O Terminal Block Circuit

I/O Terminal Block Pin Definition

This Camera provides a 6pin cable for external I/O which is used to connect input/

output devices. The pin definitions are described below.

Definition

Description

Max. V/A

Black

Ground

Brown

+ 12V DC

12V DC

1.2W

Red

Audio Input

Connect the wires of the audio input device

to GND (Pin 1) and AUDIO.IN (Pin 3).

Orange

Audio Output

Connect the wires of the audio output

device to GND (Pin 1) and AUDIO.OUT (Pin

4).

Yellow

Digital

Output 1

Uses an NPN transistor with the emitter

connected to the GND pin. If used with an

external relay, a diode must be connected in

parallel with the load for protection against

voltage transients.

100 mA

24V

Green

Digital Input

Connected to GND to activate, or leave

floating (or unconnected) to deactivate.

30V DC

LED Indicator Definition

LED

Color

Indication

Network

Blue

Flash blue while Network activity.

Power

Red

Steady red for booting up process

Blue

Steady blue for booting up completion

Purple

Flash purple during firmware upgrading; when reset button pressed for

at least 5 sec. to factory default

Unlit

When you press reset button; or Power off

Reset: Press the button to reboot or hold for 10 sec to restore back to factory default.

Reset process: Press reset button until indicator Unlitsteady red (booting up

process)steady blue (booting up completion)

Reset to default process: Press until indicator steady bluesteady red (booting up

process)steady blue (booting up completion)

Power Mode

PoE Mode

Power Requirement

PoE (IEEE802.3af) with Class 3

Power Consumption

4.19W

Adaptor

Mode

Power Requirement

12V/1A Adaptor

Power Consumption

4.24W

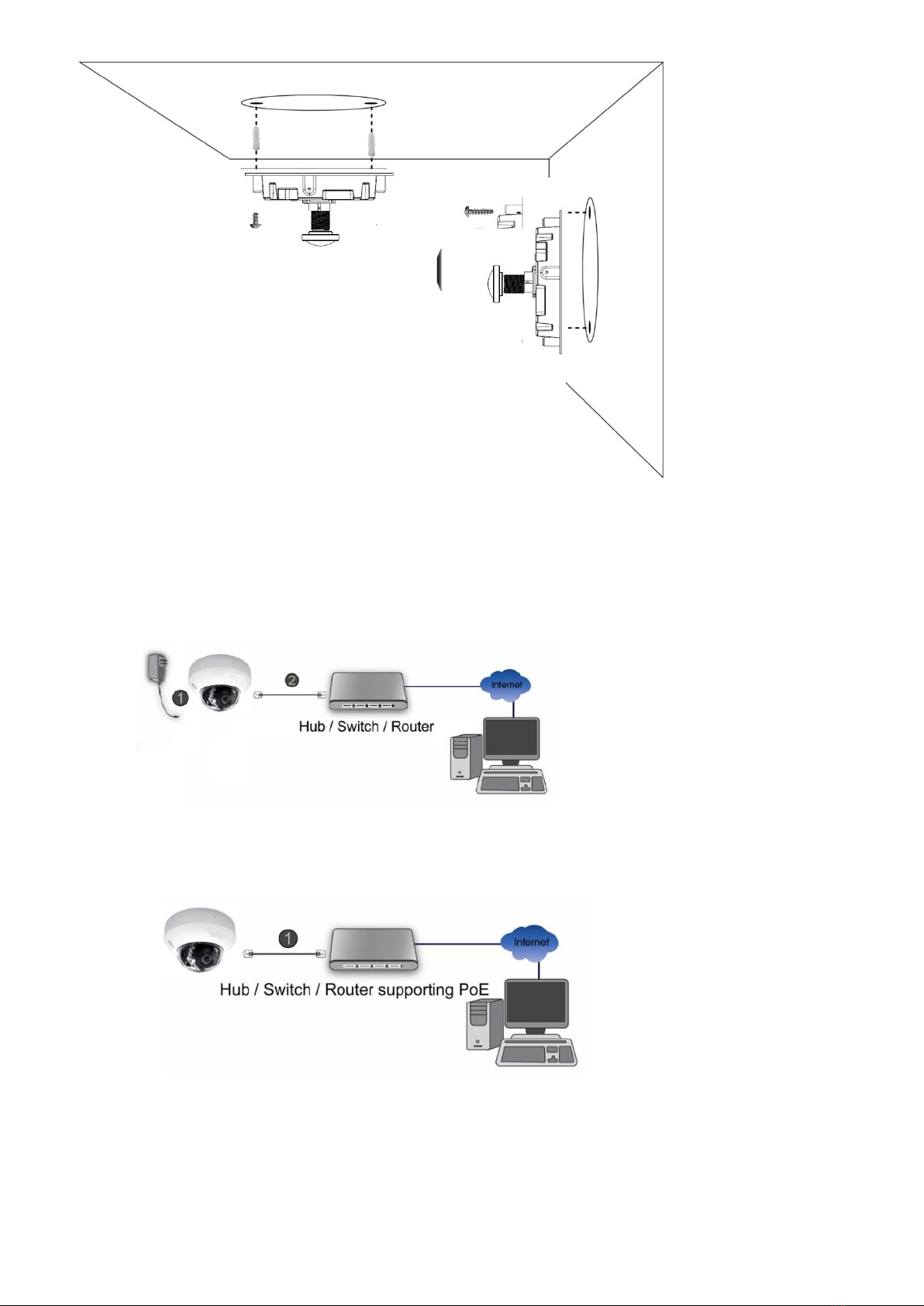

Install the hardware and connect all cables

A. Hardware Installation

1) Loosen the tamper-proof screws using supplied L-type Hex Key Wrench

2) Remove the dome cover. Be careful do not scratch the cover glass.

3) If you want to route cable from the side of camera, please see below figure.

1. Attached the alignment sticker to the wall/ceiling. Drill three holes into the wall,

two for screws and one for cable.

2. Align the two holes on the base of plastic plate with the two plastic anchors on the

wall or ceiling, insert the supplied screws to the corresponding hole and fix them.

3. Secure the camera to the plastic plate with screws(M2.5x6 * 2pcs)

4. Adjust the angle of camera to aim the shooting area.

(for F3105)

B. Wall mount L-type Bracket installation(optional)

1. Position the L-type at the desired installation location. Drill two holes into the

placement and hammer the included screw anchors.

2. Align the two holes on the L-type bracket to the two plastic anchors on the wall or

ceiling, insert the supplied screws to the corresponding hole and fix them.

3. Secure the plastic plate to the L-type bracket with screws(M4x10 * 2pcs)

4. Secure the camera to the plastic plate with screws(M2.5x6 * 2pcs)

5. Adjust the angle of camera to aim the shooting area.

C. Wall mounting and Ceiling mounting

1) Attached the alignment sticker to the wall/ceiling. Drill three holes into the wall,

which two for screws and one for cable.

2) Hammer the supplied plastic anchors into the holes.

3) Align the two holes on the base of camera with the two plastic anchors on the wall or

ceiling, insert the supplied screws to the corresponding hole and screw them.

D. Wall mounting and Ceiling mounting

1. Without Power over Ethernet (PoE) connection

1. Connect the power adaptor to the IP Camera.

2. Connect the IP Camera to a normal Hub / Switch / Router.

2. Power over Ethernet (PoE)

1. Connect the IP Camera to a PoE-enabled Hub / Switch / Router.

Note:

If using a non-PoE switch, please use a PoE power injector to connect the camera.

Windows: Go to Zavio Website and download Camera Installation Tool

Please go http://www.zavio.com/softwaredownloads.php download “Camera

Installation Tool”. And follow the installation process to complete the installation.

Access the IP Camera using Camera Installation Tool

1. Please check two settings before using Camera Installation Tool.

a. Browser’s Internet Properties →Security→Default Level

b. Browser’s Internet Properties →Privacy →Uncheck Pop-up Blocker

2. Click the Camera Installation Tool Icon on your desktop. The main page will show

up listing all active camera and video server devices. Select the desired IP

cameras from the list and click Link to IE.
