Zavio F3102/F3107/F3110/F3115 Quick Installation Guide

Please follow the installation steps below to set up F3102 / F3107 / F3110 /F3115 IP Camera.

Check the package contents against the list below. See P.1

Physical overview. See P.1

Install the hardware and connect all cables. See P.3

Microsoft OS: Use the software CD to install Intelligent IP Installer.See P.3

Access the IP Camera using Intelligent IP Installer. See P.3

Mac OS using Safari Browser. See P.5

Change light environment setting. See P.6

Change the Web Interface into your preferred language. See P.6

Wireless Setting (For F3107 / F3115). See P.6

Application of IP Camera. See P.7

For more information, please check the User Manual available in the Software CD or you can download the latest

software from http://www.zavio.com

Package Contents

Physical overview

Camera

F3102 / F3107 / F3110 / F3115 IP Camera

Quick Installation Guide

Brief product information and quick installation

Software CD

IP Surveillance Software

Intelligent IP Installer

User Manuals

Language Packs

Mounting Bracket

(2) screws, (2) plastic wall anchors, and (1) camera bracket

Accessory

4 pin terminal block for DI/DO

antenna for connection of IEEE 802.11b/g/n wireless network

*(F3107/F3115 only)

Adaptor

5V DC, 1A

(for F3105)

Built-in Microphone

Focus Adjustment Ring

Micro SD Card Slot

Network Connector

Reset

5V Power

WPS *(F3107/F3115 only)

Power LEDs

Indicator

Network LEDs

Indicator

Built-in Speaker

Light Sensor *(F3110/F3115 only)

IR LEDs *(F3110/F3115 only)

PIR Sensor *(F3110/F3115 only)

WPS LED Indicator

*(F3107/F3115 only)

Wireless *(F3107/F3115 only)

I/O connector

Focus Adjustment Ring: Adjust the focus ring to get a clear image.

Reset: When the device is powered, press the Reset Button to reboot the device, or hold the Reset Button for 5

seconds to set the settings back to factory default.

WPS: Push WPS button to configure wireless connection automatically. (F3107 / F3115 only)

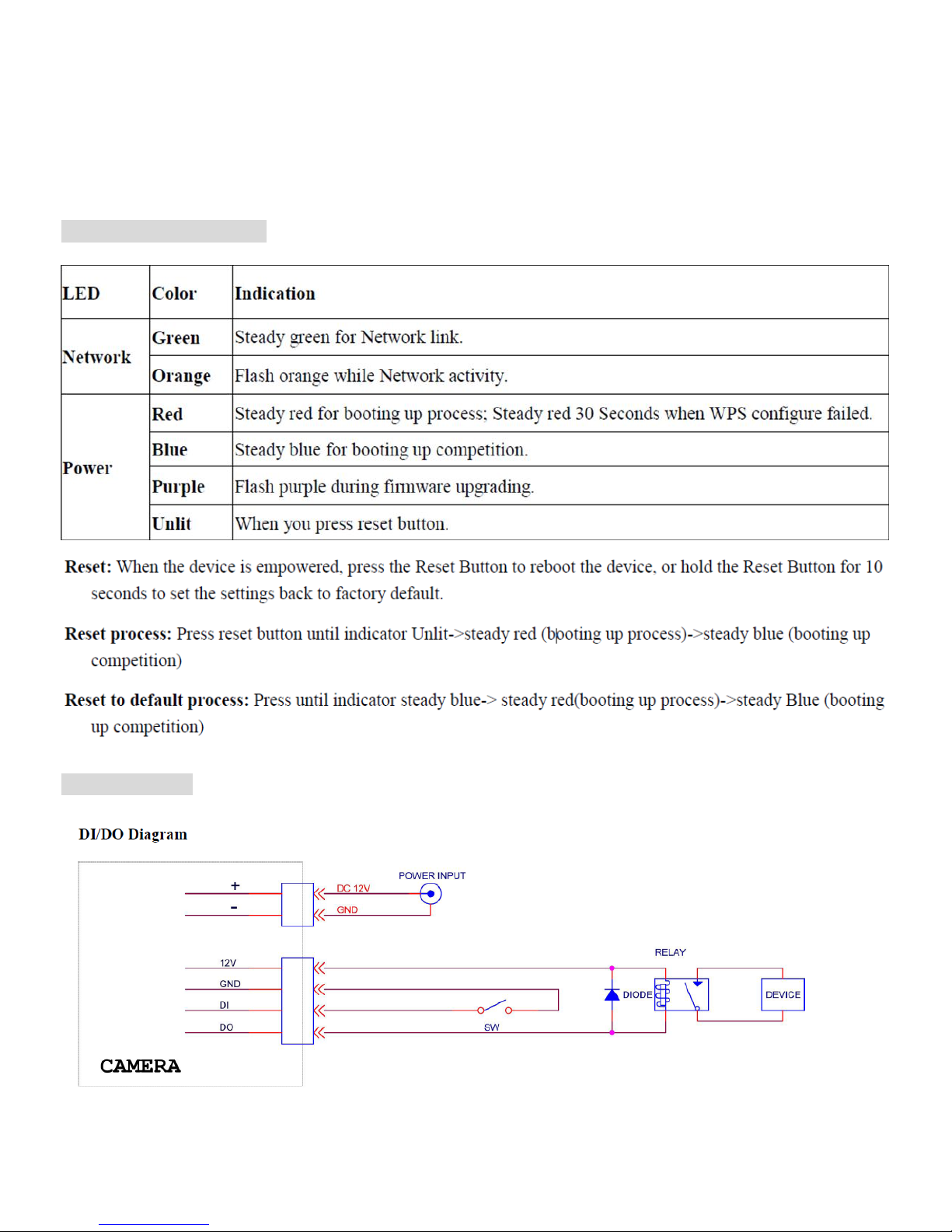

LED Indicator Definition

DI/DO Diagram

Install the hardware and connect all cables

a. Wall mounting and Ceiling mounting

1. Use the 3 supplied screws to fix the base plate to a flat surface.

2. Loosen the lock ring to adjust the desired angle of the camera.

3. Tighten the lock ring.

b. Connect cables and power supply

b1. Wire Connection

1. Connect the power adaptor to the IP Camera.

2. Use a standard RJ-45 network cable to connect the IP Camera

to the Network connection

b2. Wireless Connection (F3107/F3115 only)

1. Connect power adaptor to the IP Camera.

2. Connect to Wi-Fi.

Microsoft OS:Use the software CD to install Intelligent IP Installer

Power on your PC and insert the CD-ROM. The setup page will show up automatically. Please follow these steps to

install the firmware.

Access the IP Camera using Intelligent IP Installer

1. Please check two settings before using Intelligent IP Installer .

Select “Intelligent IPInstaller”and follow the installation process to complete the installation.

a. Browser’s Internet Properties →Security

→Default Level

b. Browser’s Internet Properties →Privacy

→Uncheck Pop-up Blocker

2. Click the Intelligent IP Installer Icon on your desktop. The main page will show up listing all active

camera and video server devices. Select the relevant IP camera from the list and click Link to IE.

3. Enter your Username and Password

to login to the IP Camera.

(Default is admin / admin)

4. When accessing the IP Camera for the first time, a yellow information bar appears below the address bar:

This website wants to install the following add-on: ‘AxvideoView.cab from ‘Zavio Inc’.

5. Click the information bar, and select Install ActiveX control.

6. Click Install.

Mac OS using Safari Browser

7. Live video displays in the centre of your web browser.

1. Select Safari icon

2. Click Bonjour function and select the camera

you wish to access.

3. Enter name and password to login to the IP

camera. (Default is admin / admin)

4. The monitor image will be displayed in your browser.

Lighting environment setting

The default setting of lighting environment is Auto. However, you may also select 50 or 60 Hz upon the lighting

environment of your country.

Go to “Setting > Live View > Camera Setting > Image Setting”, select the environment setting you wish.

Change the Web Interface into your preferred language

Use the settings screen to set the language of the Web Interface.

Go to “Setting > System > Maintenance”.

1. Insert Software CD into your CD-ROM.

2. Browse and select the preferred language from language pack in the Software CD and then click OK.

3. The web interface will change into your preferred language.

Wireless Setting( For F3107 / F3115 only)

Power the IP Camera and connect an Ethernet network cable to the IP Camera’s LAN port. Using Intelligent IP

Installer and entering the camera’s setting page.

Please go to “Setting > System > Network > WLAN”, set the wireless option to “Enable”

1. Click Refresh and choose theAP you wish to connect and click Connect.

2. Enter the password within the Active transmit key field if required.

3. Choose the option of Obtain an IP address automatically (DHCP) and Obtain DNS server address automatically.

4. Click “Save”to apply settings. The Wireless IP address appears in the IPaddress field.

Note: The wireless private IPaddress can be found in Intelligent IPInstaller.

Application of IP Camera

Memo

…………………………………………………………………………………..
