F731E User Manual

F731E 35M IR Outdoor IP Camera

Hardware User Manual

-Contents-

CHAPTER 1. SAFETY INSTRUCTION........................................................................................2

CHAPTER 2. INTRODUCTION.....................................................................................................4

CHAPTER 3. PACKAGE CONTENTS ..........................................................................................5

CHAPTER 4. PHYSICAL DESCRIPTION....................................................................................6

CHAPTER 5. BASIC CONNECTION ............................................................................................7

5.1 POWER OVER ETHERNET (POE) CONNECTION......................................................................................................8

5.2WITHOUT POECONNECTION .................................................................................................................................8

CHAPTER 6. APPLICATION..........................................................................................................9

F731E User Manual

Hardware User Manual

Chapter 1. Safety Instruction

Before you use this product

This product has been designed with safety in mind. However, the electrical products can cause

fires which may lead to serious body injury if not used properly. To avoid such accidents, be sure to

heed the following.

Legal Caution

Video and audio surveillance can be forbidden by laws that vary from country to country. Check the

laws in your local region before using this product for surveillance purposes.

Don't open the housing of the product

Don't try to open the housing or remove the covers which may expose yourself to dangerous voltage

or other hazards.

Don't use the accessories not recommend by the manufacturer

Heed the safety precautions

Be sure to follow the general safety precautions and the “Operation Notice.”

Operation Notice - Operating or storage location

Avoid operating or storing the camera in the following locations:

Extremely hot or cold places

(Operating temperature: -30 °C to + 50 °C [-22 °F to 122°F] )

Exposed to direct sunlight for a long time, or close to heating equipment (e.g., near heaters)

Close to water (e.g.,near a bathtub, kitchen sink, laundry tub)

Close to sources of strong magnetism

Close to sources of powerful electromagnetic radiation, such as radios or TV transmitters

Locations subject to strong vibration or shock

F731E User Manual

In case of a breakdown

In case of system breakdown, discontinue use and contact your authorized dealer.

In case of abnormal operation

If the unit emits smoke or an unusual smell,

If water or other foreign objects enter the cabinet, or

If you drop the unit or damage the cabinet:1 Disconnect the cable and the connecting cables. 2

Contact your authorized dealer or the store where you purchased the product.

Transportation

When transporting the camera, repack it as originally packed at the factory or in materials of equal

quality.

Ventilation

To prevent heat buildup, do not block air circulation around the device.

Cleaning

Use a soft, dry cloth to clean the external surfaces of the device. Stubborn stains can be

removed using a soft cloth dampened with a small quantity of detergent solution, then wipe dry.

Do not use volatile solvents such as alcohol, benzene or thinners as they may damage the

surface.

F731E User Manual

Chapter 2. Introduction

The F521E is an IP67 rated weather proof IP camera designed for 24hr indoor/outdoor surveillance

even in the harshest conditions. The F7311E is equipped with high resolution CMOS sensor with

infrared LEDs with up to 35m working distance. The auto-changeable IR filter inside also provides

superior day/night performance. It also offers many important features such as PoE and digital input

and output for external alarm & sensor.

Key Features:

Simultaneous MPEG-4 and Motion JPEG video stream

Excellent Image Quality up to flexible 30 fps in all resolution for optimum bandwidth use

Automatic-changeable IR-cut filter with adjustable threshold

Synchronized Two-way Audio

IR working distance up to 35M

IP66 Waterproof Resistance

Optimal Synchronization of Audio and Video

Support Live Video Viewing on Windows Live Messenger (WLM )

Control panel add-in, i.e. snapshot and image setup

Support Mac OS Browser

Support iPhone through Safari Browser

Power over Ethernet IEEE 802.3af Class 0 suppliers power to the camera via the network

Digital Input / Output Port for External Alarm & Sensor

Mobile Phone Streaming Live Video through 3GPP / ISMA / RTSP

Mobile Phone Live Image through 2.5 WAP

Multi-level Password Protection for Restricting Camera Access

Built-In Multi-Window Motion Detection (3 detection areas)

Video Buffer makes the Streaming Smoother

UPnP and Bonjour for Fast and Easy Installation

DDNS Supported

Bundled 16 Channel Surveillance Software

User-friendly & Multi-lingual UI

F731E User Manual

Chapter 3. Package Contents

Camera – F731E Outdoor IR Network Camera

Quick Installation Guide -To provide brief product information and quick installation and

wireless setting

Software CD - To provide IP Surveillance Software, Intelligence IP Installer, User Manuals, and

Language Packs

Wall Bracket –There are three components including lock ring, brace, and base plate to compose

a bracket and three applied screws to fix the base plate to a flat surface (horizontal or vertical)

Component Pack - Applied screws and Hex Wrench

Adaptor - 12V DC, max 6W

F731E User Manual

Chapter 4. Physical Description

Overview

Infrared LEDs -Infrared LEDs for night use up to 15 working distance

Housing- IP67 related protection against dust and heavy rain

Reset - When the device is empowered, press the Reset Button to reboot the device, or

hold the Reset Button for 10 seconds to set the device settings back to factory default

I / O Terminal Connector - 1Input / 1Output to support External Alarm and Sensor used

for motion detection, event triggering and alarm notification…etc.

Reset - When the device is empowered, press the Reset Button to reboot the device, or

hold the Reset Button for 10 seconds to set the device settings back to factory default.

Audio In (Pink Line) -To support audio in with Microphone for two way audio

Audio Out (Green Line) - To support audio out with earphones or speakers for two way

audio

Power Connector - For connection of 12V DC input

Network Connector - For connection to the Ethernet via RJ-45 standard with PoE

Network Indicator (Green Light) - Green light will light up after the IP Camera

connected with network and IP Camera completed the boot process.

Network Transmit Indicator (Yellow Light) - Yellow light will light up while

transmitting data via internet

F731E User Manual

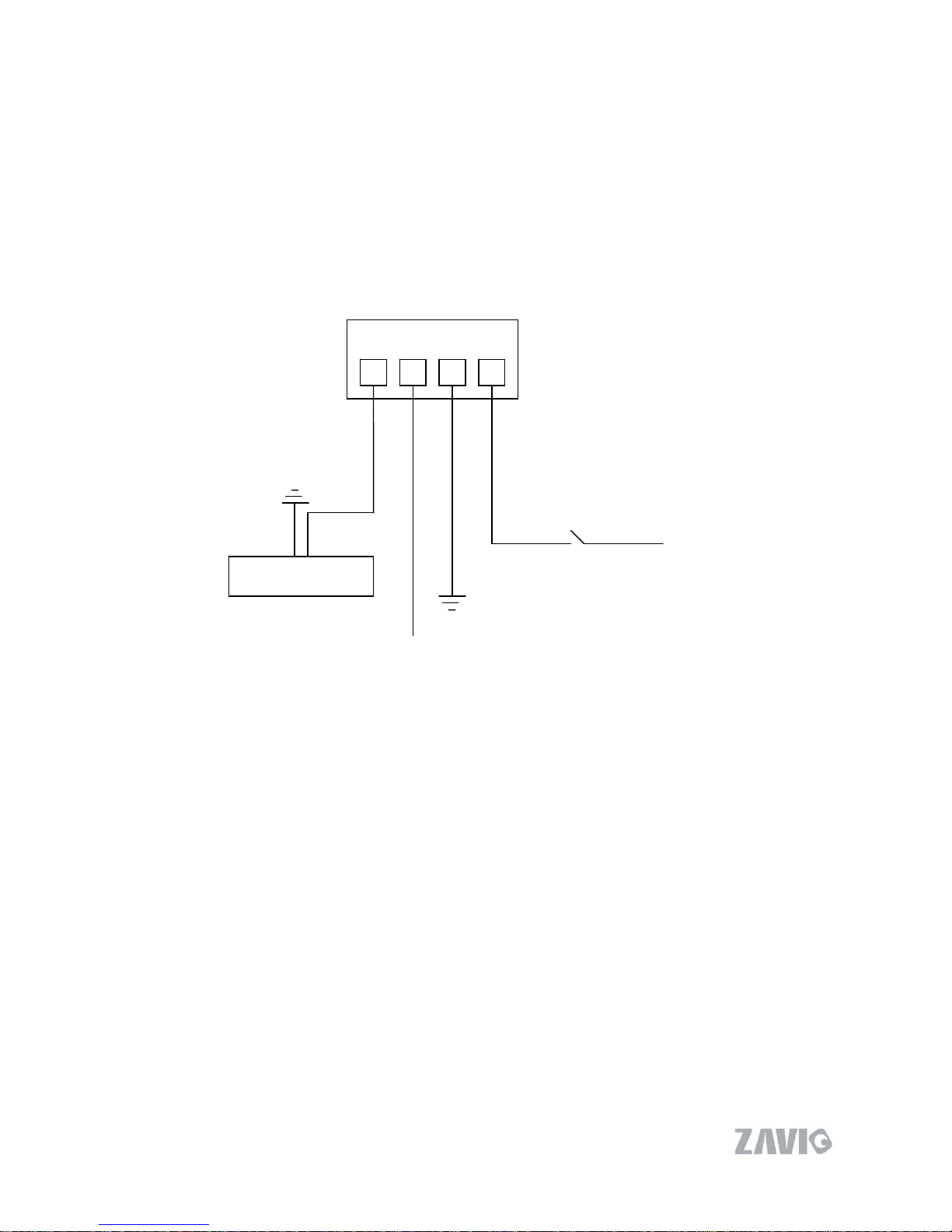

DI / DO Terminal connector diagram

Please refer the following illustration below for connection method.

NO COM D- D+

Ground

12V

Max. 30W

Switch

Alarm out device

12V

F731E User Manual

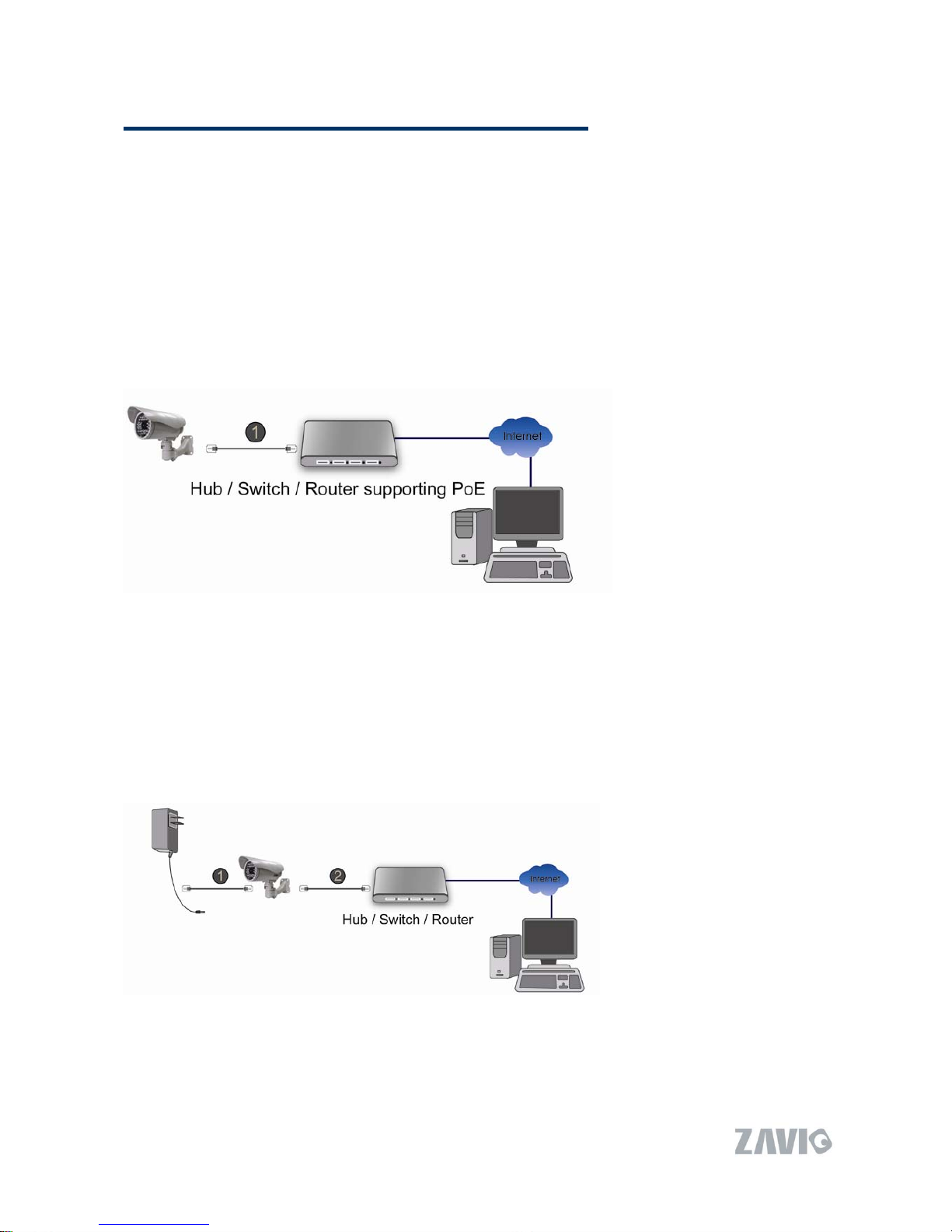

Chapter 5. Basic Connection

F731E offers Power over Ethernet (PoE) connection. However, you still can use F731E with PoE or

without PoE connection. You can follow the procedure below to connect the IP Camera for both

applications.

5.1 Power over Ethernet (PoE) Connection

1. Connect IP Camera’ Ethernet port to your Hub / Switch / Rout supporting PoE

5.2 Without PoE Connection

1. Connect the power adaptor to IP Camera.

2. Connect IP Camera’ Ethernet port to your Hub / Switch / Router

F731E User Manual

Chapter 6. Application
