ZALMAN TNN 300 Manuel utilisateur
English
English Version
www.zalman.co.kr www.zalmanusa.com
◈Please read thoroughly before installation.
◈Visit our website (www.zalman.co.kr) and watch the TNN 300 installation
ideo first to make your installation easier.
English
TNN 300
▣Welcome
Congratulations on your purchase of ZALMAN Tech’s TNN 300.
With TNN 300, you have no entered the orld of silent computing.
TNN 300 is the ultimate ans er to every computer user’s dream of
creating a silent computing environment ith total system stability.
▣Contents
1. Safety Notices
. Features
3. Specifications
4. Components
5. Compatibility
6. Operational Notes
7. Patents
8. Optional Components
9. Installation Guide
10. Trademarks and Copyright Notice
3
4
8
10
13
17
17
18
19
33
3
English
1. Safety Notices
TNN 300
1) This unit must be kept away from heat sources and direct sunlight.
2) This unit must be used in a well entilated en ironment.
3) This unit should be placed on a flat, level, and solid surface.
4) Al ays shut do n the operating system then disconnect the AC po er cable form the AC
outlet and po er supply before disassembling.
5) Keep this unit in an upright position hen the po er is ON.
6) Do not place or spill liquids on this unit.
7) Avoid inserting any objects into the system hile it is ON.
8) If this unit is to be transported long distances, place it in the original packing box or a custom
made hard case.
9) Do not drop this unit or subject it to shock hile it is in transit.
10) Place the system out of the reach of children.
11) Check the condition of the product and its components before installation. If there is a problem
ith the product and/or its components, please contact the retailer for replacement.
◈
Disclaimer
Zalman Tech Co., Ltd. is not responsible for any damages due to
external causes, including but not limited to, improper use, problems
with electrical power, accident, neglect, alteration, repair, improper
installation, or improper testing.
1
Safety Notices
TNN 300 is the latest in the orld’s first truly noiseless high-end computer case series,
developed ith heatpipe technology, HSC (Heat Source Contact) po er technology, HCET (High
Capacity Extrusion Technique), and FMS (Flexible Mounting Structure) design technology by
ZALMAN Tech Co., Ltd. Its reduced eight and size compared to the previous models enhance
user convenience.
The TNN 300’s high quality chassis is anodized and finished in black, blending function ith style.
It is ideal for home theater systems, and quiet environments such as bedrooms, educational
facilities, and offices.
1) Complete Silence
The cooling system does not generate any noise because it does not utilize any fans.
Hard drive vibration is absorbed by dampers, and the thick aluminum case contains noise
from emanating out of the case.
) Stability
①
Fanless System
The majority of heat generated inside the system is
transferred through heatpipes to the heatsink plates,
here it is dissipated via natural convection.
This dramatically reduces the inflo of dust and,
consequently prevents system crashes caused by dust
buildup and fan failures
(fans last around 20,000 to 50,000 hours).
②En ironment Friendly System
Large, aluminum heatsink plates silently cool heat-
generating components, such as the CPU, VGA Chipset,
and PSU through natural convection. It is virtually free
of mechanical maintenance and is 100% recyclable.
2
Features
4
English
2. Features
TNN 300
English
2. Features
TNN 300
5
③
Heat Transfer ia Heatpipes
Virtually ever-lasting heatpipes transfer heat a ay
from the CPU and VGA chipset, preventing system
crashes due to overheating.
- CPU Heatpipes
Heat from the CPU is transferred to the heatsink plate
through 6 heatpipes each 6 millimeters in diameter.
The CPU Block Base is made of pure copper to ensure
the highest cooling performance.
- VGA Card Heatpipes
Heat from the VGA Card is transferred to the heatsink
plate through 3 heatpipes each 6 millimeters in
diameter.
④
Heat Transfer ia Rear-mount Thermal Blocks
When the Rear-mount Thermal Blocks are installed on
the back-side of the motherboard in line ith the
position of the FETs (Field Effect Transistor) and the
Northbridge chipset, each can lo er the FET
temperature by 10 to 30°C (50 to 86°F) and the
Northbridge chipset by 5 to 10°C (41 to 50°F).
CPU Heatpipes
VGA Card Heatpipes
Rear-mount Thermal Blocks
6
English
2. Features
TNN 300
⑤
High-Efficiency Fanless Power Supply
- The po er supply uses t o high-efficiency
FET components to reduce s itching loss at
lo input voltages, incorporates Heat
Source Contact (HSC) technology to
eliminate the need for a fan, and has a 10%
higher po er conversion efficiency (80%)
rating than conventional po er supplies.
- Heat from the po er supply is transferred directly to the high-capacity heatsink plates,
here it is dissipated by natural convection. Without the need for cooling fans, the
po er supply is free of noise and vibration.
- Noise reduction and enhanced efficiency via resonant circuitry.
- Minimized standby po er consumption to less than 3W via Green IC.
- Conventional po er supplies tend to have lo er output voltage due to line-dropping
phenomenon. The TNN Po er Supply extends the output voltage sensors up to the
motherboard connection for +3.3V, +5V, and +12V rails to prevent this, enhancing output
voltage accuracy and assuring system stability.
※
Data above ere measured according to INTEL ATX v2.03/ATX12V po er supply specs.
Measurement specifications : For each DC output, a bypass made up of one 10μF ceramic
capacitor and one 10μF electrolytic capacitor is connected and measured ith an oscilloscope
(input impedance 1MΩ) at a frequency band idth of 20MHz. The aveforms may differ under
different measurement conditions.
■Ripple and Noise Wa eforms at DC Outputs
a)+12V1DC
(104mVp-p)
b)+12V2DC
(106mVp-p)
c)+3.3VDC
(42mVp-p)
d)+5VDC
(42mVp-p)
e)+5VSB
(28mVp-p)
f)-12VDC
(82mVp-p)
7
English
2. Features
TNN 300
3) Energy Conservation
The TNN 300 is equipped ith a high-efficiency po er supply and does not utilize any fans, it
resulting in approximately 10 % less po er consumption compared to a conventional
computer system, under the same configuration.
4) User Friendly Design
①
Side-door design ith latch.
②
USB 2.0 port and flash memory reader supporting 21 types of cards.
③
Remote control for enabling multimedia system operation and control.
④
Optional high-quality, digital audio amp for building a home theater system.
❶❷
❸❹
(Optional)
8
English
3. Specifications
TNN 300
※

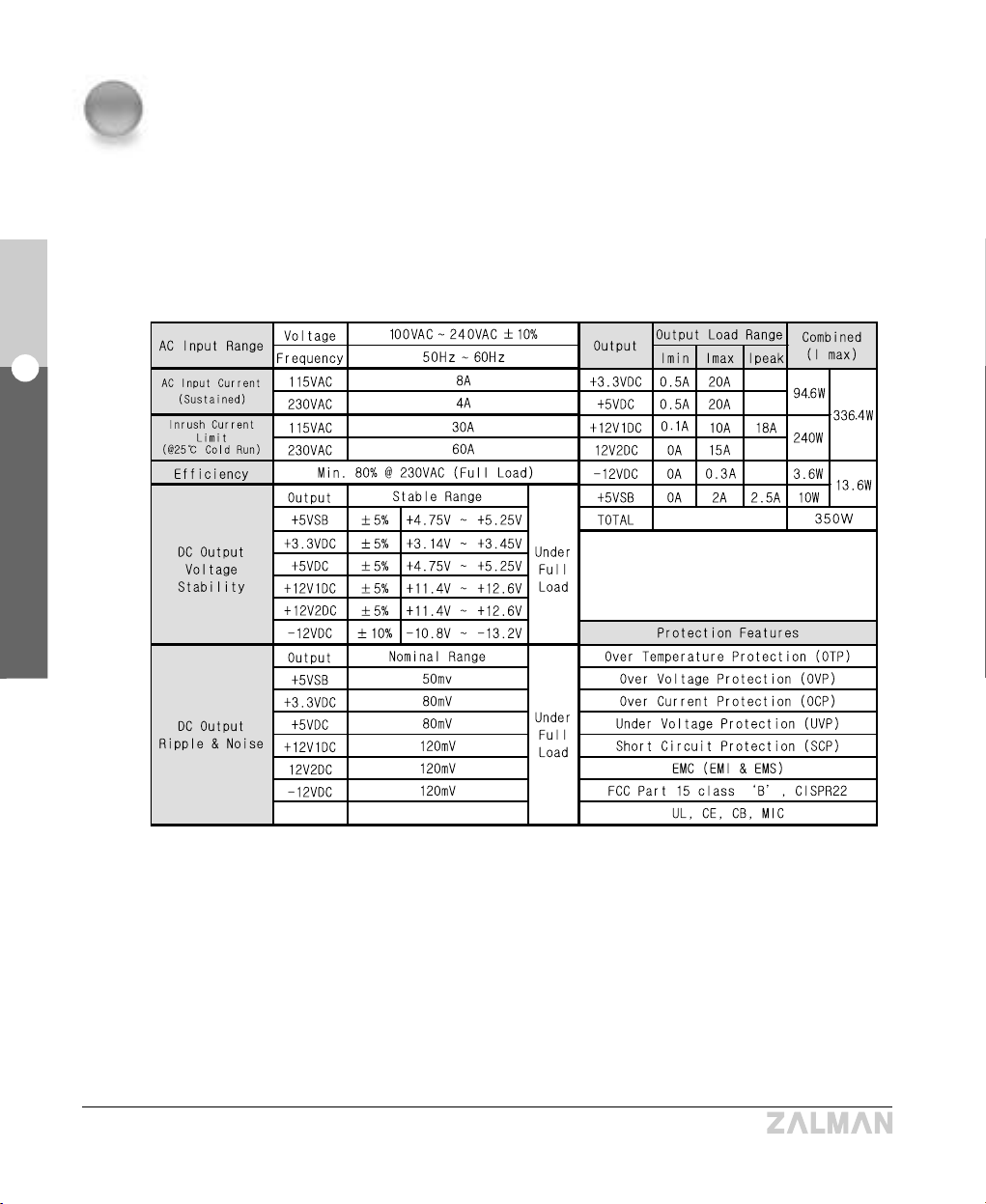

Power Supply Electrical Characteristics (Model: TNN350APF-V1)
1) Dimensions (L x W x H) : 330 x 230 x 470 mm
2) Weight : 14.74Kg
3) Power Supply Capacity : 350W
3
Specifications
9
English
3. Specifications
TNN 300
※※
Note : Before connecting the output cables to the noiseless po er supply, please check the
tags (20-pin, 3-pin) to make sure the correct cables are used.

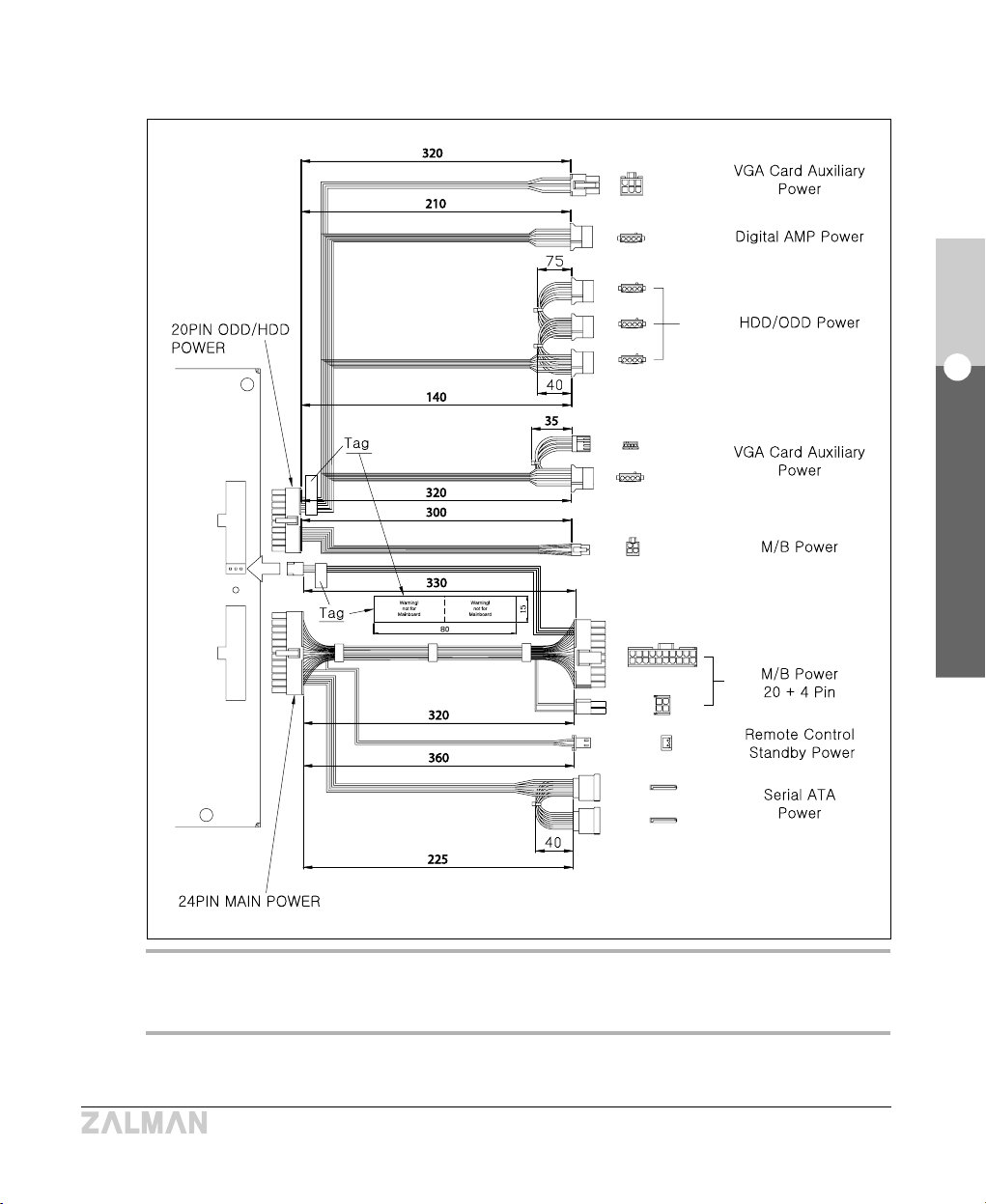

4) Power Output Cables
10
English
4. Components
TNN 300
4
Components
Right Heatsink Plate
Front Heatsink
Front Plate
ODD/FDD/HDD
Brackets
Card Reader
Top Plate
CPU Cooler Parts
VGA Cooler
Parts
Fanless Power
Supply
Bottom Plate
Left Heatsink Plate
Rear Plate
