HD160 Plus
2
The design and specifications of this product may change without prior notice to enhance its quality.
HD160 Plus
Congratulations on your purchase of Zalman’s HD160 Plus Home Theatre PC
Enclosure! You are now about to experience Zalman’s world of silent computing.
The HD160 Plus is designed for ultra quiet home theatre PC operation, utilizing
optimized ventilation and anti-vibration reinforcements, making it ideal for
environments that require silence such as living rooms, bedrooms, educational
facilities, and offices.
1. Cautionary Notes
2. Components 4
. Specifications 5
4. Front Panel Buttons & I/O Ports 6
5. Installation Guide 7
6. Recommended Use 1
▣Introduction
▣Contents
English
The design and specifications of this product may change without prior notice to enhance its quality.
HD160XT Plus
1
Cautionary Notes
(1) Check the condition of the product and its components before installation. If
there is a problem with the product and/or its components, please contact the
retailer for replacement.
(2) Avoid inserting any objects into the system while the power is ON. Doing so
may result in injury and/or damage to the system.
(3) Check the manual when connecting cables. Incorrect connections may
damage the component and system.
(4) The air vents must not be blocked.
(5) Keep this unit away from heat sources, direct sunlight, water, oil, and humidity.
Place the unit on a flat, leveled, solid, and well-ventilated area.
(6) Do not clean the product surface with chemicals or wet cloth.
(chemicals industrial brightener, wax, benzene, alcohol, paint thinner,
mosquito repellent, aromatics, lubricant, detergent etc.)
(7) If this unit is to be transported long distance, remove all HDDs (Hard Disk
Drive) for separate transport. And place the HD160 Plus in its own box.
◈◈Disclaimer
Zalman Tech Co., Ltd. is not responsible for any damages due to external
causes, including but not limited to, improper use, problems with electrical power,
accident, neglect, alteration, repair, improper installation, or improper testing.
4
The design and specifications of this product may change without prior notice to enhance its quality.
HD160 Plus
2
Components
(1) HD16 Plus Main Components
(2) Case Parts
(3) iMON Parts
20 HDD Bolts
(PH #6-32X10)
4 Power Supply Bolts
(PH #6-32X6)
18 ODD / Motherboard Bolts
(PWH M3X5)
2 micro ATX Stand Offs (M3)
20 Dampers
1 ODD Aluminum Bezel
1 Clamp
1 User’s Manual
1 Remote Control
2 Batteries (AAA)
1 Installation CD
1 User’s Manual
HDD Chassis
Top Panel
ODD Chassis
Main Chassis
5
English
The design and specifications of this product may change without prior notice to enhance its quality.
HD160 Plus
3
Specifications
Enclosure Type Desktop
Dimensions (DXWXH) 460mm X 435mm X 160mm
(18.1” X 17.1” X 6.3”)
Weight 6.8kg (14.9lb)
Material Aluminum
Motherboard Compatibility Standard ATX / micro ATX
Power Supply Compatibility Standard ATX / ATX12V
PCI/AGP Card Compatibility Full Size
Drive Bays 5 X 3.5" Internal Drive Bays
1 X 5.25" External Drive Bay
Cooling Components Rear Panel 2 X 80mm Exhaust Fans
Bottom Panel 1 X 80mm Exhaust Fan(Optional)
Side Panel 1 X 92mm Exhaust Fan(Optional)
Expansion Slots 7 Slots
Front I/O Ports 2 X USB Ports
1 X IEEE1394(FireWire) Port
1 X Microphone
1 X Headphones
Available Colors Silver / Black
LCD FFSTN NEGATIVE LCD TYPE
6
The design and specifications of this product may change without prior notice to enhance its quality.
HD160 Plus
4
Front Panel Controls & I/O Ports
① Remote Control Receiver
② Power Button
③ System Power LED
④ Volume Control / Mute
⑤ Navigation Controls
⑥ Media Program Controls
⑦ Audio (Headphones, Mic) Port
USB Port
IEEE1394 (FireWire) Port
⑧ 3.5”Bay
⑨ ODD Tray Open / Close
⑤
④
⑥
①
②
③
⑨
⑧
⑦
MCE CLOSE START MENU BACK
7
English
The design and specifications of this product may change without prior notice to enhance its quality.
HD160 Plus
5
Installation Guide
(1) Opening the Enclosure
To remove the Top Panel of the enclosure, unscrew the six Bolts (FH M3x6).
(2) Removing the ODD and HDD Chassis
Remove the Bolts (PWH M4x5), and horizontally pull the ODD and HDD Chassis
approximately 15mm (0.6inch) away from the Front and Side Panels, then lift them
out of the enclosure.
Bolt (FH M3x6)
Top Panel
HDD Chassis
Bolt (PH M4x5)
ODD Chassis
8
The design and specifications of this product may change without prior notice to enhance its quality.
HD160 Plus

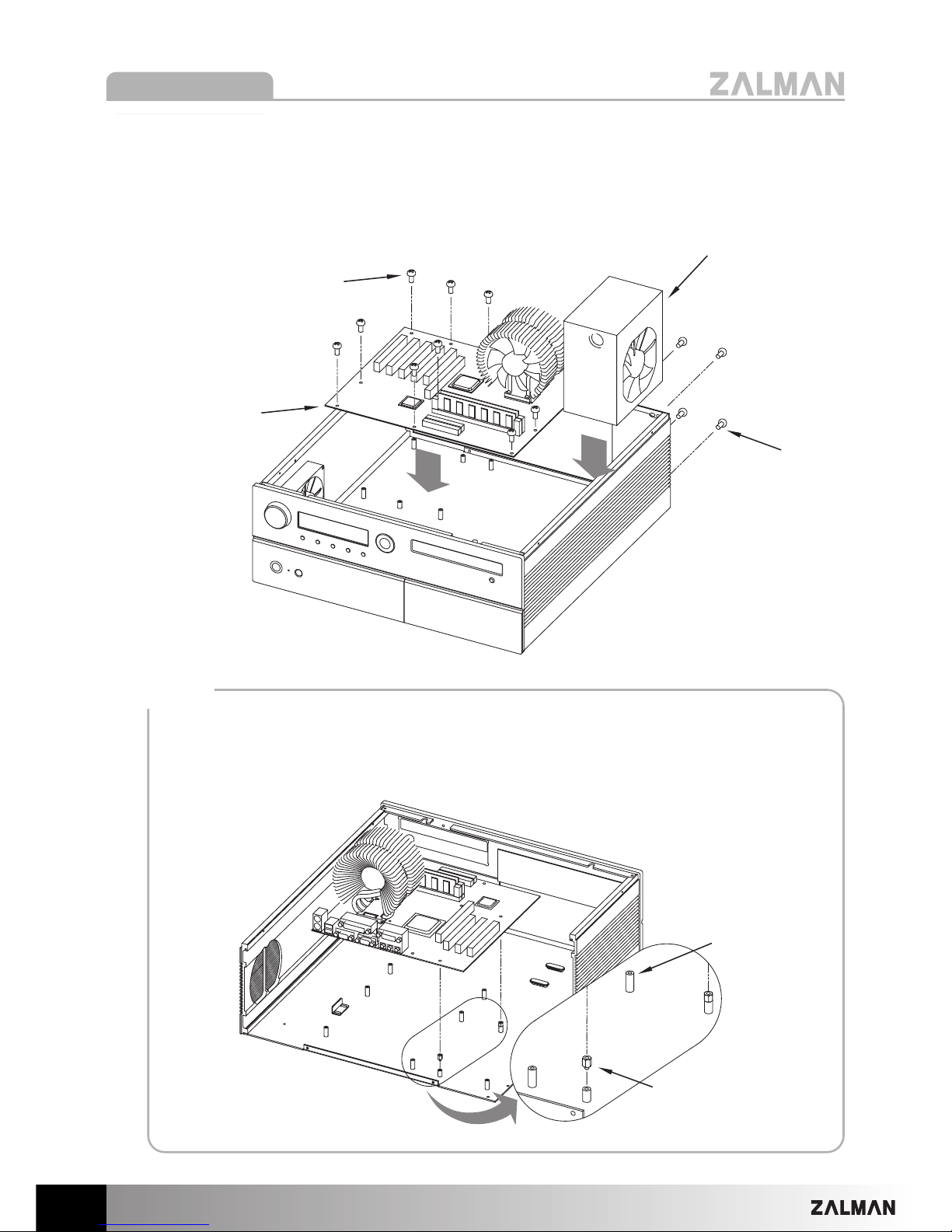

(3) Assembling the Motherboard and Power Supply
Mount the motherboard and power supply by using appropriate bolts. Mount the computer
components (CPU, VGA, RAM etc.) onto the motherboard.
To mount a microATX motherboard, first install the two enclosed microATX
Stand Offs and align their height with the ATX Stand Offs.
Note)
Bolt
(PWH M3x5)
Motherboard
Power Supply
Bolt
(PH #6-32X6)
ATX Stand Off
microATX Stand Off
9
English
The design and specifications of this product may change without prior notice to enhance its quality.
HD160 Plus
(4) Installing 5.25
""and 3.5
""Drives
(1) Install the 5.25” drive (ODD) and 3.5” drive (HDD) onto the ODD and HDD Chassis
with the appropriate bolts.
(2) Slide the ODD and HDD Chassis onto the enclosure’s Front Panel and Side Panel,
then secure them onto the panels with the Fixing Bolts(PWH M4x5).
This product is provided with one 5.25” bay and five 3.5” bays.
For optimal HDD cooling, install in the order mentioned in the diagram below.
Note)
Bolt (PH M4x5)
Damper
Bolt
(PWH M3x5)
Bolt
(PH #6-32x10)
OODDDD ((55..2255””))
HHDDDD--⑤⑤((33..55””))
CCaarrdd RReeaaddeerr
FFrroonntt II//OO
HHDDDD--④④((33..55””))
HHDDDD--②②((33..55””))
HHDDDD--③③((33..55””))
HHDDDD--①①((33..55””))
10
The design and specifications of this product may change without prior notice to enhance its quality.
HD160 Plus
(5) Connecting the Cables
1) Power and Data Transmission Cables
Connect the Power and Data Transmission Cables (IDE or SATA) required for the HDD,
ODD, FDD, VGA etc.
2) LCD PCB Cable
①Connect the Power LED Cable (2-Pin or 3-Pin) to the motherboard’s Front Panel Port
(refer to the motherboard’s manual).
②Connect the USB Cable that is connected to the USB Cable of the LCD PCB to the
motherboard’s USB Port.
③Connect the System Power Switch Cable (2-Pin) with the motherboard’s Front Panel
Port (Refer to the motherboard’s manual).
④Connect the Standby Power Cable (20-Pin or 24-Pin) to the motherboard and power
supply.
②③ ① ④
