ZALMAN GS1200 Manuel utilisateur
English
1
1
Eng
GS1200
Cautionary Notes
1) Please read this manual thoroughly prior to installation.
2) Before installing, check the components and condition of the
product, and if any problem is found, contact the retailer.
3) Avoid inserting objects or hands into the system while it is in
operation to prevent product damage and injuries.
4) Check the manual when connecting cables. Incorrect connections
may cause short circuits leading to re hazards.
5) Do not block the Front Intake Vent or the Rear Exhaust Vent.
6) Keep this unit away from heat sources, direct sunlight, water,
oil, and humid environments, and place the unit on a flat, stable,
vibration-free, and well-ventilated area.
7) Do not clean the product surface with chemicals or wet cloth.
(chemicals: industrial brightener, wax, benzene, alcohol, paint
thinner, mosquito repellent, aromatics, lubricant, detergent etc.)
8) Please wear gloves while handling this product to prevent injuries.
9) Product design and specications may be revised to improve quality
and performance.
Disclaimer) Zalman Tech Co., Ltd. is not responsible for any damages due to
external causes, including but not limited to, improper use, problems
with electrical power, accident, neglect, alteration, repair, improper
installation, or improper testing.
2
2
GS1200
Product Details
(1) Specications
(2) Product Information
Front Top Side (left)
Models GS1200
Type Full Tower
Dimensions (W×H×D) 260 × 570 × 640㎜ (10.2” × 22.4” × 25.1”)
Weight 12.4㎏ (27.3 lb)
Materials Aluminum, Plastic, Steel
Color Black
Motherboards Compatibility Standard ATX / m-ATX / E-ATX
Power Supply Compatibility Standard ATX / ATX12V
PCI/AGP Card Compatibility Full Size, 350 mm (13.7")
Drive Bays
5.25" External Bay x 4
3.5" External Bay x 1, Internal Bay x 6
5.25"/3.5"/2.5"
1 (3in-1)
Hot-swap 3.5" Support Hot-swap x 4 (HDD Docking x 1)
Expansion Card Slots 7 Solots
I/O Ports
Headphones x 1, Mic x 1, USB 2.0 x 3 , e-SATA x 1 , USB 3.0 x 1
Cooling
Components
Front 92mm Fan Vent x 2(2 Fans included)
Top 200mm Fan Vent x 1 (1 Fan included)
Rear 120mm Fan Vent x 1 (1 Fan included)
Side 200mm Fan Vent x 1 (1 Fan included)
Bottom 120mm Fan Vent x 2 (Fans optional )
3
Eng
GS1200
(3) Top Panel I/O Ports and HDD Docking Station
USB 3.0
HDD LED
Power LED
Power Button
Mic
Headphones
Reset Button
USB 2.0
e-SATA
USB
RESET MIC HEADPHONE POWER
USB USBe-SATA USB
HDD Docking Station
4
GS1200
# Part Name Units
①HDD Tray 6
②HDD Tray Cover 2
③Front Cover 1
④Stand (front) 1
⑤Stand (rear) 1
⑥PSU Support 1
⑦PSU Bracket 1
# Part Name Units
⑧Side Cover (right) 1
⑨Side Cover (left) 1
⑩Top Cover 1
⑪Chassis 1
⑫ 5.25” Bay Cover 3
⑬Adapter Tray 1
(4) Exploded View
①
②
③
④
⑤
⑥
⑦
⑧
⑩
⑪
⑫
⑬
⑨
5
Eng
GS1200
User’s Manual × 1
Stand (front ×1, rear ×1)
Stand-O × 11 A Bolt(#6-32*12mm) × 12
[HDD]
B Bolt(#6-32*6mm) × 24
[M/B, PSU]
C Bolt(M3*12mm) × 4
[Stand]
D Bolt(M3*6mm) × 4
[SSD]
Cable Tie × 10
CPU 12V Extension Cable × 1
Main Unit
(5) Parts
6
GS1200
Installation

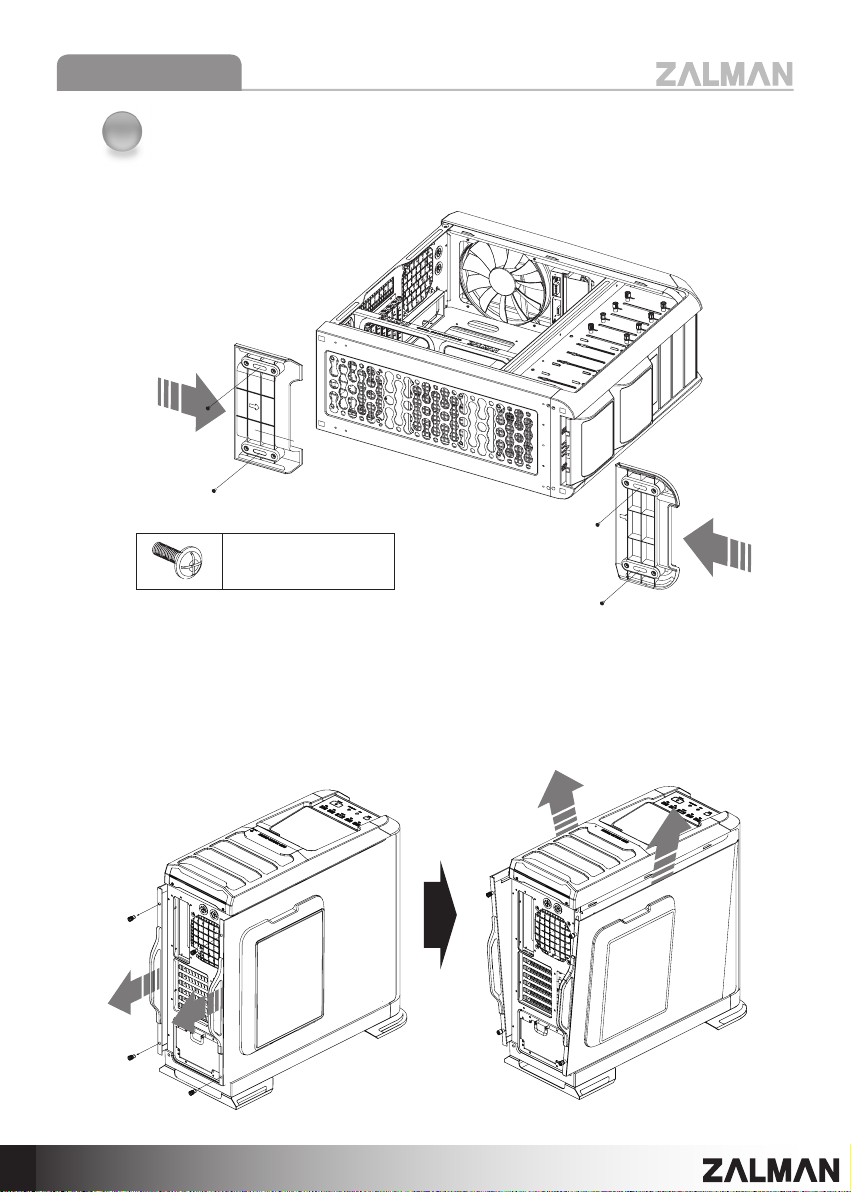

(1) Stand Assembly
(2) Side Cover Removal
3
C Bolt
7
Eng
GS1200
Tip
▶ Type A (PSU independent cooling)
If the PSU’s fan points downwards, the PSU’s cooling performance is
enhanced.
▶ Type B (Case Air Circulation Type)
If the PSU’s fan points inwards, the PSU’s cooling performance is
enhanced.
※ When using the case in a dusty environment, use Type B.
(3) PSU Installation
Type A Type B
Type A Type B
Or
B Bolt
8
GS1200
(4) Motherboard Installation
ATX Board m - ATX Board
Please refer to the diagrams below for additional Stand O positions (based
on motherboard type).
Stand-O
B Bolt
