Yale HSA6200 Manuel utilisateur

Siren-Based Alarm System

Installation · Programming · Operating

Keep this manual safe for reference and future maintenance

Yale Consumer Helpline 01902 635998

Introduction

General System Overview

Thank you for choosing the Yale Security Alarm

System. This simple to install system has been

designed with the user in mind.

The siren has a sounder and strobe LEDs to

attract attention.

No connections

All the components are self contained and no

connections are needed between the units. There is

no need to damage the home decor, lift carpets or

run cables.

Number of devices

You can install up to 20 devices in the system.

As well as extra door/window contacts, PIRs and

keypad remote controls, you can add smoke

detectors, keyfob remote controls and help buttons.

Long battery life

There is no need to wire into the mains supply or

seek the services of a qualiﬁed electrician as all the

components are powered by battery (all batteries

included).

The system has a typical battery life of 2 years

or more before batteries need changing. Regular

testing and battery changes (when notiﬁed by the

system) will ensure reliability and peace of mind.

Please note that alkaline batteries and the correct

type of coin cells must be used as replacements.

Tamper proof system

Each part of the system is ‘tamper’ protected. Any

unauthorised tampering with the system will result in

an alarm. This feature can be turned off by the user

when a battery change is required.

Entry/Exit feature (for System with remote

keypad)

The system has a 20 second entry/exit time. This

feature allows you time to leave the home when

arming the system. Upon entering, the feature allows

time to disarm the system without causing an alarm.

Take care of your safety

Display extreme caution when using ladders or

steps, please follow manufacturer instructions. Be

careful when using hand and power tools and follow

the manufacturers’ guidelines when using them.

Take care that the correct tools are used. Wear

goggles or protective clothing where required.

The external Siren is extremely loud, please

ensure you replace the cover and retreat to a safe

distance before testing.

Calling for help

Yale have a helpline team who are there to offer

advice or solve problems over the phone.

Yale Consumer Helpline 01902 635998

Service available 9am-5pm Monday to Friday.

Information and illustrations are subject to change within this document. Yale reserves the right to alter the speciﬁcation and product design

Contents

Recommended Installation Sequence

We recommend you follow the easy start sequence,

headings numbered 1-5.

Contents

1 Location planning 4-5

2 Insert the batteries 6-7

3 Programming the Siren-based system 8

4 Mounting alarm devices 9

5 Using the system 12

Adding accessories 14

Changing the batteries 15

Speciﬁcations 17

Trouble shooting 18

Key points Back cover

Accessories available

HSA6020 Passive infra-red (PIR) detector

HSA6030 3 x Passive infra-red (PIR) detectors

HSA6010 Door/window contact

HSA6060 Remote control (keyfob)

HSA6080 Remote keypad

HSA3045 Help button

HSA3070 Smoke detector

Location planning

Operating range

All devices must be within 30 metres of the siren

unit and must not be mounted on or near large

metal objects. Avoid obvious sources of electrical

interference such as fridges and microwave ovens.

Tamper switches

When mounting devices ensure that any tamper

switches close fully. On uneven surfaces it may be

necessary to place packing behind the switch for

reliable operation.

1Work out the best places to locate the devices for maximum protection. Having chosen the

locations do not mount at this stage.

Smoke detector

• Mount in the middle of the ceiling at the top of

a stairwell, or on the centre of hallway ceilings

where smoke would most likely be detected.

• Do not mount in corners or above cooking

appliances and heaters.

• Install additional detectors if there are closed

doors preventing smoke from reaching

detectors.

Help button accessory

The help button provides extra protection for you

and your family. When help is needed the button

can activate your alarm immediately - even when

the system is disarmed.

• Mount on bedroom wall or by the front door

• Not clearly visible to an intruder

• Easily accessible

• Out of reach of children

• Not outdoors

PIR movement detectors

• Mount in a position such that an intruder would normally

move across a PIRs ﬁeld of view.

• Height should be between 1.7 and 2.3 metres above oor

level.

• Location in a corner will ensure wider room coverage.

• Do not mount a PIR where its eld of view will be

obstructed e.g. by curtains, ornaments etc.

• Do not point directly at sources of heat e.g. res or boilers,

and do not position directly above radiators.

• Avoid mounting a PIR directly facing a window.

• Do not point a PIR at a door protected by a door/window

contact.

Keyfob remote control accessory

Can be used outside the premises and kept on

your keyring.

Smoke detector

• Mount in the middle of the ceiling at the top of

a stairwell, or on the centre of hallway ceilings

where smoke would most likely be detected.

• Do not mount in corners or above cooking

appliances and heaters.

• Install additional detectors if there are closed

doors preventing smoke from reaching

detectors.

Siren

Choose a position on an external wall where the

siren would be most prominent. Mount as high

as possible, out of easy reach. (Round shaped

siren shown)

Keypad remote control

• The keypad should be sited next to the main

point of entry/exit so that the system can be

disarmed/armed within 20 seconds of entering/

leaving the premises.

• Ensure that the keypad is not visible from the

outside of the premises.

• Mount at chest height for ease of use.

• Designed for indoor use only.

Extend the system

Extend the system in the future to increase your

security or as your needs change.

For example, add extra PIR detectors in

bedrooms and extra door/window contacts.

Yale

Ya l e

Door/Window contacts

Use one door/window contact on a door

that is used as the main point of entry and

exit, usually your front door. The other

door/window contact can be used to protect

another entry point such as a rear door.

• Mount as high as possible.

• Do not aim a PIR at this door or window.

Unpack all the parts on a table top

The easiest way to get to know the system and get it up and running quickly is to get all the

devices and accessories programmed on a table top before locating and mounting them.

Siren

The siren comes in two shapes, square shaped

and round depending on the kit purchased. The

operation and programming of the sirens are

identical, only the case is different.

WARNING

The siren is very loud, be prepared! Take care not to

activate the siren tamper switch unnecessarily.

1Remove the cover by unscrewing the single screw

located on the lid.

2Square siren only: remove the left hand cover (not

battery compartment).

3Move the programming switches to

Master On (switch 4) and Clear On

(switch 1).

4 Switch the power switch to on and

the 3 strobe LEDs will now ash side

to side with one short beep.

5 Move the Clear switch to the Off position.

PIR movement detectors

1Pull out the plastic pull tab on the back of the PIR.

This will activate the batteries.

2 A red light can be seen ashing through the

lens. This will last for 30 seconds indicating the

component’s initiation.

Yale

1 2 3 4

Clear

1 2 3 4

Normal Master

Cover screw

Learn/Test

Button

Status

LED

Battery

Compartment

4 X D cells

Fixing

screws X 4

Internal cover

screws X 4

Learn button

Power

switch

Programming

switch

OFF

1 2 3 4

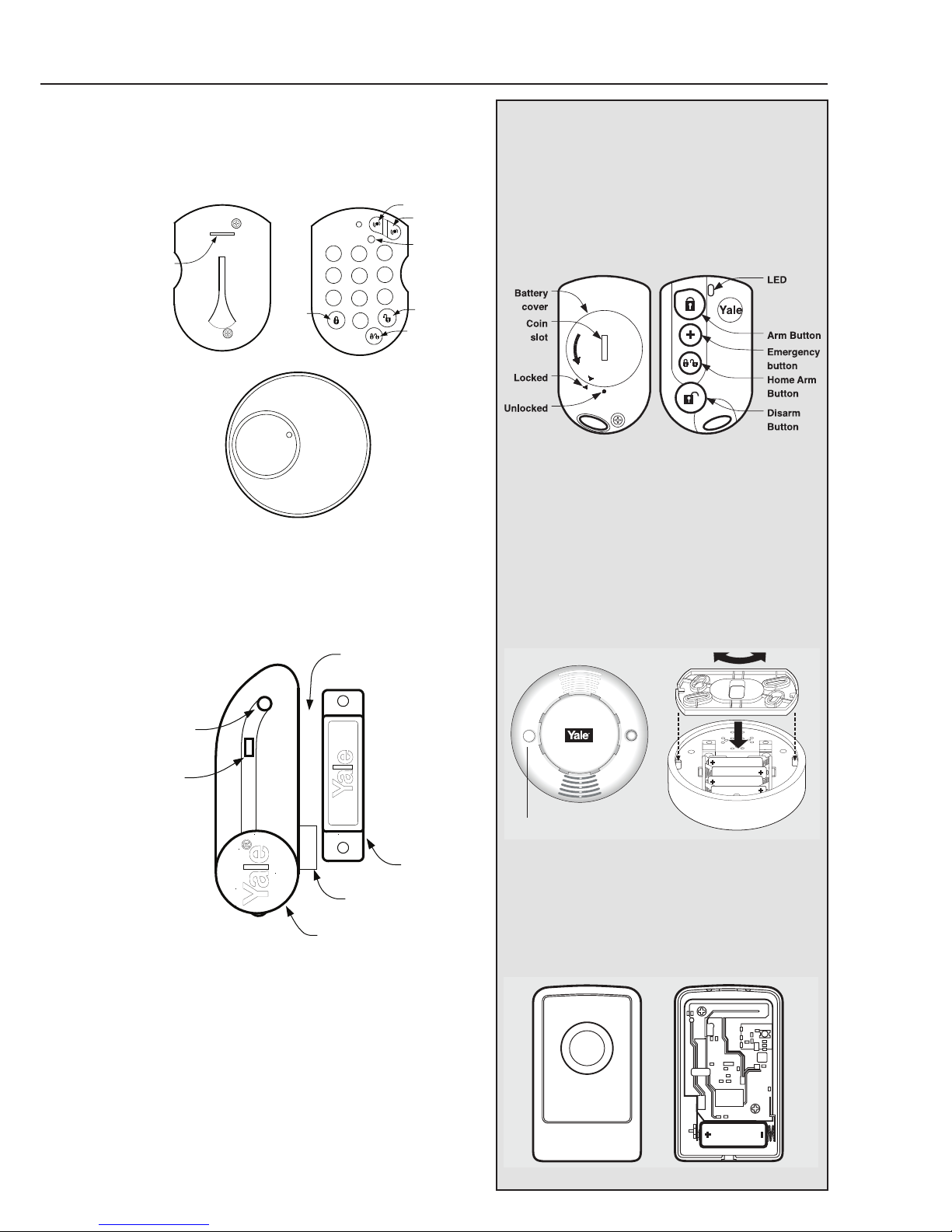

Keypad remote control

1Pull out the plastic battery saver tab at the back of

the remote keypad. This will activate the batteries.

Door/window contacts

1Pull out the plastic pull tab found on the side of the

main unit. This will activate the battery.

Smoke detector accessory

1Remove the cover and insert the four AAA

batteries as shown

2The Smoke detector will now enter into self-

calibration mode for 10 minutes. It will resume

normal operation after this period.

Door/window contacts

1Remove the cover of each door/window contact

by loosening the fixing screw.

2Insert two AAA batteries into each detector as

shown. The indicator LED will flash briefly.

Keypad remote control

Remove the cover and insert the 3 AAA alkaline

batteries as shown. The ‘Tx’ LED will flash briefly

while components initialise.

Please note, the Home button on the operating

panel and the jumper switch inside (do not move)

have no function on this model.

Smoke detector accessory

Remove the cover and insert the four AAA

batteries as shown.

Keyfob remote control accessory

Slide off the battery cover, insert the

23A/MN21 battery as shown, and replace

battery cover. Switch to ‘on’.

Help button accessory

Remove the cover by loosening the fixing

screw and insert the 12V battery (supplied) as

shown. Please ensure you observe battery

polarity.

Tamper

switch

Jumper

switch

Tamper

switch

Jumper

switch

Magnet

Extension terminals

Learn/Test button

Learn/Test

button

On/Off switch

Help button accessory

Remove the cover by loosening the ﬁxing screw

and insert the 12V battery (supplied) as shown.

Please ensure you observe battery polarity.

Door/window contacts

1Remove the cover of each door/window contact

by loosening the fixing screw.

2Insert two AAA batteries into each detector as

shown. The indicator LED will flash briefly.

Keypad remote control

Remove the cover and insert the 3 AAA alkaline

batteries as shown. The ‘Tx’ LED will flash briefly

while components initialise.

Please note, the Home button on the operating

panel and the jumper switch inside (do not move)

have no function on this model.

Smoke detector accessory

Remove the cover and insert the four AAA

batteries as shown.

Keyfob remote control accessory

Slide off the battery cover, insert the

23A/MN21 battery as shown, and replace

battery cover. Switch to ‘on’.

Help button accessory

Remove the cover by loosening the fixing

screw and insert the 12V battery (supplied) as

shown. Please ensure you observe battery

polarity.

Tamper

switch

Jumper

switch

Tamper

switch

Jumper

switch

Magnet

Extension terminals

Learn/Test button

Learn/Test

button

On/Off switch

Battery

saver tab

a l e

123

789

Disarm

Home

Arm

LED

Ya l e

Battery

saver tab

Gap no more

than 8mm

Magnet

Sensor

Learn/Test

button

LED

Keyfob remote control accessory

1Open the battery compartment using a coin by

turning cover in the direction of the big arrow so

the cover small arrow is next to round dot.

2Insert battery and replace cover.

Programming the Siren-based system

(without control panel)

The siren is the heart of the system. All components must be recognised by the siren.

Learning process

1Press and hold siren learn button for 1 second.

A short beep will follow with the outside LEDs

ashing once.

System is now in learning mode for 3 minutes.

Proceed to the following steps to add in additional

devices (20 devices maximum) within this time

period.

2Adding devices:

• Remember to press any buttons and keys rmly

for 1 second to send a learn-in radio signal.

When any device is learnt-in, the siren will beep

once and the outside LEDs will ﬂash once in

acknowledgement.

• Remote keyfob: Press any key except the

emergency button

• PIR: Press the test button

• Door/Window contact: Press the test button

• Help button: Press the emergency button

• Smoke detector: Press the test button

• Keypad: Press Panic button A and enter “0000”

to enter test mode indicated by a continuously

ashing LED. Press panic button A and enter “8”,

the keypad will conrm with two fast ashes that it

is in “Siren as master” mode. Press panic button A

then “1” to send learn-in signal, then press disarm

twice to quit test mode.

* If device learning takes more than 3 minutes and

the learn mode expires, the learn button on the

siren will need to be pressed again to add more

devices (repeat step 2 above).

4 Press the Learn button on the siren to exit the

learn mode, the middle LED will ash once and

there will be a single short beep to indicate that

normal siren operation has been resumed.

5 Set Dip switch 3 to select alarm period length.

Switch left for 4 minutes or right for 10 minutes

(default) siren duration.

6 Set Dip switch 2 for interference detection. Switch

left to switch on and right for off (default).

* Interference detection:

This unit is equipped with the latest type of

radio receiver using AM radio technology. If the

system is armed any criminal attempt to interfere

detector transmissions will trigger an alarm.

If the alarm is frequently triggered by interference

there may be high levels of unusual radio

signals in your area. Some kinds of electronic

equipment can generate this kind of radio

interference.

In the unlikely event of you experiencing

problems with interference, it is recommended

that you switch interference detection off.

Please telephone our helpline if you require any

further assistance.

Programming is now ﬁnished and the system is

ready to be installed.

Mounting alarm devices

4WARNING Before mounting the keypad and siren ensure that the system tamper is

disabled as described below.

Disabling the system tamper

Before mounting it is important to disable the

system tamper to avoid the siren sounding an

alarm.

Using the Keypad:

1 Press button A and enter “0000” to enter test

mode, press A then “2” to send “Tamper Off”

signal. The siren will beep in acknowledgement.

• Code “0000” is the factory default, use the new

user code if this has been changed.

2The tamper function is now disabled for one

hour. If more time is required, simply repeat the

above step.

Using the Keyfob:

1 Press and hold down Arm and Home buttons

for 5 seconds. The siren will beep once in

acknowledgement.

Mounting the siren

Ensure the tamper switch is fully depressed when

the siren is mounted. If there is a gap, pack with a

suitable spacing material.

Round

Siren

Base

Wall

Spring Guide

Spring compressed

firmly against wall

Square Siren Base

Plunger must

be pressed in

fully against

wall

Wall

1 Find a location where the siren is to be mounted.

2 Using the large screws and wall plugs provided,

mount on the desired wall through the 4 mounting

holes.

3 Fix the siren cover with the securing screw.

4 Enable the tamper switch by entering keypad test

mode (A and “0000”) and pressing A then “3”, or

pressing and holding the Arm and Panic button on

the Keyfob for 5 seconds.

Testing whether the siren is ﬁtted correctly:

5 Press Arm with the Keypad/Keyfob.

6 If there are 5 short beeps when armed, the tamper

switch is NOT fully depressed and will need to be

adjusted.

Unset the system by pressing Disarm on your

keypad then “0000”, or just Disarm on the keyfob.

Disable tamper as described above before

adjusting the siren tamper switch. If there is a

gap between the wall and the tamper switch

mechanism pack with a suitable spacing material.

When adjusted repeat the steps above from 1

through 5.

7 If there is one short beep and ash when armed,

the siren is mounted correctly and the siren

installation is complete. Disarm the system and

disable the tamper as described in step 6.

Mounting other devices

Find a location where the device is to be mounted,

see section “Location Planning” for suggestions.

Testing the radio range of siren:

Before proceeding to mount the devices

physically, check that the siren will receive the

system radio transmission by doing a simple radio

range test.

• Ensure the system tamper is disabled.

•KEYPAD: Hold the keypad in the desired

location and arm and disarm the system. The

siren will beep as conﬁrmation.

• HELP BUTTON: To prevent an alarm being

triggered, put the siren into learn mode ﬁrst. The

siren should respond with a single beep.

• ALL OTHER DEVICES: Hold the device in

the desired location and press the learn/test

button,siren should respond with a single beep.

• When you are satised that the devices work

in your chosen locations, proceed with the

installation as described below.

• If the siren does not respond, the location may

be out of range, try alternative locations until

reliable radio contact is obtained.

Mounting the Keypad:

Fixing Slots X 2

Keypad

Cradle Open

1 Drill holes into the wall using the ﬁxing slots as a

template.

2 Fit wall plugs into the wall and ﬁx cradle with the

screws provided.

3 Slide the keypad into the cradle

4 Close the cradle cover so the logo is facing you

Mounting the PIR

1 Find a location where the PIR is to be mounted. It

should be mounted high up, either on at surface

or in a corner. See section “Location planning” for

suggestions.

2 Perform a radio range test by pressing Test/Learn

Button on the PIR and the siren will beep once.

This indicates the device is within range. If this

step fails, ﬁnd an alternative location to place the

PIR nearer to the siren.

3 Open the PIR by loosening the bottom screw.

Corner fixing

knockouts X 4

Wall fixing

knockouts X 2

4 Knock out the relevant holes on the base where

the plastic is thinner. The center two knockout

holes are for at wall mounting while the 4 side

holes are for corner mounting.

5 Drill holes into the wall using the knockout holes on

the base as a template.

6 Fit wall plugs and secure the PIR base with the

screws provided.

7 Fit the PIR back together and tighten bottom

screw, the PIR installation is complete.

*The PIRs have a built-in sleep timer to save

battery power. If there is no movement in front

of the PIRs for 1 minute, the PIRs will become

‘ready to signal’ and movement will now be

reported. The PIRs will sleep for 1 minute after

reporting.

Any movement detected in sleep time will not be

reported and will extend the sleep period by a

further 1 minute.

Mounting the door/window contact

Frame

Door/Window

Gap no more

than 8mm

Magnet

Sensor

1 Find a location where the door/window contact

is to be mounted. It should be mounted between

the door/window frame and the door/window as

shown at the top of the opening. The magnet is to

go on the door/window while the sensor is to be

placed on the frame. The gap between the magnet

and sensor should be no more than 8mm when

closed. Windows can be protected in a similar way

to doors. Make sure the tamper switch spring is

fully depressed.

Autres manuels pour HSA6200

Table des matières

Autres manuels Yale Système de sécurité

Yale

Yale SAA8021 Manuel utilisateur

Yale

Yale SAA8012 Manuel utilisateur

Yale

Yale SmartHome Alarm series Manuel utilisateur

Yale

Yale HSA3400 Manuel utilisateur

Yale

Yale Sync Alarm Manuel utilisateur

Yale

Yale Sync IA-310 Manuel utilisateur

Yale

Yale Distress alert system Manuel utilisateur

Yale

Yale SAA8011 Manuel utilisateur

Yale

Yale AC-PETPIR Manuel utilisateur

Yale

Yale SR-3800i Manuel utilisateur

Yale

Yale IA-210 Manuel utilisateur

Yale

Yale HSA3095 Manuel utilisateur

Yale

Yale IA-230 Manuel utilisateur

Yale

Yale Smart Living HSA6210-R Manuel utilisateur

Yale

Yale SV-4C-2ABFX-2 Manuel utilisateur

Yale

Yale SR-310 Manuel utilisateur

Yale

Yale HSA6200 Manuel utilisateur

Yale

Yale HSA3000 Manuel utilisateur

Yale

Yale HSA 6300 Manuel utilisateur

Yale

Yale SDA16 Manuel utilisateur

Yale

Yale Y402A-HD Manuel utilisateur

Yale

Yale YSGA02-W Manuel utilisateur

Yale

Yale AC-WS Manuel utilisateur

Yale

Yale Y402B-HD Manuel utilisateur

Manuels Système de sécurité populaires d'autres marques

Inner Range

Inner Range Concept 2000 Manuel utilisateur

Climax

Climax Mobile Lite R32 Instructions de montage

CADDX

CADDX NX-6 Manuel utilisateur

FBII

FBII XL-31 Series Manuel utilisateur

Johnson Controls

Johnson Controls PENN Connected PC10 Manuel utilisateur

Aeotec

Aeotec Siren Gen5 Manuel utilisateur

Blaupunkt

Blaupunkt SA 2700 Manuel utilisateur

IDEAL

IDEAL Accenta Manuel du propriétaire

AJAX

AJAX DoubleButton Manuel utilisateur

Swann

Swann SW-P-MC2 Manuel utilisateur

Ecolink

Ecolink Siren+Chime Manuel utilisateur

Digital Monitoring Products

Digital Monitoring Products XR150 Manuel utilisateur

EDM

EDM Solution 6+6 Wireless-AE Manuel utilisateur

Highway Safety Group

Highway Safety Group EA401 Manuel utilisateur

Siren

Siren LED GSM Manuel utilisateur

Detection Systems

Detection Systems 7090i Instructions de montage

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manuel utilisateur

Siemens

Siemens FDM273 Manuel utilisateur
