Thank you for choosing the Yale Wireless Alarm System.

This simple to install system has been designed with the

user in mind.

All the components are self contained and no connections

are needed between the units. There is no need to

damage the home decor, lift carpets or run cables.

You can install up to 40 devices (Max. 6 PIR Cameras) in

this system. As well as extra door/window contacts, PIRs

and smoke detectors, you can add keyfob remote controls

and keypads for added control convenience.

There is no need to wire into the mains supply or seek

the services of a qualiﬁed electrician. The control box is

Batteries will operate for 2 years or more before they need

changing. Regular testing and battery changes (when

notiﬁed by the system) will ensure reliability and peace of

mind.

The security detectors and external siren are ‘tamper’

protected. Any unauthorised tampering with these items

when the system is armed will result in an alarm.

Display extreme caution when using ladders or steps,

please follow manufacturer’s instructions.

Be careful when using hand and power tools and follow

the manufacturer’s guidelines when using them. Take care

that the correct tools are used. Wear goggles or protective

clothing where required.

The external Siren is extremely loud, please ensure you

replace the cover and retreat to a safe distance before

testing.

The dialling facilities must only be used with persons who

have consented to being contacted by the system.

The system is not to be used to make 999 emergency

calls directly. Yale do not hold responsibility for any actions

taken by emergency services for incorrect use of the

dialling facility.

Information and illustrations are subject to change within this

document. Yale reserves the right to alter the speciﬁcation and

product design at anytime without notice. Yale® is a registered

1 Location planning 2

2 Unpack all the parts 4

3 Initial set-up 6

4 Mounting Devices 8

5 Using the System 11

Adding and using Accessories 13

Changing the batteries 15

Troubleshooting 17

Speciﬁcations 18

Recommended Installation Sequence

We recommend you follow the simple install

sequence, headings numbered 1-5.

Easy Fit SmartPhone alarm

system (HSA6092) V3 onward

ale

123

789

ale

Location planning

Home and Away Mode Planning

The home arming mode allows the premises to be

part armed so that no one can get inside without

warning the occupier, yet the person already inside

the house can move freely without triggering the

alarm. For example the downstairs of a house can

be armed while upstairs can be disarmed allowing

the user to go to bed without causing an alarm.

If this feature is to be used, then it should be

planned now, before installation.

Decide what areas can be occupied when in home

arming mode, the sensors for these areas should

have its attribute set to “Home Omit” (see page 11);

and the sensors activated on the path to access the

control unit should be to be set to Home access.

Operating Range

All devices must be within 30 metres of the control

unit and must not be mounted on or near large

metal objects. Avoid obvious sources of electrical

interference such as fridges and microwave ovens.

Tamper Switches

When mounting devices ensure that any tamper

switches close fully. On uneven surfaces it may be

necessary to place packing behind the switch for

reliable operation.

Extend the System

Extend the system in the future to increase your

security or as your needs change.

For example, add extra PIR detectors and

extra door/window contacts.

Choosing Location

To minimise interference, avoid locating devices

close to metal framework, glass, electrical

appliances (especially wireless devices) and electric

cables.

Please note that the presence of high density

material (metal, glass etc) in the transmission path

will signiﬁcantly reduce the wireless transmission

range.

1Work out the best places to locate the devices for maximum protection. Having chosen the

locations do not mount at this stage.

Keypad Remote Control Accessory

The remote keypad is ideal in the front entrance,

bedrooms or at the top of a stairwell so the

ground ﬂoor can be armed when going to bed for

the night. Or, at a side or back door for alternative

entry.

• Mount at chest height for ease of use

• Designed for indoor use only

•Keypad should be accessible from a protected

entry/exit point

•Ensure that the keypad is not visible from the

outside of the premises.

Help Button Accessory

The help button provides extra protection for you

and your family. When help is needed the button

can activate your alarm immediately - even when

the system is disarmed.

• Mount on wall surface

•Designed for indoor use only

•Out of reach of children

•Hidden from view while easily accessible.

Y a le

ale

123

789

ale

Text Display

Keyfob Remote Control Accessory

Can be used inside or outside the property and

can be kept on your keyring.

Smoke Detector

• Mountinthemiddleoftheceilingatthetopof

a stairwell, or on the centre of hallway ceilings

where smoke would most likely be detected.

• Donotmountincornersorabovecooking

appliances and heaters.

• Installadditionaldetectorsifthereareclosed

doors preventing smoke from reaching

detectors.

Door/Window Contact

Select a door that will be the main point of entry

and exit, usually your front door.

• Mountashighaspossible

• DonotaimaPIRatthisdoororwindow

PIR Movement Detector or PIR Camera

• Mountinapositionsuchthatanintruderwould

normally move across the PIRs ﬁeld of view.

• Heightshouldbebetween1.9and2metres

above ﬂoor level.

• Locationinacornerwillensurewiderroom

coverage.

• DonotmountthePIRwhereitseldofviewwill

be obstructed e.g. by curtains, ornaments etc.

•Donotpointdirectlyatsourcesofheate.g.

ﬁres or boilers, and do not position directly

above radiators.

• AvoidmountingthePIRdirectlyfacinga

window.

• DonotpointthePIRatadoorprotectedbya

door/window contact.

Control Box

• Ensureitishiddenfromview.

• Accesstomainssocketandbroadbandinternet

router.

Siren

Choose a position on an external wall where the

siren would be most prominent. Mount as high as

possible, out of easy reach.

Unpack all the parts

Unpack the kit content on a table. Remove the

mounting plate (if ﬁtted) from the control unit by

sliding plate downwards. A power adaptor is

supplied that plugs into the main wall socket and

control unit. Plug in the power adaptor and connect

the box to your internet router using the cable

provide.

• Inadditiontotheadapter,thereisarechargeable

battery inside the control unit that serves as a

backup in case of a power failure. A fully charged

battery can provide backup power for a period of

at least 10 hours. It takes approximately 72 hours

to fully charge the battery.

• Removetherubberbatteryswitchcoverand

locate the battery switch. Switch ON the internal

battery and replace the rubber cover.

WARNING

The siren is very loud, be prepared! Take care not to

activate the siren tamper switch unnecessarily.

1Remove the cover by unscrewing the single screw

located on the lid. Power switch to ON position.

1Pull out the plastic pull tab on the back of the PIR.

This will activate the batteries.

1Pull out the battery saver tab on the side to activate

the battery.

Learn

Power

Battery

Battery switch

Network Port

(connect to Broadband

Internet router)

Power socket

Learn button

(press and hold

for 3 secs)

ale

Status

LED

Learn/Test

Button Cover

screw

ale

Learn/Test

button

LED

Gap no more

than 10mm

Magnet

Sensor

Top LED 1 (Panel Status)

Red ON: System Arm

FLASH: Home Arm

Green ON: Disarm

FLASH: Learn mode

OFF: Walk test mode

Middle LED 2 (Alarm & Fault Status)

Red ON: Alarm been triggered

FLASH: Ongoing alarm event

Yellow ON: Device fault (Tamper/Low battery)

FLASH: Mains power failed

OFF: Normal

Bottom LED 3 (Operation Status)

Yellow ON: Network problem.

FLASH: Disconnected from Yale server

Green ON: Normal

Control Box HSA6092 Siren HSA6050

PIR Movement Detectors HSA6020

Door/Window Contacts HSA6010

1Open the battery compartment using a coin by

turning cover in the direction of the big arrow so

the small arrow is next to round dot.

2Insert CR2032 battery and replace cover.

1Remove the cover and insert three AA batteries

2The smoke detector will now enter into self-

calibration mode for 15-20 minutes. It will

resume normal operation after this period.

Remove the cover by loosening the ﬁxing screw

and insert the CR2032 battery (supplied) as

shown (1). Please ensure you observe battery

polarity.

Door/window contacts

1Remove the cover of each door/window contact

by loosening the fixing screw.

2Insert two AAA batteries into each detector as

shown.The indicator LED will flash briefly.

Keypad remote control

Remove the cover and insert the 3 AAA alkaline

batteries as shown.The ‘Tx’ LED will flash briefly

while components initialise.

Please note, the Home button on the operating

panel and the jumper switch inside (do not move)

have no function on this model.

Smoke detector accessory

Remove the cover and insert the four AAA

batteries as shown.

Keyfob remote control accessory

Slide off the battery cover, insert the

23A/MN21 battery as shown, and replace

battery cover. Switch to ‘on’.

Help button accessory

Remove the cover by loosening the fixing

screw and insert the 12V battery (supplied) as

shown. Please ensure you observe battery

polarity.

Tamper

switch

Jumper

switch

Tamper

switch

Jumper

switch

Magnet

Extension terminals

Learn/Test button

Learn/Test

button

On/Off switch

1 Pull out the plastic battery saver tab at the back of

the remote keypad. This will activate the batteries.

SmartPhone Alarm Accessories:

•PIR image camera EF-PC

•PIR video camera EF-PVC

•Room sensor (Temperature/Humidity) EF-RS

•Power switch EF-PS

1 Insert AA/AAA batteries as supplied. Power switch

do not require any battery.

Away

Learn/Test

Button

LED

ale

123

789

Panic button A

Panic button B

Disarm

HomeArm

LED

Learn button=

Press 8 and 9 together

Away

Panic/Learn

button

Camera

Flash light

Learn/Test button

Learn: Hold for 10 seconds

Test: Hold for 1 second

Learn/Test button

Learn: Hold for 10 seconds

Test: Hold for 1 second

Camera

Flash light

18.

Light On, Test &

Learn button

Learn: Hold for 10 seconds

BackLight On: Press & release

Test: Press & release

On/Off, Test &

Learn button

Learn: Hold for 10 seconds

Power On/Off: Press & release

Test: Press & release

Keypad Remote Control HSA6080

Keyfob Remote Control HSA6060

Smoke Detector HSA3070

Help Button HSA3045

Initial set-up

3Please ensure all devices are powered and operational at this point.

Download Yale app

(Smart Phone)

Search term in app store: Yale Home System

Compatibility: iOS 4.3+, Android 2.2+ (with minimum resolution 320x480)

Internet connection: Required on Smart Phone

First time registration

Start the app on your phone. *Due to continuous improvement, please note that the graphic may

differ from shown.

Once you have received

BOTH the authentication

email and SMS, click on

the email link:

Select

New user click here

Enter your details

Panel MAC can be

found on the Control

box’s sticker.

Close app

Wait for:

1) Authentication email (also

check spam folder)

2) SMS with Auth code

Enter SMS Auth code.

If you encounter errors,

it is due to the control

box not communicating

with our server. Please

check that you have

connected your panel to

the internet.

You will be asked to

set-up a password when

registration is successful.

Please use your email

and this new password to

Adding accessories (if you purchased extra accessories)

All accessories in the kit are linked to the control box. If you purchased extra accessories (or for

some reason the accessories are deleted), please do the following:

Learn

Power

Battery

Press and hold the learn button for at least 3 seconds.

Led 1 will now ash and beep to indicate that you have entered learn mode

ale

Learn

button

ale

Learn

button

Learn

button

ale

123

789

Learn button:

Press 8 and 9

together

Learn

button

Learn

button

ale

Learn Button

Press & hold

for 3 seconds

One by one, press the learn button on the accessories. The

control box will beep every time a new device is registered

Exit Learn Mode:

Press and hold the control box learn button for at least 3 seconds.

The LED should now stop ﬂashing. Proceed to installation.

For the following accessories, please hold the learn button for 10

seconds before releasing to learn.

Learn button

Hold for 10 seconds

Learn button

Hold for 10 seconds

18.

Learn button

Hold for 10 seconds

Learn button

Hold for 10 seconds

EF-PC EF-RS EF-PS

EF-PVC

HSA6020

HSA6010 HSA3045

HSA6060

HSA6080 HSA3070 HSA6050

Mounting Devices

4Tamper switch is disabled when system is disarmed.

Control Box Mounting

The box can be free standing, either vertically or

horizontally on a ﬂat surface.

It is also suitable for wall mounting. Using the two

holes on the mounting back plate, mark the position

of the holes. Drill two holes and ﬁx with the screws

and plugs provided. Hook the control box onto the

plate.

Check accessories range

Find a location where the device is to be mounted,

see section “Location Planning” for suggestions.

Before proceeding to mount the devices physically,

check that the control box will receive the system

radio transmissions by doing a simple radio range

test.

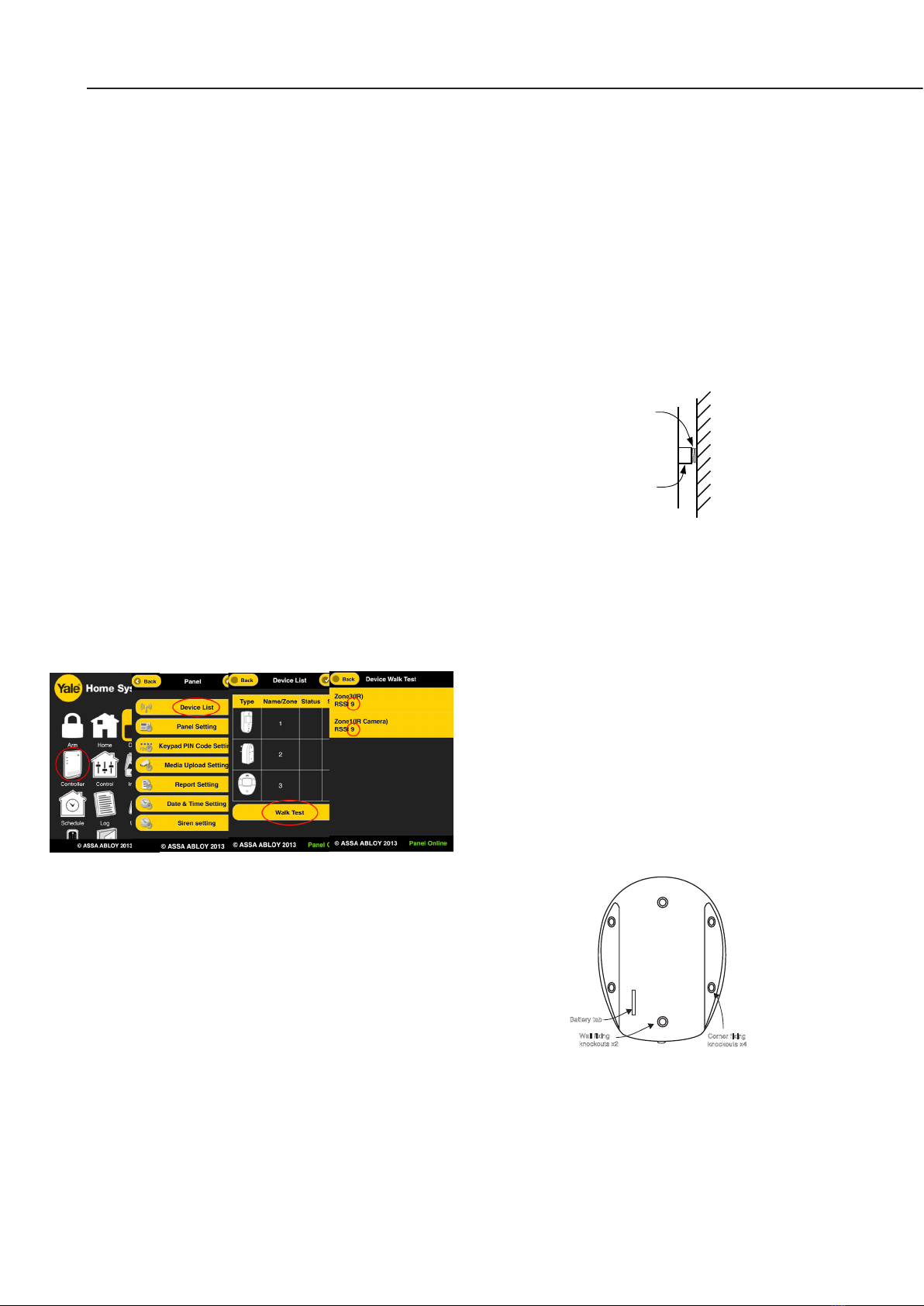

“Controller”, “Device List” then select “Walk Test”.

Hold the devices in the desired location and press the

Test/Learn button (see below) on the accessories.

• KEYPAD:pressbutton8+9togetherfor1

second.

• ALLOTHERDEVICES:Holdthedeviceinthe

desired location and press the test button for 1

second, the control box should respond with a

chime.

If the sensor signal reached the control box, it will

show up on the last screen (see above).

The radio signal strength is shown by a number under

the device name. This number ranges from 1 to 9

(strongest). Where possible please ensure devices

show 3 or above for optimal performance.

When you are happy that all your devices can

communicate with the box, please proceed to

mounting the accessories

Mounting the siren

Ensure the tamper switch is fully depressed when

the siren is mounted. If there is a gap, pack with a

suitable spacing material.

Round

Siren

Base

Wall

Spring Guide

Spring compressed

firmly against wall

1 Using the large screws and wall plugs provided,

screw the siren onto the wall through the 4

mounting holes on the siren base.

2 Fix the siren cover with the securing screw.

Mounting the PIR & PIR image/video camera

1 Open the PIR by loosening the bottom screw.

Knock out the relevant holes on the base where

the plastic is thinner. The center 2 knockout holes

are for ﬂat wall mounting while the 4 side holes are

for corner mounting.

2 Drill holes into the wall using the knockout holes on

the base as a template.

Wall fixing

knockouts x2

Corner fixing

knockouts x4

Battery tab

3 Fit wall plugs and secure the PIR base with the

screws provided.

4 Fit the PIR back together and tighten bottom

screw, the PIR installation is complete.

Mounting the Keypad:

Battery Saver tab

Wall Fixing

knockouts x2

1 Knock out the ﬁxing holes. Drill holes into the wall

using the ﬁxing holes as a template.

2 Fit wall plugs into the wall and ﬁx back cover with

the screws provided. Fix front of the keypad onto

the back plate.

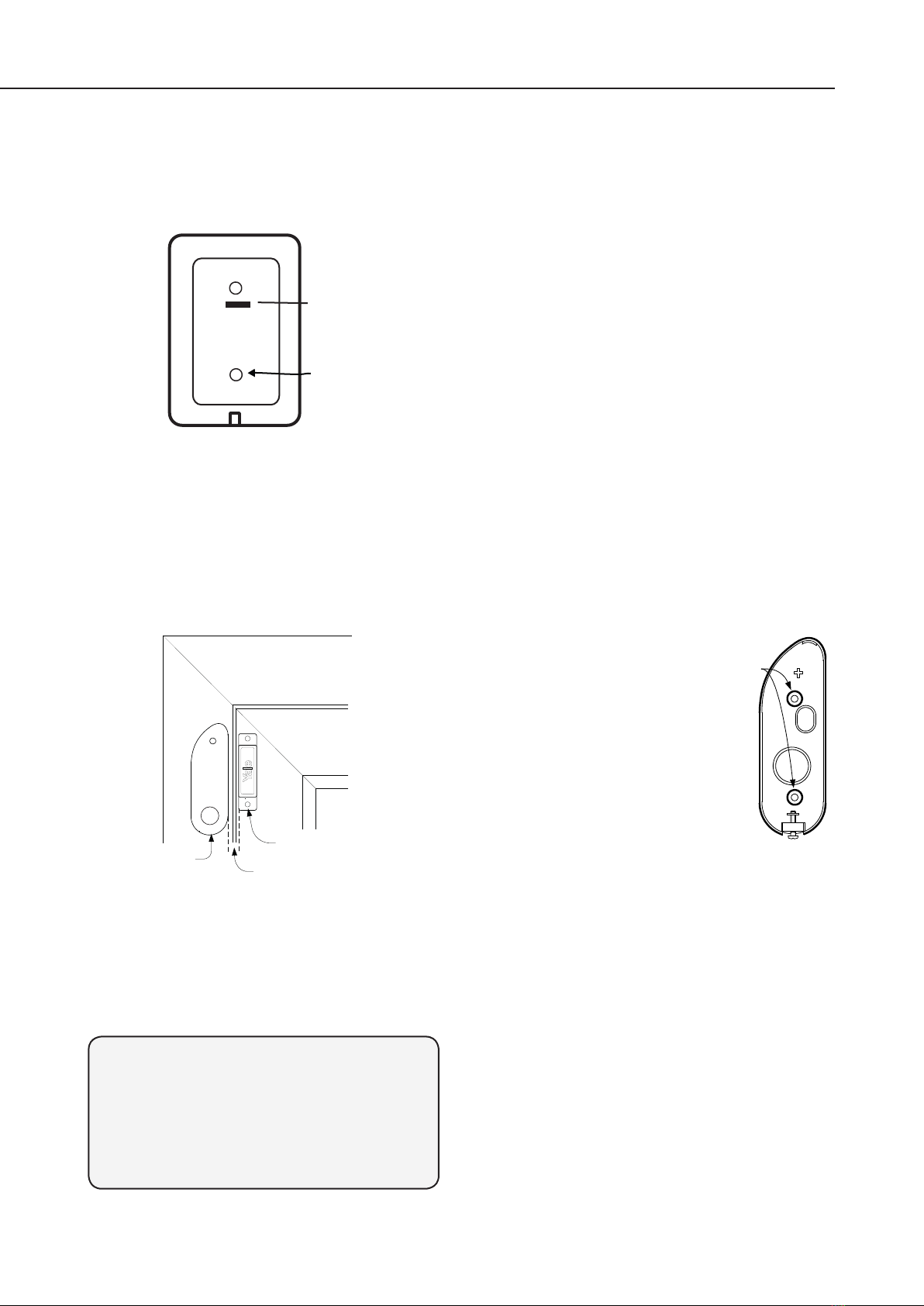

Mounting the Door Contact

Frame

Door/Window

Gap no more

than 10mm

Magnet

Sensor

ale

1 Find a location on the door/window where you

would like the device to be mounted. The sensor

should be on the frame while the magnet should

be on the door/window. Once mounted make sure

the tamper switch spring is fully depressed.

The gap between the magnet and sensor should

be no more than 10mm when closed (maybe

shorter depending upon the actual environment).

Simple test to see whether the magnet is in range

of the sensor: hold the magnet and sensor in

place and then pull them apart. If the sensor LED

lights up it implies the two items are within range.

-Mounting using adhesive pads

Clean the mounting surface with a suitable

degreaser agent. Please note that some surface

or environment (i.e. exposure to Sunlight) may be

unsuitable for this mounting method. Please use

screw mounting in these cases.

-Mounting using screws and wall plugs

Loosen the bottom screw and open the door/

window contact. Knock out the holes on the base

as shown. Drill holes into the mounting surface

using the holes in the knockouts on the base as

template. Fit wall plugs (if required) and secure

with the screws provided.

Mounting the Help button

1Break through the knockouts (where the plastic is

thinner).

2Using the holes as a template, drill holes in the

surface and insert wall plugs if ﬁxing into plaster or

brick. Screw the rear case to the wall. Replace the

cover and tighten the screw.

Mounting the Smoke

Detector

1The base has two mounting

slots. Using the slots as a

template, drill holes and

insert the wall plugs if ﬁxing

to plaster. Screw the rear

case to the ceiling using the

screws provided.

2Replace the main unit onto the bracket.

Mounting the Room Sensor

1Push tab to the left to open the case. The base

has two mounting slots. Using the slots as a

template, drill holes and insert the wall plugs

if ﬁxing to plaster. Fix the base to the wall with

screws.

2Replace the main unit onto the base.

Knockouts

About your alarm system (default settings)

Each system has 20 free SMS credits, after

which Yale reserves the right to charge for any

additional SMS sent.

To change the exit and entry timer, please see

“Controller” -> “Panel Setting”

Home arming is disabled by default. If you need

Home arming function, see page 11.

To change the attributes of individual sensors

(i.e. Burglar attribute where the individual

sensor will instantly alarm when triggered),

please go to “Devices List”, then click on

sensor’s setting.

All accessories (except EF-PC)

are pre-set to “entry” attributes.

When the system is ﬁrst armed, users will have 30

seconds to exit the building. The System will ignore

any sensors triggering in this duration. If the system

is already armed, triggering any sensors will cause

an entry countdown to begin.

EF-PC/EF-PVC’sdefaultsettingis“Awayonly”,i.e.

immediate triggering during full arm and sleep during

home arm. This is done to conserve battery life

When the alarm is triggered, the

system will send an email, push

notiﬁcation (iOS only) and SMS to

alert the owner.

The network trafﬁc condition will determine how

quickly the user is alerted. There may be noticeable

delay should the third party email/SMS gateway

become congested.

You will be prompted on the app when trying to

arm with your door/window open.

It is possible to arm the system

with “open” door contact (i.e.

windows open).

Jamming and interference

detection disabled as default.

If jamming and interference is of concern,

please enable via “Controller” -> “Panel

Setting”

Supervision is disabled as default

(recommended).

Enable or disable supervision detection on

the control box. PIR, Door Contact, Smoke

Detector and Siren can be monitored for

outage using this feature. Except for Smoke

Detector (which is always on), the other three

accessories need to have supervision enabled

on board to facilitate this feature.

Supervision can be enabled via “Controller” ->

“Panel Setting”.

Comfort LED is disabled as

default (recommended).

Please enable Comfort LED via “Devices” ->

Siren properties (arrow on the right).

NOTE: This function will signiﬁcantly reduce

your Siren’s battery life.

Table des matières

Autres manuels Yale Système de sécurité

Yale

Yale HSA3400 Manuel utilisateur

Yale

Yale HSA6600 Manuel utilisateur

Yale

Yale HSA6200 Manuel utilisateur

Yale

Yale Smart Living SV-4C-2ABFX Manuel utilisateur

Yale

Yale SR-310 Manuel utilisateur

Yale

Yale AC-WS Manuel utilisateur

Yale

Yale SR-310 Manuel utilisateur

Yale

Yale Sync IA-310 Manuel utilisateur

Yale

Yale HSA 6300 Manuel utilisateur

Yale

Yale EF-IPBox Manuel utilisateur

Yale

Yale Sync Alarm Guide d'installation

Yale

Yale Smart Living HSA6210-R Manuel utilisateur

Yale

Yale SV-4C-2ABFX-2 Manuel utilisateur

Yale

Yale Y402A-HD Manuel utilisateur

Yale

Yale Distress alert system Manuel utilisateur

Yale

Yale IA-230 Manuel utilisateur

Yale

Yale HSA 3500 Manuel utilisateur

Yale

Yale HSA3000 Manuel utilisateur

Yale

Yale Smart Living SV-4C-2ABFX Manuel utilisateur

Yale

Yale SAA8012 Manuel utilisateur

Yale

Yale YSGA02-W Manuel utilisateur

Yale

Yale SmartHome Alarm series Manuel utilisateur

Yale

Yale SDA16 Manuel utilisateur

Yale

Yale HSA3095 Manuel utilisateur

Manuels Système de sécurité populaires d'autres marques

Inner Range

Inner Range Concept 2000 Manuel utilisateur

Climax

Climax Mobile Lite R32 Instructions de montage

CADDX

CADDX NX-6 Manuel utilisateur

FBII

FBII XL-31 Series Manuel utilisateur

Johnson Controls

Johnson Controls PENN Connected PC10 Manuel utilisateur

Aeotec

Aeotec Siren Gen5 Manuel utilisateur

Blaupunkt

Blaupunkt SA 2700 Manuel utilisateur

IDEAL

IDEAL Accenta Manuel du propriétaire

AJAX

AJAX DoubleButton Manuel utilisateur

Swann

Swann SW-P-MC2 Manuel utilisateur

Ecolink

Ecolink Siren+Chime Manuel utilisateur

Digital Monitoring Products

Digital Monitoring Products XR150 Manuel utilisateur

EDM

EDM Solution 6+6 Wireless-AE Manuel utilisateur

Highway Safety Group

Highway Safety Group EA401 Manuel utilisateur

Siren

Siren LED GSM Manuel utilisateur

Detection Systems

Detection Systems 7090i Instructions de montage

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manuel utilisateur

Siemens

Siemens FDM273 Manuel utilisateur
