Yale Y402A-HD Manuel utilisateur

Keep this manual safe for reference and future maintenance

Smart HD

CCTV System

Y402A-HD • Y402A-HD1080

Y804A-HD • Y804A-HD1080

Installation · Programming · Operating

smart

Living

Contents

Thank you for choosing the Yale Smart HD CCTV System.

This manual will guide you through the product Installation

and system set up.

Display extreme caution when using ladders or steps,

please follow manufacturer’s instructions.

Be careful when using hand and power tools and follow

the manufacturer’s guidelines when using them. Take care

that the correct tools are used. Wear goggles or protective

clothing where required

Requirements

A broadband router with one free Ethernet port is

required. iOS 9+ or Android 4.4+ required to view via

the Yale CCTV App. Mobile data speed could effect

quality and connection.

Information and illustrations are subject to change within this

document. Yale reserves the right to alter the speciﬁcation and

product design at anytime without notice. Yale® is a registered

Issue No: 1A

The 2 year guarantee for this Yale HD

CCTV System is active from the date of

purchase (A copy of this guarantee is

available on our website).

Please register online within

12 months of purchase at

www.yale.co.uk/registeryourproduct

1. Inside the Box 2

2. Glossary of Terms 2

3. Hybrid DVR Connectivity 3

4. Connecting your DVR 4

5. DVR Main Menu 5

6. Record 8

7. Detection 12

8. Settings 16

9. Professional Settings 20

10. Extending Your Yale System 25

11. Connecting your DVR to the Internet 28

12. Yale CCTV App 28

For more information on this product and Yale Smart

Living Range visit www.yale.co.uk/smart-living

Consumer Support: [email protected]

1Inside the Box

Glossary of Terms

DVR – Digital Video Recorder and Network Video Recorder

BNC – Bayonet Neill–Concelman, Video Inputs connecting the HD Cameras to the DVR, You may see 4 or

8 BNC ports depending on the model purchased.

HDMI – High Deﬁnition Multi-media Interface connects your DVR to a TV or PC Monitor.

VGA – Video Graphics Array connects your DVR to a TV or PC Monitor (not supplied).

HD – High Deﬁnition. 720 & 1080 are both High Deﬁnition video quality.

PTZ – Pan, Tilt & Zoom. Movable camera with Zoom functionality.

HDD – Hard Disk Drive. Where the video footage is stored within the DVR.

TB – Terabyte. Amount of storage space within the HDD (e.g. 1TB/2TB).

QR Code – Quick Response Code. Scan this using the Yale CCTV App for quick pairing.

Note – none of the Yale HD CCTV systems connect into a laptop for viewing video images.

1. Hybrid DVR with pre-installed Hard Drive

2. HD Cameras

3. BNC Cables

4. Power Adaptors

5. Splitter

6. Ethernet Cable

7. HDMI Cable

8. Mouse

9. Fixing Pack

4 video channels or 8 video channels

1 3 5 7 8

4 6

Hybrid DVR Connectivity

1. BNC Video Inputs: These are the video inputs used when connecting your Yale HD cameras. These are

numbered 1 – 4 (or 8 for an 8 channel DVR) as they would appear on screen when streaming

2. Audio Input: These will accept a standard in-line audio microphone device.

3. Audio Output: A standard line level audio output.

4. VGA Output: For connecting a television or PC Monitor with a VGA cable (not supplied).

5. HDMI Output: For connecting a television or PC Monitor with a HDMI cable.

6. Network Port: You are able to connect the DVR to a network router or switch with an Ethernet Cable

(supplied). This will allow the option of using online features (suitable broadband connection required).

7. USB Ports: The top port is used for connecting storage devices. The bottom port is for connecting of the

mouse (supplied). When connecting to a Yale Alarm system or Yale Connected Smart Lock the CCTV/Alarm

Link Adaptor can be connected to either USB port.

8. 12V 2A DC Power input: This is where you connect the DVR power adapter. DO NOT switch on the power

until all leads are connected.

Y402A-HD

Y402AHD1080

Y804A-HD

Y804A-HD1080

Please ensure the system is fully working prior to installation. Connect all the

cameras using the supplied cables and make sure it operates as intended.

• Remember the DVR unit is most likely to be left on 24 hours a day, 7 days a week. Please bear this in mind when

choosing the installation location.

• Route the camera cable away from large electrical items, mains cables and heat sources.

• Please only use the power adaptors supplied.

• Install DVR in a well ventilated area.

If you failed to get a picture on the TV using a HDMI cable, try connecting to a PC monitor using VGA

connection. You may need to change the DVR to a different resolution in order to show on a HD TV.

DO NOT expose the DVR to moisture or water. Avoid dusty or dirty locations.

DO NOT open the DVR case unless you want to change the Hard Drive.

DO NOT open the case to your DVR whist your DVR is plugged in and switched on.

DO NOT cut or adjust any cable for any reason.

DO NOT place the DVR in areas where it may experience sudden bumps, shocks or movements.

DO NOT apply excessive force to the BNC cables during installation. This may damage the cable resulting in lost/intermittent

video signal.

DO NOT apply pressure to the BNC cable connected. This may damage its internal soldering.

HYBRID DVR

15m

BNC/DC cable

Camera

Adaptor

TV/

Monitor

DVR

Adaptor

Connect

to multiple

cameras

Splitter

Living

smart

HDMI/VGA

Cable

Connecting your DVR

The only way to start using your DVR and navigate through the DVR menu’s is to connect and use the provided

Yale mouse. We have designed the system for mouse friendly operation.

Left Click – Selects the item covered by mouse pointer

Right Click – Back or escape function allows you to go back to previous menu or screen

Scroll Wheel – Allows you to ﬂick through the cameras on full screen

Quick Start Menu

When you turn the DVR system on for the ﬁrst time the quick start

menu will appear in the centre of the screen. Enable Yale Cloud for

remote viewing via internet. Click Next to continue.

You will be presented with a QR code for App registration. Click ‘Cancel’ to exit this

screen to continue DVR setup. You can access this QR code after installation by

choosing “Quick Start” under the right click menu.

Once you click on ‘Cancel’ you will see this System Login prompt.

At a later stage of the DVR setup you will choose a Username and

Password. At this point leave the Username as admin and the

Password empty. Left click ‘OK’

You should now have a spilt screen image of the connected

cameras (if no camera is connected you will see a black screen as

shown) don’t panic!, Images will appear here once the cameras are

connected and powered. Now Right Click your mouse to bring

up the ‘Right Click Menu’.

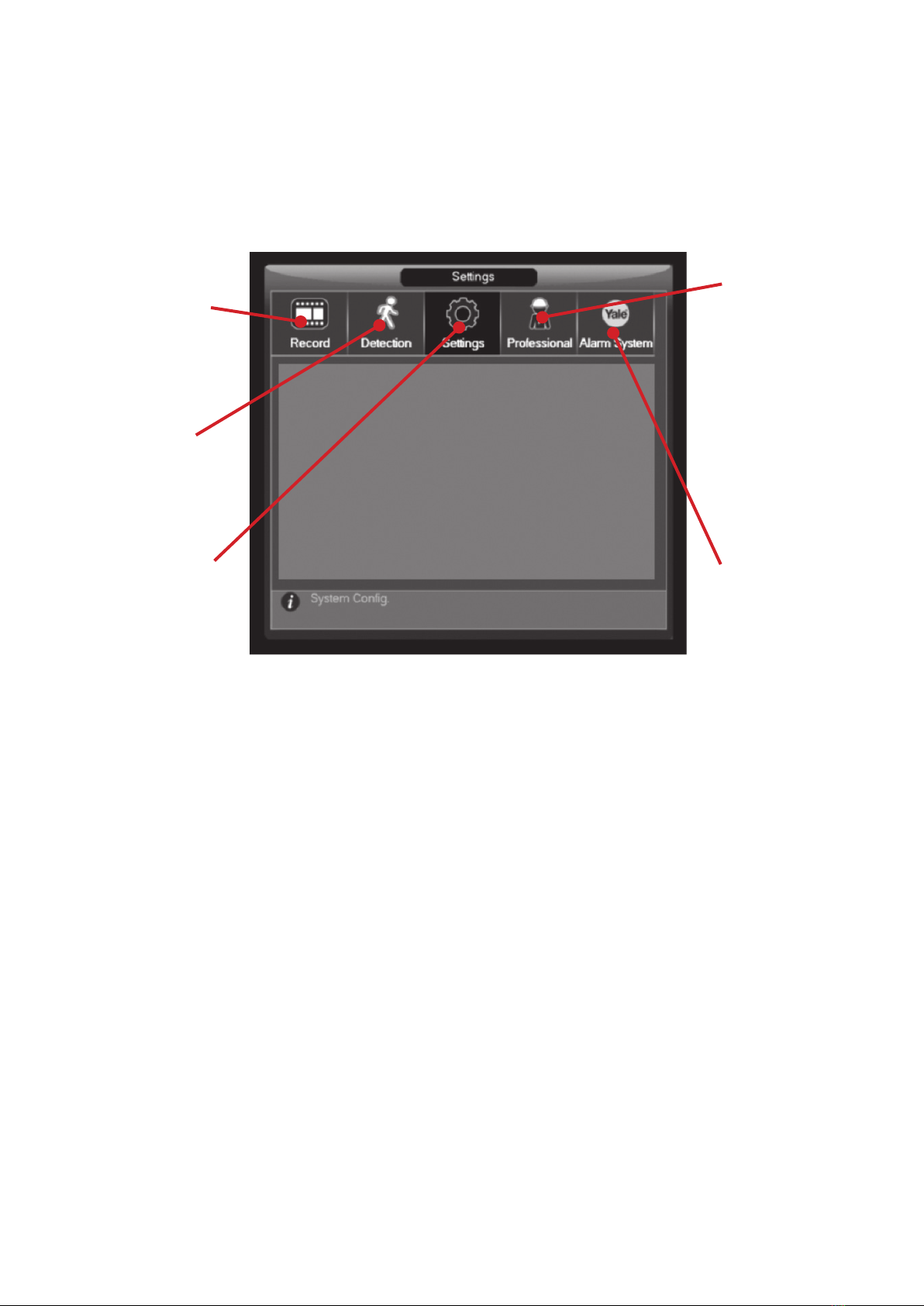

DVR Main Menu

Right Click Menu

Main Menu: Takes you to an area containing most of your settings and features.

Quick Start: Takes you back to your QR code to scan with the Yale CCTV App.

Record Mode: A shortcut to changing the recording mode of each camera.

Playback: A short cut to the Playback menu.

PTZ Control: Not supported.

High Speed PTZ: Not supported.

Colour Setting: Manually set your colour preferences (Camera).

Output Adjust: Manually set your output preferences (Screen/Monitor).

Logout: Enables options – Log out, Shut Down or Reboot.

View 1-8: Left click to view appropriate camera.

NOTE – You will need to set the date and time before continuing with your DVR Setup

Setting > General (To change Date, Time & Language).

Setting the Date and Time

1. Right Click on the mouse then left click on Main Menu.

This opens up the Main Menu screen.

2. Hover over Settings then move down to ‘General’.

You will see a dot and the wording turn yellow.

3. Left click on ‘General’.

4. In General the Time Zone should automatically be set to

UTC+00:00 Dublin, London, Edinburgh. If not left click on the

drop down to change to desired Time Zone.

5. System Time – this should be accurate to ensure ease of

playback. If the time is not correct left click on each number

to open a key pad, then click the correct number to set the

date and time.

6. Language – Default set to English. Left click on the drop

down to alter if desired.

7. You do not have to change or update any of the other options.

Please leave them as their default settings.

DVR Main Menu

Record

Record Conﬁg

Playback

Backup

Video Encode

Detection

Motion Detect

Covered Lens

Signal Loss

Settings

General

Local Network

Yale Cloud

Screen Display

User Account

PTZ Conﬁg

Tour

Logout

Professional

HDD Manage

HDD Info

HDD Faults

Bits per sec

On-line User

Upgrade

Auto maintain

Import/Export

Factory Reset

System Info

LOG

DVR/NVR

Mode

Alarm System

Arm

Home

Disarm

Unlock

Function Location

Change Password

Please ensure you set up a password should you wish to connect this DVR to the internet for remote viewing.

Failure to do so could mean you are broadcasting the video image in the public domain without any restriction or

protection. For further info please go to page 18.

Record

REC Cong

From the Main Menu, hover over ‘Record’ and then move the mouse over ‘REC Conﬁg’ and left click to select.

Here you will be able to set your DVR to different recording formats (Schedule, Always or Stop).

First select the Channel you wish to conﬁgure.

Channel 1 = Camera 1 etc…

Redundancy: This should remain un-selected.

Length: Recording clip size. We recommend using the default 60 minutes.

Pre-record: Video pre-recording. We recommend using the default 5 seconds.

Select the mode that you want the channels/cameras to perform. Your 3 options are:

1. Schedule – To specify days and times of recordings. You have the option of up to 4 time periods per day to

set start and end time for recordings (i.e. start 7pm end 7am to record through the night.)

You can set different start and end times on speciﬁc days.

•Tick the ‘Regular’ box for continuous recording by left clicking.

• Tick the ‘Detect’ box to record on motion detection by left clicking.

2. Always – Continuous recording (scheduling not applicable. By default, the oldest recording will be

overwritten.

3. Stop – No options as this setting Does Not Record (Only allows you to view live footage on the TV/Monitor

with no playback facility).

Once you have speciﬁed your preferences left click on‘OK’.

You do not have to change any details within the ‘Advanced Menu’.

Playback

From the Main Menu, hover over ‘Record’ and then move mouse over ‘PlayBack’ and left click to select.

This option allows you to view past recordings and to make a backup ﬁle using a USB Flash Drive as desired.

NOTE - To use any of these features other than live viewing you must pause the footage.

View of the live Channels/Cameras

• Recording must be paused (2) before selecting a date from the calendar (6). Now

you must select a time to view, to do this left click on the timeline (4) at the bottom

of the screen.

•To back up a speciﬁc event or time period of recorded footage, select the start

time on the time line bar (4) and left click the ‘snip’ button (3) then select your

desired end time and left click the ‘snip’ button (3) again. This will trim

the video clip as desired. To save this to the USB Flash Drive left click the ‘Hard

Drive’ button (7). For more details on how to back up recordings, see page 10.

•The timeline can be 4 different colours:

Grey = No recording

Green = Continuous recording

Red = Recording triggered by motion detection

Yellow = Always recording

You can use the mouse roller to zoom in/out of the timeline.

•If you wish to see footage from one specﬁc channel/camera select the channel

number (5) to display by left clicking.

•If you wish to see footage from a speciﬁc date recorded on your DVR, select the

date (6) to display by left clicking.

Number Reference

1 = Live Feed

2 = Play/Pause Live Feed

3 = Snip Button

4 = Time Line

5 = Camera Select

6 = Date Select

7 = Back up to USB

Flash Drive

Backup

From the Main Menu, hover over ‘Record’ and then move mouse over ‘Backup’ and left click to select.

This option allows you to back up your video recording onto a USB Flash Drive.

1. Insert a USB Flash Drive into the top USB port on the back of the DVR and left click on the ‘Detect’ button

(top right of the screen).

2. The USB Flash Drive will now have been detected and appear within the box on screen (If the Flash Drive

is not detected the DVR will need to be re-started with the USB ﬂash drive still inserted).

3. Once the USB Flash Drive is detected you will need to left click the ‘Backup’ button underneath ‘Detect’.

4. You will see a list of recordings in the box on screen as shown in the image (above). This will prompt you to

select a clip based on dates for backing up. NOTE: Make sure back up format is AVI. Select AVI from the

drop down list at the bottom of the page by left clicking.

5. Left click on ‘Start’ to begin the back up. When back up is complete, left click on ‘OK’ to dismiss the

message, right click anywhere on the screen to return.

Other Backup Options

Burning – Not supported

Erase – Erase ﬁles currently on your USB Flash Drive

Stop – Stop any ongoing back up process.

NOTE - Please ensure you allow the DVR to complete the backup before removing the USB Flash

Drive. Failure to do so could result in the system crashing.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Yale Système de sécurité

Yale

Yale IA-210 Manuel utilisateur

Yale

Yale IA-230 Manuel utilisateur

Yale

Yale HSA3095 Manuel utilisateur

Yale

Yale EF-IPBox Manuel utilisateur

Yale

Yale SAA8012 Manuel utilisateur

Yale

Yale Sync IA-310 Manuel utilisateur

Yale

Yale SV-4C-2DB4MX Manuel utilisateur

Yale

Yale HSA6600 Manuel utilisateur

Yale

Yale SAA8012 Manuel utilisateur

Yale

Yale SV-4C-2ABFX-2 Manuel utilisateur

Yale

Yale HSA6092 Manuel utilisateur

Yale

Yale Smart Living SV-4C-2ABFX Manuel utilisateur

Yale

Yale SR-3800i Manuel utilisateur

Yale

Yale Smart Living HSA6210-R Manuel utilisateur

Yale

Yale Smart Living SV-4C-2ABFX Manuel utilisateur

Yale

Yale SAA8021 Manuel utilisateur

Yale

Yale HSA6200 Manuel utilisateur

Yale

Yale HSA3800 Manuel utilisateur

Yale

Yale Sync IA-310 Manuel utilisateur

Yale

Yale SR-310 Manuel utilisateur

Yale

Yale ENTR S Manuel utilisateur

Yale

Yale Distress alert system Manuel utilisateur

Yale

Yale AC-PETPIR Manuel utilisateur

Yale

Yale YSGA02-W Manuel utilisateur

Manuels Système de sécurité populaires d'autres marques

Inner Range

Inner Range Concept 2000 Manuel utilisateur

Climax

Climax Mobile Lite R32 Instructions de montage

CADDX

CADDX NX-6 Manuel utilisateur

FBII

FBII XL-31 Series Manuel utilisateur

Johnson Controls

Johnson Controls PENN Connected PC10 Manuel utilisateur

Aeotec

Aeotec Siren Gen5 Manuel utilisateur

Blaupunkt

Blaupunkt SA 2700 Manuel utilisateur

IDEAL

IDEAL Accenta Manuel du propriétaire

AJAX

AJAX DoubleButton Manuel utilisateur

Swann

Swann SW-P-MC2 Manuel utilisateur

Ecolink

Ecolink Siren+Chime Manuel utilisateur

Digital Monitoring Products

Digital Monitoring Products XR150 Manuel utilisateur

EDM

EDM Solution 6+6 Wireless-AE Manuel utilisateur

Highway Safety Group

Highway Safety Group EA401 Manuel utilisateur

Siren

Siren LED GSM Manuel utilisateur

Detection Systems

Detection Systems 7090i Instructions de montage

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manuel utilisateur

Siemens

Siemens FDM273 Manuel utilisateur
