Winmate W10IB3S-GSH1HB Manuel utilisateur

Please read these instructions carefully before using this product, and save this manual for future use.

G-WIN Slim IP65

P-CAP Panel PC

Intel® Celeron® Bay Trail-M N2930 1.83 GHz

Model No. W10IB3S-GSH1(HB)

R10IB3S-GST2

R12IB3S-GSM2(HB)

R15IB3S-GSC3(HB)

Quick Start Guide

V1.4

For more information on this

and other Winmate products,

please visit our website at:

www.winmate.com

Document Part No. 91521110100P

- 2 -

CONTENTS

1 INTRODUCTION - 6 -

1.1 Features - 6 -

1.2 Package Contents - 7 -

1.3 Description of Parts - 8 -

1.4 Physical Buttons and LED Indicators - 12 -

2 GETTING STARTED - 13 -

2.1 Turning on Your Device - 13 -

2.2 How to Enable Watchdog - 14 -

2.3 Turning off Your Device - 16 -

3 INSTALLATION - 17 -

3.1 Wiring Requirements - 17 -

3.2 Connecting to Other Devices - 18 -

3.3 Connector Description - 19 -

3.3.1 Power Input Connector - 19 -

3.3.2 Serial Interface Connector - 20 -

3.3.3 Giga LAN + USB 2.0 Connector - 21 -

3.4 Mounting - 22 -

3.4.1 VESA Mounting - 22 -

3.4.2 Panel Mounting - 23 -

4 SPECIFICATIONS - 24 -

APPENDIX - 26 -

Appendix A: Cleaning the Monitor - 26 -

Appendix B: Winmate Software Development Kit - 27 -

- 3 -

FCC Statement

This device complies with part 15 FCC rules.

Operation is subject to the following two conditions:

This device may not cause harmful interference.

This device must accept any interference received

including interference that may cause undesired

operation.

This equipment has been tested and found to comply with the limits for a

class "B" digital device, pursuant to part 15 of the FCC rules. These limits are

designed to provide reasonable protection against harmful interference when

the equipment is operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a

residential area is likely to cause harmful interference in which case the user

will be required to correct the interference at him own expense.

European Union

Electromagnetic Compatibility Directive (2014/30/EU)

•EN55024: 2010/ A1: 2015

oIEC61000-4-2: 2009

oIEC61000-4-3: 2006+A1: 2007+A2: 2010

oIEC61000-4-4: 2012

oIEC61000-4-5: 2014

oIEC61000-4-6: 2014

oIEC61000-4-8: 2010

oIEC61000-4-11: 2004

•EN55032: 2012/AC:2013

•EN61000-3-2:2014

•EN61000-3-3:2013

Low Voltage Directive (2014/35/EU)

•EN 60950-1:2006/A11:2009/A1:2010/A12:2011/

A2:2013

This equipment is in conformity with the requirement of the following EU

legislations and harmonized standards. Product also complies with the

Council directions.

- 4 -

No part of this document may be reproduced, copied, translated, or transmitted in

any form or by any means, electronic or mechanical, for any purpose, without the

prior written permission of the original manufacturer.

Trademark Acknowledgement

Brand and product names are trademarks or registered trademarks of their

respective owners.

Disclaimer

Winmate Inc. reserve the right to make changes, without notice, to any product,

including circuits and/or software described or contained in this manual in order

to improve design and/or performance. We assume no responsibility or liability for

the use of the described product(s) conveys no license or title under any patent,

or warranties that these products are free from patent, copyright, or mask work

right infringement, unless otherwise specified. Applications that are described in

this manual are for illustration purposes only. We make no representation or

guarantee that such application will be suitable for the specified use without

further testing or modification.

Warranty

Winmate Inc. warranty guarantees that each of its products will be free from

material and workmanship defects for a period of one year from the invoice date.

If the customer discovers a defect, we will, at his/her option, repair or replace the

defective product at no charge to the customer, provide it is returned during the

warranty period of one year, with transportation charges prepaid. The returned

product must be properly packaged in its original packaging to obtain warranty

service. If the serial number and the product shipping data differ by over 30 days,

the in-warranty service will be made according to the shipping date. In the serial

numbers the third and fourth two digits give the year of manufacture, and the fifth

digit means the month (e. g., with A for October, B for November and C for

December).

For example, the serial number 1W16Axxxxxxxx means October of year 2016.

Customer Service

We provide a service guide for any problem by the following steps: First, visit the

website of our distributor to find the update information about the product.

Second, contact with your distributor, sales representative, or our customer

service center for technical support if you need additional assistance.

You may need the following information ready before you call:

•Product serial number

•Software (OS, version, application software, etc.)

•Description of complete problem

•The exact wording of any error messages

In addition, free technical support is available from our engineers every business

day. We are always ready to give advice on application requirements or specific

information on the installation and operation of any of our products.

- 5 -

Safety Information

WARNING! / AVERTISSEMENT!

Always completely disconnect the power cord from your chassis

whenever you work with the hardware. Do not make connections

while the power is on. Sensitive electronic components can be

damaged by sudden power surges. Only experienced electronics

personnel should open the PC chassis.

Toujours débrancher le cordon d’alimentation du chassis lorsque

vous travaillez sur celui-ci. Ne pas brancher de connections

lorsque l’alimentation est présente. Des composantes

électroniques sensibles peuvent être endommagées par des

sauts d’alimentation. Seulement du personnel expérimenté devrait

ouvrir ces chassis.

CAUTION/ATTENTION

Always ground yourself to remove any static charge before

touching the CPU card. Modern electronic devices are very

sensitive to static electric charges. As a safety precaution, use a

grounding wrist strap at all times. Place all electronic components

in a static-dissipative surface or static-shielded bag when they

are not in the chassis.

Toujours verifier votre mise à la terre afin d’éliminer toute charge

statique avant de toucher la carte CPU. Les équipements

électroniques moderns sont très sensibles aux décharges

d’électricité statique. Toujours utiliser un bracelet de mise à la

terre comme précaution. Placer toutes les composantes

électroniques sur une surface conçue pour dissiper les charge,

ou dans un sac anti-statique lorsqu’elles ne sont pas dans le

chassis.

- 6 -

1 INTRODUCTION

Congratulations on purchasing Winmate® G-WIN Slim IP65 with

Panel PC. The elegantly designed, yet rugged, industrial grade G-

WIN GS65 series is designed for usability with brilliant true-flat

screens, which offer superior readability and Projected Capacitive

Multi-Touch (P-CAP) technology, available in 10.1”, 12.1” and 15”

options.

GS Series Panel PC operates on Intel® Celeron® Bay Trail-M N2930

1.83 GHz processor and supports Windows® operating system. The

Panel PC features Projected Capacitive Multi-Touch (P-CAP). These

models are full IP 65 dustproof and waterproof and have M12

connectors.

1.1 Features

Winmate® G-WIN Slim IP65 with P-CAP Panel PC features:

•Intel® Celeron® Bay Trail-M N2930 1.83 GHz

•Projected Capacitive Multi-Touch (P-CAP)

•Fanless cooling system and Ultra-low power consumption

•Flat design

•M12 Waterproof connectors

•Full IP65 rating

•1 x LAN, 1 x RS232/422/485, 1 x USB 2.0

- 7 -

1.2 Package Contents

Carefully remove the box and unpack your device. Please check if

all the items listed below are inside your package. If any of these

items are missing or damaged contact us immediately.

Standard factory shipment list:

Panel PC Quick Start Guide

(Hardcopy)

Driver CD & User

Manual

Varies by product

specifications Part No. 91521110100P Part No. 9171111I103I

M12 Power Cable

M12 Serial

Interface Cable

M12 USB/ LAN

Cable

Part No. 94J003L020K8 Part No. 94G0123090Q0 Part No. 94E0128040K0

I/O Protective

Cap x 3

Part No. 60Y031131000

- 8 -

1.3 Description of Parts

W10IB3S-GSH1(HB)

Unit: mm

Dimensions: 263.28 x 173.6 x 40.2

№

Description

№

Description

①9-36V DC (M12 Type) ④1 Watt Speaker

②LAN, USB (M12 Type) ⑤OSD Control Panel

③RS232 (M12 Type)

- 9 -

R10IB3S-GST2

Unit: mm

Dimensions: 252.41 x 197.8 x 43

№

Description

№

Description

①9-36V DC (M12 Type) ③RS232 (M12 Type)

②LAN, USB (M12 Type) ④OSD Control Panel

- 10 -

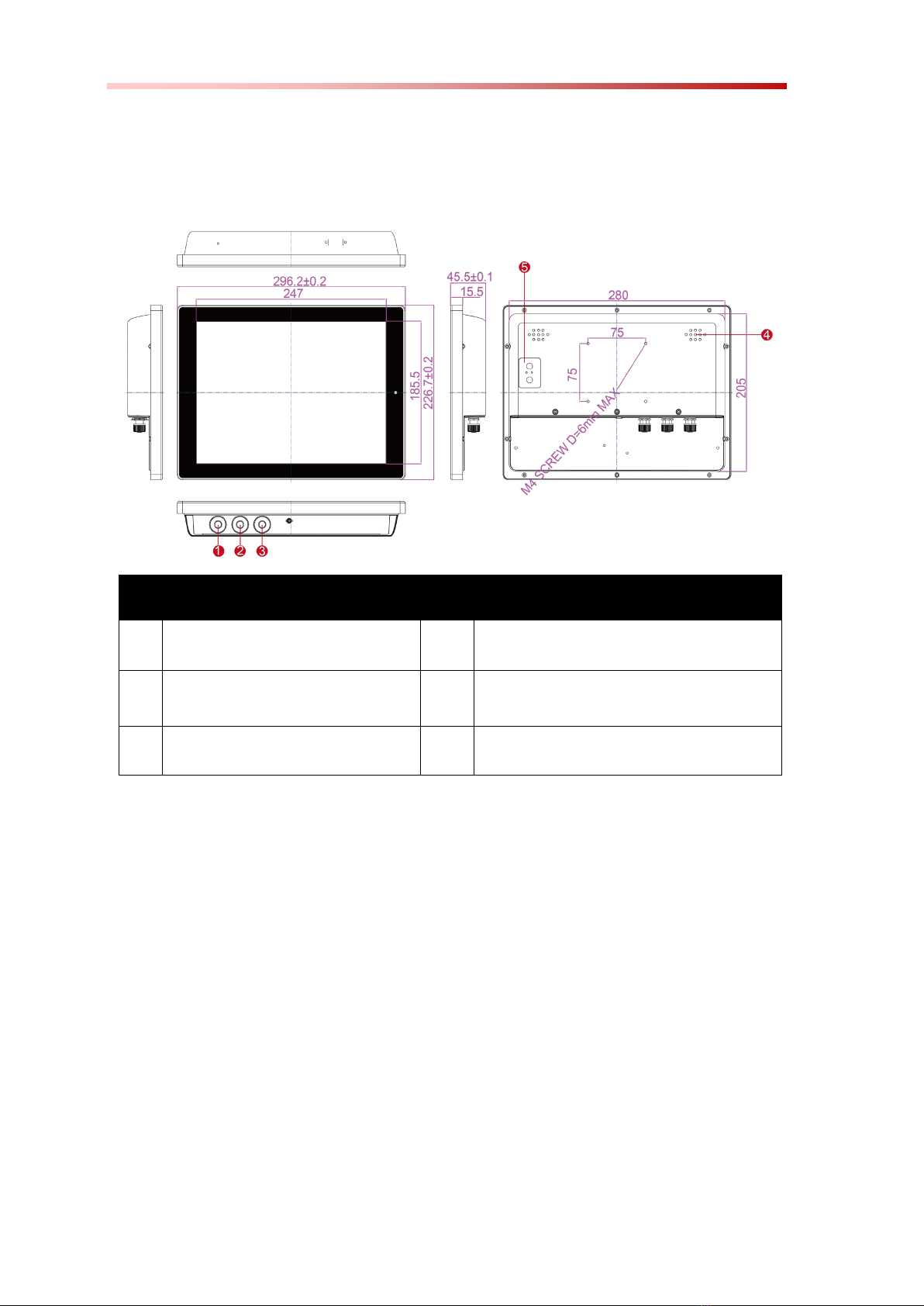

R12IB3S-GSM2(HB)

Unit: mm

Dimensions: 296.2 x 226.7 x 45.5

№

Description

№

Description

①

9-36V DC (M12 Type)

④

1 Watt Speaker

②LAN, USB (M12 Type) ⑤OSD Control Panel

③

RS232 (M12 Type)
