Winmate W07FA3S-EHT1 Manuel utilisateur

Please read these instructions carefully before using this product, and save this manual for future use.

E-Series HMI

W07FA3S-EHT1

W10FA3S-EHH2

W15FA3S-EHA2

Quick Start Guide

V1.1

For more information on this and other Winmate

products, please visit our website at:

www.winmate.com

Document Part Number: 9152111I101C

No part of this document may be reproduced, copied, translated, or transmitted in

any form or by any means, electronic or mechanical, for any purpose, without the

prior written permission of the original manufacturer.

Trademark Acknowledgement

Brand and product names are trademarks or registered trademarks of their

respective owners.

Disclaimer

Winmate Inc. reserve the right to make changes, without notice, to any product,

including circuits and/or software described or contained in this manual in order to

improve design and/or performance. We assume no responsibility or liability for the

use of the described product(s) conveys no license or title under any patent,

warranties that these products are free from patent, copyright, or mask work right

infringement, unless otherwise specified. Applications that are described in this

manual are for illustration purposes only. We make no representation or guarantee

that such application will be suitable for the specified use without further testing or

modification.

Warranty

Winmate Inc. warranty guarantees that each of its products will be free from

material and workmanship defects for a period of one year from the invoice date. If

the customer discovers a defect, we will, at his/her option, repair or replace the

defective product at no charge to the customer, provide it is returned during the

warranty period of one year, with transportation charges prepaid. The returned

product must be properly packaged in its original packaging to obtain warranty

service. If the serial number and the product shipping data differ by over 30 days,

the in-warranty service will be made according to the shipping date. In the serial

numbers the third and fourth two digits give the year of manufacture, and the fifth

digit means the month (e. g., with A for October, B for November and C for

December).

For example, the serial number 1W15Axxxxxxxx means October of year 2015.

Please read these instructions carefully before using this product, and save this manual for future use.

Contents

Getting Started 4

Unpacking 5

Accessories 5

Description of Parts 6

E-Series HMI 7” 6

E-Series HMI 10.1” 7

E-Series HMI 15.6” 7

Dimensions 8

Dimensions 7” 8

Dimensions 10.1” 8

Dimensions 15.6” 9

Mounting 10

VESA Mount (only for 7” E-Series HMI) 10

Panel Mount 11

Connector Description 12

DC Input Connector 12

Serial Port Connector 12

LAN (RJ45) Connector 13

USB A Type Connector 13

USB OTG Connector 13

CAN BUS Connector 14

Turning ON or OFF 15

Turning ON 15

Turning OFF 15

Changing Serial Port Settings 16

Operating the HMI Device 18

Ethernet 18

Main Menu 18

Configuring Ethernet 19

Checking Ethernet Settings 20

Winmate® Home Manager 21

How to Lock Applications 21

How to Reset WHM 23

Software Developer Support 25

Winmate Software Development Kit 25

Winmate Download Center 25

Winmate File Share 25

Technical Specifications 26

HMI Device Specifications 26

4 Please read these instructions carefully before using this product, and save this guide for future use.

Getting Started

Congratulations on purchasing Winmate® E-Series HMI. Winmate® continues

developing new generation of Human Machine Interfaces for Industry 4.0 and

Internet of Things (IoT). Our E-Series HMI runs on Android 4.4 / Linux operating

system that allows installing the latest applications (APPs). Thereby wide

customization possibilities are available to satisfy the needs of industrial

automation.

There is one USB 2.0 onboard to connect mouse or keyboard, USB OTG for

system updates and micro SD card for data logging, backup or data storage. 1 GB

system memory ensures stable operation of applications.

With mounting clips for panel mounting there is no need to drill holes in a fixture.

This saves you the time for mounting and guarantee aesthetic look of the wall after

the unit gets removed.

Winmate® E-Series HMI features:

Freescale® Cortex® A9 i.MX6 Dual Core 1 GHz

Android/Linux Operating System (Customizable and easy to use)

Resistant to scratches P-CAP touchscreen

Fanless cooling system and Ultra-low power consumption

Front IP65 water and dust proof, rear IP22

Power over Ethernet (Data and Power connections in a single cable)

Mounting clips for Quick installation

Elegant design for room booking, access control and room information

applications

Unpacking

Carefully remove the box and unpack your device. Please check if all the items

listed below are inside your package. If any of these items are missing or damaged

Accessories

Standard factory shipment list:

7” HMI Device

Quick Start Guide

(Hardcopy)

External USB cable

Power Cord

AC Adapter

(12V/ 50W)

Terminal Block 2 pin

*VESA Plate

75 x 75 mm

*VESA Mount Screws

Mounting Clips and

Screws

7” HMI – 4 pcs

10.1” HMI – 8 pcs

15.6” HMI – 10 pcs

*VESA Mount Kit supplied only for 7” E-Series HMI.

Please read these instructions carefully before using this product, and save this

guide for future use.

Description of Parts

E-Series HMI 7”

①

Mini USB Console (Linux use)

⑤

RS232/422/485

②

Micro SD

⑥

CAN BUS

③

LAN/ PoE

⑦

1 x USB 2.0

④

USB OTG

⑧

12V DC in (Phoenix type)

E-Series HMI 10.1”

①

Mini USB Console (Linux use)

⑤

RS232/422/485

②

Micro SD

⑥

CAN BUS

③

LAN/ PoE

⑦

1 x USB 2.0

④

USB OTG

⑧

12V DC in (Phoenix type)

E-Series HMI 15.6”

①

Mini USB Console (Linux use)

⑤

RS232/422/485

②

Micro SD

⑥

CAN BUS

③

LAN/ PoE

⑦

1 x USB 2.0

④

USB OTG

⑧

12V DC in (Phoenix type)

Please read these instructions carefully before using this product, and save this

guide for future use.

Dimensions

Dimensions 7”

Dimensions 10.1”

Dimensions 15.6”

Note: this is a simplified drawing and some components are not marked in

detail.

Autres manuels pour W07FA3S-EHT1

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Winmate Écran tactile

Winmate

Winmate R17IV3S-MRM1 Manuel utilisateur

Winmate

Winmate Military Series Manuel utilisateur

Winmate

Winmate W07IB3S-POT1 Manuel utilisateur

Winmate

Winmate R15IK3S-SPC369 Manuel utilisateur

Winmate

Winmate W07IB3S-GCM1(HB) Manuel utilisateur

Winmate

Winmate W10IB3S-PCH2AC-PoE S-Series Manuel utilisateur

Winmate

Winmate P Series Manuel utilisateur

Winmate

Winmate P Series Manuel utilisateur

Winmate

Winmate R15IH3S-MRA3FP Manuel utilisateur

Winmate

Winmate R05FA3S-IPD1HMHB Manuel utilisateur

Winmate

Winmate R15IE3S-PTC3 Manuel utilisateur

Winmate

Winmate R15IH3S-SPC369 Manuel utilisateur

Winmate

Winmate W15IB3S-PTA3 Manuel utilisateur

Winmate

Winmate R15IW3S-65C3 Manuel utilisateur

Winmate

Winmate W10IB3S-PCH2AC-PoE S-Series Manuel utilisateur

Winmate

Winmate W07FA3S-PCM1AC-PoE Manuel utilisateur

Winmate

Winmate W22IK3S-SPA3 Manuel utilisateur

Winmate

Winmate ARM-11 HMI Series Manuel utilisateur

Winmate

Winmate W10IB3S-MRH2 Manuel utilisateur

Winmate

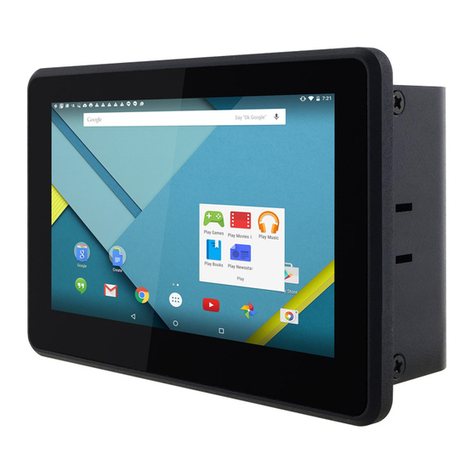

Winmate W04FA3S-EHT1 Manuel utilisateur

Winmate

Winmate R17IB3S-RKA1ML Manuel utilisateur

Winmate

Winmate W07IB3S-PCO1AC-POE Manuel utilisateur

Winmate

Winmate R17IK3S-65M1 Manuel utilisateur

Winmate

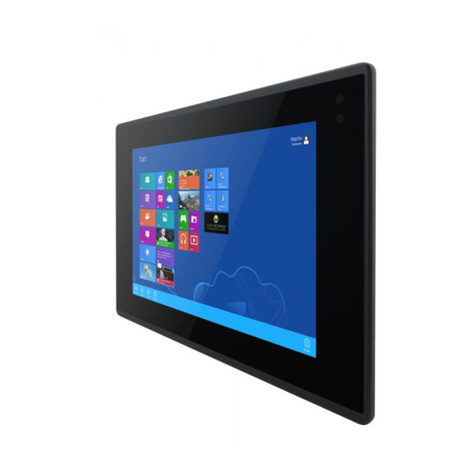

Winmate W10IB3S-EHH2 Manuel utilisateur
