Winmate R08IB3S-VMU1 Manuel utilisateur
Please read this instructions before operating the device and retain them for future reference.
G-WIN Vehicle Mount
Panel PC
Intel® Celeron® Bay Trail-M N2930 1.83 GHz
Quick Start Guide
V1.0
Model No.:
R08IB3S-VMU1
R10IB3S-VMT2
R10IB3S-VMP3
R10IB3S-VMP1
W12IB3S-VMM9
R15IB3S-VMA3 (HB)
Document Part Number: 9152111I101W
- 2 -
Contents
Introduction - 6 -
Features - 6 -
Package Contents - 7 -
Mechanical Concept - 8 -
Description of Parts - 9 -
Physical Buttons and LED Indicators - 9 -
Connector Placement - 12 -
G-WIN Panel PC 8.4” - 12 -
G-WIN Panel PC 10.4” - 12 -
G-WIN Panel PC 12.1” - 13 -
G-WIN Panel PC 15” - 13 -
Getting Started - 14 -
Turning On Your Device - 14 -
How to Enable Watchdog - 16 -
Turning Off Your Device - 17 -
Installation - 18 -
Connecting to Other Devices - 18 -
Power Input Connector - 18 -
Ethernet (LAN) Connector - 18 -
Serial Interface (RS-232) Connector - 18 -
Serial Interface (RS-232/422/485) Connector - 19 -
USB 2.0 and USB 3.0 Connector - 19 -
HDMI Connector - 19 -
Digital Input/ Output Connector (Optional) - 20 -
Mounting - 21 -
VESA Mounting - 21 -
Yoke Mounting - 21 -
Roof Mounting - 24 -
Appendix - 26 -
Appendix A: Cleaning the Monitor - 26 -
Appendix B: Winmate Software Development Kit - 26 -
- 3 -
FCC Statement
This device complies with part 15 FCC rules.
Operation is subject to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a class
"B" digital device, pursuant to part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will
be required to correct the interference at him own expense.
European Union
Electromagnetic Compatibility Directive (2014/30/EU)
EN55024: 2010/ A1: 2015
oIEC61000-4-2: 2009
oIEC61000-4-3: 2006+A1: 2007+A2: 2010
oIEC61000-4-4: 2012
oIEC61000-4-5: 2014
oIEC61000-4-6: 2014
oIEC61000-4-8: 2010
oIEC61000-4-11: 2004
EN55032: 2012/AC:2013
EN61000-3-2:2014
EN61000-3-3:2013
Low Voltage Directive (2014/35/EU)
EN 60950-1:2006/A11:2009/A1:2010/A12:2011/ A2:2013
This equipment is in conformity with the requirement of the following EU
legislations and harmonized standards. Product also complies with the Council
directions.
- 4 -
Copyright Notice
No part of this document may be reproduced, copied, translated, or transmitted in
any form or by any means, electronic or mechanical, for any purpose, without the
prior written permission of the original manufacturer.
Trademark Acknowledgement
Brand and product names are trademarks or registered trademarks of their
respective owners.
Disclaimer
Winmate Inc. reserve the right to make changes, without notice, to any product,
including circuits and/or software described or contained in this manual in order to
improve design and/or performance. We assume no responsibility or liability for the
use of the described product(s) conveys no license or title under any patent,
copyright, or masks work rights to these products, and make no representations or
warranties that these products are free from patent, copyright, or mask work right
infringement, unless otherwise specified. Applications that are described in this
manual are for illustration purposes only. We make no representation or guarantee
that such application will be suitable for the specified use without further testing or
modification.
Warranty
Winmate Inc. warranty guarantees that each of its products will be free from
material and workmanship defects for a period of one year from the invoice date. If
the customer discovers a defect, we will, at his/her option, repair or replace the
defective product at no charge to the customer, provide it is returned during the
warranty period of one year, with transportation charges prepaid. The returned
product must be properly packaged in its original packaging to obtain warranty
service. If the serial number and the product shipping data differ by over 30 days,
the in-warranty service will be made according to the shipping date. In the serial
numbers the third and fourth two digits give the year of manufacture, and the fifth
digit means the month (e. g., with A for October, B for November and C for
December).
For example, the serial number 1W14Axxxxxxxx means October of year 2014.
- 5 -
Customer Service
We provide a service guide for any problem by the following steps: First, visit the
website of our distributor to find the update information about the product. Second,
contact with your distributor, sales representative, or our customer service center
for technical support if you need additional assistance.
You may need the following information ready before you call:
Product serial number
Software (OS, version, application software, etc.)
Description of complete problem
The exact wording of any error messages
In addition, free technical support is available from our engineers every business
day. We are always ready to give advice on application requirements or specific
information on the installation and operation of any of our products.
Safety Information
WARNING! / AVERTISSEMENT!
Always completely disconnect the power cord from your chassis
whenever you work with the hardware. Do not make connections
while the power is on. Sensitive electronic components can be
damaged by sudden power surges. Only experienced electronics
personnel should open the PC chassis.
Toujours débrancher le cordon d’alimentation du chassis lorsque
vous travaillez sur celui-ci. Ne pas brancher de connections
lorsque l’alimentation est présente. Des composantes
électroniques sensibles peuvent être endommagées par des sauts
d’alimentation. Seulement du personnel expérimenté devrait ouvrir
ces chassis.
CAUTION/ATTENTION
Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution, use a
grounding wrist strap at all times. Place all electronic components
in a static-dissipative surface or static-shielded bag when they are
not in the chassis.
Toujours verifier votre mise à la terre afin d’éliminer toute charge
statique avant de toucher la carte CPU. Les équipements
électroniques moderns sont très sensibles aux décharges
d’électricité statique. Toujours utiliser un bracelet de mise à la
terre comme précaution. Placer toutes les composantes
électroniques sur une surface conçue pour dissiper les charge, ou
dans un sac anti-statique lorsqu’elles ne sont pas dans le chassis.
- 6 -
Introduction
Congratulations on purchasing Winmate® G-WIN Vehicle Mount Panel PC.
Winmate® G-WIN Vehicle Mount Panel PC comes with fanless, low power but high
performance platform design, sunlight readable panel, WLAN integration, great
ability for anti-shock & vibration, IP65 protection and anti-corrosion coating with
aluminum alloy housing.
Both of great mobility and robust design are fitting the demands for every harsh
environment applications such as logistics, transportation/ fleet management,
heavy vehicles, utility and also outdoor usage.
Features
Winmate® G-WIN Vehicle Mount Panel PC features:
IP65-proof enclosures (except I/O parts) for 8.4", 10.4", 12.1", and 15"
Totally sealed IP67 Design for 15"
Fanless, streamlined enclosure for highly efficient heat dissipation
Compliance with MIL-STD 810 & IEC 60068-2-27 for shock and vibration test
Aluminum Housing with anti-corrosion
5 Wire Resistive Touch/ Anti-reflective protection glass
Optional GPS, 3G/WLAN (Either one)
Wide range 9-36V DC input
Mounting options suitable for vehicle mounting: VESA Mount, Yoke Mount
and Roof Mount
Compliance with EN50155
- 7 -
Package Contents
Carefully remove the box and unpack your device. Please check if all the items
listed below are inside your package. If any of these items are missing or
damaged contact us immediately.
Standard factory shipment list:
Panel PC
Quick Start Guide
(Hardcopy)
Driver CD & User
Manual
Touch Driver CD
Varies by product
specifications
9152111I101W
IB32:9171111I101Y
9171111T100D
3 Pin Terminal
Block
Cable:94EL02X020E0
Connector:
604520105004
Package may include the following items based on your order (optional):
AC Adapter
Power Cord
WLAN Antenna
Mounting Bracket
50W:90PO12050000
80W:90PO12800000
Varies by destination
391000020202
8.4” 99KK08Z00010
10.4”99KK00Z00010
15” 99KK15A00001
- 8 -
Mechanical Concept
On the picture below you can see spare parts exploded drawing of a standard
G-WIN Vehicle Mount Panel PC.
- 9 -
Description of Parts
Physical Buttons and LED Indicators
Physical buttons and LED indicators located on the rear side of the Panel PC.
G-WIN Panel PC 8.4”, 10.4” and 12.1”
Physical Buttons
Icon
Button
Function
Power
Turn ON or turn OFF the Panel PC.
Brightness
UP
Increase the brightness of the display screen, or
allows user to navigate items of a single OSD
menu.
Brightness
DOWN
Decrease the brightness of the display screen, or
allows user to navigate items of a single OSD
menu.
Reset
Clear any pending errors or events and brings a
system to normal condition or an initial state.
- 10 -
LED Indicators
Indicator
Color
Definition
PWR
Green
Power is ON and the device functions normally
Orange
Panel PC is suspended
HDD
Green
HDD is active
OFF
HDD is inactive

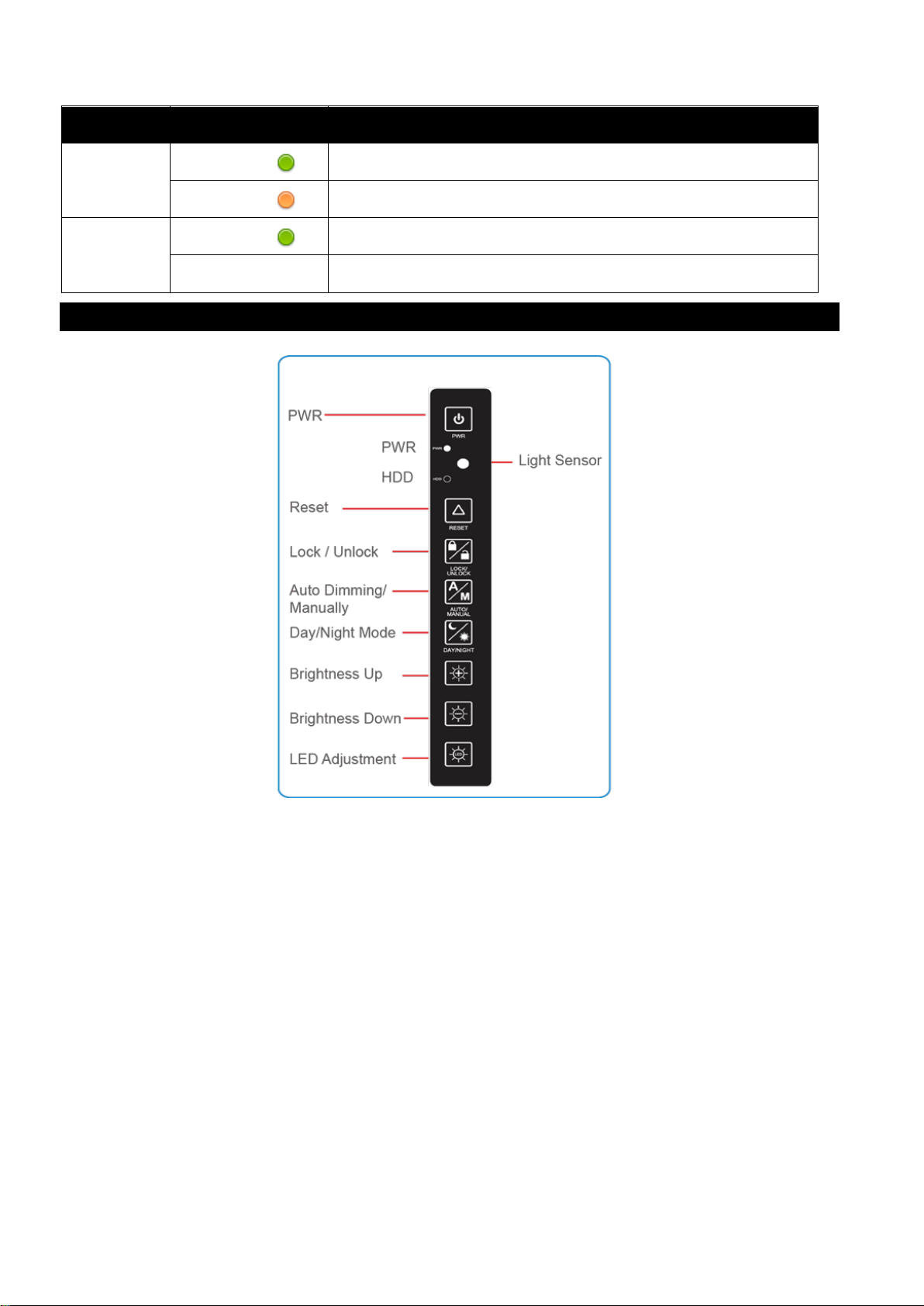

G-WIN Panel PC 15”
