Please read the instructions before operating the device and retain them for future reference.

IP65 Stainless P-Cap Panel PC

15/17/19/21.5/23.8”

Intel® Core™ i5-7200U Kaby Lake

Model No.:

R15IK3S-SPC3

R17IK3S-SPM1

R19IK3S-SPM1

W22IK3S-SPA3

W24IK3S-SPA2

Quick Start Guide

Version 1.5

Document Part Number: 91521110102W

IP65 Stainless P-Cap Panel PC Quick Start Guide

Contents

Chapter 1: Introduction .................................................................................................................6

1.1 Features..............................................................................................................................................6

1.2 Package Content.................................................................................................................................7

1.3 Product Overview................................................................................................................................8

1.3.1 Dimensions 15".............................................................................................................................8

1.3.2 Dimensions 17”.............................................................................................................................8

1.3.3 Dimensions 19”.............................................................................................................................9

1.3.4 Dimensions 21.5”..........................................................................................................................9

1.3.5 Dimensions 23.8”........................................................................................................................10

1.4 Physical Buttons and LED Indicators.................................................................................................10

1.5 Connectors........................................................................................................................................11

Chapter 2: Getting Started ..........................................................................................................12

2.1 Turning On and Off Your Device .......................................................................................................12

2.2 How to Enable Watchdog..................................................................................................................13

2.3 Touch Mode......................................................................................................................................14

Chapter 3: Installation .................................................................................................................17

3.1 Wiring Requirements.........................................................................................................................17

3.2 Connector Pin Assignments ..............................................................................................................18

3.2.1 Power Cable...............................................................................................................................18

3.2.2 Serial Cable................................................................................................................................19

3.2.3 Ethernet Cable............................................................................................................................20

3.2.4 USB 2.0 Cable............................................................................................................................21

3.3 Mounting ...........................................................................................................................................22

3.3.1 VESA Mounting ..........................................................................................................................22

3.3.2 Yoke Mounting............................................................................................................................23

Appendix....................................................................................................................................... 24

Appendix A: Hardware Specifications .....................................................................................................24

Appendix B: Cleaning the Monitor...........................................................................................................26

Appendix C: Winmate Software Development Kit....................................................................................26

FCC Statement

This device complies with part 15 FCC rules.

Operation is subject to the following two conditions:

This device may not cause harmful interference.

This device must accept any interference received including interference

that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a class "B" digital device,

pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used

in accordance with the instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at him own

expense.

European Union

Electromagnetic Compatibility Directive (2014/30/EU)

•EN55024: 2010/ A1: 2015

oIEC61000-4-2: 2009

oIEC61000-4-3: 2006+A1: 2007+A2: 2010

oIEC61000-4-4: 2012

oIEC61000-4-5: 2014

oIEC61000-4-6: 2014

oIEC61000-4-8: 2010

oIEC61000-4-11: 2004

•EN55032: 2012/AC:2013

•EN61000-3-2:2014

•EN61000-3-3:2013

Low Voltage Directive (2014/35/EU)

•EN 60950-1:2006/A11:2009/A1:2010/A12:2011/ A2:2013

This equipment is in conformity with the requirement of the following EU legislations and

harmonized standards. Product also complies with the Council directions.

IP65 Stainless P-Cap Panel PC Quick Start Guide

No part of this document may be reproduced, copied, translated, or transmitted in any form or by

any means, electronic or mechanical, for any purpose, without the prior written permission of the

original manufacturer.

Trademark Acknowledgement

Brand and product names are trademarks or registered trademarks of their respective owners.

Disclaimer

Winmate Inc. reserve the right to make changes, without notice, to any product, including circuits

and/or software described or contained in this manual in order to improve design and/or

performance. We assume no responsibility or liability for the use of the described product(s)

conveys no license or title under any patent, copyright, or masks work rights to these products,

and make no representations or warranties that these products are free from patent, copyright, or

mask work right infringement, unless otherwise specified. Applications that are described in this

manual are for illustration purposes only. We make no representation or guarantee that such

application will be suitable for the specified use without further testing or modification.

Warranty

Winmate Inc. warranty guarantees that each of its products will be free from material and

workmanship defects for a period of one year from the invoice date. If the customer discovers a

defect, we will, at his/her option, repair or replace the defective product at no charge to the

customer, provide it is returned during the warranty period of one year, with transportation charges

prepaid. The returned product must be properly packaged in its original packaging to obtain

warranty service. If the serial number and the product shipping data differ by over 30 days, the in-

warranty service will be made according to the shipping date. In the serial numbers the third and

fourth two digits give the year of manufacture, and the fifth digit means the month (e. g., with A for

October, B for November and C for December).

For example, the serial number 1W17Axxxxxxxx means October of year 2017.

Customer Service

We provide a service guide for any problem by the following steps: First, visit the website of our

distributor to find the update information about the product. Second, contact with your distributor,

sales representative, or our customer service center for technical support if you need additional

assistance.

You may need the following information ready before you call:

•Product serial number

•Software (OS, version, application software, etc.)

•Description of complete problem

•The exact wording of any error messages

In addition, free technical support is available from our engineers every business day. We are

always ready to give advice on application requirements or specific information on the installation

and operation of any of our products.

Chapter 1: Introduction

Advisory Conventions

Four types of advisories are used throughout the user manual to provide helpful information or to

alert you to the potential for hardware damage or personal injury. These are Notes, Important,

Cautions, and Warnings. The following is an example of each type of advisory.

Note:

A note is used to emphasize helpful information

Important:

An important note indicates information that is important for you to know.

Caution/ Attention

A Caution alert indicates potential damage to hardware and explains how to avoid the

potential problem.

Une alerte d’attention indique un dommage possible à l’équipement et exp

lique comment

éviter le problème potentiel.

Warning!/ Avertissement!

An Electrical Shock Warning indicates the potential harm from electrical hazards and how to

avoid the potential problem.

Un Avertissement de Choc Électrique indique le potentiel de chocs sur des emplacements

électriques et comment éviter ces problèmes.

Safety Information

Warning!/ Avertissement

Always completely disconnect the power cord from your chassis whenever you work with

the hardware. Do not make connections while the power is on. Sensitive electronic

components can be damaged by sudden power surges. Only experienced electronics

personnel should open the PC chassis.

Toujours débrancher le cordon d’alimentation du chassis lorsque vous travaillez sur celui-ci.

Ne pas brancher de connections lorsque l’alimentation est présente. Des composantes

électroniques sensibles peuvent être endommagées par des sauts d’alimentation.

Seulement du personnel expérimenté devrait ouvrir ces chassis.

Caution/ Attention

Always ground yourself to remove any static charge before touching the CPU card. Modern

electronic devices are very sensitive to static electric charges. As a safety precaution, use a

grounding wrist strap at all times. Place all electronic components in a static-dissipative

surface or static-shielded bag when they are not in the chassis.

Toujours verifier votre mise à la terre afin d’éliminer toute charge statique avant de toucher

la carte CPU. Les équipements électroniques moderns sont très sensibles aux décharges

d’électricité statique. Toujours utiliser un bracelet de mise à la terre comme précaution.

Placer toutes les composantes électroniques sur une surface conçue pour dissiper les

charge, ou dans un sac anti-statique lorsqu’elles ne sont pas dans le chassis.

Alternating Current Mise à le terre !

The Protective Conductor Terminal (Earth Ground) symbol indicates the potential risk of

serious electrical shock due to improper grounding.

Le symbole de Mise à Terre indique le risqué potential de choc électrique grave à la terre

incorrecte.

IP65 Stainless P-Cap Panel PC Quick Start Guide

Chapter 1: Introduction

Congratulations on purchasing Winmate® IP65 Flat Stainless P-CAP Series Panel PC.

Winmate IP65 Flat Stainless P-CAP Series Panel PC is rugged, industrial-grade panel PC series

built to withstand challenging environments, undergoing rigorous testing to ensure safety and top

performance. All of the models in the series are sealed to IP65 standard. Stainless housing

features anti-corrosion properties making it suitable for food, chemical and pharmaceutical

industries. P-CAP multi-touch screen supports glove mode and provides even more convenience

for the operator.

Winmate IP65 Flat Stainless P-CAP Panel PC goes beyond that of the standard industrial panel

computers with elegant, edge-to-edge design, rugged construction, powerful performance, and

flexible mounting options.

The IP65 stainless series work well in food, beverage industry, including food processing

operations and packaging, chemical manufacturing and other industrial applications.

1.1 Features

The IP65 Stainless P-Cap Panel PC features:

•Intel® Core™ i5-7200U Kaby Lake 2.5GHz (turbo to 3.1GHz)

•SUS 316/ AISI 316 stainless steel for food and chemical industries

•Full IP65 waterproof enclosure, good corrosion resistance

•A true flat, easy-to-clean front surface with edge-to-edge design

•Flat multi-touch panel pc with superior readability and P-CAP technology

•Various mounting solutions, Yoke mount and VESA mount

•Plenty of I/O s including USB 2.0, RS-232 serial port and RJ45-10/100/1000 LAN ports

•Waterproof ports with adapter cables for external connectivity

•Supports VESA mount

•Supports Rain/ Glove mode (Optional)

Chapter 1: Introduction

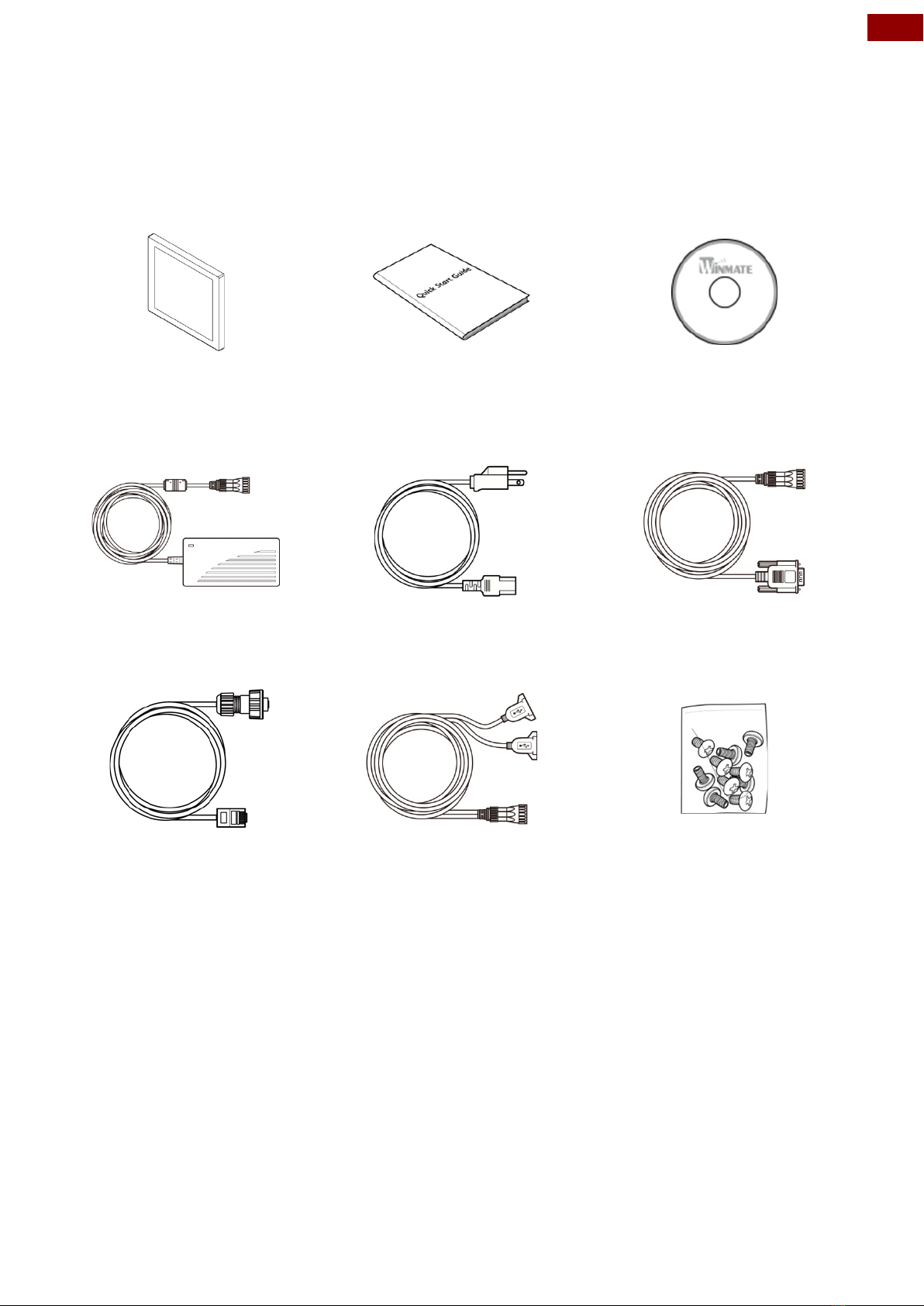

1.2 Package Content

Carefully remove the box and unpack your device. Please check if all the items listed below are

inside your package. If any of these items are missing or damaged contact us immediately.

Standard shipment list:

•Panel PC

Varies by product

specifications

•Quick Start Guide

(Hardcopy)

Part No. 91521110100R

•Driver CD & User

Manual

Part No. 9171111K102L

•AC Adapter

80W: 90PO12080003

•Power Cable*

Varies by country

•Serial Cable

Part No. 94G0103090Q0

•Ethernet Cable

Part No. 94I0080080KF

•USB Cable

Part No. 9480108080Q0

•VESA Screws

Part No. 913511101101

IP65 Stainless P-Cap Panel PC Quick Start Guide

1.3 Product Overview

This section contains mechanical drawing of the Panel PC. Notice that this is a simplified drawing

and some components are not marked in detail.

1.3.1 Dimensions 15"

Unit: mm

1.3.2 Dimensions 17”

Unit: mm

Chapter 1: Introduction

1.3.3 Dimensions 19”

Unit: mm

1.3.4 Dimensions 21.5”

Unit: mm

IP65 Stainless P-Cap Panel PC Quick Start Guide

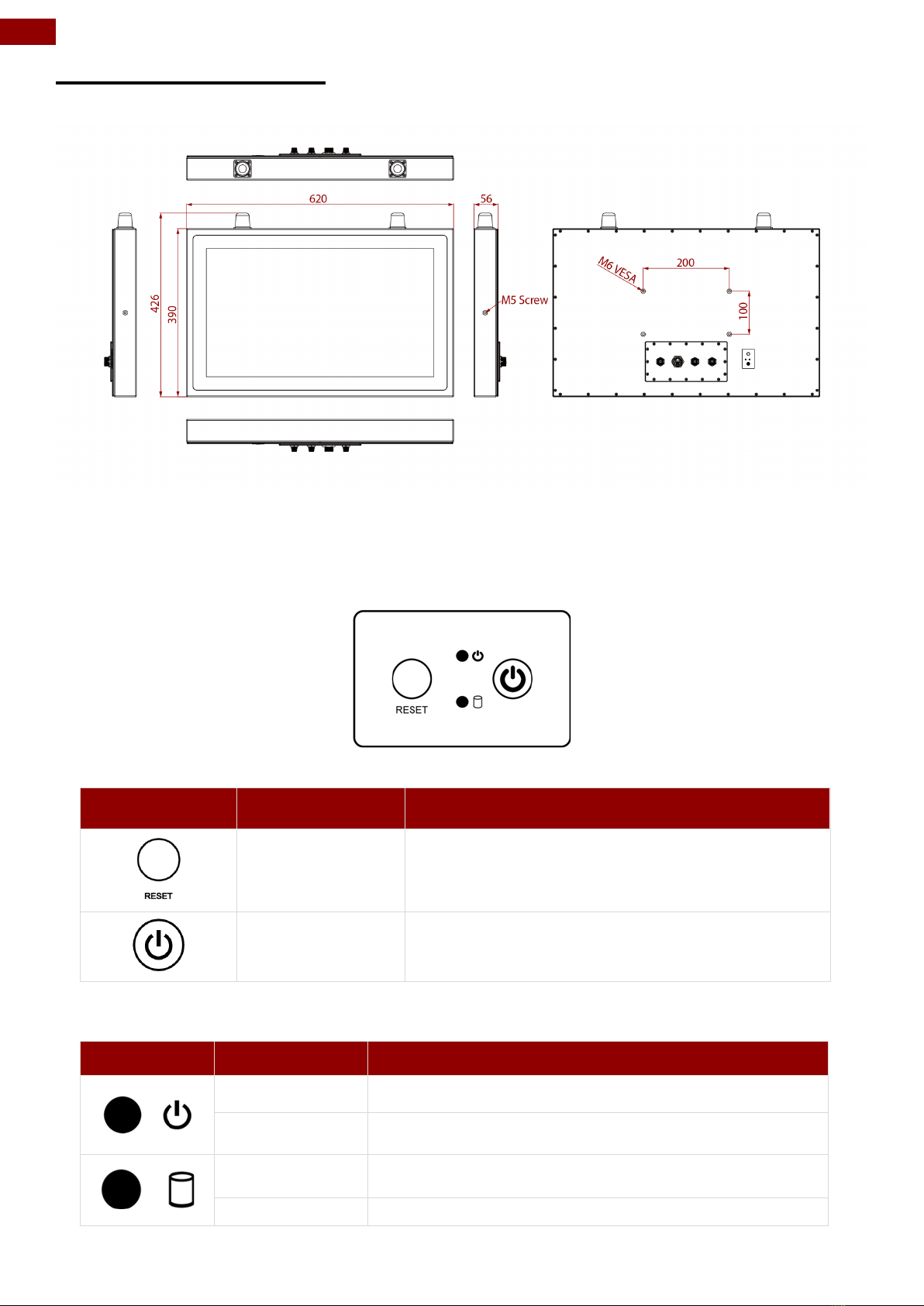

1.3.5 Dimensions 23.8”

Unit: mm

1.4 Physical Buttons and LED Indicators

Physical buttons and LED indicators located on the rear side of the Panel PC.

Physical Buttons

Icon

Button

Description

Reset Press to reset the system

Power On/ Off Press to power on or power off the device

LED Indicators

LED Type

Status

Description

On Power is on

Off Power is off

Blinking Storage activity (Data is being read or written)

Off

System is idle

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Winmate Écran tactile

Winmate

Winmate R05FA3S-OFD1HMHB Manuel utilisateur

Winmate

Winmate R17IV3S-MRM1 Manuel utilisateur

Winmate

Winmate R15IW3S-SPC3 Manuel utilisateur

Winmate

Winmate W04FA3S-EHT1 Manuel utilisateur

Winmate

Winmate W07FA3S-GSM1 Manuel utilisateur

Winmate

Winmate W10IE3S-MRH2FP Manuel utilisateur

Winmate

Winmate R17IK3S-65M1 Manuel utilisateur

Winmate

Winmate G-Win Series Manuel utilisateur

Winmate

Winmate GC Series Manuel utilisateur

Winmate

Winmate W10IB3S-PCH2-PoE S-Series Manuel utilisateur

Winmate

Winmate R15IE3S-PTC3 Manuel utilisateur

Winmate

Winmate P Series Manuel utilisateur

Winmate

Winmate W07FA3S-PCM1AC-PoE Manuel utilisateur

Winmate

Winmate R15IH3S-SPC3 Manuel utilisateur

Winmate

Winmate 7'' S-Series Manuel utilisateur

Winmate

Winmate W10IB3S-MRH2 Manuel utilisateur

Winmate

Winmate R15IB3S-65C3 Manuel utilisateur

Winmate

Winmate R10L100-PCT2-PoE Manuel utilisateur

Winmate

Winmate W05TA3S-PCT3AC Manuel utilisateur

Winmate

Winmate W10IB3S-EHH2 Manuel utilisateur

Winmate

Winmate ATEX R19IHAT-66EX-T Manuel utilisateur

Winmate

Winmate P Series Manuel utilisateur

Winmate

Winmate IP69K Stainless P-Cap Manuel utilisateur

Winmate

Winmate W07IB3S-EHT1 Manuel utilisateur

Manuels Écran tactile populaires d'autres marques

FlowLine

FlowLine Data loop Manuel utilisateur

ALPEX

ALPEX AEx-8 P Series Manuel utilisateur

Ltech

Ltech E5S Manuel utilisateur

Harman

Harman AMX MODERO S MSD-701-L2 Manuel utilisateur

Acnodes

Acnodes PC 1150 Manuel utilisateur

AIS

AIS IP10IA99 series Manuel utilisateur

IBASE Technology

IBASE Technology ASTUT-152-RE1S Manuel utilisateur

YASKAWA

YASKAWA TP 610C Manuel utilisateur

B&R

B&R Power Panel C Series Manuel utilisateur

Beijer Electronics

Beijer Electronics X2 control Manuel utilisateur

AXIOMTEK

AXIOMTEK GOT321W-521 Manuel utilisateur

TRIDONIC.ATCO

TRIDONIC.ATCO x-touchBOX Manuel utilisateur

Qomo

Qomo QIT1386 Manuel utilisateur

DFI

DFI KS104-CD Manuel utilisateur

AMX

AMX AXP-PPC Mode d’emploi

Sartorius

Sartorius X3 PR 5410 Manuel utilisateur

AMX

AMX Modero X Series Manuel utilisateur

Advantech

Advantech TPC-30 Series Manuel utilisateur
