Wilson Electronics WeBoost DRIVE X 475021R Manuel utilisateur

Installation Guide

Vehicle Signal Booster Kit

DRIVE X

A WILSON ELECTRONICS BRAND

NEED HELP? support.weboost.com 866.294.1660

______

Index

Package Contents 1

STEP 1: Mount Outside Magnetic Antenna 2

STEP 2: Mount Inside Antenna 4

STEP 3: Connect Coax Cables To Booster 5

STEP 4: Connect Power Supply To Booster 6

STEP 5: Plug Power Adapter Into Vehicle’s Power Supply 7

Light Patterns 8

Troubleshooting 9

Safety Guidelines 10

Speciﬁcations 11

Warranty 12

DRIVE X VEHICLE SIGNAL BOOSTER 1

________

Package

Contents

Booster

& Bracket

Outside

Antenna

Inside

Antenna

Power

Supply

Optional: Adhesive disk for aluminum vehicles

2VEHICLE SIGNAL BOOSTER DRIVE X

______

Step 1: Mount Outside

Magnetic Antenna

WORKS WITH ALL VEHICLES

Identify a location on the top of your vehicle that is:

 Near the center of the roof

 At least 12 inches away from any other antennas and

from any windows (including sunroofs)

Clean the surface where you will place the outside

antenna.

Mount the outside antenna by placing on top of vehicle.

12 in. away from windows

(including sunroofs)

NOTE: For aluminum roofs, use the included adhesive disk to secure outside

antenna in place.

DRIVE X VEHICLE SIGNAL BOOSTER 3

NOTE: When going through car wash,

remember to remove your antenna.

NOTE: The cable is strong enough that it may be shut in most vehicle doors

without damaging the cable.

Car/Sedan: Cable routed

into rear side door.

SUV/Van/Hatchback: Cable

routed into top of hatchback door.

Truck: Cable routed into

side door.

______

(STEP 1 cont.)

See options below on how cable can be routed with

different vehicles.

4VEHICLE SIGNAL BOOSTER DRIVE X

______

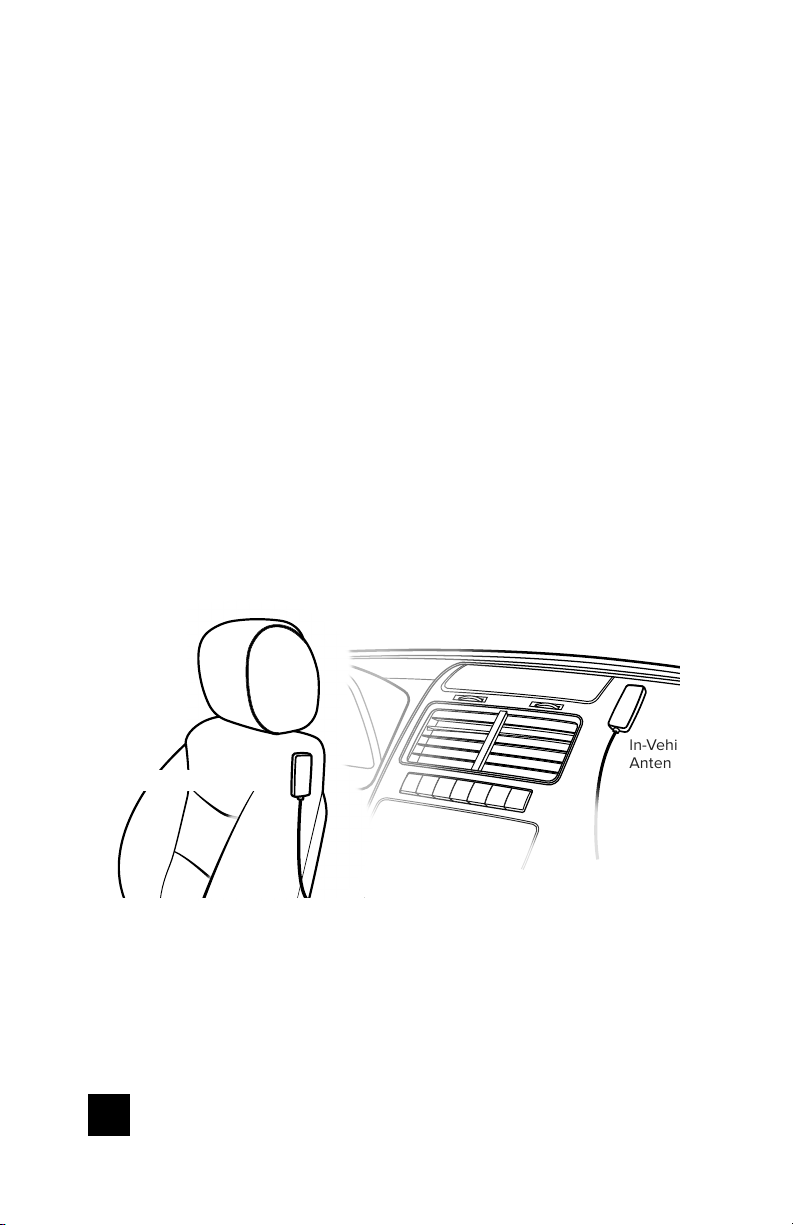

Step 2: Mount Inside Antenna

Identify a place to mount the In-Vehicle Antenna, either on the

side of the seat or on the dash and mount. The location should

be at least 18 inches but no more than 36 inches from where

the cell phone device will be used. Use the Velcro® adhesive

strip/adhesive strip provided and attach to

desired location.

In-Vehicle

Antenna

In-Vehicle Antenna

DRIVE X VEHICLE SIGNAL BOOSTER 5

______

Step 3: Connect Coax Cables

To Booster

Connect the cable from the Mini-Mag Mount Antenna to the

port labeled “Outside Antenna” on the Drive X booster.

Connect the cable from the In-Vehicle Antenna to the port

labeled “Inside Antenna” on the booster.

In-Vehicle

Antenna

from Outside Antenna

from Inside Antenna

NOTE: Bracket can be used to fasten booster in a speciﬁc location if desired.

6VEHICLE SIGNAL BOOSTER DRIVE X

______

Step 4: Connect Power

Supply To Booster

Connect the power supply cord to the end of the Drive X

labeled “Power.”

NOTE: Do NOT connect the power to the Signal Booster until you have

connected both the Inside and Outside Antennas.

Power Supply

DRIVE X VEHICLE SIGNAL BOOSTER 7

______

Step 5: Plug Power Adapter

Into Vehicle’s Power Supply

Plug the power adapter into vehicle’s 12V DC power supply.

Power up your Drive X by ﬂipping the switch on the back of

the DC power adapter on. If your Drive X is working correctly,

the light on the power adapter will be red, and the light on the

booster will be green.

NEED HELP? support.weboost.com 866.294.1660

DC Power Adapter

8VEHICLE SIGNAL BOOSTER DRIVE X

______

Light Patterns

NEED HELP? support.weboost.com 866.294.1660

Solid Green

This indicates that your booster is functioning properly and there are no issues with

installation.

Blinking Red, Then Solid Green

This indicates that one or more of the booster bands has reduced power due

to a feedback loop condition called oscillation. This is a built in safety feature

to prevent harmful interference with a nearby cell tower. If you are already

experiencing the desired signal boost, then no further adjustments are necessary.

If you are not experiencing the desired boost in coverage then refer to the

Troubleshooting section below.

Solid Red

This is due to a feedback loop condition called oscillation. This is a built in safety

feature that causes a band to shut off to prevent harmful interference with a nearby

cell tower. Refer to Troubleshooting section below.

Light O

If the Drive X Signal Booster’s light is off, verify your power supply has power.

NOTE: The Signal Booster can be reset by disconnecting and reconnecting

the power supply.

After troubleshooting you must initiate a new power cycle by disconnecting and

then reconnecting power to the Booster.
