Mobile 4G™

Cellular Signal Booster

460021

2Need help? www.WilsonElectronics.com Tech Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

! !

THE ALUMINUM CASING OF YOUR SIGNAL BOOSTER

WILL ADJUST TO THE TEMPERATURE OF ITS

ENVIRONMENT, BUT IS DESIGNED TO PROTECT THE

SIGNAL BOOSTER TECHNOLOGY. FOR EXAMPLE, IN THE SUMMER,

THE SIGNAL BOOSTER CASE MAY BE AS HOT AS 150 DEGREES

INSIDE YOUR VEHICLE. THESE HIGH TEMPERATURES WILL NOT

DAMAGE THE SIGNAL BOOSTER, NOR DO THEY POSE A FIRE

RISK TO THE VEHICLE. AGAIN, BE SURE TO PLACE YOUR SIGNAL

BOOSTER IN A LOCATION WITH ADEQUATE VENTILATION AND

AWAY FROM DIRECT SUNLIGHT OR MOISTURE.

THE MOBILE 4G SIGNAL

BOOSTER MAY REMAIN

ON, IN VEHICLES WHOSE

12V DC POWER SOURCES DO NOT

AUTOMATICALLY SHUTDOWN WHEN

THE VEHICLE IS TURNED OFF. THIS

COULD RESULT IN DISCHARGING THE

VEHICLES BATTERY IN ONE TO TWO

DAYS.

Installation Instructions for the Following Wilson Electronics Signal Boosters:

Mobile 4G SmarTech ™Signal Booster

Model # 460021 FCC ID: PWO460021 IC: 4726A-460021

The term “IC” before the radio certication number only signies that Industry Canada technical specications were met.

Contents

Package Contents ....................................................3

Before Getting Started ................................................3

Installation ..........................................................3

Troubleshooting & Understanding Lights.................................5

Additional FAQ.......................................................6

Outside Antenna Options ..............................................7

Safety Guidelines ....................................................8

Signal Booster Specifications ..........................................9

Guarantee and Warranty...................................... Back Cover

Need help? www.WilsonElectronics.com Tech Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

Before Getting Started

Before you install your Mobile 4G

Booster and start enjoying improved

cellular reception please do the following:

1. Read through all the installation

steps. This will help you know what

to expect from start to nish.

2. Watch the YouTube video

demonstrating the Mobile 4G Signal

Boost installation at:

wilsonelectronics.com/

Mobile4Gvideo

3. Familiarize yourself with all

materials in your product package.

This will allow you to know which

pieces are referenced in the

instructions.

Installation

You can install your Mobile 4G

Signal Booster in your vehicle using

the following steps. NOTE: Before

completing your installation, create

a “soft” installation by putting the

components of your Mobile 4G Signal

Booster in place and testing the

operation before mounting equipment.

1. Install the outside antenna. Select a

location on top of the car that is:

• Near the center of the vehicle’s roof.

• At least 12 inches from any other

antennas.

• Free of obstructions.

• At least 6 inches from any

windows (including sunroofs).

• At least 8 inches from any people.

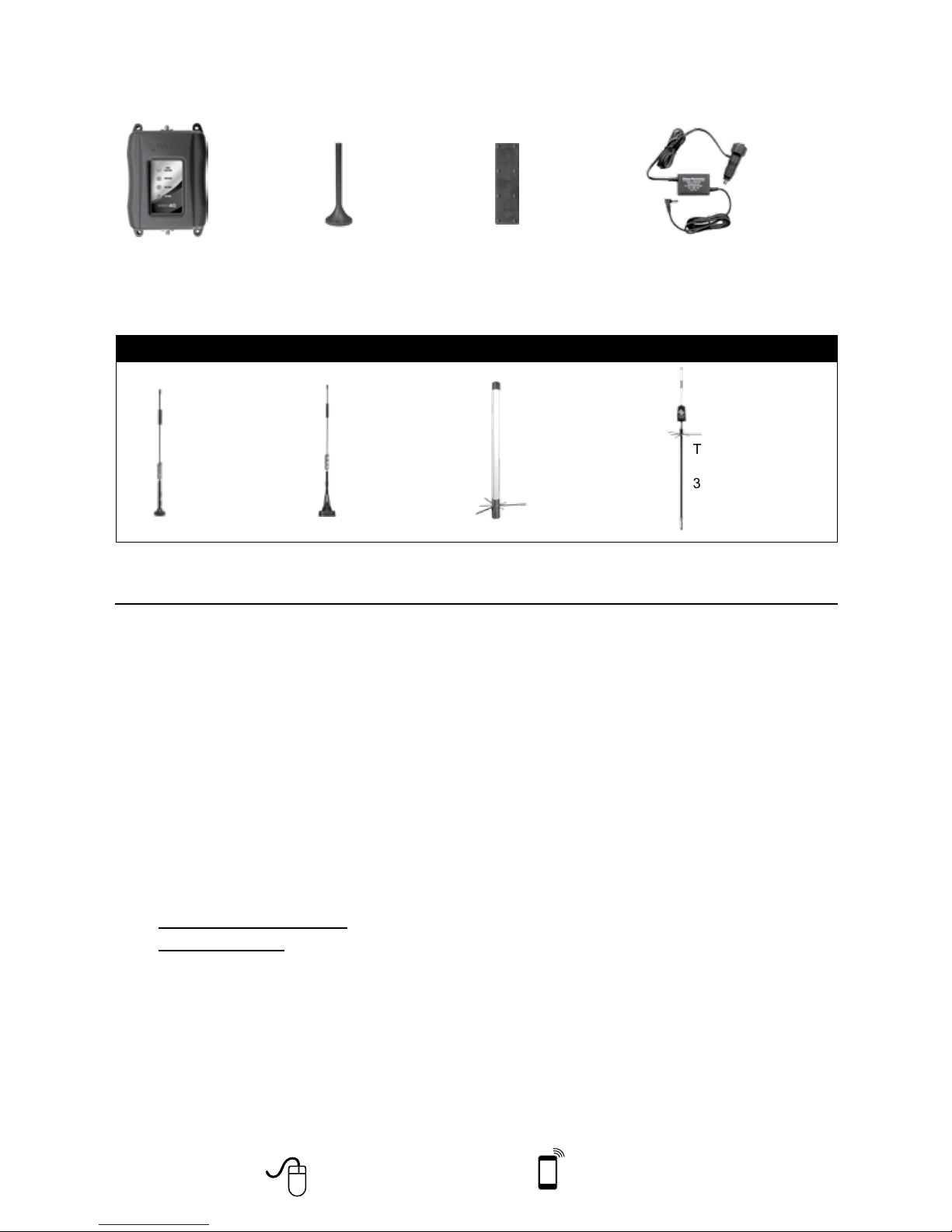

Package Contents

Mobile 4G™

Signal Booster

Mini-Mag

Outside Antenna

301126

Slim Low Profile

Inside Antenna

301152

DC Power Supply

6V / 2A

859913

Optional Antennas

12” Mag Mount

Outside Antenna

311103

NMO

Outside Antenna

311104-5810

Marine

Outside Antenna

311130-5810 Trucker

Outside Antenna

311101

Appearance of device and accessories may vary.

4Need help? www.WilsonElectronics.com Tech Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

The outside antenna must be installed

vertically on a metallic surface.

2. Run the outside antenna cable

into the car. The cable is strong

enough that it may be shut in most

vehicle doors without damaging the

cable. For a cleaner look, carefully

pull down the door seal, run the

cable under the seal, and push the

seal back into place. This method

reduces wear on the cable as the

door opens and closes.

3. Install the Low-Prole inside antenna.

• Identify a place on the right side

of the driver’s seat to mount the

inside antenna. The location

should be at least 18 inches from

where the cellular device will be

used.

• Install the inside antenna at the

same angle as the cell phone

when held in use or near the

laptop’s cellular data card to

maximize signal strength.

For a more professional look,

you can install the inside antenna

underneath a car seat cover or

upholstery.

• When you have tested the

functionality of your Mobile 4G

Signal Booster, mount the inside

antenna by peeling off the backing

of the Velcro® and attach it to your

selected location on the seat and

secure the inside antenna.

4. Place and connect the Mobile 4G

Signal Booster.

• Select a location for the Signal

Booster that is free from excessive

heat, direct sunlight and moisture

and that has proper ventilation.

Good locations include underneath

a seat or under the dashboard.

• Connect the wire from the outside

antenna to the port labeled

“outside antenna” on the Signal

Booster.

• Connect the wire from the inside

antenna to the port labeled “inside

antenna” on the Signal Booster.

• Plug the power adapter into

vehicle’s 12V DC power supply

and attach the cord to the side of

Power Booster labeled “Power.”

NOTE: Do NOT connect the power

to the Signal Booster until you

have connected both the inside

and outside antennas.

Need help? www.WilsonElectronics.com Tech Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

into both the Mobile 4G Signal Booster

and the power source.

• If using a DC power supply in your

vehicle, ensure the power supply is

properly inserted. Then check the 12

volt power from the car socket and the

fuse. Replace the fuse if necessary.

Red light: A red light indicates oscillation

is occurring. Oscillation is similar to

feedback between a microphone and

speaker. When oscillation occurs, the

Signal Booster will power down to protect

the cell tower. To eliminate oscillation,

the outside antenna needs to be moved

farther from the inside antenna. Move the

outside antenna on the roof to the rear of

the car, but at least 8 to 12 inches from

the rear or side windows. Disconnect

the power from the Signal Booster, then

reconnect the power to reset the Signal

Booster.

Blinking Red/Green: If one or more

of the lights on the Signal Booster are

blinking red/green, this means that the

Signal Booster has reduced gain due

to oscillation. Increase the distance

between the Outside and the Inside

Antennas, or place the Outside Antenna

near the center of the vehicle, and reset

the Signal Booster by disconnecting then

reconnecting the power to the signal

booster. Contact Wilson Electronics

Technical Support Team for assistance.

Increase

distance Inside

antenna

• Power up your Signal Booster by

ipping the switch on the back of the

DC power adapter on. A red light

should appear on the power adapter.

Note: The Mobile 4G Signal Booster

may remain on, in vehicles whose

12V DC power sources do not

automatically shutdown when the

vehicle is turned off. This could

result in discharging the vehicles

battery in one to two days.

Note: Some 12V DC power sources

are shut down when the vehicle

ignition is turned to off. Refer to

your vehicle owners manual for

specics related to your vehicle.

NOTE: The aluminum casing of

your Signal Booster will adjust to the

temperature of its environment, but is

designed to protect the Signal Booster

technology. For example, in the summer,

the Signal Booster case may be as hot

as 150 degrees inside your vehicle.

These high temperatures will NOT

damage the Signal Booster, nor do they

pose a re risk to the vehicle. Again, be

sure to place your Signal Booster in a

location with adequate ventilation and

away from direct sunlight or moisture.

Troubleshooting &

Understanding Lights

The lights on the front of the Mobile

4G Signal Booster indicate whether

the system is working or if there are

problems. Each light indicates the

operation of its labeled frequency. Take

the following steps based on the indicator

light color when using the Mobile 4G

Signal Booster.

Lights off: If the lights are not on:

• Check connections on the power

supply to see that it is rmly plugged

6Need help? www.WilsonElectronics.com Tech Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

Green light: A green light indicates the

Mobile 4G Signal Booster is working

properly.

If you have additional questions about

the operation of your Mobile 4G Signal

Booster, please contact the Wilson

Electronics technical support team

at 866-294-1660 or email tech@

wilsonelectronics.com.

Additional FAQ:

What hours can I contact tech support?

Technical Support can be reached

from 7:00am to 6:00pm MST, by calling

(866-294-1660), or by email, at tech@

wilsonelectronics.com

How does weather affect the

performance of my outside antenna?

Water vapor (e.g. rain, fog, snow or

other precipitation) creates an effective

lter to cellular signal. In times of

heavy precipitation, you may see less

performance.

What’s the difference between the 800

MHz and the 1900 MHz bands? How do

I know which MHz band my cell phone

uses?

The Mobile 4G works with all major North

American cellular providers on the 800

& 1900 MHz frequencies. Traditionally,

800/1900MHz are associated with voice and

3G data; while 700MHz and 1700/2100MHz

are associated with 4G data.

Carrier Frequency Use

We recommend visiting wirelessadvisor.

com (US) or http://bit.ly/1mQf2Gl (Canada)

for information regarding the frequency

band used by your cell service provider in a

specic geographical location.

Kit 301121-40010

• 50 Ohm Dome Antenna

• 10’ LMR400

Kit 311135-40060

• 50 Ohm Wall Panel Antenna

• 60’ LMR400

Kit 301151-0610

• 75 Ohm Dome Antenna

• 10’ RG6 Cable

Kit 311135-5820

• 50 Ohm Wall mount Panel Antenna

• 20’ RG58 Cable

Kit 311135-40060

• 50 Ohm Wall Mount Panel Antenna

• 60’ LMR400 Cable

Kit 301151-1110

• 75 Ohm Dome Antenna

• 10’ RG11 cable

Kit 311155-1150

• 75 Ohm Wall mount Panel Antenna

• 50’ RG11 Cable

Kit 301211

• Desktop Antenna w/ 5’ RG174

50 Ohm Outside Antenna Kits

Kit 314453-5825

• 50 Ohm Pole Mount Panel Antenna

• 25’ RG58 Cable

Inside Antenna Kits

Kit 309900-50N

• 2 - Wall Panel antennas

• 1 - 50 ohm 3-Way Splitter

Kit 309905-50N

• 3 - Wall Panel Antennas

• 3 - 2-Way 50 Ohm Splitters

Kit 309902-75F

• 2 - Wall Panel Antennas

• 1 - 3-Way 75Ohm Splitter

Kit 309903-75F

• 3 - Wall Panel Antennas

• 3 - 2-Way 75Ohm Splitters

Kit 309904-75F

• 1 - Wall Panel Antenna

• 1 - 2-Way 75 Ohm Splitter

Inside Antenna Expansion Kit

Need help? www.WilsonElectronics.com Tech Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

Kit 311129-0650

• 1900 MHz Yagi Directional

• 50’ RG6 Cable

• N-Male to F-Female adapter

Kit 314473-0640

• 75 Ohm Pole Mount Panel Antenna

• 40’ RG6 Cable

Kit 311141-0620

• 75 Ohm Grey Brick Antenna

• 20’ RG6 Cable

Kit 301111-11140

• Yagi Directional Antenna

• 140’ RG11 Cable

• N-Male to F-Female adapter

Kit 311201-1120

• Omni Directional w/ F-Female

• 20’ RG11 Cable

Kit 311129-11110

• 800 MHz Yagi Directional

• 110’ RG11 Cable

• N-Male to F-Female adapter

Kit 311124-1180

• 1900 MHz Yagi Directional

• 80’ RG11 Cable

• N-Male to F-Female adapter

Kit 314473-1175

• 75 Ohm Pole Mount Panel Antenna

• 75’ RG11 Cable

Kit 314475-0630

• 75 Ohm Wide Band Directional

• 30’ RG6 Cable

Kit 314475-1175

• 75 Ohm Wide Band Directional

• 75’ RG11 Cable

Kit 311141-1120

• 75 Ohm Grey Brick Antenna

• 20’ RG11 Cable

Kit CANT-0040

• Omni Antenna

• 50’ RG6 cable

Kit CANT-0043

• Panel Antenna

• 50’ RG6 cable

Kit CANT-0042

• Wide Band Directional Antenna

• 60’ RG6 cable

Kit 314411-5825

• 50 Ohm Wide Band Directional

• 25’ RG58 Cable

Kit 301111-5850

• Yagi Directional Antenna

• 50’ RG58 Cable

Kit 311129-5840

• 8000 MHz Yagi Directional

• 40’ RG58 Cable

Kit 311203-5820

• Omni-Directional antenna

• 20’ RG58 Cable

Kit 311124-5830

• 1900 MHz Yagi Antenna

• 30’ RG58 Cable

Kit 311203-40020

• Omni-Directional antenna

• 20’ LMR400 Cable

Kit 301111-400170

• Yagi Directional w/ N-Female

• 170’ LMR400

Kit 311124-400100

• 1900 MHz Yagi Directional

• 100’ LMR400 Cable

Kit 311129-400100

• 800 MHz Yagi Antenna

• 100’ LMR400 Cable

Kit 314411-40075

• 50 Ohm Wide Band Directional Antenna

• 75’ LMR400 Cable

Kit 314453-40075

• 50 Ohm Pole Mount Panel Antenna

• 75’ LMR400 Cable

Mini-Mag 301126 w/12.5 RG174 cable-SMA

75 Ohm Outside Antenna Kits

Kit 301111-0675

• Yagi Directional Antenna

• 75’ RG6 Cable

• N-Male to F-Female adapter

Kit 311201-0620

• Omni Antenna w/ F-Female

• 20’ RG6 Cable

Kit 311129-0660

• 800 MHz Yagi Directional

• 60’ RG6 Cable

• N-Male to F-Female adapter

8Need help? www.WilsonElectronics.com Tech Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

Safety Guidelines

WARNING: The inside panel and dome antennas must have 6’ of separation distance from all active users,

and the low profile antennas must have 18” of separation distance from all active users.

WARNING: Connecting the Signal Booster directly to the cell phone with use of an adapter will damage the

cell phone.

WARNING: Use only the power supply provided in this package. Use of a non-Wilson Electronics product

may damage your equipment.

WARNING: The Signal Booster unit is designed for use in an indoor, temperature-controlled environment

(less than 150 degrees Fahrenheit). It is not intended for use in attics, vehicles or similar locations

subject to temperatures in excess of that range.

WARNING: The Outside Antenna must be installed no higher than 10 meters (32’9”) above ground.

RF SAFETY WARNING: Any antenna used with this device must be located at least 8 inches from all persons.

BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your

provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers

may not consent to the use of this device on their network. If you are unsure, contact your provider.

You MUST operate this device with approved antennas and cables as specified by the manufacturer.

Antennas MUST be installed at least 20 cm (8 inches) from any person.

You MUST cease operating this device immediately if requested by the FCC or a licensed wireless

service provider.

WARNING. E911 location information may not be provided or may be inaccurate for calls served by

using this device.

This is a CONSUMER device.

Mobile Antennas

Mini-Mag

• 301126 w/ 12.5 RG174 cable- SMA

• 301113 w/ 12.5 RG174 cable- FME

12” Mag Mount w/ 12.5’ RG174

• 311103

• 311125

• 311128

• 311703

Trucker antenna w/10.5’ RG58

• 311101

• 311701

Trucker antenna w/13.5’ RG58

• 311119

• 311133

NMO Antenna’s w/ RG174

Kit 311104-17410

• 800/1900 NMO antenna

• 10’ RG174 cable

Kit 311112-17410

• 800/1900 NMO antenna

• 10’ RG174 cable

Kit 314203-17410

• 800/900/1900 NMO antenna

• 10’ RG174 cable

NMO Antenna’s w/ RG174

Kit 311130-5810

• Marine Antenna

• 10’ RG58 cable

Glass Mount w/14’ RG58 cable

• 311102

• 311114 ( Mini Glass Mount)

NMO Antenna’s w/ RG58

Kit 311104-5810

• 800/1900 NMO antenna

• 10’ RG58 cable

Kit 311112-5810

• 800/1900 NMO antenna

• 10’ RG58 cable

Kit 314203-5810

• 800/900/1900 NMO antenna

• 10’ RG58 cable

Need help? www.WilsonElectronics.com Tech Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

Signal Booster Specifications

Mobile 4G

Model Number 460021

Connectors SMA

Antenna Impedance 50 Ohms

Frequency 698-716 MHz, 746-787 MHz, 824-894 MHz, 1850-1995 MHz, 1710-1755/2110-2155 MHz

Passband Gain (typical) 700 MHz Band 12/17

45.8

700 MHz Band 13

46.8

800 MHz

46.8

1700/2100 MHz

45.2

1900 MHz

44.6

20 dB Bandwidth (MHz) 700 MHz Band 12/17 700 MHz Band13 800 MHz 1700/2100 MHz 1900 MHz

Typical

Maximum

30.6

35.2

31.0

35.2

37.9

39.9

79.2

79.8

77.3

83.2

Power output for single cell

phone (Uplink) dBm

700 MHz Band 12/17 700 MHz Band13 800 MHz 1700 MHz 1900 MHz

24.84 24.35 23.4 21.3 24.43

Power output for single cell

phone (Downlink) dBm

700 MHz Band 12/17 700 MHz Band13 800 MHz 2100 MHz 1900 MHz

2.87 2.79 2.8 2.0 1.92

Power output for multiple

received channels

(Uplink) dBm

No. Tones

Maximum Power

700 MHz Band12/17 700 MHz Band13 800 MHz 1700 MHz 1900 MHz

225.4 23.9 22.9 22.8 24.9

321.8 20.4 19.4 19.3 21.3

419.3 17.9 16.9 16.8 18.8

517.4 16.0 15.0 14.8 16.9

615.8 14.4 13.4 13.2 15.3

Power output for multiple

received channels

(Downlinklink) dBm

Maximum Power

No. Tones 700 MHz Band12/17 700 MHz Band13 800 MHz 2100 MHz 1900 MHz

24.8 5.6 5.4 6.3 4.5

31.3 2.1 1.9 2.8 0.9

4-1.2 -0.4 -0.6 0.3 -1.6

5-3.2 -2.4 -2.6 -1.6 -3.5

6-4.7 -4.0 -4.2 -3.2 -5.1

Noise Figure 5 dB nominal

Isolation > 90 dB

Power Requirements 5 V 2.5 A

Each Signal Booster is individually tested and factory set to ensure FCC compliance. The Signal Booster cannot be adjusted without factory

reprogramming or disabling the hardware. The Signal Booster will amplify, but not alter incoming and outgoing signals in order to increase coverage

of authorized frequency bands only. If the Signal Booster is not in use for five minutes, it will reduce gain until a signal is detected. If a detected

signal is too high in a frequency band, or if the Signal Booster detects an oscillation, the Signal Booster will automatically turn the power off on

that band. For a detected oscillation the Signal Booster will automatically resume normal operation after a minimum of 1 minute. After 5 (five) such

automatic restarts, any problematic bands are permanently shut off until the Signal Booster has been manually restarted by momentarily removing

power from the Signal Booster. Noise power, gain, and linearity are maintained by the Signal Booster’s microprocessor.

The Manufacturer’s rated output power of this equipment is for single carrier operation. For situations when multiple carrier signals are present, the

rating would have to be reduced by 3.5 dB, especially where the output signal is re-radiated and can cause interference to adjacent band users.

This power reduction is to be by means of input power or gain reduction and not by an attenuator at the output of the device.

This device complies with Part 15 of FCC rules. Operation is subject to two conditions: (1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not

expressly approved by Wilson Electronics could void the authority to operate this equipment.

3301 East Deseret Drive, St. George, UT 84790

web: www.WilsonElectronics.com email: [email protected]

phone: 866-294-1660 local: 435-673-5021 fax: 435-656-2432

30-Day Money-Back Guarantee

All Wilson Electronics products are protected by Wilson Electronics 30-day money-back guarantee. If

for any reason the performance of any product is not acceptable, simply return the product directly to the

reseller with a dated proof of purchase.

2-Year Warranty

Wilson Electronics Signal Boosters are warranted for two (2) years against defects in workmanship and/or

materials. Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of

purchase.

Signal Boosters may also be returned directly to the manufacturer at the consumer’s expense, with a dated

proof of purchase and a Returned Material Authorization (RMA) number supplied by Wilson Electronics. Wilson

Electronics shall, at its option, either repair or replace the product. Wilson Electronics will pay for delivery of the

repaired or replaced product back to the original consumer if located within the continental U.S.

This warranty does not apply to any Signal Boosters determined by Wilson Electronics to have been subjected to

misuse, abuse, neglect, or mishandling that alters or damages physical or electronic properties.

Failure to use a surge protected AC Power Strip with at least a 1000 Joule rating will void your warranty.

RMA numbers may be obtained by contacting Technical Support at 866-294-1660.

Disclaimer:The information provided by Wilson Electronics, LLC is believed to be complete and accurate. However, no

responsibility is assumed by Wilson Electronics, LLC for any business or personal losses arising from its use,

or for any infringements of patents or other rights of third parties that may result from its use.

U.S. Patent Nos. – 7,221,967; 7,729,669; 7,486,929; 7,409,186; 7,783,318; 8,583,034; 8,583,033; 8,639,180

Amplificateur de signal cellulaire

Mobile 4G™

460108

111285_Erin_RevP_10.29.14

Table des matières

Autres manuels Wilson Electronics Extenseur

Wilson Electronics

Wilson Electronics SLEEK 2B5225 Manuel utilisateur

Wilson Electronics

Wilson Electronics 271201 Manuel utilisateur

Wilson Electronics

Wilson Electronics AG Pro 75 Manuel utilisateur

Wilson Electronics

Wilson Electronics 271265 Manuel utilisateur

Wilson Electronics

Wilson Electronics PRO Series Manuel utilisateur

Wilson Electronics

Wilson Electronics 277280 Manuel utilisateur

Wilson Electronics

Wilson Electronics SLEEK 2B5225 Manuel utilisateur

Wilson Electronics

Wilson Electronics weBoost Drive Reach RV Guide d'installation

Wilson Electronics

Wilson Electronics Pro 70 Plus Manuel utilisateur

Wilson Electronics

Wilson Electronics Mobile 4G SmarTech III 460108 Manuel utilisateur

Wilson Electronics

Wilson Electronics WeBoost Drive Reach Flex Fleet Manuel utilisateur

Wilson Electronics

Wilson Electronics weboost DRIVE REACH FLEET Manuel utilisateur

Wilson Electronics

Wilson Electronics weboost DRIVE REACH OTR FLEET Manuel utilisateur

Wilson Electronics

Wilson Electronics WILSON PRO 1050 Manuel utilisateur

Wilson Electronics

Wilson Electronics SIGNALBOOST 811210 Manuel utilisateur

Wilson Electronics

Wilson Electronics PRO 1100 Manuel utilisateur

Wilson Electronics

Wilson Electronics 2B1401 Manuel utilisateur

Wilson Electronics

Wilson Electronics weBoost DRIVE SLEEK Manuel utilisateur

Wilson Electronics

Wilson Electronics Signal 4G SmarTech III Manuel utilisateur

Wilson Electronics

Wilson Electronics 460102 Manuel utilisateur

Wilson Electronics

Wilson Electronics weBoost Drive Reach RV Manuel utilisateur

Wilson Electronics

Wilson Electronics DB Pro 462105 Manuel utilisateur

Wilson Electronics

Wilson Electronics weBoost DRIVE X RV Manuel utilisateur

Wilson Electronics

Wilson Electronics weboost Drive Reach OTR Guide d'installation

Manuels Extenseur populaires d'autres marques

SY HDBT-60T Manuel utilisateur

Appsys ProAudio

Appsys ProAudio ADX-16 Manuel utilisateur

Atlona

Atlona RS232 Manuel utilisateur

IDK

IDK OPF-TH1000-A Manuel utilisateur

Enable-IT

Enable-IT 824WP Manuel utilisateur

Worx

Worx Landroid RadioLink WA0864 Fiche technique

TP-Link

TP-Link TL-WA730RE Manuel utilisateur

Camplex

Camplex CMX-HDMI-SFPL Manuel utilisateur

SC&T

SC&T HE03-4K Manuel utilisateur

Marmitek

Marmitek MegaView70 Manuel utilisateur

Samsung

Samsung SCS-26UC4 Manuel utilisateur

Foxun

Foxun SX-GES24 Manuel utilisateur

MuxLab

MuxLab 500771 Manuel utilisateur

foxunhd

foxunhd SX-AEX01 Manuel utilisateur

TERK Technologies

TERK Technologies LFIRX2 Manuel utilisateur

Devolo

Devolo Audio Extender Manuel

Edimax

Edimax EW-7438RPn V2 Manuel utilisateur

Shinybow USA

Shinybow USA SB-6335T5 Manuel utilisateur
