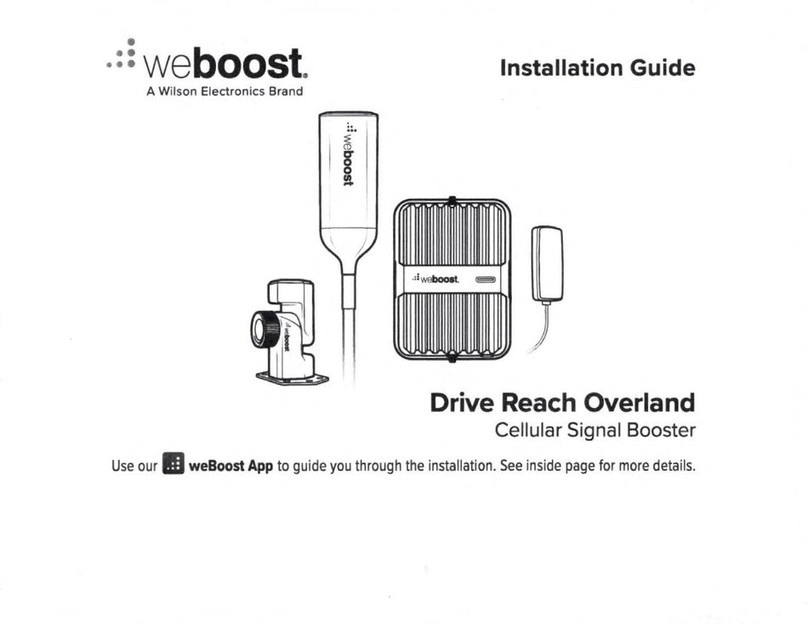

Wilson Electronics Weboost 472061 Manuel utilisateur

Installation Guide

Use our weBoost App to guide you through the installation. See inside page for more details.

Drive Reach Overland

Cellular Signal Booster

Download the weBoost App

Use our app to guide you through setting up a weBoost cell phone signal

booster in your home, business, or vehicle. Boost every network, including

5G, right away.

Download the weBoost App

Videos to guide you

through installation

Antenna positioning guide

for optimal performance

Before and after cell

signal readings

Index

Package Contents ........................................................... 1

Installation Overview ......................................................... 3

STEP 1 Assemble the Outside Antenna ..........................................4

STEP 2 Mounting the Outside Antenna with Overland Mounting Bracket............ 6

STEP 3 Mounting the Inside Antenna ..........................................13

STEP 4 Connect Coax Cables to Booster ...................................... 14

STEP 5 Connect Power Supply to Booster ..................................... 15

Booster Light Patterns ...................................................... 16

Troubleshooting ............................................................ 18

Safety Guidelines ...........................................................20

Antenna Info ...............................................................22

Speciﬁcations .............................................................. 23

Warranty................................................................... 24

Package Contents

Drive Reach Signal

Booster, Bracket &

Power Supply

Overland Mounting

Bracket & Mounting Hardware

Stabilizer Arm &

Zip Ties

Outside Antenna,

14 ft. Cable & Heat

Shrink Tubes

13 in. Mast Ext.,

Side-Exit Adapter, Spring

& Thread Lock Pack

Inside

Antenna

952315 - 18 ft. Cable for Outside Antenna

■

This cable can be used to add 4 feet to outside antenna. Used for larger

vehicles, not recommended unless longer cable is the only option to

complete install.

311160 - Desktop Antenna

■

Optional desktop in-vehicle antenna adds ﬂexibility to broadcast boosted

signal in dierent areas of an RV, such as a dining table or nightstand. This

is an option for class B RVs when using the product primarily in the back of

the vehicle.

991129 - 18 in. Mast for Outside Antenna

■

This mast can be used to extend the height of the outside antenna to clear

obstructions on top of the vehicle.

950079 - Hardwire Power Supply

■

This can be used to hardwire the power rather than using the cigarette

lighter in the vehicle.

Compatible Aftermarket Accessories

Installation Overview

Outside

Antenna

Folding Mount

Bracket

Stabilizer

Arm

Use stability arm to secure antenna when laid in the horizontal position.

NOTE: System will only fully function with the antenna in the upright position.

Inside

Antenna

Booster to power

The antenna should be mounted above

gear on top of the vehicle. Once you

have determined the best location for

the outside antenna, insert coax cable

through mast extension (mast can be

used optionally), then through

side-exit adapter.

STEP 1 Assemble the

Outside Antenna Outside

Antenna

13 in.

mast

Side Exit

Adapter

cable from

Outside Antenna

Mast

Extension

run cable

through Mast

Extension

Antenna Spring

(can be used

optionally)

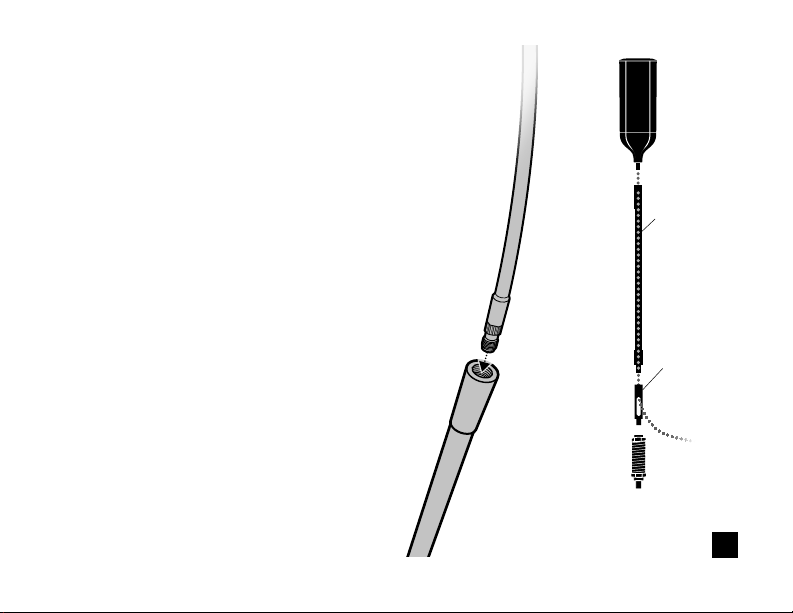

Apply thread locker (provided) to thread

points and screw into place. Be sure the

outside antenna is the correct height

before applying thread locker. Connect

14-foot cable to outside antenna cable.

Heat shrink tube can be applied to the

connection (optional).

(STEP 1 cont.)

mast

add Thread

Locker

Outside

Antenna

Side Exit

Adapter

Heat Shrink

(optional)

connect cables

14 ft. cable

Outside Antenna

cable

add Thread

Locker

mast

This kit includes a folding mounting

bracket. This makes it easier to install

the outside antenna to dierent types of

overland vehicles. The overland folding

mounting bracket is very versatile with

dierent mounting options.

STEP 2 Mount the Outside

Antenna with Overland

Mounting Bracket

pull & twist

knob to rotate

top portion of

mount

Overland Folding

Mounting Bracket

Works with Dierent Overland Vehicle Types

(STEP 2 cont.)

For vehicles with t-track roof rack systems, the

provided mounting bracket can be mounted

to the roof rack. Use the t-track mounting

hardware to secure the bracket to roof rack,

then screw in assembled outside antenna.

An antenna stabilizer is provided to secure

antenna when folded down.

Vehicle

Roof Rack

T-Track

secure Outside

Antenna to

Mounting Bracket

T-Track Mounting Option

ensure knob is

pushed in completely

after adjusting

antenna
