Wilson Electronics WeBoost Drive Reach RV Manuel utilisateur

Installation Guide

Drive Reach RV

Cell Signal Booster

Index

Package Contents ........................................................... 1

STEP 1 Mount Outside Antenna & Route Cable .................................. 2

STEP 2 Connect Cable Outside Antenna ....................................... 6

STEP 3 Inside Antenna Location & Connect Cable ............................... 6

STEP 4 Booster Location & Connect Cables .....................................7

STEP 5 Connect Power Supply to Booster ...................................... 7

Booster Light Patterns ....................................................... 8

Troubleshooting ............................................................ 10

Safety Guidelines ............................................................ 12

Speciﬁcations .............................................................. 15

Warranty................................................................... 16

Package Contents

Drive Reach

Signal Booster

& Bracket

Outside

Antenna

Inside

Antenna

Power

Supply

13 in.Mast Extension,

Side-Exit Adapter,

Spring, L-Bracket

Mount & Thread

Lock Pack

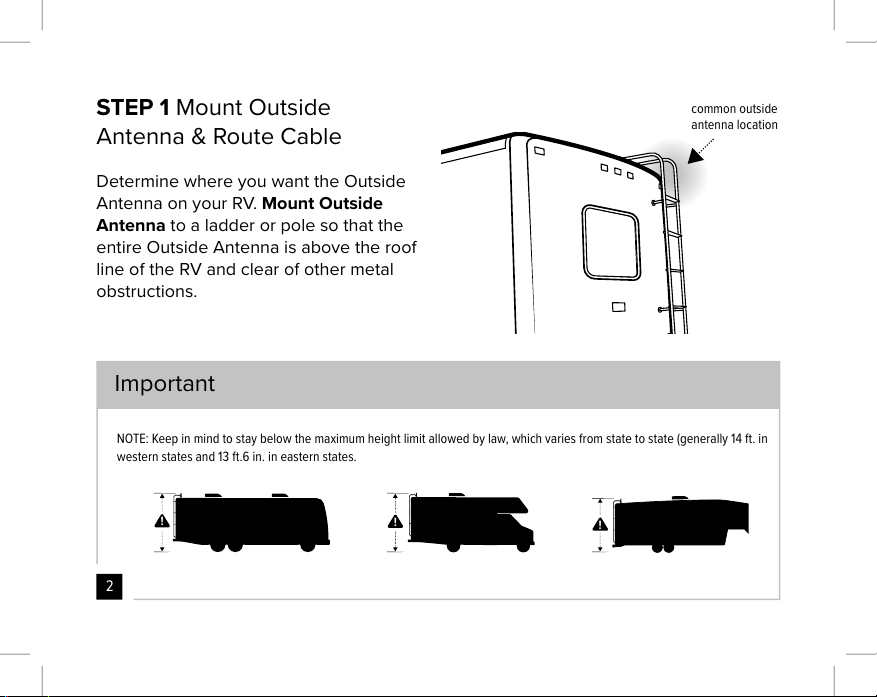

STEP 1 Mount Outside

Antenna & Route Cable

!!!

NOTE: Keep in mind to stay below the maximum height limit allowed by law, which varies from state to state (generally 14 ft. in

western states and 13 ft.6 in. in eastern states.

common outside

antenna location

Determine where you want the Outside

Antenna on your RV. Mount Outside

Antenna to a ladder or pole so that the

entire Outside Antenna is above the roof

line of the RV and clear of other metal

obstructions.

Important

To assemble the antenna, insert cable

through Mast then through Side Exit

Adapter.

NOTE: Antenna Spring can be used

optionally.

(STEP 1 cont.)

cable from

antenna

Mast

Extension

13 in.

mast

13 in.

mast

run cable

through Mast

Extension(s)

Antenna Spring

(can be used

optionally)

Side Exit

Adapter

Verify the antenna is the correct height, if

so, use thread locker (provided) to thread

points and screw into place.

NOTE: When adding the side exit adapter

hold the antenna vertically and screw the

adapter from the bottom up. This reduces

cable twisting.

(STEP 1 cont.)

Side Exit

Adapter

mast

add thread

locker

add thread

locker

Drive RV

Antenna

(STEP 1 cont.)

Side Exit

Adapter

add thread

locker

Spring

(optional)

add thread

locker

ladder rail

L-Bracket Mount

& hardware

Mount Outside Antenna. L-Bracket

Mount and hardware is provided to

mount to ladder or pole. If installing

with Spring, the Side Exit Adapter must

be used.Then route 25’ RG-58 cable

from inside RV to Outside Antenna.

NOTE: Outside Antenna location must

be within reach of the booster with the

25’ coax cable. The system performs

best with maximum vertical and

horizontal separation.

STEP 3 Inside Antenna Location

& Connect Cable

STEP 2 Connect Cable to

Outside Antenna

Place Inside Antenna where stronger

signal is desired in the RV.

After routing the RG-58 Cable into the

RV, connect the cable to the Outside

Antenna.

Intside Antenna

RG-58 Cable

Cable from

Outside Antenna

STEP 4 Booster Location &

Connect Cables

from Inside Antenna

from Outside Antenna

RG-58 Cable

STEP 5 Connect Power Supply

to Booster

Connect the power supply cord to the end of

the booster, labeled “ ”, and connect into

a 110V wall plug. Enjoy your boosted signal!

connect Power

Supply Cord

Find a location to place the Drive Reach

Booster and secure it with provided bracket.

Connect cable from Outside Antenna to

labeled booster port and connect cable from

Inside Antenna to labeled booster port.

SOLID GREEN

This indicates that your Drive Reach Booster is functioning properly and there are no

issues with installation.

SOLID RED

Band has shuto. This is due to a feedback loop condition called oscillation. This is a

built in safety feature that causes a band to shut oto prevent harmful interference

with a nearby cell tower. Refer to Troubleshooting section.

BLINKING RED, THEN SOLID GREEN

This indicates that one or more of the booster bands has reduced power due to a

minor feedback loop condition called oscillation. This is a built in safety feature to

prevent harmful interference with a nearby cell tower. If you are already experiencing

the desired signal boost, then no further adjustments are necessary. If you are not

experiencing the desired boost in coverage then refer to the Troubleshooting section.

Light O

If the Drive Reach Signal Booster’s light is o, verify your power supply has power.

Booster Light Patterns
