Whirlpool SF315PEGN0 Manuel utilisateur

Appliances

UseCare

A Note to You ............ 2

Range Safety ............. 3

Parts and Features ....5

Using Your Range ...... 6

Caring for Your

Range ....................... 20

Troubleshooting ....... 27

Requesting

Assistance or

Service ..................... 29

Index ........................ 31

Warranty ................... 32

Call our Consumer Assistance Center

with questions or comments.

TO THE INSTALLER: PLEASE LEAVE THIS INSTRUCTION

BOOK WITH THE UNIT.

TO THE CONSUMER: PLEASE READ AND KEEP THIS

BOOK FOR FUTURE REFERENCE.

Super Capaei_ 465

4.65 Cubic Foot Oven

MODEL SF315PEG www.whirlpool.com

8053372

ANOTETOYOU

The Whirlpool Brand is committed to designing quality products that consistently perform for you to make your

life easier. To ensure that you enjoy years of trouble-free operation, we developed this Use and Care Guide.

It is full of valuable information about how to operate and maintain your appliance properly and safely. Please

read it carefully.

Also, please complete and mail the Product Registration Card provided with your appliance. The card helps us

notify you about any new information on your appliance.

Whenever you call to request service for your appliance,

you need to know your complete model number and

serial number. You can find this information on the

model and serial number label/plate (see diagram in

the "Parts and Features" section).

Please also record the purchase date of your appliance

and your dealer's name, address, and telephone number.

Model Number.

Serial Number

Purchase Date

Dealer Name

Dealer Address

Dealer Phone

Keep this book and the sales slip together in a safe place for future reference. It is important

for you to save your sales receipt showing the date of purchase. Proof of purchase will assure

you of in-warranty service.

WARNING: If the information in this manual is not followed exactly, a fire or

explosion may result causing property damage, personal injury or death.

-Do not store or use gasoline or other flammable vapors and liquids in the vicinity

of this or any other appliance.

-WHAT TO DO IF YOU SMELL GAS

•Do not try to light any appliance.

•Do not touch any electrical switch; do not use any phone in your building.

•Immediately call your gas supplier from a neighbor's phone. Follow the gas

supplier's instructions.

•If you cannot reach your gas supplier, call the fire department.

- Installation and service must be performed by a qualified installer, service

agency or the gas supplier.

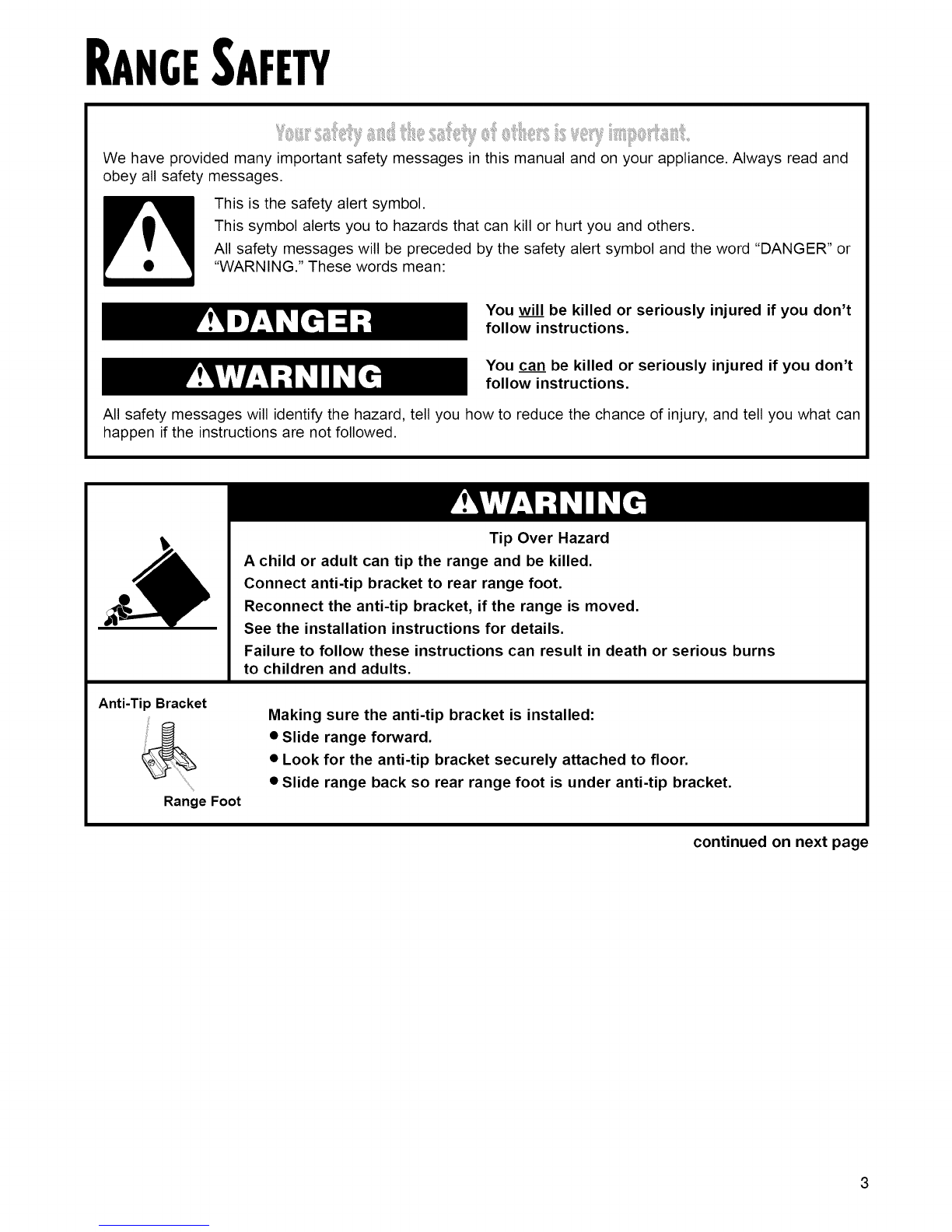

RANGESAFE

"ii_'_i,ii'i:__'_%i:'i::_ii!_'_i:i?¸_i_:t_::li:'_il'_i,:,!i,%i:_I'_l:_iiy_:i_i__:ii,_I_'iI"_!_i_'!i'_iii:!,;il;:'_'_!_!_,_"iiii,'¸iiiiii'_l_i_i_iiii_,2_ii_i,I""iii_i_:i'_t

We have provided many important safety messages in this manual and on your appliance. Always read and

obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to hazards that can kill or hurt you and others.

All safety messages will be preceded by the safety alert symbol and the word "DANGER" or

"WARNING." These words mean:

You will be killed or seriously injured if you don't

follow instructions.

You can be killed or seriously injured if you don't

follow instructions.

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can

happen if the instructions are not followed.

Anti-Tip Bracket

Range Foot

Tip Over Hazard

A child or adult can tip the range and be killed.

Connect anti-tip bracket to rear range foot.

Reconnect the anti-tip bracket, if the range is moved.

See the installation instructions for details.

Failure to follow these instructions can result in death or serious burns

to children and adults.

Making sure the anti-tip bracket is installed:

• Slide range forward.

•Look for the anti-tip bracket securely attached to floor.

•Slide range back so rear range foot is under anti-tip bracket.

continued on next page

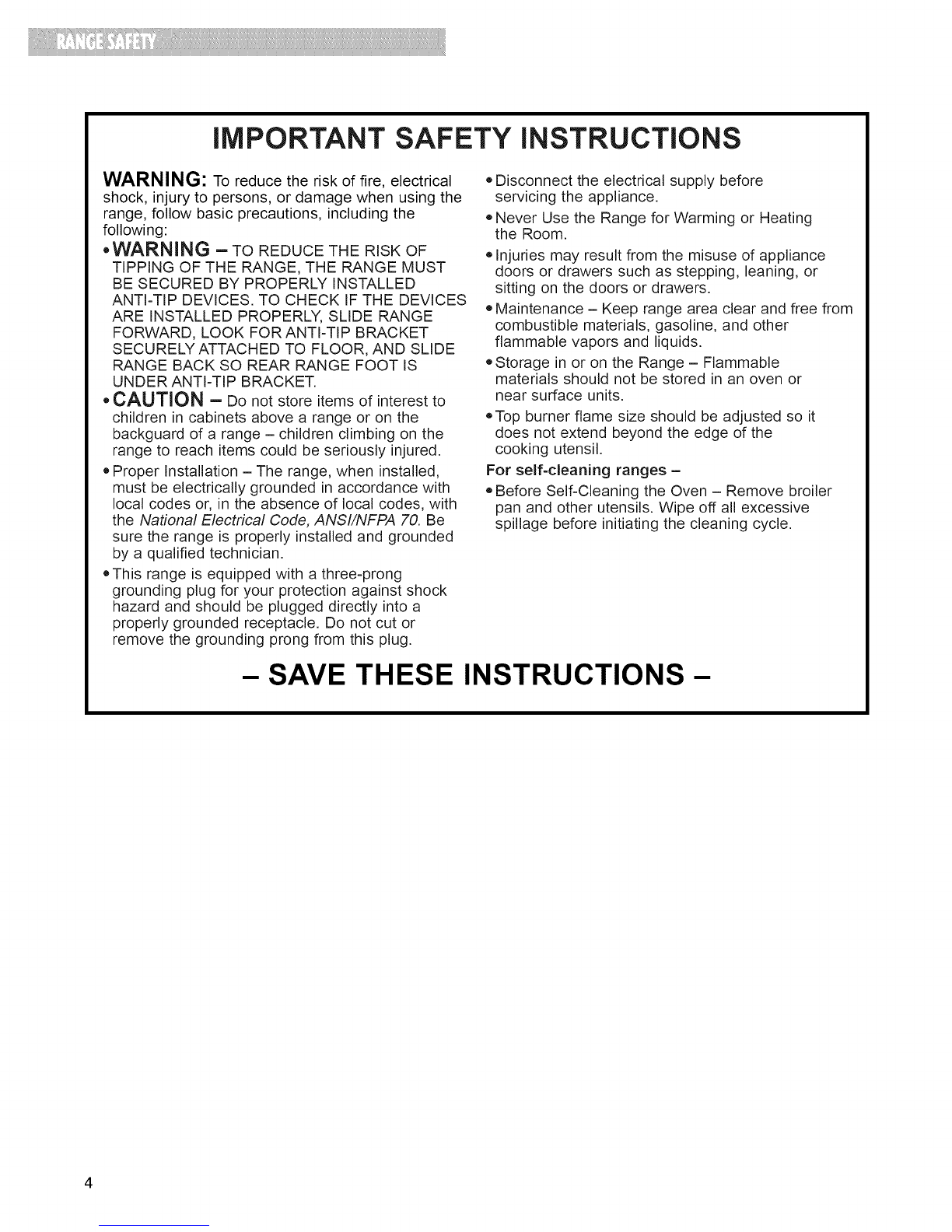

iMPORTANT SAFETY iNSTRUCTIONS

WARNING: To reduce the risk of fire, electrical

shock, injury to persons, or damage when using the

range, follow basic precautions, including the

following:

•WARNING - TO REDUCE THE RISK OF

TIPPING OF THE RANGE, THE RANGE MUST

BE SECURED BY PROPERLY INSTALLED

ANTI-TIP DEVICES. TO CHECK IF THE DEVICES

ARE INSTALLED PROPERLY, SLIDE RANGE

FORWARD, LOOK FOR ANTI-TIP BRACKET

SECURELY ATTACHED TO FLOOR, AND SLIDE

RANGE BACK SO REAR RANGE FOOT IS

UNDER ANTI-TIP BRACKET.

•CAUTION - Do not store items of interest to

children in cabinets above a range or on the

backguard of a range - children climbing on the

range to reach items could be seriously injured.

• Proper Installation - The range, when installed,

must be electrically grounded in accordance with

local codes or, in the absence of local codes, with

the National Electrical Code, ANS!/NFPA 70. Be

sure the range is properly installed and grounded

by a qualified technician.

• This range is equipped with a three-prong

grounding plug for your protection against shock

hazard and should be plugged directly into a

properly grounded receptacle. Do not cut or

remove the grounding prong from this plug.

• Disconnect the electrical supply before

servicing the appliance.

• Never Use the Range for Warming or Heating

the Room.

• Injuries may result from the misuse of appliance

doors or drawers such as stepping, leaning, or

sitting on the doors or drawers.

• Maintenance - Keep range area clear and free from

combustible materials, gasoline, and other

flammable vapors and liquids.

• Storage in or on the Range - Flammable

materials should not be stored in an oven or

near surface units.

• Top burner flame size should be adjusted so it

does not extend beyond the edge of the

cooking utensil.

For self-cleaning ranges =

• Before Self-Cleaning the Oven - Remove broiler

pan and other utensils. Wipe off all excessive

spillage before initiating the cleaning cycle.

-SAVE THESE INSTRUCTIONS-

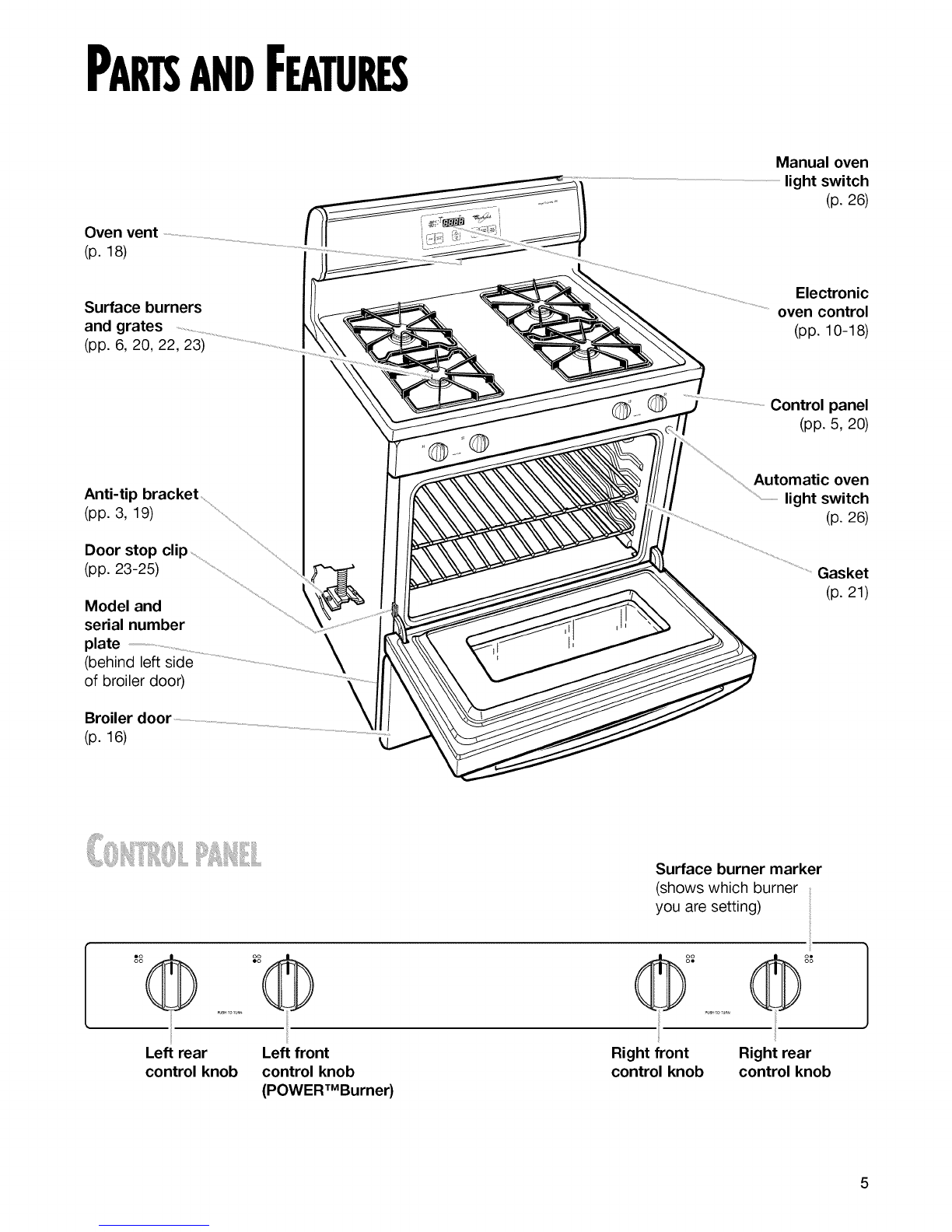

PARTSANDFEATURES

Oven vent

(p. 18)

Manual oven

light switch

(p. 26)

Surface burners

and grates

(pp. 6, 20, 22, 23)

Electronic

oven control

(pp. 10-18)

Anti-tip bracket .....

(pp. 3, 19) .........

Door stop clip

(pp. 23-25) ................ ........

Model and

serial number

plate

(behind left side

of broiler door)

Broiler door \Ji

(p. 16) .................................

Control panel

(pp. 5, 20)

Automatic oven

.............................................light switch

(p. 26)

Gasket

(p. 21)

Surface burner marker

(shows which burner

you are setting)

o@oo®

oo oo

Left rear Left front

control knob control knob

(POWERTMBurner)

_'_°°° ......... (@ °8

Right front Right rear

control knob control knob

USINGYOURRANGE

Fire Hazard

Do not let the burner flame extend beyond

the edge of the pan.

Turn off all controls when not cooking.

Failure to follow these instructions can

result in death or fire.

I;: !i;iiiiil!!iiil¸1:illii!,

Your range comes with electric ignitors. Electric

ignitors automatically light the burners each time

you turn the control knobs to LIGHT.

• Place a filled pan on the burner grate before

turning on the surface burner. Do not operate a

burner for extended periods of time without

having cookware on the grate.

• Push in the control knob and turn it counter-

clockwise to the

LIGHT position. The

clicking sound is the

ignitor sparking. Make

sure the burner has lit.

• To stop the clicking

sound after the burner

lights, turn the control

knob to the cook setting

you want. You can set

the control knob

anywhere between HIGH and LOW.

NOTE: All four electric ignitors will click at the same

time. However, the burner with the control knob

turned to LIGHT is the one that will ignite.

Use the following chart as a guide.

!i...............................................................................................................................................................................................................................................iil

POWERTMBurner • To provide highest heat

(left front burner) setting.

HIGH eTo siart food cooking: ...............................................................................

• To bring liquid to a boil.

Mid-range • To hold a boil.

(between HIGH • To fry chicken or pancakes.

and LOW) • For gravy, pudding, and icing.

• To cook large amounts of

vegetables.

LOW • To keep food warm.

• To melt chocolate or butter.

• To simmer.

NOTE: Do not leave empty cookware, or cookware

which has boiled dry, on a hot surface burner. The

cookware could overheat, causing damage to the

cookware or cooking product.

POWER Burner is an adjustable setting for the left

front burner which provides an ultra-high heat setting.

It can be used to rapidly bring liquid to a boil and to

cook large quantities of food.

• To help shorten your cooking time, use the least

amount of liquid possible.

• Preheat your pots and pans only when

recommended and for the shortest time possible.

• Start your food on a higher heat setting, then turn

the control to a lower setting to finish cooking.

¸ iyiiil J i ' i!i, '' ,

You can manually light surface burners. Hold a lit

match near a burner and turn the control knob to

the LIGHT position. After the burner lights, turn the

control knob to the setting you want.

• Refer to your canner manual for specific

instructions.

For up-to-date information on canning, contact your

local U.S. Government Agricultural Department

Extension Office or companies who manufacture

home canning products.

The large diameter of most water-bath or pressure

canners combined with high heat settings for long

periods of time can cause damage to the cooktop.

To protect your range:

• Center the canner over the surface burner. Do

not extend more than 1 inch outside the burner

area.

• Do not place your canner on two surface burners

at the same time.

• Start with hot water, cover with a lid and bring to

a boil; then reduce heat to maintain a boil or

required pressure levels in a pressure canner.

• The pan should have a flat bottom, straight sides,

and a well-fitting lid.

• Choose medium to heavy gauge (thickness)

cookware.

• The pan material (metal or glass) affects how

quickly and evenly the pan heats.

• When using glass or ceramic cookware, check to

make sure it is suitable for use on surface burners.

• To avoid tipping, make sure pots and pans are

centered on the grates.

The pan material affects how fast heat transfers from the surface cooking area through the pan material and how

evenly heat spreads over the pan bottom. Choose pans that provide the best cooking results.

Aluminum

Cast iron

Ceramic or

ceramic glass

Copper

Earthenware

Porcelain enamel-on-steel or

enamel-on-cast iron

Stainless steel

• Heats quickly and evenly.

• Use for all types of cooking.

• Medium or heavy thickness is best for most cooking.

• Used as a core or base in cookware to provide even heating.

• Heats slowly and evenly.

• Good for browning and frying.

• Maintains heat for slow cooking.

• Can be coated with porcelain enamel.

• Heats slowly and unevenly.

• Use on low to medium settings.

• Follow manufacturer's instructions.

• Heats very quickly and evenly.

• Used as a core or base in cookware to provide even heating.

• Can be used for cooktop cooking if recommended by the

manufacturer.

• Use on low settings.

• See cast iron and stainless steel.

• Heats quickly but unevenly.

• A core or base of aluminum or copper on the cookware provides

even heating.

• Can be coated with porcelain enamel.

Placetheovenrackswhereyouneedthembefore

turningontheoven.

• Tomovearack,pullitouttothestopposition,

raisethefrontedgeandliftitout.

• Besuretherack(s)islevel.

• Usepotholdersorovenmittsto protectyourhands

ifrack(s)mustbemovedwhiletheovenishot.

• Forbestperformance,cookononerack.Place

theracksothetopofthefoodwillbecenteredin

theoven.

• Whencookingwithtworacks,arrangetheracks

onthe2ndand4thrackguides.Twosheetsof

cookiesmaybebakedifsheetsareswitchedat

Where to place pans:

WHEN YOU HAVE PLACE

1 pan

2 pans Side by side or slightly

3 or 4 pans In opposite corners on

each oven rack. Stagger

pans so no pan is directly

over another.

approximately three quarters of the total bake time. FOOD RACK POSITION

Increase baking time, if necessary. Frozen pies, large 1st or 2nd rack ........

• For best results allow 2 inches of space around

each pan and between pans and oven walls.

Use this rack position when roasting food too large

to be placed on the first

rack position.

For proper roasting,

follow these guidelines:

• To avoid spillage,

remove food before

pulling out the rack.

• Tilt the rack up at the

-xtra oven rack position

NOTE: For information on where to place your rack

when broiling, see "Broiling guidelines" later in this

section.

front before pulling it over

the door.

• Use an adequate amount of liquid in the pan (meat

juices or water) so your food does not get overdone.

NOTE."Do not line the oven bottom with foil or other

liners. It could affect the

oven surface as well as

the quality of your baking.

• Do not cover the entire

rack with aluminum foil.

It will reduce air circula-

tion and give you poor

cooking results.

• Use aluminum foil to catch spillovers from pies or

casseroles by placing foil on the oven rack below.

Foil should be turned up at edges and be at least 1

inch larger than dish.

• Place tent-shaped foil loosely over meat or poultry

to slow down surface browning for long term

roasting. Remove foil for the last 30 minutes.

• Use narrow strips of foil to shield piecrust edges if

browning too quickly.

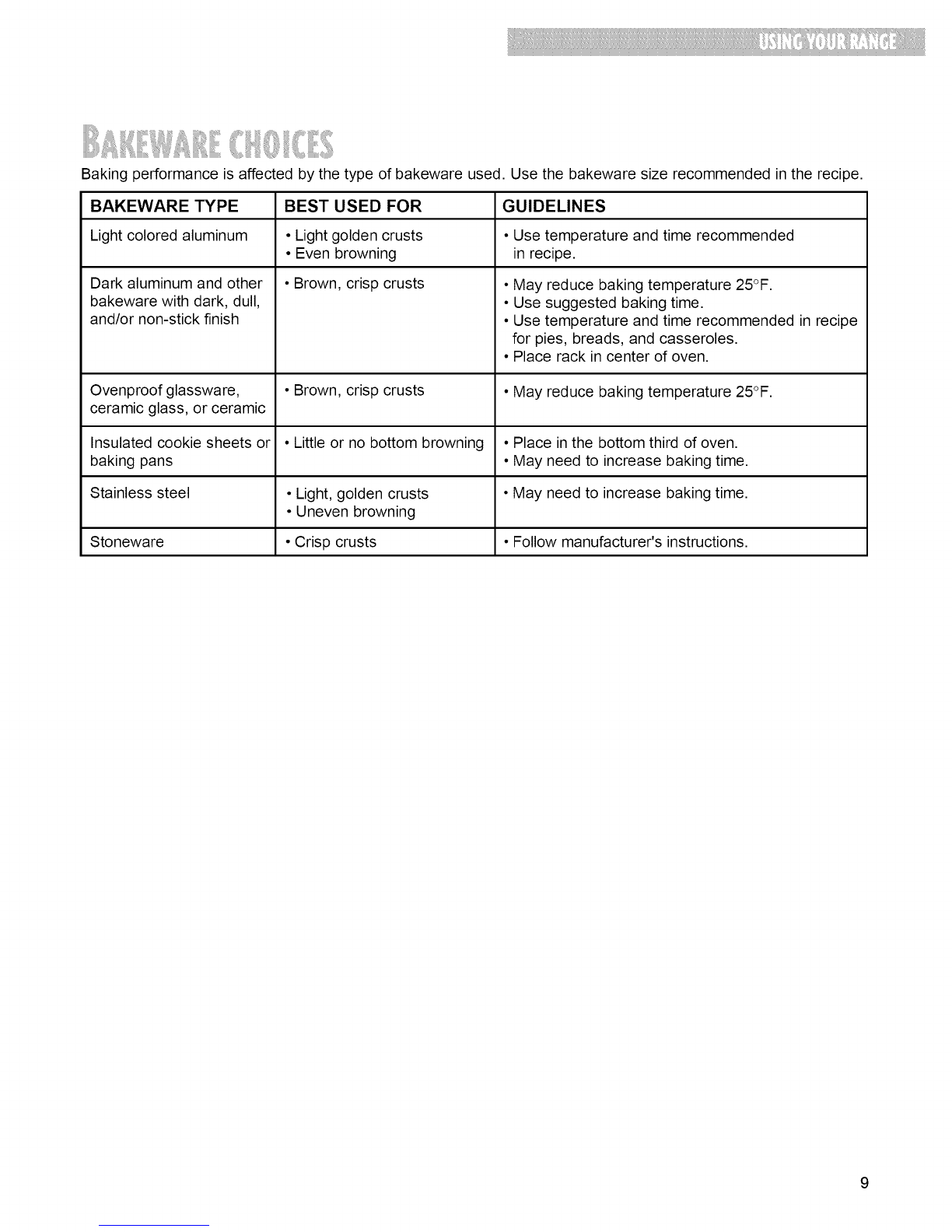

Bakingperformanceisaffectedbythetypeofbakewareused.Usethebakewaresizerecommendedintherecipe.

BAKEWARETYPE BESTUSEDFOR GUIDELINES

Lightcoloredaluminum • Lightgoldencrusts • Usetemperatureandtimerecommended

• Evenbrowning inrecipe.

• Brown,crispcrusts

Darkaluminumandother

bakewarewithdark,dull,

and/ornon-stickfinish

• Mayreducebakingtemperature25°F.

• Usesuggestedbakingtime.

• Usetemperatureandtimerecommendedinrecipe

forpies,breads,andcasseroles.

• Placerackincenterofoven.

Ovenproofglassware, • Brown,crispcrusts • Mayreducebakingtemperature25°F.

ceramicglass,orceramic

Insulatedcookiesheetsor • Littleornobottombrowning • Placeinthebottomthirdofoven.

bakingpans • Mayneedtoincreasebakingtime.

Stainlesssteel •Light,goldencrusts •Mayneedtoincreasebakingtime.

•Unevenbrowning

Stoneware •Crispcrusts • Followmanufacturer'sinstructions.

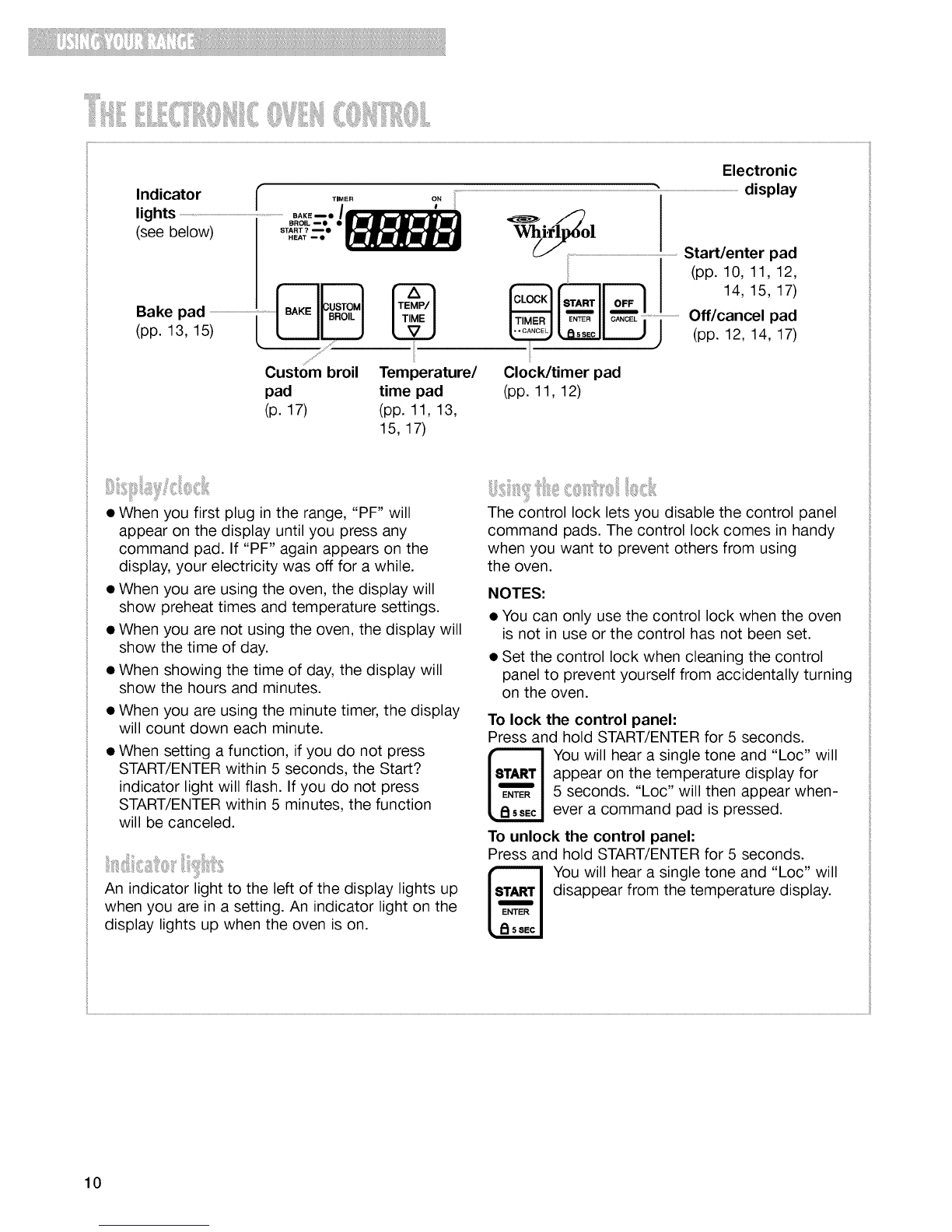

Indicator T.._. o,

(seelightsbelow) sT..T,_,T_,o,L.AK.--.7--.----"• .I_

_papkl3P,ad5)..............................................................................._R

Custom broil

pad

(p. 17)

Electronic

...................................................................................................................................................................................................................................................................."........................................................................................................display

.........................................................................................................Start/enter pad

] I (pp. 10,11,12,

14, 15, 17)

I 11o_,,

EN_R O..O_L Off/cancel pad

lo,s°ol!J.) (pp. 12, 14, 17)

Temperature/ Clock/timer pad

time pad (pp. 11, 12)

(pp. 11, 13,

15, 17)

• When you first plug in the range, "PF" will

appear on the display until you press any

command pad. If "PF" again appears on the

display, your electricity was off for a while.

• When you are using the oven, the display will

show preheat times and temperature settings.

• When you are not using the oven, the display will

show the time of day.

• When showing the time of day, the display will

show the hours and minutes.

• When you are using the minute timer, the display

will count down each minute.

• When setting a function, if you do not press

START/ENTER within 5 seconds, the Start?

indicator light will flash. If you do not press

START/ENTER within 5 minutes, the function

will be canceled.

An indicator light to the left of the display lights up

when you are in a setting. An indicator light on the

display lights up when the oven is on.

The control lock lets you disable the control panel

command pads. The control lock comes in handy

when you want to prevent others from using

the oven.

NOTES:

• You can only use the control lock when the oven

is not in use or the control has not been set.

• Set the control lock when cleaning the control

panel to prevent yourself from accidentally turning

on the oven.

To lock the control panel:

Press and hold START/ENTER for 5 seconds.

You will hear a single tone and "Loc" will

appear on the temperature display for

5 seconds. "Loc" will then appear when-

ever a command pad is pressed.

To unlock the control panel:

Press and hold START/ENTER for 5 seconds.

You will hear a single tone and "Loc" will

disappear from the temperature display.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Whirlpool Gamme

Whirlpool

Whirlpool GGE388LX - 8-18-10 Manuel utilisateur

Whirlpool

Whirlpool RF263LXTB1 Manuel utilisateur

Whirlpool

Whirlpool RF314BXB Manuel utilisateur

Whirlpool

Whirlpool GS440LEL Manuel utilisateur

Whirlpool

Whirlpool Estate TES356RD2 Manuel utilisateur

Whirlpool

Whirlpool SS373PEX1 Manuel utilisateur

Whirlpool

Whirlpool RS363BXT Manuel utilisateur

Whirlpool

Whirlpool WFE540H0AW Manuel utilisateur

Whirlpool

Whirlpool SFOlOOSR/ER Manuel utilisateur

Whirlpool

Whirlpool RF316PXP Manuel utilisateur

Whirlpool

Whirlpool SF367LXSS Guide de l'utilisateur

Whirlpool

Whirlpool LWF7200 Manuel utilisateur

Whirlpool

Whirlpool 30" Freestanding Gas Range with standard clean... Manuel utilisateur

Whirlpool

Whirlpool RF360BXE W Manuel utilisateur

Whirlpool

Whirlpool 9758899 Manuel utilisateur

Whirlpool

Whirlpool FGS337G Mode d'emploi

Whirlpool

Whirlpool RS696PXGB16 Manuel utilisateur

Whirlpool

Whirlpool TGR51WO Instructions d'installation

Whirlpool

Whirlpool GGE388LXB Manuel utilisateur

Whirlpool

Whirlpool WFG371LVQ1 Manuel utilisateur

Whirlpool

Whirlpool FGS395Y Instructions d'installation

Whirlpool

Whirlpool STANDARD CLEANING GAS RANGE Manuel utilisateur

Whirlpool

Whirlpool IGS325RQ1 Manuel utilisateur

Whirlpool

Whirlpool RVE30100 Manuel utilisateur

Manuels Gamme populaires d'autres marques

Samsung

Samsung FCQ321HTUW Manuel utilisateur

Kenmore

Kenmore 790.45712 Manuel utilisateur

Wolf

Wolf CHR CHSSR Manuel utilisateur

Smeg

Smeg Built-in Microwave Oven Mode d’emploi

Zanussi

Zanussi ZCG054G Manuel utilisateur

Frigidaire

Frigidaire 316000635 Manuel utilisateur

GE JCSS630 Manuel utilisateur

Samsung

Samsung NX58M9960P series Manuel utilisateur

Hotpoint

Hotpoint RB524R Guide d'installation

Amana

Amana ART6610 SERIES Manuel utilisateur

Maytag

Maytag MERH770WB Manuel utilisateur

Fulgor Milano

Fulgor Milano SOFIA Manuel utilisateur

Premier

Premier EF-4358GH Manuel utilisateur

Kenmore

Kenmore 790.9010 Series Manuel utilisateur

KitchenAid

KitchenAid KESC300 Manuel utilisateur

Frigidaire

Frigidaire FFEF3012LS Guide de l'utilisateur

Diamond

Diamond G65/2F4T Manuel utilisateur

Samsung

Samsung NX58*565 Series Manuel utilisateur
