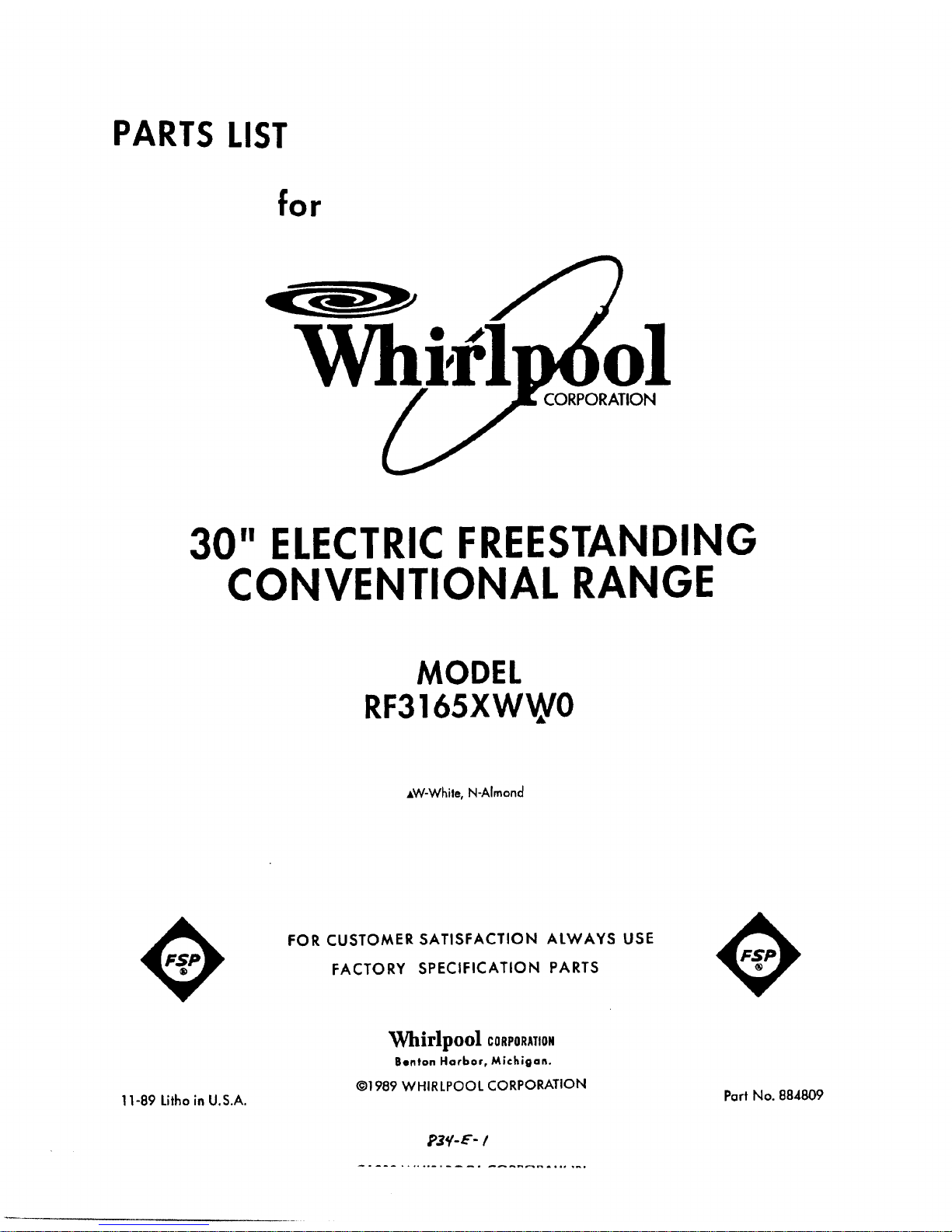

Whirlpool RF3165XWWO Manuel utilisateur

NOTE:The screws and nuts required to attach a part are listed immediately

following that part.

1 3148790 Clip, Mtg. (4)

487887 Screw

814102 Nut

3 312606 Clip, Retainer (4)

313808 Screw 6-32x9/32

7 3149194 Box, Burner

309112 Screw, 10A x 3/8 (4)

8 307973 Shield, Wiring

343641 Screw, 10-16 x 1/2 (4)

9 3148659 Rod, Cooktop (2)

11 307965 Bracket, Cooktop (2)

343641 Screw 10-16 x 1/2 (4)

12 307966 Pin, Cooktop (2)

343641 Screw, 10-16 x 1/2 (4)

13 Cooktop

3170981 White

3170982 Almond

690989 Screw, 10-32 x 1/2

15 308605 Strain Relief

343641 Screw, 10-16 x 1/2

18 Pan, Reflector

3148357 6" Element (2)

3148358 8" Element (2)

19 Unit, Surface

660532 6" Element (2)

660533 8" Element (2) (Includes Illus. 20)

20 309195 Medallion (4)

NOTE:The screws and nuts required to attach a part are listed immediately

following that part.

1 313189 End Trim R.H.

313188 End Trim L.H.

309112 Screw, 10A x 3/8 (2)

343641 Screw, 10-16 x 1/2 (4)

2 313230 End Cap R.H.

313231 End Cap L.H.

254225 Screw, 8BT x 1/4 (4)

3 330206 Knob, Timer (3)

313311 Spring, Knob(3)

5 3148564 Switch, Rocker

6 309822 Motor, Timer

10 3149505 Timer, Clock (Includes No.6)

246132 Screw (2)

12 313513 Glass, Timer

15 3149839 Panel, Control

312604 Screw, 8-18 x 5/8 (4)

17 Switch, Infinite

3148952 6" Unit (2)

3148954 8" Unit (2)

311865 Screw, 8-32 x 1/4 (8)

18 313062 Switch, Selector (3 Position)

311865 Screw, 8-32 x 1/4 (2)

19 661150 Thermostat, Oven

310864 (Alt.)

311498 (Alt.)

311932 Screw, 6-32 x 1/4 (2)

20 Light, Indicator

314031 Oven Light

313102 Surface Elements (2)

21 3149983 Knob, Control (4) (Infinite Switch)

22 3149987 Knob, Control (Thermostat)

310410 Screw (2)

23 313570 Tube Clip

24 313195 Rear Cover Control Panel

343641 Screw, 10-16 x 1/2 (8)

25 313101 Lens, Amber (3)

26 313608 Shield, Glass (2)

246132 Screw, 8A x 3/8 (2)

27 3149985 Knob, Control (Selector)

688805 Spring

NOTE:The screws and nuts required to attach a part are listed immediately

following that part.

1 307981 Bracket, Mounting (2)

2 3147845 Pan, Broil

3 3147563 Grid, Broiler

4 661170 Unit, Bake (240V)

312318 Screw, 10-32 x 1/2 (2)

5 660579 Unit, Broil

311714 (Alt.)

311713 (Alt.)

312318 Screw, 10-32 x 1/2 (2)

6 258076 Terminal Block

98884 Screw, 10-16x1(2)

112432 Nut (6)

7 308498 Ground Strap

313660 Clip

690989 Screw, 10-32 x 1/2

8 307970 Bracket, Service

343641 Screw, 10-16 x 1/2 (2)

10 3148975 Cover, Rear

343641 Screw, 10-16 x 1/2 (7)

11 307972 Cover, Service

343641 Screw, 10-16 x 1/2 (2)

12 Rail, Drawer

3149256 L.H.

3149255 R.H.

13 3149257 Glide, Drawer (2)

14 308173 Rack, Oven (Straight)

15 308172 Rack, Offset

17 313438 Clip, Harness

18 312804 Block, Balance

340184 Screw, 10-16x11/2

OPTIONAL PARTS NOT INCLUDED

SPLICING WIRES--25FT. LENGTH

242828 Wire, Black 12 Ga. 150~c

242820 Wire, Black 14 Ga. 150~c

242821 Wire, Blue 14 Ga. 150~c

242822 Wire, Brown 14 Ga. 150~c

242830 Wire, Brown 14 Ga. 200~c

242823 Wire, Green 14 Ga. 150~c

242824 Wire, Orange 14 Ga. 150~c

242829 Wire, Red 12 Ga. 150~c

242825 Wire, Red 14 Ga. 150~c

242831 Wire, Red 14 Ga. 200~c

242826 Wire, White 14 Ga. 150~c

242827 Wire, Yellow 14 Ga. 150~c

242832 Wire, Yellow 14 Ga. 200~c

PAINT,TOUCH UP (1/2 oz.)

72017 White

72107 Almond

72109 New Avocado

72108 Coffee

72110 Harvest Gold

72112 Toast

72113 Platinum

**511873 White Porcelain (2 Oz.)

PAINT PRESSURIZED SPRAY (13 oz.)

350930 White

350956 Almond

261888 New Avocado

261886 Coffee

261890 Harvest Gold

285365 Toast

285366 Platinum

285006 Superior Black

206922 Primer (White)

206925 Leveler (Thinner) (2 Oz.)

PAINT,BULK (1 qt.)

799344 White (Uncut)

978883 Almond (Uncut)

261889 New Avocado (Uncut)

261887 Coffee (Uncut)

261891 Harvest Gold (Uncut)

285367 Toast (Uncut)

285368 Platinum (Uncut)

**Note: Cooktop Surface is Porcelain; All Other Panels are Painted Surfaces.

REFINISHING MATERIAL

799832 Kit, Porcelain Repair (White)

242756 Touch-Up Self-Clean (1/2 Pt.)

261582 Grease

INSULATION

261514 Insulation, Fiberglass (1-1/2" x 24" x 120")

240132 Insulation, Fiberglass (2-1/2" x 22" x 120")

241430 Foil, Aluminum Oven (18" x 25')

ACCESSORY PARTS

261881 Rotisserie Kit (RCK 79)

LITERATURE PARTS

LIT3148614 Installation Instructions

LIT3149923 Guide, Use & Care

LIT313358 Book, Cooking Guide

LIT884809 Repair Parts List

NOTE:The screws and nuts required to attach a part are listed immediately

following that part.

1 Main Chassis

330086 White

330090 Almond

690989 Screw, 10-32 x 1/2

2 238614 Bumper, Cooktop (2)

3 312701 Leg Leveling (4)

4 3171800 Frame, Front

343641 Screw, 10-16 x 1/2 (13)

5 307985 Pin, Hinge

6 311255 Bulb, Light

7 308306 Pushnut

8 327890 Hinge, R.H.

327891 Hinge, L.H.

343641 Screw, 10-16 x 1/2 (4)

9 329000 Oven (30" Pyro)

311056 Screw (3)

10 660556 Socket, Oven Light

308043 Screw(2)

11 3148603 Bracket, Anchor

3148604 Screw

12 3148605 Anchor, Plastic

14 257314 Plug, Button

15 311220 Bracket, Oven Mounting

343641 Screw, 10-16 x 1/2 (4)

16 307960 Vent, Oven

307748 Screw, 10A x 1/2 (2)

19 329712 Channel, Arm (2)

20 307986 Hinge Pin (2)

21 307594 Ring, Retainer (2)

22 308127 Spring, Oven Door (2)

23 308125 Anchor, Spring (2)

24 Support, Channel

313196 L.H.

313197 R.H.

343641 Screw, 10-16 x 1/2 (4)

25 310345 Switch, Door

27 313382 Clip, Therm Bulb (2)

29 309111 Snubber, Door (2)

30 308207 Spring, Door Stop

31 309107 Seal, Rubber
