JOB AID

Part No. 4322212

VISION II DROP-IN RANGE

MODELS RS610PXE, RS675PXE, & RS696PXE

OBJECTIVE

The objective of this Job Aid is to have the experienced appliance technician become

familiar with the operation and service of the Vision II Drop-In Range. It is designed as

reference material and is not a replacement for basic training.

FORWARD

This Job Aid will introduce the technician to the Vision II Drop-In Range. This Job Aid

is a reference guide for the experienced technician. It is not designed as a replacement

to basic training. This Job Aid does not replace the Service Manual or the Use and Care

Guide. It is designed to be used in conjunction with these manuals.

WHIRLPOOL CORPORATION assumes no responsibility for any repair made on

our products by anyone other than Authorized Factory Service Technicians.

WARNING LABELS

This Job Aid is intended for factory-service technicians only. We recommend that customers DO NOT

service their own units, because of the complexity and risk of high-voltage electrical shock.

Fire Hazard

Do not obstruct the flow of combustion and

ventilation air.

Electrical Shock Hazard

It is the customer’s responsibility to.

• Contact a qualified electrical installer.

• Assure that electrical installation is adequate

and in conformance with the National Electri-

cal Code, ANSI/NFPA 70—latest edition•,

and all local codes and ordinances.

• Take special care when drilling holes into the

wall for venting or electrical wiring. Electrical

wires may be concealed behind the wall cov-

ering.

• Disconnect the power to any electrical circuits

that could be affected by the installation of this

cooktop.

Failure to do so could result in fire, electrical

shock, or other personal injury.

Personal Injury Hazard

To eliminate the risk of burns or fires, do not

install cabinets or store things above the cooktop.

If cabinets are already installed above the

cooktop, install a range hood to the bottom of the

cabinet to prevent reaching over the heated

cooking surface. The range hood should stick

out a minimum of 5-inches (12.7 cm) from the

front of the cabinets.

Reaching over a heated cooking surface could

result in a serious burn or other inury.

• Copies of the standards listed above may be

obtained from:

National Fire Protection Association

Batterymarch Park

Quincy, Massachusetts 02269

WARNING

Electrical Shock Hazard

Electrical ground is required on this range.

Do not connect to the electrical supply until the

range is permanently grounded.

Disconnect power to the junction box before

making the electrical connection.

This range must be connected to a grounded,

metallic, permanent wiring system.

Failure to follow these instructions could result in

death or serious injury.

WARNING

WHIRLPOOL CORPORATION assumes no responsibility for

any repair made on our products by anyone other than qualified

TECH-CARE®Service Technicians.

Electrical Shock Hazard

Disconnect the range’s line cord plug from the wall receptacle before you service

any of the components inside the unit. Failure to do this could result in violent

electrical shock.

VOLTAGE CHECKS

When making voltage checks, be sure to observe the following precautions:

1. The floor must be dry. Water and dampness increase the chances of

electrical shock.

2. Set the voltmeter correctly for the voltage being measured.

3. Touch only the insulated parts of the meter probes.

4. Touch the component terminals, or wires, with the meter probe tips

only.

5. Touch the meter probe tips only on the terminals being checked.

Touching other components could damage good parts.

PARTS QUALITY

An important step in the appliance repair procedure is the selection of FSP®

(FACTORY SPECIFICATION PARTS) as replacements. Use of “fits-all,” or “look alike”

parts could result in early parts failure, safety hazard, or substandard performance

of a WHIRLPOOL appliance. It could also result in an unnecessary repeat of your

repair efforts.

To be sure that the part(s) you purchase meet the exacting quality standards used to

build every new WHIRLPOOLappliance, be sure to ask for genuine FSP replacement

parts, as specified for your model. “FSP” is a registered trademark of WHIRLPOOL

CORPORATION.

You can buy your genuine FSP replacement parts from any authorized WHIRLPOOL

Parts Distributor.

- 1 -

Table of Contents

Model & Serial Number Location ....................................................................................................Page 2

Component Locations .....................................................................................................................Page 3

Control Panel Removal ...................................................................................................................Page 4

Control Panel Installation ................................................................................................................Page 9

Ceran Glass Cooktop Components ..............................................................................................Page 10

Open Coil Cooktop Components ..................................................................................................Page 12

Wiring Diagram - Models RS610PXEW & RS610PXEN ..............................................................Page 15

Wiring Diagram - Models RS675PXEQ & RS675PXEZ ...............................................................Page 16

Wiring Diagram - Models RS696PXEB & RS696PXEQ ...............................................................Page 17

Strip Circuits ..................................................................................................................................Page 18

Failure Codes & Reference Data - Models RS610PXEW & RS610PXEN ...................................Page 20

Failure Codes & Reference Data - Models RS675PXEQ, RS675PXEZ,

RS696PXEB & RS696PXEQ .....................................................................................................Page 21

Testing The Components..............................................................................................................Page 22

Surface Elements ..........................................................................................................................Page 23

Limiter ...........................................................................................................................................Page 24

Coil Elements ................................................................................................................................Page 25

Troubleshooting Charts.................................................................................................................Page 26

Warranty .......................................................................................................................................Page 28

- 2 -

MODEL & SERIAL NUMBER LOCATION

The Model/Serial Number Plate is located on the oven frame.

Model/Serial Plate

(On Oven Frame)

- 3 -

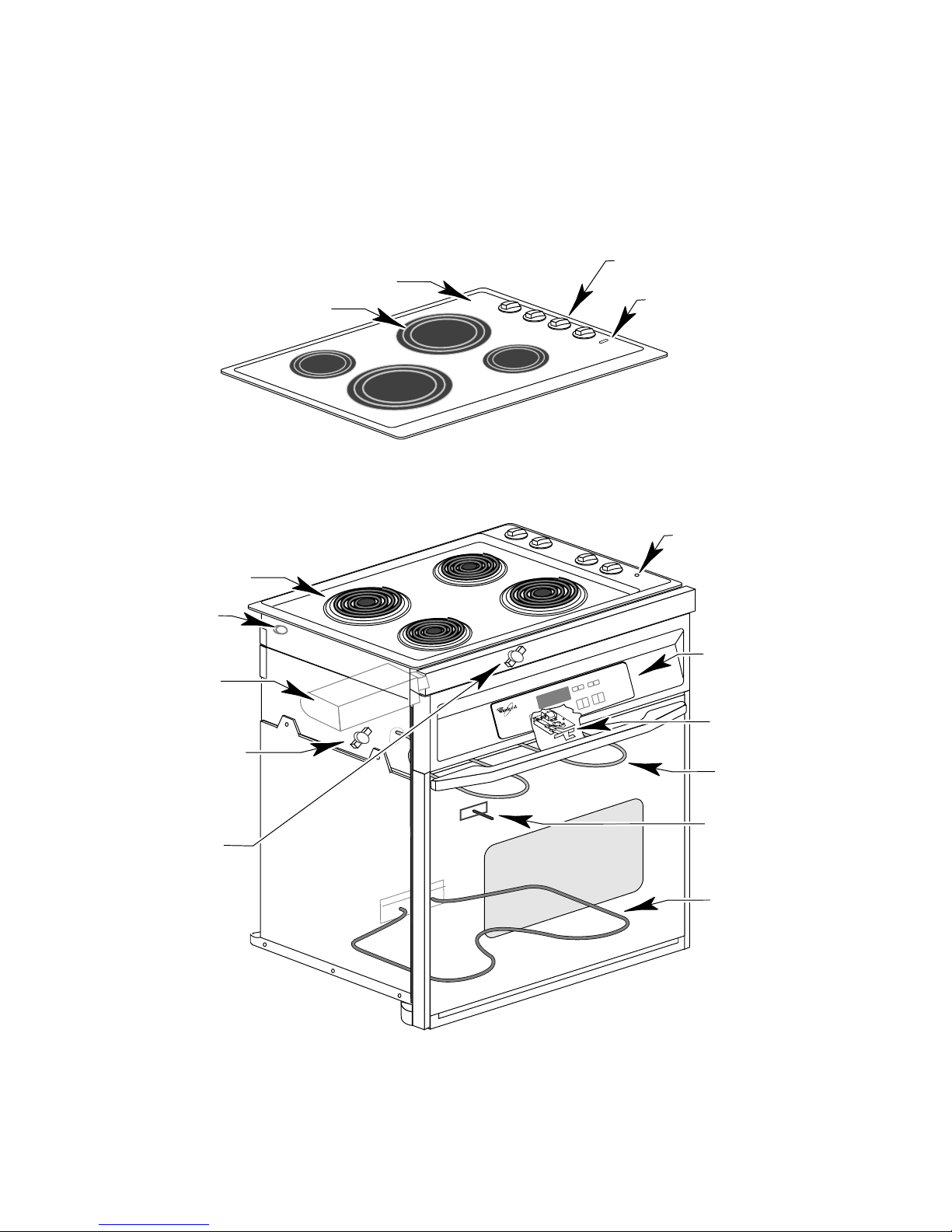

COMPONENT LOCATIONS

Indicator Light

Door Latch Mechanism

(Solenoid & Door Switches

On Self-Clean Models)

Broil Element

Oven Temperature Sensor

Bake Element

Oven Thermal Fuse

(Self-Clean Models

On Back Of Range)

Blower

(Self-Clean

Models Only)

Cooktop Hi Limit

Open Coil Element

Control Panel

Element Control

Hot Surface Indicator

Surface Element

& Limiter

Ceran Glass Cooktop

CERAN GLASS ELECTRIC RANGES

OPEN COIL ELECTRIC RANGES

Oven Thermal Fuse

(Non Self-Clean Models

Underneath Cooktop)

- 4 -

CONTROL PANEL REMOVAL

small end of pin here

2. Remove the two screws from each side

trim and remove them from the range.

NOTE: Gently tilt trim outward from the

bottom and pull down.

REMOVING THE RANGE

To remove the range from the cabinet, use the

following procedure.

1. Remove the oven door from the range.

NOTE: This step is optional, but can make

servicing the control panel easier. To re-

move the door:

a) Open the oven door and insert a

pin, or screw, into each of the hinge

hangers on the sides of the oven

door.

b) Close the oven door as far as the

pins will allow.

c) Grasp the oven door by the handle

and at the bottom, then lift and pull

it up and away from the oven.

3. Remove the two screws from the bottom

trim, then pull the trim forward, and remove

it from the range.

Bottom Trim Screw

Bottom Trim

Wall Mounting Screws

Side Support

Notch

4. Remove the two screws from the front of

the range that are securing it to the cabinet

front.

5. Pull the range out far enough to access the

back.

NOTE: If you are servicing a Ceran Glass

Model Cooktop, proceed to page 7.

- 5 -

OPEN COIL MODEL

1. Remove the screws from the rear cover

and remove it from the range.

Do Not remove the control compartment

back and back cover.

Rear Cover

(8) Screws

Control Compartment Back

(4 Screws)

Back Cover

(11 Screws)

2. Remove the indicated three control com-

partment side screws from each side of

the unit. Do not remove the two (one on

each side) front control compartment side

screws/pins or the two control panel screws

at this time.

3 Control Compartment

Side Mounting Screws

2 Control Panel Screws

Front Control Compartment

Side Screw/Pin

- 6 -

3. From the back of the unit, grip the sides of

the cooktop assembly, and separate it

from the control panel. IMPORTANT RE-

MOVAL INSTRUCTIONS: To access the

control panel, it will be necessary to slide

the cooktop assembly back away from the

panel. This may be a bit difficult to do

because the top lip of the control panel is

“friction-fit” in the slot of the cooktop, which

holds it firmly in place. To remove the

cooktop assembly for servicing:

a) From the back of the range, grip the

sides of the cooktop and pull back

firmly, (do not lift up), rocking it

from side-to-side, until the friction

fit releases the cooktop from the

control panel trim extension.

b) Slide the cooktop back far enough

to access the control panel.

2 Control Panel Screws

Front Control Compartment

Side Screw/Pin

Control Panel

Trim Extension

CooktopTrim

Extension

Clamp/Support Holds Top

Of Control Panel In Place

At Center Of Cooktop

4. To remove the control panel, remove the

two front control compartment side screws/

pins and the two control panel screws,

then tilt the panel out at the bottom, and lift

it up and off the side rails.
