Table of Contents

(complete) ................. 2

A Note to You ................ 3

Range Safety ................. 4

Getting to Know

Your Range ................... 7

Using Your Range ........ 8

Using the

Self-Cleaning Cycle .... 23

Caring for

Your Range ................. 27

Troubleshooting ......... 32

Requesting

Assistance

or Service .................... 34

Index ............................ 35

Warranty ...................... 36

1-800-253-l 301

Call u8 with questions or comments.

SELF-CLEANING ELECTRIC RANGE

MODELS RF375PXD RF370PXD

PART NO. 3186076 Rev. A

t\\ y< RF362BBD

Table of Contents

A Note to You ............................................ 3

Range Safety ............................................. 4

Getting to Know Your Range .................... 7

Using Your Range ..................................... 8

Using the surface units ......................... 8

Positioning racks and pans .................

For best air circulation .........................

Using aluminum foil for baking ...........

The electronic oven control ................. 12

Setting the clock ................................. 13

Using the electronic Minute Timer ....... 13

Starting a function ............................... 15

Canceling a function ........................... 15

BakingIroasting ................................... 15

Adjusting the oven temperature

control ................................................ 17

Broiling ............................................... 18

Broiling tips ......................................... 20

Energy saving tips .............................. 20

The oven vent .................................... 21

The storage drawer ............................ 21

The anti-tip bracket ............................ 22

Optional door panel pat ..................... 22

Using the Self-Cleaning Cycle ............... 23

Before you start ................................. 23

Before setting the controls.. ................. 24

Setting the controls ............................ 24

Special tips ........................................ 26

How the cycle works ........................... 26

Caring for Your Range ............................ 27

Surface units and reflector bowls.. ...... 27

Lift-up cooktop ................................... 29

Cleaning chart ................................... 29

The oven light ..................................... 31

Troubleshooting ...................................... 32

Requesting Assistance or Service ......... 34

Index ........................................................ 35

Warranty .................................................. 36

A Note to You

Thank you for buying a Whirlpool” appliance.

Because your life is getting busier and more complicated, Whirlpool ranges are easy to use,

save time, and help you

manage your home

better. To ensure that you enjoy years of trouble-

free operation, we developed this Use and Care Guide. It is full of valuable information about

how to operate and maintain your appliance properly and safely. Please read it carefully.

Also, please complete and mail in the Ownership Registration Card provided with your

appliance. The card helps us notify you about any new information on your appliance.

Please record your model’s information.

Whenever you cell to request service for

Model Number

your appliance, you need to know your

complete model number and serial number.

Serial Number

You can find this information on the model

Purchase Date

and serial number plate (see diagram on

Deeler Name

page 7 for location of plate).

Please also record the purchase

date

your appliance and your dealer’s name,

address, and telephone number.

Dealer Address

Dealer Phone

Keep this book and the sales slip together in a safe place for future reference.

Our Consumer Assistance Center

number is toll-free 24 hours a day.

I-800-253-1 301 1

Range Safety

Your safety is important to us.

This guide contains safety statements under

warning symbols. Please pay special

attention to these symbols and follow any

instructions given. Here is a brief explana-

tion of the use of the symbol.

This symbol alerts you to such dangers

as fire, electrical shock, burns, and

personal injury.

IMPORTANT SAFH-Y INSTRUCTIONS

To reduce the risk of fire, electrical shock, injury

to persons, or damage when using the range,

follow basic precautions, including the following:

General *Do not operate the range if it is

*Read all instructions before using damaged or not working properly.

the range. @Donot use the range for warming

4nstall or locate the range only in or heating the room. Persons

accordance with the provided could be burned or injured, or a

Installation Instructions. The range fire could start.

must be installed by a qualified .Use the range only for its intended

installer. The range must be use as described in this manual.

properly connected to electrical

supply and grounded.

@@ *Do not touch surface units, areas

near units, heating elements, or

@WARNING: To reduce the risk interior surfaces of oven. Surface

of tipping the appliance, the

appliance must be secured by a units and heating elements may be

hot even though they are dark in

properly installed anti-tip bracket. color. Areas near surface units and

To check if the bracket is installed interior surfaces of an oven become

properly, see “The antitip bracket” hot enough to cause bums. During

on page 22. and after use, do not touch or let

@CAUTION: Do not store things clothing or other flammable mate-

children might want above the rials contact surface units, areas

range. Children could be burned near units, heating elements, or

or injured while climbing on it. interior surfaces of oven until they

*Do not leave children alone or have had sufficient time to cool.

unattended in area where the Other surfaces of the range, such

range is in use. They should as the oven vent opening, the sur-

never be allowed to sit or stand face near the vent opening, the

on any part of the range. They cooktop, and the oven door and

could be burned or injured. window, could also become hot

enough to cause burns.

aDo not wear loose or hanging

garments when using the range.

They could ignite if they touch a

hot surface unit and you could

be burned.

@Use only dry pot holders. Moist or

damp pot holders on hot surfaces

could result in burns from steam.

Do not let pot holder touch hot

heating elements. Do not use a

towel or bulky cloth for a pot

holder. It could catch on fire.

@Keep range vents unobstructed.

*Do not heat unopened contain-

ers. They could explode. The hot

contents could cause burns

and container particles could

cause injury.

@Use only utensils approved for

oven use. Follow utensil manu-

facturer’s instructions, especially

when using glass or plastic

utensils.

@Do not store flammable materials

on or near the range. The fumes

could create an explosion and/or

fire hazard.

When using the cooktop

@Make sure the reflector bowls are

in place during cooking. Cooking

without reflector bowls could sub-

ject the wiring and components

underneath them to damage.

*Do not line reflector bowls with

aluminum foil or other liners. Im-

proper installation of these liners

could result in a risk of electrical

shock or fire.

@Select a pan with a flat bottom

that is about the same size as

the surface unit. If pan is smaller

than the surface unit, some of

the heating element will be

exposed and could result in the

igniting of clothing or pot holders.

Correct pan size also improves

cooking efficiency.

@Check to be sure glass cooking

utensils are safe for use on the

range. Only certain types of glass,

glass-ceramic, ceramic, earthen-

ware, or other glazed utensils are

suitable for cooktops without

breaking due to the sudden

change in temperature.

@Never leave surface units unat-

tended at high heat settings. A

boilover could result and cause

smoking and greasy spillovers

that could ignite.

*Turn pan handles inward, but not

over other surface units. This will

help reduce the chance of burns,

igniting of flammable materials,

and spills due to bumping of

the pan.

continued on next page

When using the oven could cause cancer or reproductive

@Always position oven rack(s) in

desired location while oven is

cool. If a rack must be removed

while oven is hot, do not let pot

holder contact hot heating ele-

ment in oven.

harm. Exposure can be mini-

mized by venting with a hood or

open window and wiping out

excess food spills prior to self-

cleaning.

@Use care when opening oven

door. Let hot air or steam escape

before removing or replacing

food.

Grease

@Grease is flammable. Do not

allow grease to collect around

cooktop or in vents. Wipe spill-

overs immediately.

ADO not use oven cleaners. No

commercial oven cleaner or oven

liner protective coating of any kind

should be used in or around any

part of the oven.

Before self-cleaning the oven,

remove broiler pan, broiler grid,

oven racks, and other utensils.

Do not use your oven to clean

miscellaneous parts unless you

are instructed to do so in this

Use and Care Guide.

@Do not use water on grease fires.

Never pick up a flaming pan.

Smother flaming pan on range

by covering with a well-fitted lid,

cookie sheet, or flat tray. Flaming

grease outside of pan can be

extinguished with baking soda

or, if available, a multipurpose

dry chemical or foam-type

extinguisher.

*Do not soak removable heating

elements in water. The element

will be damaged and shock or fire

could result.

*Do not clean door heat seal. It is

essential for a good seal. Care

should be taken not to rub, dam-

age, or move the seal. Clean only

parts recommended in this Use

and Care Guide.

@Do not repair or replace any part

of the range unless specifically

recommended in this manual. All

other servicing should be referred

to a qualified technician.

*Disconnect the electrical supply

before servicing the range.

Care and cleaning

@Small amounts of formaldehyde

and carbon monoxide are given

off in the Self-Cleaning cycle

from fiberglass insulation and

food decomposition. Significant

exposure to these substances

- SAVE THESE INSTRUCTIONS -

Getting to Know Your

Range -

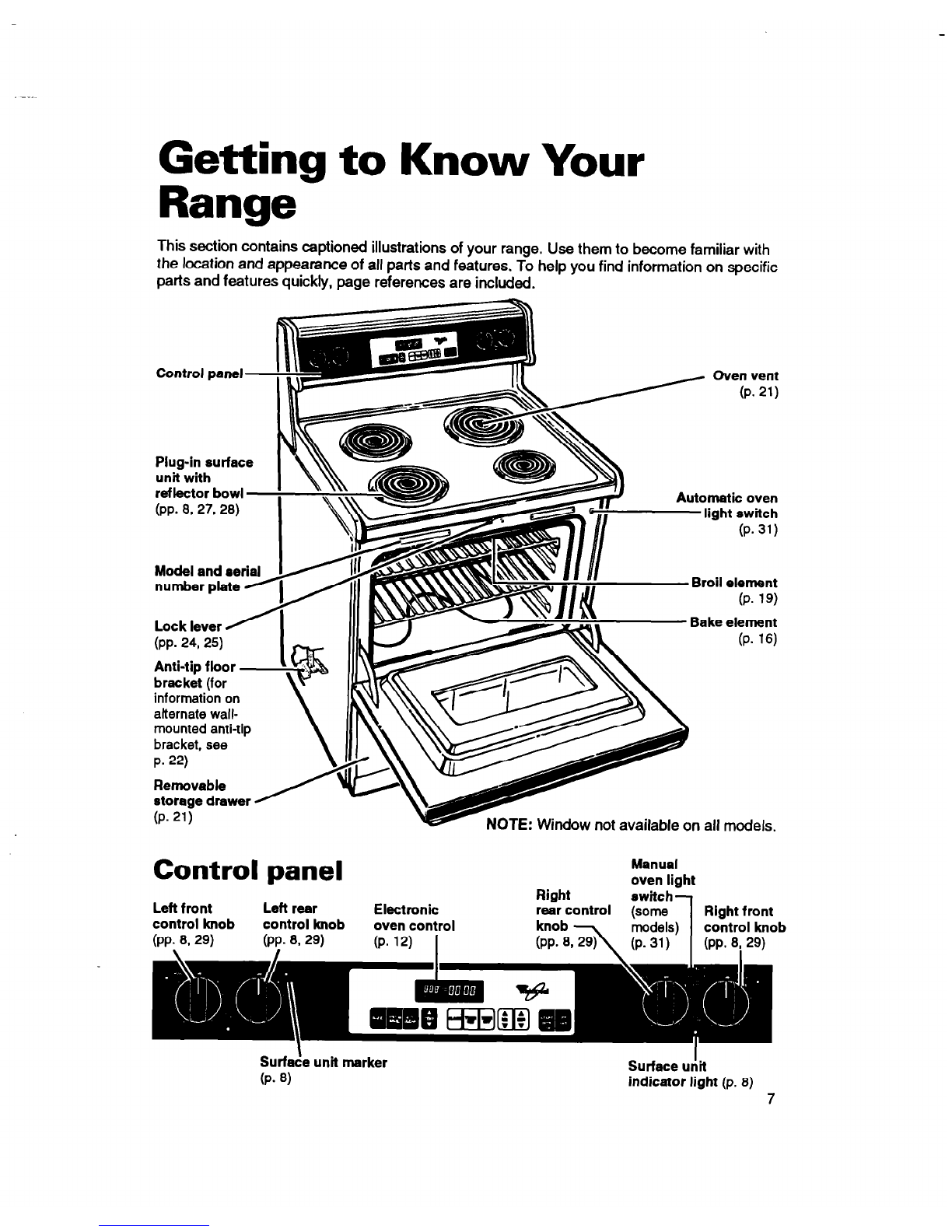

This section contains captioned illustrations of your range. Use them to become familiar with

the location and appearance of all parts and features. To help you find information on specific

parts and features quickly, page references are included.

Control panel 7 Oven vent

(P. 21)

Plug-in surface

unit with

reflector bowl I

(PP. 8,27,28)

Model and aerial /I

Anti-tip floor Ii

bracket (for Y

information on

alternate wall-

\ I

mounted anti-tip

bracket. see

P. 22)

Removable

storage drawer

(P. 21)

Automatic oven

light switch

(Pm31 I

Broil element

(P. 19)

Bake element

(P. 16)

NOTE: Window not available on all models

Control panel

Manual

oven light

(P. 8) indicator light (p.

Using Your Range

To obtain the best cooking results possible, you must operate your range properly. This

section gives you important information for efficient and safe use of your range.

Using the surface units

Push in control knobs before turning

them to a setting. You can set them any-

where between HI and OFF.

Surface unit markers

The solid dot in the Surface Unit Marker

Surface unit indicator lights

One of the Surface Unit Indicator Lights on

the control panel will glow when

a surface unit is on.

Until you get used to the settings, use

the following as a guide.

For best results,

start cooking at the high setting; then turn

the control knob down to continue cooking.

SElTlNG RECOMMENDED USE

To start foods cooking.

To bring liquids to a boil.

6-s

To hokf a rapid boil.

To fry chicken or pancakes.

For gravy, pudding, and

icing.

2-4

To cook large amounts

of vegetables.

To keep food cooking after

starting it on a higher setting.

To keep food warm until

ready to sewe.

Fire Hazard

Be sure all control knobs are turned to

OFF and all indicator lights are OFF

when you are not cooking.

A fire could start or someone could be

burned if a surface unit is accidentally

left ON.

Cookware tips

Select a pan

that is about the same size

as the surface unit.

NOTE: For best results and greater

energy efficiency,

use only flat-bottomed

cookware that makes good contact with

the surface units. Cookware with rounded,

warped, ribbed (such as some porcelain

enamelware), or dented bottoms could

cause severe overheating, which damages

the cookware and/or surface unit.

You can, however, use the newer

cookware available with slightly indented

bottoms or very small expansion channels.

This cookware is specially designed to

provide the good contact needed for best

cooking results.

Also, woks, canners, and teakettles with

flat bottoms suitable for use on your

cooktop are now available in most stores

that sell housewares.

The pan

should have straight sides and a

tight-fiiing lid.

Choose medium to heavy gauge

(thick-

ness) pans that are fairly lightweight.

The pan material

(metal or glass) affects

how fast heat transfers from the surface

unit through the pan material and how

evenly heat spreads over the pan bottom.

Choose pans that provide the best cooking

results.

Handles

should be made of sturdy, heat-

resistant material and be securely attached

to the pan.

NOTES:

If a surface unit

stays red for a long time,

the bottom of the pan is not flat enough or

is too small for the surface unit. Prolonged

usage of incorrect utensils could result in

damage to the surface unit, cooktop, wir-

ing, and surrounding areas. To prevent

damage, use correct utensils, start

cooking on HI, and turn control down to

continue cooking.

Do not leave

an empty utensil, or one

which has boiled dry, on a hot surface unit.

The utensil coukl overheat and damage

the utensil or surface unit.

Home canning information

To protect your range:

Use flat-bottomed canners/pans

for best

results.

Use the largest surface unit

for best

resutts. Also, use a canner/pan which can

be centered over the surface unit and

which does not extend more than one inch

outside surface unit area. Large diameter

canners/pans, if not property centered,

trap heat and can cause damage to the

cooktop.

Do not place canner

on two surface units

at the same time. Too much heat will build

up and will damage the cooktop.

Start wlth hot water.

This reduces the

time the control is set on high. Reduce

heat setting to lowest position needed to

keep water boiling.

Keep reflector bowls clean

for best heat

reflection.

To prolong the life of the elements:

- Prepare small batches

at a time.

- Do not use elements

for canning all

day.

Refer

to your canner manual for specific

instructions.

Optional canning kit

The large diameter of most water-bath or

pressure canners combined with high heat

settings for long periis of time can shorten

the life of regular surface units and cause

damage to the cooktop.

If you plan to use the cook-top for canning,

we recommend the installation of a Canning

Kit. Order the kit (Part No. 242905) from

your Whirlpool dealer or authorized

Whirlpool service company. 9

Positioning racks and pans

For baking/roasting with one rack,

place

the rack so the top of the food will be

centered in the oven.

Rack placement for specific foods:

FOOD RACK POSITION

Frozen pies, large Lowest level or

roasts, turkeys, angel 2nd level from

food cakes bottom

Bundt cakes, most 2nd level from

quick breads, yeast bottom

breads, casseroles,

meats

Cookies, biscuits, 2nd or 3rd level

muffins, cakes, from bottom

nonfrozen pies

When baking on two racks,

arrange racks

on bottom and third level from bottom.

To change rack position,

lift rack at front

and pull out.

NOTE:

For recommended rack placement

when broiling, see “Broiling rack position

chart” on page 19.

Personal Injury Hazard

*Always position oven rack(s) in

desired location before turning oven

on. Be sure the rack(s) is level.

If rack(s) must be moved while oven

is hot, use pot holders or oven mitts

to protect hands.

Failure to follow the above precautions

could result in personal injury.

For best air circulation

Hot air must circulate around the pans in the

oven for even heat to reach all parts of the

oven. This results in better baking.

Place

the pans so that one is not directly

over the other.

For best results, allow

1l/i to 2 inches

(4-5 cm) of space around each pan and

between pans and oven walls. There must

be a minimum space of 1 inch (3 cm).

Use

only one cookie sheet in the oven at

one time.

Use the following as a guide to

determine where to place the pans:

One pan

Place in the center of the oven rack.

Two pans

Place in opposite corners of the oven rack.

Three or four pans

Place in opposite corners on each oven

rack. Stagger pans so no pan is directly

over another.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Whirlpool Gamme

Whirlpool

Whirlpool 30" (76.2 CM) FREESTANDING GAS RANGES Manuel utilisateur

Whirlpool

Whirlpool FGS385B Instructions d'installation

Whirlpool

Whirlpool 30" Freestanding Gas Range with standard clean... Manuel utilisateur

Whirlpool

Whirlpool GS563LXS Manuel utilisateur

Whirlpool

Whirlpool RF375PXP Manuel utilisateur

Whirlpool

Whirlpool KR-32 Manuel utilisateur

Whirlpool

Whirlpool RF330PXD Manuel utilisateur

Whirlpool

Whirlpool RF310PXD Manuel utilisateur

Whirlpool

Whirlpool 6660155 Manuel utilisateur

Whirlpool

Whirlpool WEC310S0FW Manuel utilisateur

Whirlpool

Whirlpool Cold YGS395LEG Manuel utilisateur

Whirlpool

Whirlpool RF4700XE Manuel utilisateur

Whirlpool

Whirlpool W10575959B Manuel utilisateur

Whirlpool

Whirlpool FGP315E W Manuel du propriétaire

Whirlpool

Whirlpool YWFE710H0AW0 Manuel utilisateur

Whirlpool

Whirlpool WEG750H0HB0 Manuel utilisateur

Whirlpool

Whirlpool SF5100SR Manuel utilisateur

Whirlpool

Whirlpool 8273167 Manuel utilisateur

Whirlpool

Whirlpool FES310Y Instructions d'installation

Whirlpool

Whirlpool W10196159C Manuel utilisateur

Whirlpool

Whirlpool RJE-3165 Manuel utilisateur

Whirlpool

Whirlpool GR556LRKB Manuel utilisateur

Whirlpool

Whirlpool Super Capacity 465 Manuel utilisateur

Whirlpool

Whirlpool RE953PXKT0 Manuel utilisateur

Manuels Gamme populaires d'autres marques

Samsung

Samsung FCQ321HTUW Manuel utilisateur

Kenmore

Kenmore 790.45712 Manuel utilisateur

Wolf

Wolf CHR CHSSR Manuel utilisateur

Smeg

Smeg Built-in Microwave Oven Mode d’emploi

Zanussi

Zanussi ZCG054G Manuel utilisateur

Frigidaire

Frigidaire 316000635 Manuel utilisateur

GE JCSS630 Manuel utilisateur

Samsung

Samsung NX58M9960P series Manuel utilisateur

Hotpoint

Hotpoint RB524R Guide d'installation

Amana

Amana ART6610 SERIES Manuel utilisateur

Maytag

Maytag MERH770WB Manuel utilisateur

Fulgor Milano

Fulgor Milano SOFIA Manuel utilisateur

Premier

Premier EF-4358GH Manuel utilisateur

Kenmore

Kenmore 790.9010 Series Manuel utilisateur

KitchenAid

KitchenAid KESC300 Manuel utilisateur

Frigidaire

Frigidaire FFEF3012LS Guide de l'utilisateur

Diamond

Diamond G65/2F4T Manuel utilisateur

Samsung

Samsung NX58*565 Series Manuel utilisateur
