COOKTOP PARTS
1
For Model: SF114PXSW2, SF114PXST2, SF114PXSB2, SF114PXSQ2
(White) (Designer Biscuit) (Black) (Desinger White)
9−07 Litho in U.S.A. (jac) Part No. W10143252 Rev. A
30" GAS FREESTANDING
STANDARD CLEAN RANGE
ELECTRONIC IGNITION
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
Instruct, Install
W10032050
English
W10032060
Canadian
W10138585
Installation Instr
(Template)
W10142329
Guide, Use & Care
98007130 Safer Cooking Tips
W10142327
Tech Sheet
2 Cooktop
98017619W
White
98017619T
Biscuit
98017619B
Black
3 Panel, Manifold
W10094830
Black
W10094860
Biscuit
W10094850
White
4 Knob, Burner (4)
98006100 Black
98008208 Biscuit
98006102 White
5 98007225 Screw
6 Grate, Burner (2)
98017779 Black
98017780 Grey
7 98004722 Clip, Cooktop (2)
8 98014544 Wire, Ground
9 98013389 Bumper, Cooktop
10 98005000 Screw (3)
11 Cap, Burner
98017461 Black
98017465 Grey
12 8534079 Screw
14 98017537 Burner, Top (4)

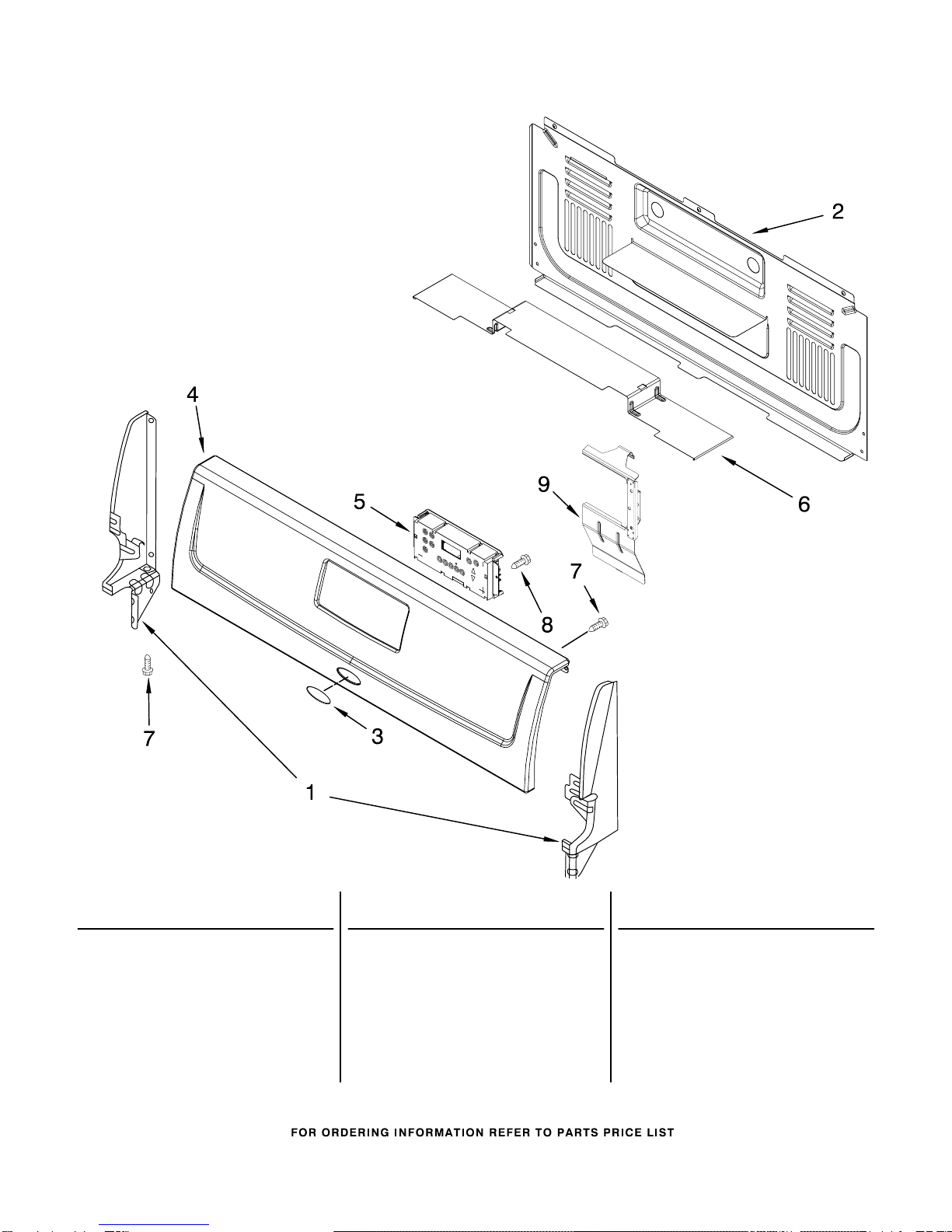

BACKGUARD PARTS
2
For Model: SF114PXSW2, SF114PXST2, SF114PXSB2, SF114PXSQ2
(White) (Designer Biscuit) (Black) (Desinger White)
W10143252
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Endcap
98004632 Black Left
98004633 Black Right
98008274 Biscuit Left
98008275 Biscuit Right
98005336 White Left
98005337 White Right
2 98006083 Rear, Backguard
3 9757609 Nameplate
4 Panel, Control
98017734B
Black
98017734T
Biscuit
98017734W
White
5 Control, Elec
W10108320
Black
W10108330
Biscuit
W10108310
White
6
W10120794
Deflctor, Rear Cvr
7 98015526 Screw
8 98004219 Screw
9 Bracket, Timer
98018144 Left
98018143 Right
MANIFOLD PARTS
3
For Model: SF114PXSW2, SF114PXST2, SF114PXSB2, SF114PXSQ2
(White) (Designer Biscuit) (Black) (Desinger White)
W10143252
MANIFOLD PARTS
4
For Model: SF114PXSW2, SF114PXST2, SF114PXSB2, SF114PXSQ2
(White) (Designer Biscuit) (Black) (Desinger White)
W10143252
Illus. Part
No. No. DESCRIPTION
1 98017323 Nut (4)
2 Venturi, Front (2)
98017583 LF
98017582 RF
3 98017741 Brkt., Venturi (4)
4 98017359 Venturi, Rear (2)
5 6610341 Spark Module
6 98007411 Regulator
7 98007192 Cover, Module
8 98015099 Spreader, Flame
9 98006632 Screw
10 98012138 Burner, Oven
11 98006633 Screw
12 98014545 Harness, Switch
13 98014893 Valve, Oven
14 98006633 Screw
15 98017498 Valve, Burner (4)
16 98017517 Bolt, Valve Mtg
17 98017556 Pipe, Manifold
18 98009179 U−Nut
20 Orifice
98017348 RF, RR, LR
98017349 LF
21 98005652 Igniter, Oven
Oven Pilot)
22 98017516 Bracket, Valve (4)
23 98007428 Tubing (Regltr to
Oven Valve)
24 98013314 Locator, Burner
25 98007410 Bracket, Regulator
26 98007431 Fitting 3/8to9/16
27 98013634 Screw
28 1180823 Screw
31 98017171 Tubing, Inlet
34 98005659 Screw
35
W10146346
Screw
36 Igniter, Top
98014514 RF & RR
98017917 LF
98014516 LR
37 98015032 Clip, Igniter
FOLLOWING PARTS
NOT ILLUSTRATED
W10032030
LP Orifice Kit
(For Use With LP)
CHASSIS PARTS
5
For Model: SF114PXSW2, SF114PXST2, SF114PXSB2, SF114PXSQ2
(White) (Designer Biscuit) (Black) (Desinger White)
W10143252
CHASSIS PARTS
6
For Model: SF114PXSW2, SF114PXST2, SF114PXSB2, SF114PXSQ2
(White) (Designer Biscuit) (Black) (Desinger White)
W10143252
Illus. Part
No. No. DESCRIPTION
1 98003799 Flue Box
2 98013690 Clip, Flue
3 98014398 Shield, Insulation
4 Panel, Side (2)
98010042 White
98010045 Biscuit
98010043 Black
5 98005502 Clip, Oven Bottom
6 98006710 Counterweight
7 98006739 Wire, Brick
8 98006750 Frame, Front
9 98005306 Foot, Front (2)
10
W10058460
Foot, Rear (2)
11 98004449 Bottom, Oven
12 98015683 Baffle, Side (2)
13 98003847 Baffle, Base
14 98003830 Rail, Base (2)
15 98012175 Support, Burner
16 98017162 Gasket, Broil Door
18 98009179 U−Nut
20 98015100 Back, Main
21 98017163 Seal, Oven
22 98006633 Screw
23 98007193 Washer
24 98007126 Base, Foot
25 98006632 Screw
26 98006715 Shield, Channel
27 98007191 Shield, Lower
29 98014532 Cord, Power
30 98005026 Clip, Tubing
31 98015346 Foil, Side (2)
32 98006634 Screw
33 98004447 Top, Oven
34 Side, Oven
98004452 Right Hand
98004451 Left Hand
35 98013777 Back, Oven
36 98015363 Support, Rear
37 98004498 Bulb, Light
38
W10114530
Socket, Light
40 98007205 Cap, Insulation
41 8273902 Sensor, Oven
42 98014105 Cover, Valve
43 98014104 Cover, Socket
INSULATION
98014360 Insulation, Wrap
98004286 Insulation, Back
OVEN & BROILER PARTS
7
For Model: SF114PXSW2, SF114PXST2, SF114PXSB2, SF114PXSQ2
(White) (Designer Biscuit) (Black) (Desinger White)
W10143252
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 98014136 Rack, Oven (2)
2 98003480 Grill, Broiler
3 98016005 Pan, Broiler
5 Support, Tray
98016664 Left (2)
98016666 Right (2)
6 Guide, Fixed(2)
98004994 Left
98005209 Right
7 Guide, Mobile(2)
98004995 Left
98004954 Right
8 Screw
98006727 White
98008169 Biscuit
98006726 Black
9 98017076 Liner, Door
10 98017784 Storage, Drawer
11 98015234 Insulation, Door
12 Panel, Door
98009342 White
98009341 Biscuit
98009343 Black
13 Handle, Brlr Door
98008486 White
98008488 Biscuit
98015643 Black
15 98004052 Bumper, Door(2)
20 98004219 Screw
DOOR PARTS
8
For Model: SF114PXSW2, SF114PXST2, SF114PXSB2, SF114PXSQ2
(White) (Designer Biscuit) (Black) (Desinger White)
W10143252
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 8533842 Screw
3 98010182 Liner, Door
4 98006753 Insulation, Door
5 Clip, Glass
98004952 Left
98004953 Right
6 98017875 Hinge, Door (2)
7 Trim, Top Door
98017767B
Black
98017767T
Biscuit
98017767W
White
8 Panel, Door
98017961B
Black
98017961T
Biscuit
98017961W
White
9 98006801 Glass, Inner
10 Handle, Oven Door
98017790B
Black
98017790T
Biscuit
98017790W
White
12 98004993 Screw
13 Side Trim, Door(2)
98016787B
Black Left
98016795B
Black Right
98016787T
Biscuit Left
98016795T
Biscuit Right
98016787W
White Left
98016795W
White Right
14 Screw
98008545 Black
98008169 Biscuit
98008544 White
15 Retainer
98004564 Right
98004629 Left
16 Lower Trim, Door
98010187 Black
98010184 Biscuit
98010185 White
17 98004219 Screw
18 98004227 Bumper
19 98004938 Insulation,
Retainer−Top
20 98012904 Insulation,
Retainer−Bottom
21 98017250 Retainer, Upper
Following Parts Not Illustrated
98012220 Pin Kit−Dr Removal
OPTIONAL PARTS (NOT INCLUDED)
9
For Model: SF114PXSW2, SF114PXST2, SF114PXSB2, SF114PXSQ2
(White) (Designer Biscuit) (Black) (Desinger White)
W10143252
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
Following Parts Not Illustrated
SPLICING WIRES−−25FT.
LENGTH
242828 Wire, Black
12 Ga. 150 c
8316781 Wire, Black
14 Ga. 150 c
242821 Wire, Blue
14 Ga. 150 c
242822 Wire, Brown
14 Ga. 150 c
242830 Wire, Brown
14 Ga. 200 c
242823 Wire, Green
14 Ga. 150 c
242824 Wire, Orange
14 Ga. 150 c
242825 Wire, Red
14 Ga. 150 c
242831 Wire, Red
14 Ga. 200 c
242827 Wire, Yellow
14 Ga. 150 c
REFINISHING MATERIAL
799832 Kit, Porcelain
Repair (White)
242756 Touch−Up
Self−Clean(1/2 Pt)
261582 Grease
INSULATION
261514 Insulation,
Fiberglass (1−1/2"
x 24" x 120")
240132 Insulation,
Fiberglass (2−1/2"
x 22" x 120")
PAINT, TOUCH−UP (1/2oz.)
72017 White
4392899 Biscuit
511873 White Porcelain
(2 Oz.)
WIRING HARNESS PARTS
W10141515
Harness, Control
W10142307
Connector, RTD
98005896 Clip, Wire
3196696 Clip, Wire
3391018 Cable Tie−Push Mnt
98015022 Bushing, Snap (2)
98005894 Clamp, Cord
PAINT, PRESSURIZED SPRAY
(12 oz.)
350930 White
4392901 Biscuit
285006 Superior Black
206922 Primer (White)
PAINT, BULK (1 qt.)
799344 White (Uncut)
4392900 Biscuit(Uncut)
ANTI−TIP KIT
W10138977
Anti−Tip Kit
