WELLTECH WellGate 2880 Manuel utilisateur

WellGate 2880, 8 ports FXO

Gateway User Guide

Version: 1.01

Date: 2015/07

Contents

CH1 Introduction.................................................................................... 4

1-1 Physical Interface ............................................................................. 4

1-2 IP Network connection ..................................................................... 5

1-3 Front Panel: LED Indicators.......................................................... 5

1-4 Rear Panel: Cable connections ...................................................... 6

1-5 QUICK SETUP ................................................................................ 6

CH2 Device Settings ............................................................................. 12

2-1 Network Configuration................................................................... 12

2-2 Device Time Setting ....................................................................... 14

2-3 Device Advance Setting.................................................................. 16

2-4 User Login Setting.......................................................................... 17

2-5 Debug Settings................................................................................ 18

2-6 Event Notice................................................................................... 19

2-7 Auto Provision................................................................................ 19

2-8 SNMP ............................................................................................. 20

CH3 NAT Setting................................................................................... 22

3-1 DHCP Ser. (DHCP server).............................................................. 22

3-2 UPnP (universal plug and play server)........................................... 23

3-3 Bandwidth (Bandwidth Control).................................................... 23

3-4 URL Filter....................................................................................... 27

3-5 IP Filter........................................................................................... 27

3-6 MAC Filter ..................................................................................... 27

3-7 APP Filter........................................................................................ 28

3-8 Port Filter........................................................................................ 28

3-9 Port Fwd ......................................................................................... 29

CH4 VOIP Setting.............................................................................. 30

4-1 SIP parameters setting .................................................................... 30

4-2 Audio .............................................................................................. 32

4-3 Tone ................................................................................................ 34

4-4 NAT Traversal................................................................................. 35

CH5 VOIP Advance .............................................................................. 36

5-1 SIP .................................................................................................. 36

5-2 Audio .............................................................................................. 39

5-3 Ring ................................................................................................ 40

CH6 Dialing Plan................................................................................. 41

6-1 General............................................................................................ 41

6-2 Dialing Rule.................................................................................... 42

6-3 Digit Manipulation ......................................................................... 43

6-4 Phone Book..................................................................................... 44

CH7 CO Setting .................................................................................... 45

7-1 FXO line ......................................................................................... 46

CH8 SIP Trunk...................................................................................... 48

8-1 Create SIP Trunk............................................................................. 49

CH9 Route Plan.................................................................................... 51

9-1 Create Route Plan........................................................................... 52

CH10 Status .......................................................................................... 54

10-1 Device States ................................................................................ 54

10-2 Line States .................................................................................... 54

10-3 SIP Trunk States............................................................................ 55

CH11 Maintenance ............................................................................... 56

11-1 Firmware Update .......................................................................... 56

CH12 Logout......................................................................................... 57

Appendix A --- System Recovery......................................................... 57

Appendix B --- HTTP auto provisioning.............................................. 60

Appendix C --- SNMP.......................................................................... 62

WellGate 2880

CH1 Introduction

WellGate 2880 Analog SIP Gateway

WellGate 2880 is a 8 ports FXO VoIP gateway which includes 1-WAN/1-LAN

(management port) 10/100 base-T network environment. Field-proven

quality of Voice communication and Fax transmission over IP broadband

access network to makes WellGate 2880 to be an excellent solution for various

VoIP applications.

The core firmware and webpage configuration is consistent with both 4-port

FXO gateway (WellGate 2540) and 24-port FXO gateway (WellGate 2424O).

So, there is not any difficulty to use WellGate 2880 if you are already using

WellGate 25xx or WellGate 24xx series gateway. Besides, if you have

established HTTP provision to manage Wellgate 2504, it should be able to

manage this device as well.

1-1 Physical Interface

Ethernet port (RJ-45, 10/100 base-T)

1-WAN port, for connect to router, ADSL modem (ATU-R), or switch

hub directly. This port is used to connect SIP network for VoIP call.

1-LAN port, for PC management or other network devices

connecting. This port provide DHCP server and used to configure

this gateway.

Telephony port (RJ-11)

8-FXO ports, to connect to PSTN lines two wire tip/ring.

DC power Jack

Status indicated LED

Indicates Power, Ethernet, Line, SIP Proxy registration status

AC to DC Power Adaptor:

- INPUT: AC100V-240V, 50/60Hz

- OUTPUT: DC 12V, 3A

1-2 IP Network connection

IPv4 (RFC 791)/IPV6 (RFC 2460)

IPv6 Auto Configuration (RFC 4862)

MAC Address (IEEE 802.3)

Static IP

DHCP Client (RFC 2131)

PPPoE

DNS Client

TCP/UDP (RFC 793/768)

RTP/RTCP (RFC 1889/1890)

IPV4 ICMP (RFC 792)/IPV6 ICMP (RFC 4443)

TFTP Client

VOIP VLAN Support (802.1q/802.1p)

HTTP/HTTPS Server

QoS Support

Support IPV4 only, IPV6 only or dual stack mode

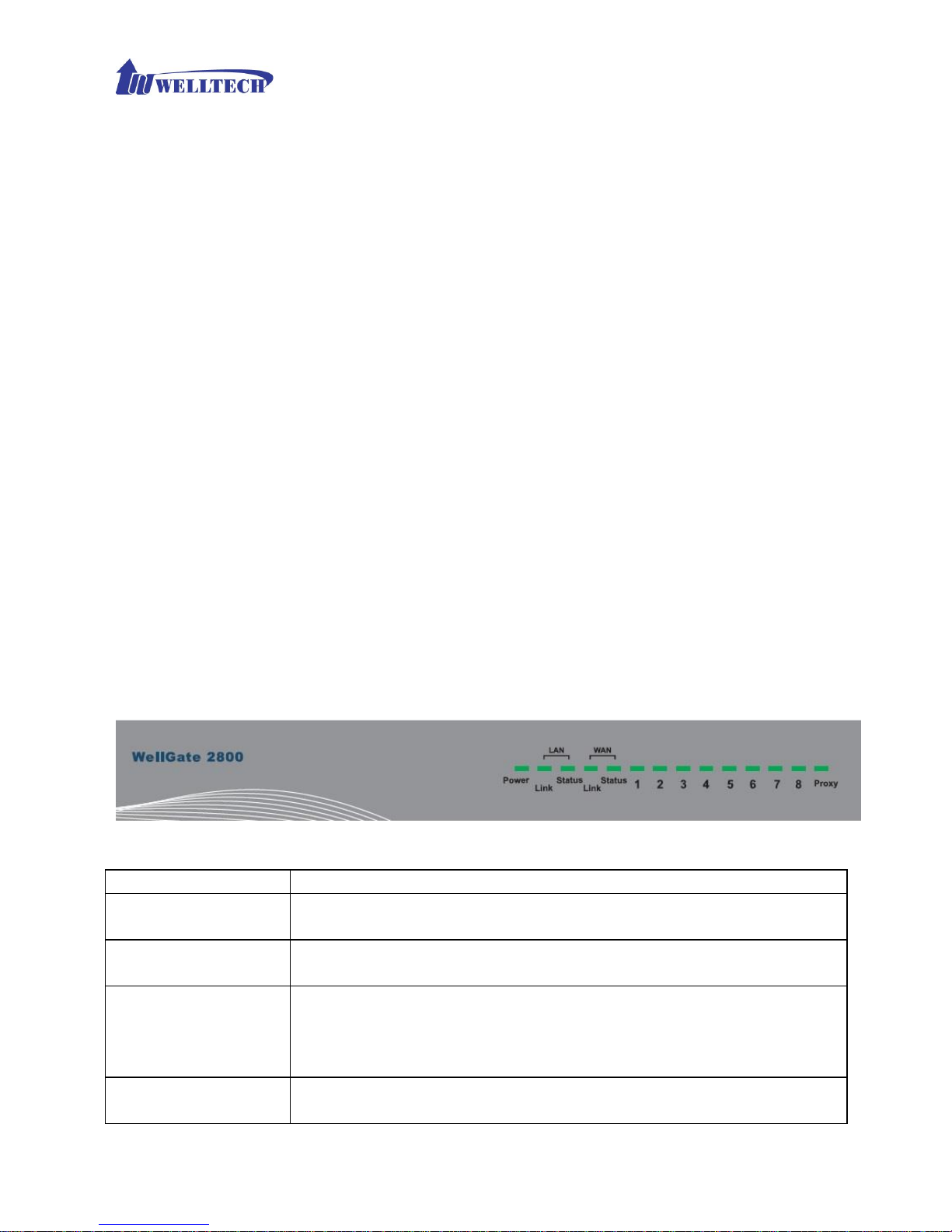

1-3 Front Panel: LED Indicators

WellGate 2880

Figure 1-3-1 front panel

LED

Description

Power

When the power adapter is connected, the LED will light

up green.

Proxy

When the gateway is registered successfully to SIP Proxy

or IP-PBX, this LED will light up green.

WAN

This LED will light up green when the gateway’s WAN port

is physically connected to IP Ethernet. When data is

transmitted through this port, it will flash green.

The default IP of WAN port is 10.1.1.3.

LAN

This LED will light up green when the gateway’s LAN port

is physically connected to a local IP network (Refer to Rear

Panel section for location of LAN port). When data is

transmitted through this port, it will flash green.

The default IP of LAN port is 192.168.123.123.

1 to 8

The status LED for FXO port 1-8, these LEDs will light up

amber orange when the connected phone is engaged in a

conversation. It will flash amber orange when there is an

incoming call.

Note: The Line LED will flash slowly while there is not any

PSTN line connected at FXO port.

1-4 Rear Panel: Cable connections

WellGate 2880

Figure 1-4-1 rear panel for FXO gateway

Item

Description

1 –8

These 8 RJ-11 connectors are used to connect with local

PSTN line or analog extension of conventional PBX. The

RJ-11 connector color should be Gray.

LAN

10/100 Base-T RJ-45 socket for LAN port, connects to PC

for management purpose only. The default is DHCP

Server.

WAN

10/100 Base-T RJ-45 socket for WAN port, connects to

SIP IP network for VoIP call purpose.

DC 12V

The power socket, input AC 100V~240V; output DC12V,

Caution:

When this product is interfered with static electricity, please restart your device,and you can continue to use in normal.

1-5 QUICK SETUP

Note:

Please use Windows IE 9.0 web browser or above version to

configure FXO gateway webpage setting. Make sure to adjust

low level safety of IE browser. Welltech products don’t support

other Web Browser such as FireFox or Google Chrome to

configure. Otherwise, the configuration from webpage can’t be

saved successfully.

Setp1: Setup the administrative PC’s IP to DHCP mode and connects RJ-45

Ethernet cable between LAN port and computer. Start IE 9 (or later version) to

navigate Wellgate 2880 web management system by typing the default URL

which is http://192.168.123.123 (through LAN port) or http://10.1.1.3

(through WAN port). The screen will display User Name and Password (the

default user ID is root and user password is root). (See figure 1-5-1 web

access)

Figure 1-5-1 web access

Step 2: After login, the screen shows the Home page of Wellgate 2880. (See

figure 1-5-2 Network configure-1)

Figure 1-5-2 Network configure-1

Change Default IP Network:

Step 3: After successfully login to the system, we need to change the network

configuration. Click Device Setting > Network to set up the service network

interface (WAN) parameters. Enter IP address, Subnet mask and default

gateway or selected to “DHCP” or “PPPOE”. Apply the change by clicking

Apply button as figure (See Figure 1-5-3 Network configure-2).

Note: If Gateway WAN port are setting in the 10.x.x.x segment, please make

sure that you need to change the LAN port to other segment such as

192.168.x.x in order not to conflict IP between WAN and LAN.

Figure 1-5-3 Network configure-2

Change Default Time setting:

Step 4: When re-login to the new IP address, the next is to setup the system

time zone. Click Device Setting > Time to setup the system. Enter the

current SNTP server, time zone and daylight saving parameters. Apply the

change by clicking Apply button. (See figure 1-5-4 Time setting)

Figure 1-5-4 Time setting

Modify SIP Account Parameter:

Step 5: The next step is to add a SIP Trunk for VOIP calling. For WellGate 2880,

it is necessary for VOIP calling. Click SIP Trunk and new to create the

required SIP trunk. Enter the trunk ID to 1 and enter those SIP parameters.

Apply the change by clicking Apply button. (See Figure 1-5-5 SIP Trunk)

Figure 1-5-5 SIP Trunk

Note: Please don’t delete SIP Trunk, even it is not used. Because Route Plan

feature needs to use SIP Trunk.

Soft Reset WellGate 2880:

Step 6: After modify basic setting, it is required to reset WellGate 2880. Click

Maintenance > Maintenance > Quick-Reset or Reboot to take effect.

Apply the change by clicking Apply button. (See Figure 1-5-6 Quick-Reset)

Figure 1-5-6 Quick-Reset

Check WellGate 2880 Registered Status:

Step 7: After Quick-Reset or reboot, Click Status > SIP Trunk Status to

check whether registered or not. (See figure 1-5-7 SIP trunk status)

Figure 1-5-7 SIP trunk status

Through the above settings, WellGate 2880 should be able to do the following:

1. For PSTN incoming call, the caller will hear a dial tone after WellGate 2880

answer this call. Then the caller can dial a VoIP number which can be used

by SIP Trunk 1 table to make SIP call out. This is an example of 2 stage

dialing.

Table des matières

Autres manuels WELLTECH Porte

WELLTECH

WELLTECH Wellgate 26xx Series Manuel utilisateur

WELLTECH

WELLTECH FXO-08 - V2.0A Manuel utilisateur

WELLTECH

WELLTECH FXO - LEARN AND RECORD DISCONNECT TONE Manuel utilisateur

WELLTECH

WELLTECH WILLGATE26XX - RELEASE NOTE V105B Manuel utilisateur

WELLTECH

WELLTECH WELLGATE 2608 - V1.00 Manuel utilisateur

WELLTECH

WELLTECH WILLGATE26XX - RELEASE NOTE V106B Manuel utilisateur

WELLTECH

WELLTECH WellGate 3511N Manuel utilisateur

WELLTECH

WELLTECH 3802 - RELEASE NOTE V106 Mode d’emploi

WELLTECH

WELLTECH 5290 - SS7 PARAMETERS REQUIREMENT Manuel utilisateur

WELLTECH

WELLTECH WELLGATE 2626 Manuel utilisateur

WELLTECH

WELLTECH WellGate M1 Manuel utilisateur

WELLTECH

WELLTECH FXSO GATEWAY H.323 3701A Manuel utilisateur

WELLTECH

WELLTECH FXO SIP GATEWAY - V105 Manuel utilisateur

WELLTECH

WELLTECH WELLGATE 26XX - V105 Manuel utilisateur

WELLTECH

WELLTECH Wellgate 26xx Series Manuel utilisateur

WELLTECH

WELLTECH WILLGATE2626 - RELEASE NOTE V106A Mode d’emploi

WELLTECH

WELLTECH WellGate 3512 Manuel utilisateur

WELLTECH

WELLTECH FXSO GATEWAY H.323 3701A - VERSION 2.1A Manuel utilisateur

WELLTECH

WELLTECH WellGate 5250 Manuel utilisateur

WELLTECH

WELLTECH IAD 161 H.323 Manuel utilisateur

WELLTECH

WELLTECH WELLGATE 2522 Manuel utilisateur

WELLTECH

WELLTECH WellGate 3232s Manuel utilisateur

WELLTECH

WELLTECH FXO GATEWAY H.323 3802 Manuel utilisateur

WELLTECH

WELLTECH WILLGATE2626 - RELEASE NOTE V106B Manuel utilisateur

Manuels Porte populaires d'autres marques

LST

LST M500RFE-AS Manuel utilisateur

Kinnex

Kinnex Media Gateway Manuel utilisateur

2N Telekomunikace

2N Telekomunikace 2N StarGate Manuel utilisateur

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries Superlink SC-WBGW256 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications ZYWALL2 ET 2WE Manuel utilisateur

Telsey

Telsey CPVA 500 - SIP Manuel utilisateur

RTA

RTA 460A-NNA4 Fiche technique

Shaw

Shaw Gateway HDPVR Manuel utilisateur

ABB

ABB VSN900 Guide de démarrage rapide

Commander

Commander Pulse Manuel utilisateur

2N Telekomunikace

2N Telekomunikace ATEUS EasyGate 501309E Manuel utilisateur

NETGEAR

NETGEAR C6300BD Manuel utilisateur

Amit

Amit CDW531AM Manuel utilisateur

HMS

HMS Netbiter EasyConnect EC150 Manuel utilisateur

Huawei

Huawei EchoLife HG620 Manuel utilisateur

AT&T

AT&T U-verse 3801 Manuel d'utilisation et d'entretien

Logic IO

Logic IO RTCU MX2 turbo Manuel utilisateur

Suttle

Suttle MediaMAX MXM-521 Manuel utilisateur
