WELLTECH WELLGATE 2522 Manuel utilisateur
WellGate 2522 User Guide
2
Contents
WellGate 2522 ................................................................................... 3
Introduction............................................................................................. 3
Physical Interface.................................................................................... 3
IP Network connection............................................................................ 4
Environmental......................................................................................... 4
Front Panel: LED Indicators................................................................ 5
Rear Panel:.............................................................................................. 6
QUICK SETUP....................................................................................... 7
Device Settings ....................................................................... 12
Network Configuration......................................................................... 12
Device Advance Setting:....................................................................... 15
NAT Setting .......................................................................................... 22
VOIPAdvance:..................................................................................... 34
Dialing Plan: ......................................................................................... 39
FXS Setting:.......................................................................................... 43
FXO Setting:........................................................................................ 49
SIP Trunk: ......................................................................................... 51
Route Plan:............................................................................................ 54
Appendix A --- Call Processing Flow (Wellgate 2540) ........................ 64
Appendix B --- System Recovery......................................................... 65
Appendix C --- HTTP auto provisioning.............................................. 67
3
WellGate 2522
Introduction
This user manual contains Wellgate 2522 ( 2-FXS ) and ( 2-FXO )
gateway.
Wellgate WG2522 is a 2 ports FXO and 2 port FXS oIP gateway which includes
1-WAN/1-LAN (management port) 10/100 base-T network environment.
Field-proven quality of oice communication and Fax transmission over IP
broadband access network is to make Wellgate WG2522 product to be an
excellent solution for various oIP applications.
Physical Interface
Ethernet port (RJ-45, 10/100 base-T)
1-WAN port, for connect to router, ADSL modem (ATU-R), or switch
hub directly.
1-LAN port, for PC, management or other network devices
connecting.
Telephony port (RJ-11)
2-FXO ports, to connect to PSTN lines
2-FXS ports, to connect to analog phone or digital PBX trunk line.
Reset button (Factory Default)
DC power Jack
Status indicated LED
Indicates Power, Ethernet, Line, SIP and system status
4
IP Network connection
IPv4 (RFC 791)/IP 6 (RFC 2460)
IPv6 Auto Configuration (RFC 4862)
MAC Address (IEEE 802.3)
Static IP
DHCP Client (RFC 2131)
PPPoE
DNS Client
TCP/UDP (RFC 793/768)
RTP/RTCP (RFC 1889/1890)
IP 4 ICMP (RFC 792)/IP 6 ICMP (RFC 4443)
TFTP Client
OIP LAN Support (802.1q/802.1p)
HTTP/HTTPS Server
QoS Support
Support IP 4 only, IP 6 only or dual stack mode
Environmental
Actual Dimension: 17.5 × 3.2 × 12.6 mm (Desktop)
Weight: 0.5kg (one unit with packing)
Operating Temp. & Humidity
-Temp.: 0℃～45℃ (32℉～113℉)
-Humidity: 10％～85% relative humidity, non-condensing
Storage Temp. & Humidity
-Temp.: 0℃～55℃ (32℉～131℉)
-Humidity: 10％～95％ relative humidity, non-condensing
AC to DC Power Adaptor:
-INPUT: AC100 -240 , 50/60Hz
-OUTPUT: DC 12 , 1.5A
Regulatory Compliance: FCC (Part 15, Class B) & CE
5
Front Panel: LED Indicators
Wellgate 2522
LED Description
Power When the power adapter is connected, the LED will light
up green.
Status When system startup successfully, the LED will light up
green.
Proxy When the gateway is registered successfully to a SIP
Proxy, this will light up green.
WAN This LED lights up green when the gateway’s WAN port is
physically connected to the public internet. When data is
transmitted through this port, it will flash green.
The default IP of WAN port is 10 1 1 3
LAN This LED lights up green when the gateway’s LAN port is
physically connected to a local network (Refer to Rear
Panel section). When data is transmitted through this
port, it will flash green.
The default IP of LAN port is 192 168 123 123
Port1~Port4 The status LED for FXO and FXS port 1-4, these LEDs light
up amber orange when connected phone is engaged in a
conversation mode (FXO). It will flash amber orange when
there is an incoming call (FXS).
6
Rear Panel:
Wellgate 2522
Item Description
Reset Press and hold over 5 seconds to reload factory default
setting, this action will erase all existing settings
configured on this gateway.
Line1, Line2
(FXO Ports)
The status LED for FXO port 1-2. When there is no PSTN
line connected, this LED becomes blinking to remind you.
When PSTN line is connected and no talking, the LED is
OFF. When a line is using, the LED becomes steady light
up.
TEL1, TEL2
(FXS Ports)
The status LED for FXS port 1-2, it will light up amber
orange when the connected phone’s handset is lifted, or
when the connected phone is engaged in a conversation.
It will flash amber orange when there is an incoming call.
LAN 10/100 Base-T RJ-45 socket for LAN port, connects to PC
for management purpose.
WAN 10/100 Base-T RJ-45 socket for WAN port, connects to
wide area network.
DC 12 The power socket, input AC 100 ~240 ; output DC12 ,
1.5A
7
QUICK SETUP
Login :
Setp1:
Setup the administrative PC’s IP address to be the same as WellGate
2522 and connect the Ethernet cable to WAN or LAN port. Start Windows IE6.0
(or later version) to navigate WellGate 2522 web management system by
typing the default URL which is http://192.168.123.123 (through LAN port)
or http://10.1.1.3 (through WAN port). The screen will display User Name
and Password (the default user ID is root and user password is root). (Fig.1)
Note : WellGate 2522 Web browser does not support FireFox Web browser. DO
NOT use FireFox to configure WellGate 2522, otherwise you may meet an
unstable configuration.
Fig.1
Step 2: After login, the screen shows the Home page of WellGate2522. (Fig.2)
8
Fig.2
Change Default IP Networ :

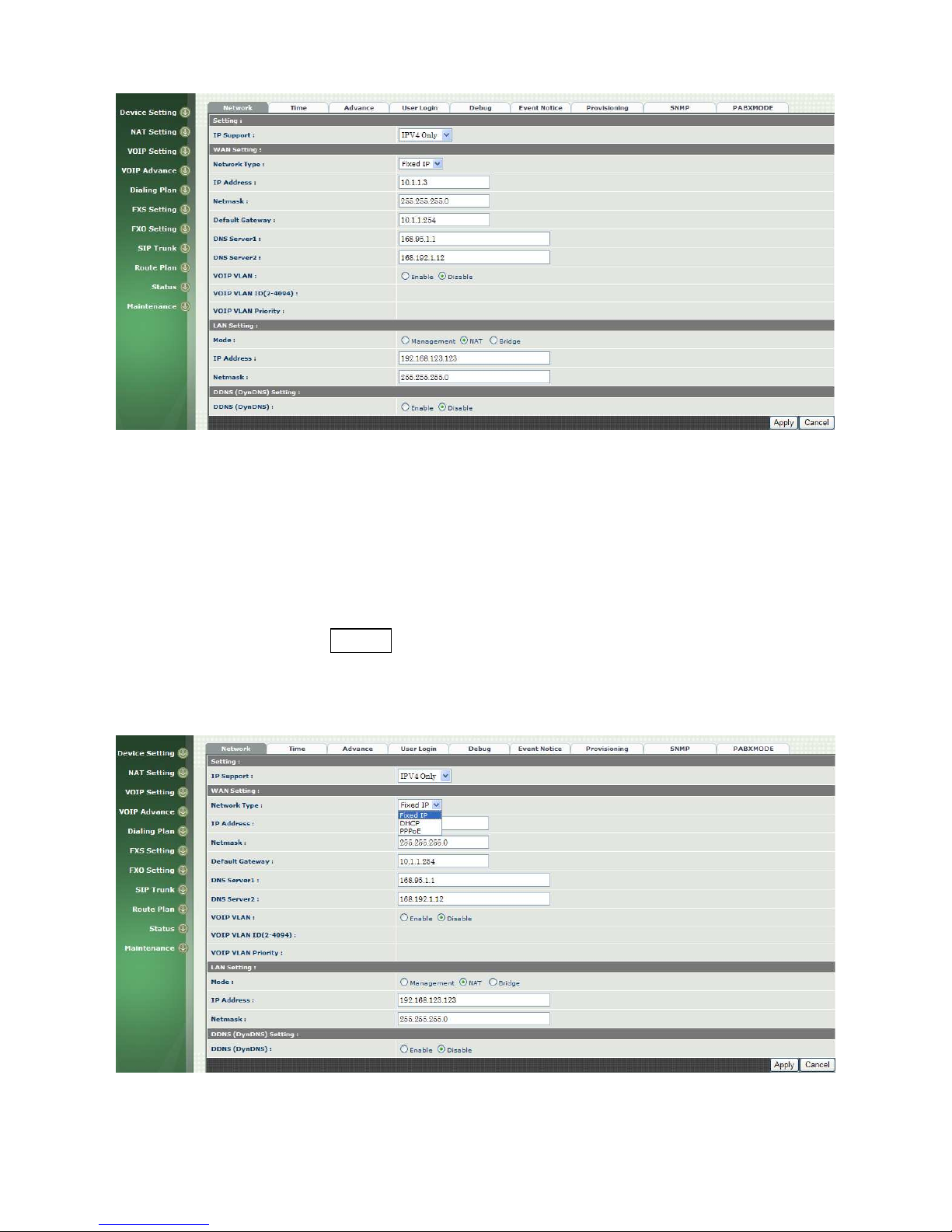

Step 3: After successfully logon to the system, we need to change the
network configuration. Click Device Setting > Networ to setup the service
network interface (WAN) parameters. Enter the desired IP address ( IPv4 or
IPv6 ), Subnet mask and default gateway or select “DHCP” or “PPPOE”. Apply
the change by clicking Apply button as fig (Fig.3).
Note: If your WAN port is setting in the 10 x x x segment IP address, please
make sure that you also need to change the LAN port to other segment such as
192 168 x x
(Fig.3)
9
Change Default Time setting:
Step 4: When re-login to the new IP address, the next step is to setup the
system time zone. Click Device Setting > Time to setup the system. Enter
the current SNTP server IP address, time zone and daylight saving parameters.
Apply the change by clicking Apply button. (Fig.4)
(Fig.4)
Modify FXS SIP Settings:
Step 5: Set the SIP proxy server IP address for FXS calling. All FXS ports are
using the same SIP proxy setting. If you need to use different SIP proxy server,
please use SIP trunk instead. Click FXS Setting > SIP Proxy to setup the
dedicated FXS SIP proxy server. (Fig. 5)
(Fig. 5)
10
Step 6: Setup each FXS line’s parameters by clicking the Line ID from FXS
settings > FXS Line. Modify the SIP register information and apply it. (Fig. 6)
(Fig. 6)
Soft Reset WellGate 2522:
Step 7: After modify basic setting. It is required to reset WellGate 2522. Click
Maintenance > Maintenance > Soft-Reset or Reboot to take effect.
Apply the change by clicking Apply button. (Fig.7)
(Fig.7)
