Welltech 2540 FXO

Gateway User Guide

Version: 2.09a

Date: 2014/03

Contents

CH1 Introduction................................................................................... 4

1-1 Physical Interface ............................................................................. 4

1-2 IP Network connection.................................................................. 4

1-3 Environmental................................................................................ 5

1-4 Front Panel: LED Indicators.......................................................... 5

1-5 Rear Panel: LED Indicators........................................................... 6

1-6 QUICK SETUP ................................................................................ 7

CH2 Device Settings............................................................................. 12

2-1 Network Configuration................................................................... 12

2-2 Device Time Setting ....................................................................... 14

2-3 Device Advance Setting.................................................................. 15

2-4 User Login Setting.......................................................................... 16

2-5 Debug Settings................................................................................ 17

2-6 Event Notice................................................................................... 18

2-7 Auto Provisioning........................................................................... 19

2-8 SNMP ............................................................................................. 21

CH3 NAT Setting ................................................................................. 22

3-1 DHCP Ser. (DHCP server).............................................................. 22

3-2 UPNP (universal plug and play server).......................................... 23

3-3 Bandwidth (Bandwidth Control).................................................... 23

3-4 URL Filter....................................................................................... 27

3-5 IP Filter........................................................................................... 28

3-6 MAC Filter ..................................................................................... 28

3-7 APP Filter........................................................................................ 29

3-8 Port Filter........................................................................................ 29

3-9 Port Fwd ......................................................................................... 30

CH4 VOIP Setting................................................................................ 31

4-1 SIP .................................................................................................. 31

4-2 Audio .............................................................................................. 33

4-3 Tone ................................................................................................ 35

4-4 NAT Traversal................................................................................. 36

CH5 VOIPAdvance ............................................................................. 37

5-1 SIP .................................................................................................. 37

5-2 Audio .............................................................................................. 40

5-3 Ring ................................................................................................ 41

CH6 Dialing Plan................................................................................. 42

6-1 General............................................................................................ 42

6-2 Dialing Rule.................................................................................... 43

6-3 Digit Manipulation ......................................................................... 44

6-4 Phone Book..................................................................................... 45

CH7 FXO Setting................................................................................. 46

7-1 FXO line......................................................................................... 47

CH8 SIP Trunk .................................................................................... 49

8-1 Create SIP Trunk............................................................................. 50

CH9 Route Plan................................................................................... 52

9-1 Create Route Plan........................................................................... 53

CH10 Status.......................................................................................... 55

10-1 Device States ................................................................................ 55

10-2 Line States .................................................................................... 56

10-3 SIP Trunk States............................................................................ 57

CH11 Maintenance.............................................................................. 58

11-1 Firmware Update .......................................................................... 59

CH12 Logout........................................................................................ 59

Appendix A --- System Recovery......................................................... 60

Appendix B --- HTTP auto provisioning.............................................. 63

Appendix C--- WellGate 2504 (4-FXS) and WellGate 2540(4-FXO) in

peer to peer mode with hotline by port to port application................... 65

Welltech 2540

CH1 Introduction

2540 Telephony Gateway

The Welltech 2540 is a 4 ports FXO (WellGate 2540) VoIP gateway which

includes 1-WAN/1-LAN (management port) 10/100 base-T network

environment. Field-proven quality of Voice communication and Fax

transmission over IP broadband access network to makes WellGate 2540 to be

an excellent solution for various VoIP applications.

1-1 Physical Interface

Ethernet port (RJ-45, 10/100 base-T)

1-WAN port, for connect to router, ADSL modem (ATU-R), or switch

hub directly.

1-LAN port, for PC, management or other network devices

connecting.

Telephony port (RJ-11)

4-FXO ports, to connect to PSTN lines

DC power Jack

Status indicated LED

Indicates Power, Ethernet, Line, SIP and system status

1-2 IP Network connection

IPv4 (RFC 791)/IPV6 (RFC 2460)

IPv6 Auto Configuration (RFC 4862)

MAC Address (IEEE 802.3)

Static IP

DHCP Client (RFC 2131)

PPPoE

DNS Client

TCP/UDP (RFC 793/768)

RTP/RTCP (RFC 1889/1890)

IPV4 ICMP (RFC 792)/IPV6 ICMP (RFC 4443)

TFTP Client

VOIP VLAN Support (802.1q/802.1p)

HTTP/HTTPS Server

QoS Support

Support IPV4 only, IPV6 only or dual stack mode

1-3 Environmental

Actual Dimension: 35 × 242 × 160 mm (Desktop)

Weight: 0.935kg (unit without packing)

Operating Temp. & Humidity

- Temp.: 0℃～45℃(32℉～113℉)

- Humidity: 10％～85% relative humidity, non-condensing

Storage Temp. & Humidity

- Temp.: 0℃～55℃(32℉～131℉)

- Humidity: 10％～95％relative humidity, non-condensing

AC to DC Power Adaptor:

- INPUT: AC100V-240V, 50/60Hz

- OUTPUT: DC 12V, 1.5A

Regulatory Compliance: FCC (Part 15, Class B) & CE

1-4 Front Panel: LED Indicators

WellGate 2540

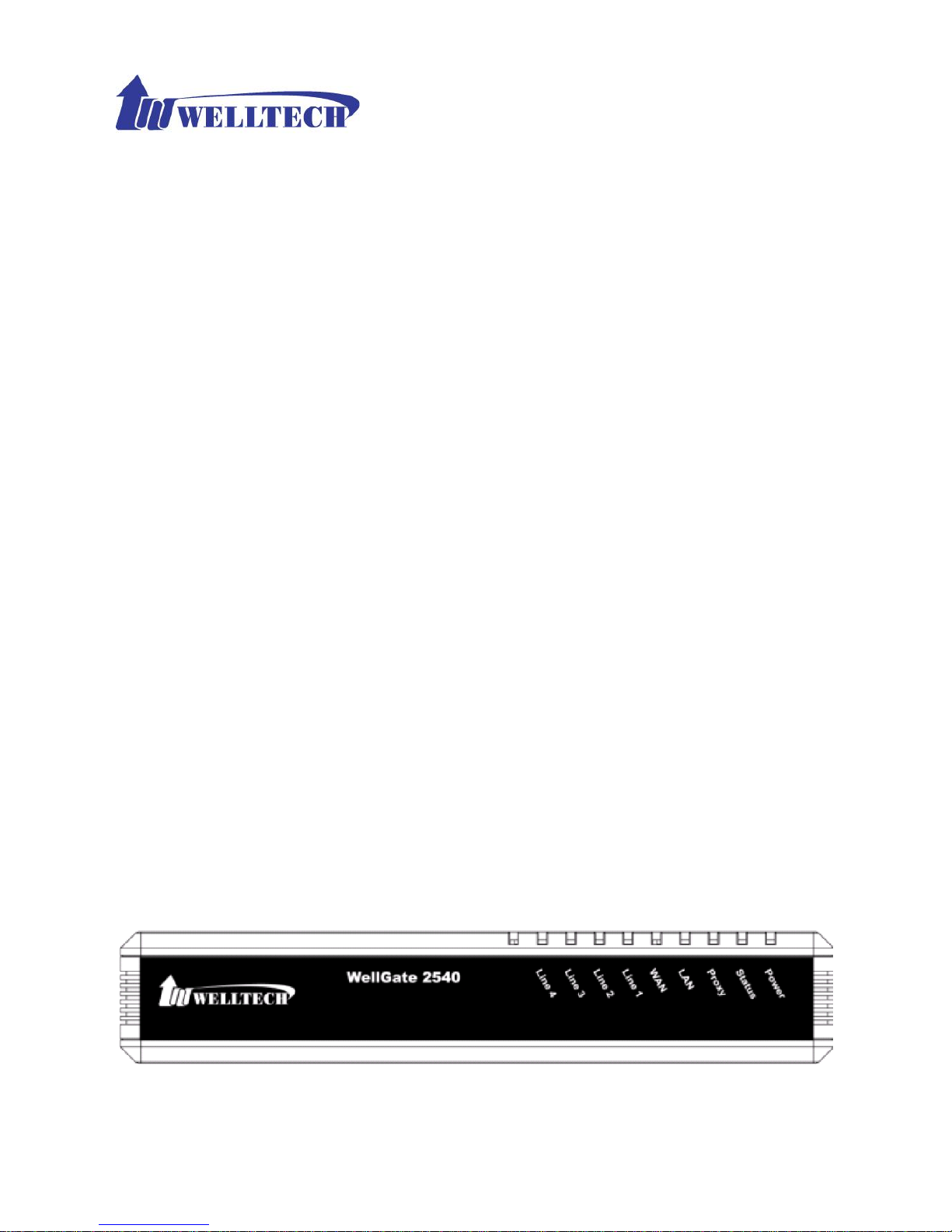

Figure 1-4-1 front panel

LED

Description

Power

When the power adapter is connected, the LED will light

up green.

Status

When system is startup successfully, the LED will light up

green.

Proxy

When the gateway is registered successfully to a Proxy,

this will light up green.

WAN

This will light up green when the gateway’s WAN port is

physically connected to the public internet. When data is

transmitted through this port, it will flash green.

The default IP of WAN port is 10.1.1.3.

LAN

This will light up green when the gateway’s LAN port is

physically connected to a local network (Refer to Rear

Panel section in page number for location of LAN port).

When data is transmitted through this port, it will flash

green.

The default IP of LAN port is 192.168.123.123.

Line1~Line4

The status LED for FXO port 1-4, this will light up amber

orange when the connected phone is engaged in a

conversation. It will flash amber orange when there is an

incoming call.

1-5 Rear Panel: LED Indicators

WellGate 2540

Figure 1-4-1 rear panel for FXO

Item

Description

Reset

Press and hold over 5 seconds to reload factory default

setting, this will erase all existing settings configured on

this gateway.

L1 - L4

The status LED for FXO port 1-4. When there is no PSTN

connected, this LED will become blinking. When PSTN is

connected and no talking, the LED will be off. When a line

is using, the LED will become light up. (WellGate 2540

only)

LAN

10/100 Base-T RJ-45 socket for LAN port, connects to PC

for management purpose.

WAN

10/100 Base-T RJ-45 socket for WAN port, connects to

wide area network.

DC 12V

The power socket, input AC 100V~240V; output DC12V,

1.5A

1-6 QUICK SETUP

Note:

Please use Windows XP IE 6.0 web browser or above version to

configure FXO gateway webpage setting. Welltech products don’t

support other Web Browser such as FireFox to configure.

Setp1: Setup the administrative PC’s IP address to be same as Welltech 2540

and connect the Ethernet cable into WAN or LAN port. Start IE6.0 (or later

version) to navigate Welltech 2540 web management system by typing the

default URL which is http://192.168.123.123 (through LAN port) or

http://10.1.1.3 (through WAN port). The screen will display User Name

and Password (the default user id is root and user password is root). (See

figure 1-6-1 web access)

Figure 1-6-1 web access

Step 2: After login, the screen shows the Home page of Welltech 2540. (See

figure 1-6-2 Network configure-1)

Figure 1-6-2 Network configure-1

Change Default IP Network:

Step 3: After successfully logon to the system, we need to change the

network configuration. Click Device Setting > Network to setup the service

network interface (WAN) parameters. Enter the deserved IP address, netmask

and default gateway or selected to “DHCP” or “PPPOE”. Apply the change by

clicking Apply button as fig (See Figure 1-6-3 Network configure-2).

Note: If Gateway WAN port are setting in the 10.x.x.x segment, please make

sure that you also change the LAN port to other segment such as 192.168.x.x

Figure 1-6-3 Network configure-2

Change Default Time setting:

Step 4: When re-logon to the new IP address, the next is to setup the system

time zone. Click Device Setting > Time to setup the system. Enter the

current SNTP server, time zone and daylight saving parameters. Apply the

change by clicking Apply button. (See figure 1-6-4 Time setting)

Figure 1-6-4 Time setting

Modify SIP Account Parameter:

Step 5: The next step is to add a SIP trunk for VOIP calling. For WellGate 2540,

it is necessary for VOIP calling . Click SIP trunk and new to create the

required sip trunk. Enter the trunk ID to 1 and input those SIP parameters.

Apply the change by clicking Apply button. (See Figure 1-6-5 SIP Trunk)

Figure 1-6-5 SIP Trunk

Soft Reset Welltech 2540:

Step 6: After modify basic setting. It is required to reset Welltech 2540. Click

Maintenance > Maintenance > Quick-Reset or Reboot to take effect.

Apply the change by clicking Apply button. (See Figure 1-6-6 Quick-Reset)

Figure 1-6-6 Quick-Reset

Check Welltech 2540 Registered Status:

Step 7: After Quick-Reset or reboot.

>Click Status > SIP Trunk Status to check whether registered or not. (See

figure 1-6-7 SIP trunk status)

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels WELLTECH Porte

WELLTECH

WELLTECH 3701 - RELEASE NOTE V106A Mode d’emploi

WELLTECH

WELLTECH WellGate 3512 Manuel utilisateur

WELLTECH

WELLTECH WILLGATE26XX - RELEASE NOTE V105B Manuel utilisateur

WELLTECH

WELLTECH Wellgate 26xx Series Manuel utilisateur

WELLTECH

WELLTECH WellGate 3232s Manuel utilisateur

WELLTECH

WELLTECH ATA 171P - RELEASE NOTE V103 Mode d’emploi

WELLTECH

WELLTECH FXO - ACHIEVE ONE-STAGE DIALING Manuel utilisateur

WELLTECH

WELLTECH FXO GATEWAY H.323 3802 Manuel utilisateur

WELLTECH

WELLTECH 2504 Manuel utilisateur

WELLTECH

WELLTECH 3502 - RELEASE NOTE V114 Mode d’emploi

WELLTECH

WELLTECH WELLGATE 2522 Manuel utilisateur

WELLTECH

WELLTECH IAD 161 H.323 Manuel utilisateur

WELLTECH

WELLTECH FXO GATEWAY H.323 3802 Manuel utilisateur

WELLTECH

WELLTECH FXS H.323 Gateway Manuel utilisateur

WELLTECH

WELLTECH FXSO GATEWAY H.323 3701A - VERSION 1.0 Manuel utilisateur

WELLTECH

WELLTECH WELLGATE 2626 - V1.00 Manuel utilisateur

WELLTECH

WELLTECH 5290 - SS7 PARAMETERS REQUIREMENT Manuel utilisateur

WELLTECH

WELLTECH WG2626 - RELEASE NOTE V106 Mode d’emploi

WELLTECH

WELLTECH FXO GATEWAY H.323 3802 Manuel utilisateur

WELLTECH

WELLTECH ATA171PLUS - Manuel utilisateur

WELLTECH

WELLTECH WILLGATE26XX - RELEASE NOTE V106A Manuel utilisateur

WELLTECH

WELLTECH FXO GATEWAY H.323 3802 Manuel utilisateur

WELLTECH

WELLTECH WILLGATE26XX - RELEASE NOTE V106B Manuel utilisateur

WELLTECH

WELLTECH WELLGATE 2608 - V1.00 Manuel utilisateur

Manuels Porte populaires d'autres marques

LST

LST M500RFE-AS Manuel utilisateur

Kinnex

Kinnex Media Gateway Manuel utilisateur

2N Telekomunikace

2N Telekomunikace 2N StarGate Manuel utilisateur

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries Superlink SC-WBGW256 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications ZYWALL2 ET 2WE Manuel utilisateur

Telsey

Telsey CPVA 500 - SIP Manuel utilisateur

RTA

RTA 460A-NNA4 Fiche technique

Shaw

Shaw Gateway HDPVR Manuel utilisateur

ABB

ABB VSN900 Guide de démarrage rapide

Commander

Commander Pulse Manuel utilisateur

2N Telekomunikace

2N Telekomunikace ATEUS EasyGate 501309E Manuel utilisateur

NETGEAR

NETGEAR C6300BD Manuel utilisateur

Amit

Amit CDW531AM Manuel utilisateur

HMS

HMS Netbiter EasyConnect EC150 Manuel utilisateur

Huawei

Huawei EchoLife HG620 Manuel utilisateur

AT&T

AT&T U-verse 3801 Manuel d'utilisation et d'entretien

Logic IO

Logic IO RTCU MX2 turbo Manuel utilisateur

Suttle

Suttle MediaMAX MXM-521 Manuel utilisateur
