WELLTECH FXO GATEWAY H.323 3802 Manuel utilisateur
F
FX
XO
OG
GA
AT
TE
EW
WA
AY
Y
U
Us
se
er
rM
Ma
an
nu
ua
al
l
(
(
3
3
8
8
0
0
2
2
/
/
0
0
4
4
/
/
0
0
6
6
)
)
STEPS IN CONFIGURATION 2
1. START UP 3
1.1 Introduction 3
1.2 Features and specification 3
1.3 Accessories and equipment 4
1.4 Appearance 5
1.4.1 3802 5
1.4.2 3804 6
1.4.3 3806 7
2. HOW TO SETUP AND CONNECT BASICALLY 9
2.1 System Requirement 9
2.2 IP Environment Setting 10
2.2.1 For Windows 2000/NT 10
2.3 Network configurations in your gateway 12
2.3.1 Static ip address 14
2.3.2 DHCP mode 16
2.3.3 PPPoE mode 17
2.4 Making a VoIP Call 18
2.4.1 Configure the gateway into the Peer-to-Peer mode 19
2.4.2 Configure the gateway into the GK routed mode 21
2.4.2.1 The type in GK routed mode 22
3. COMMAND LIST 24
3.1 Hyper Terminal Setting 24
3.2 Command List 27
3.2.1 [help] command 27
3.2.2 [quit] command 27
3.2.3 [debug] command 28
3.2.4 [reboot] command 28
FXSO H.323 Gateway User Manual Document Ver.: 177A
Release OCT., 2003
1
3.2.5 [flash] command 29
3.2.6 [commit] command 29
3.2.7 [ifaddr] command 30
3.2.8 [time] command 32
3.2.9 [ping] command 32
3.2.10 [greetrd] command 33
3.2.11 [pbook] command 35
3.2.12 [pppoe] 38
3.2.13 [ddns] command 38
3.2.14 [sysconf] command 40
3.2.15 [h323] command 44
3.2.16 [voice] command 46
3.2.17 [tos] command 48
3.2.18 [tone] command 49
3.2.19 [support] command 50
3.2.20 [group] command 51
3.2.21 [bureau] command 53
3.2.22 [prefix] command 54
3.2.23 [rom] command 55
3.2.24 [passwd] command 57
FXSO H.323 Gateway User Manual Document Ver.: 177A
Release OCT., 2003
2
Steps in configuration
STEP 1
Start Up
To check out the peripheral equipments and
understand the feature of this gateway. Please
read this step very carefully before starting the
configuring.
Connecting the gateway and computer to start
configuring by WEB GUI.
STEP 2
How to
Setup and
Connect
basically
Setting the ip address for this gateway to make
sure that it could connect with the internet.
Setting the configurations of dialing, including the
Peer-To-Peer, GK mode and how to set these
tables to make calls by this gateway easily.
The other configurations of make call will be
discussed in this step.
STEP 4
Command
List
To explain the meaning of the command in the
command line interface and example the usage of
the command.
To get more usages or configuration in this step
and study about the command line configuration.
FXSO H.323 Gateway User Manual Document Ver.: 177A
Release OCT., 2003
3
1. Start Up
1.1 Introduction
The WellGate FXO gateway provides voice/fax service over IP network with H.323 v3
protocol. By connecting to your existing ADSL or cable modem service, which allows the
use of a single, network for voice and fax services with consequent saving in network
infrastructure and greatly reduced telephone charges. Ideal solution for providing low cost
communications between headquarters and branch offices in the world, as well as for
SOHO and office telephony applications.
WellGate FXO GateWay provides analog lines to connect local PSTN/PTT interface (FXO),
and converts voice/fax signal onto IP network. The management feature is via RS-232C
COM port and TELNET.
1.2 Features and specification
Features
- ITU-T H.323 v3 compliance
- Automatically Gatekeeper Discovery
- Peer-to-Peer mode (non-Gatekeeper)
- Support auto-attendant (2nddial Tone / Voice greeting)
- Dimensions : 221mm(W)*42mm(H)*217mm(L)
- Line hunting
- 2(3802)/4(3804)/6(3806) RJ-11 FXO ports
- E.164 (Telephone Number Plan)
- DTMF dialing
- DTMF detection/generation
- TFTP software upgrade
- Remote configuration/reset via Telnet
- LED indication for system status
- LAN interface : One RJ-45 connector of 10Base-T
- Microsoft Netmeeting v3.0 compatible
- Support static IP and DHCP
- QoS by ToS (Type Of Service)
FXSO H.323 Gateway User Manual Document Ver.: 177A
Release OCT., 2003
4
- SNTP (Simple Network Time Protocol)
- Security: Password setting
Audio feature
- Codec -- G.711 a/μlaw, G.723.1 (6.3K/bps), G.729A (Optional)
- VAD (Voice Activity Detection), CNG (Comfort Noise Generate)
- G.168/165-compliant adaptive echo cancellation
- Dynamic Jitter Buffer
- Bad Frame Interpolation
- Call Transfer (H.450.2)
- Call Forward (H.450.3)
- Call Hold (H.450.4)
- Gain Settings
- Provide Call Progress Tone: Dial tone, busy tone, call-holding tone and ring-back tone
Management Features:
Two easy ways for system configuration
- Console port: RS-232C port
- TELNET
- HTTP Brower (e.g. Internet Explorer)
1.3 Accessories and equipment
The voice gateway in 2/4/6 FXO ports models and only one RJ-45 connector (WAN).
The AC adapter.
The CD of user manual.
The connection cable in RS-232 interface.
FXSO H.323 Gateway User Manual Document Ver.: 177A
Release OCT., 2003
5
1.4 Appearance
1.4.1 3802
Front panel: The LED light provides system message of WellGate3802.
Power : Light on means WellGate3802 is power on.
L1-L2 : Light on means the line is in use.
Link : Light on means WellGate3802 is connected to the network correctly.
Act : LED should be light on and in flash display when data is transmitting.
Ready : 1. Light on and in slow flash means WellGate3802 is in operation mode.
Status : 1. Light on means WellGate3802 successfully registered to Gatekeeper when
it is set as Gatekeeper Mode.
2. LED flash means WellGate3802 is not registered to Gatekeeper when it is
set as Gatekeeper Mode.
3. Or when WellGate3802 is in downloading mode, LED should be flash as
well.
4. Light off means WellGate3802 is in Peer-to-Peer Mode.

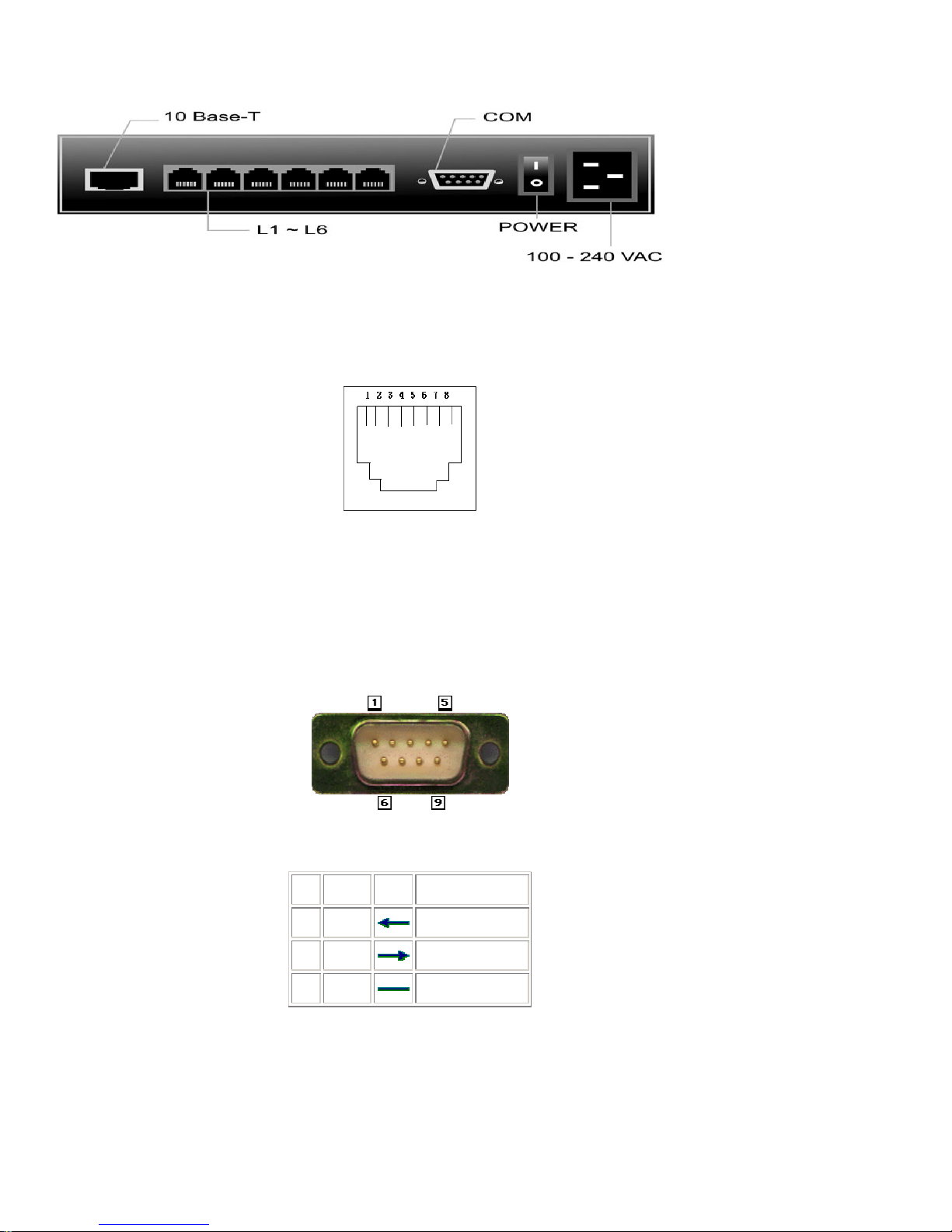

Back panel:
FXSO H.323 Gateway User Manual Document Ver.: 177A
Release OCT., 2003
6
1.4.2 3804
Front panel: The LED light provides system message of WellGate FXO GateWay.
Power : Light on means WellGate FXO GateWay is power on.
L1-L4 : Light on means the line is in use.
Link : Light on means WellGate FXO GateWay is connected to the network correctly.
Act : LED should be light on and in flash display when data is transmitting.
Ready : 1. Light on and in slow flash means WellGate FXO GateWay is in operation
mode.
Status : 1. Light on means WellGate FXO GateWay successfully registered to
Gatekeeper when it is set as Gatekeeper Mode.
2. LED flash means WellGate FXO GateWay is not registered to Gatekeeper
when it is set as Gatekeeper Mode.
3. Or when WellGate FXO GateWay is in downloading mode, LED should be
flash as well.
4. Light off means WellGate FXO GateWay is in Peer-to-Peer Mode.
Back panel:
FXSO H.323 Gateway User Manual Document Ver.: 177A
Release OCT., 2003
7
1.4.3 3806
Front panel: The LED light provides system message of WellGate3806.
Power : Light on means WellGate3806 is power on.
L1-L6 : Light on means the line is in use.
Link : Light on means WellGate3806 is connected to the network correctly.
Act : LED should be light on and in flash display when data is transmitting.
Ready : 1. Light on and in slow flash means WellGate3806 is in operation mode.
Status : 1. Light on means WellGate3806 successfully registered to Gatekeeper when
it is set as Gatekeeper Mode.
2. LED flash means WellGate3806 is not registered to Gatekeeper when it is
set as Gatekeeper Mode.
3. Or when WellGate3806 is in downloading mode, LED should be flash as
well.
4. Light off means WellGate3806 is in Peer-to-Peer Mode.
Back panel:
FXSO H.323 Gateway User Manual Document Ver.: 177A
Release OCT., 2003
8
1. Ethernet Port
LAN/WAN: 10/100 Base-T; RJ-45 socket, complied with ETHERNET 10/100base-T.
The pin-out is as following:
PIN 1, 2: Transmit
PIN 3, 6: Receive
2. COM:
RS232 console port (DB-9pin male connector)
Note: use straightforward cable to connect to your computer.
PINOUTS
Pin Name Dir Description
2 RXD Receive Data
3 TXD Transmit Data
5 GND System Ground
3. TEL:
RJ-11 connector, FXS interface is for connecting the analog phone sets or trunk line of
