WARNING:To reduce the risk of serious injury, read the following important precautions

before using the resistance system.

IMPORTANT PRECAUTIONS

1. Read all instructions in this manual and in the

literature accompanying the resistance sys-

tem before using the resistance system. Use

the resistance system only as described in

the literature.

2. It is the responsibility of the owner to ensure

that all users of the resistance system are

adequately informed of all precautions.

3. Keep children under 12 and pets away from

the resistance system at all times.

4. Keep hands and feet away from moving parts.

5. Use only the resistance included with a MAX

PACK.Do not use other types of weight with

the resistance system.

6. When adding resistance, both ends of the

resistance bars must rest under the two “U”-

channels. Add and remove resistance bars

from the “U”-channels one resistance bar at a

time.

7. Keep clear of the area around the “U”-chan-

nels while the resistance system is in use. Do

not add or remove resistance bars from the

“U”-channels while the end of the long cable

is pulled out.

8. Make sure that all parts are properly tight-

ened each time the resistance system is

used. Replace any worn parts immediately.

9. If you feel pain or dizziness at any time while

exercising, stop immediately and begin cool-

ing down.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. ICON assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

BEFORE YOU BEGIN

Thank you for selecting the MAX by WEIDER™resis-

tance system MAX PACK accessory. The MAX by WEI-

DER uses progressive resistance. As the resistance

bars begin to bend, the amount of resistance will

increase gradually. As the resistance bars bend further,

the resistance will increase rapidly. The MAX PACK is

designed to increase the amount of resistance avail-

able on the MAX by WEIDER resistance system.

For your benefit, read this manual carefully before

using the MAX PACK and the resistance system. If

you have questions after reading this manual, see the

front cover of this manual. To help us assist you,

please note the product model number and serial

number before calling. The model number is

WEMC0942.1. The serial number can be found on the

product packaging. Record the serial number on the

front cover of this manual.

To avoid a registration fee for any service needed

under warranty, you must register the MAX PACK

accessory at www.weiderservice.com/registration.

ASSEMBLY

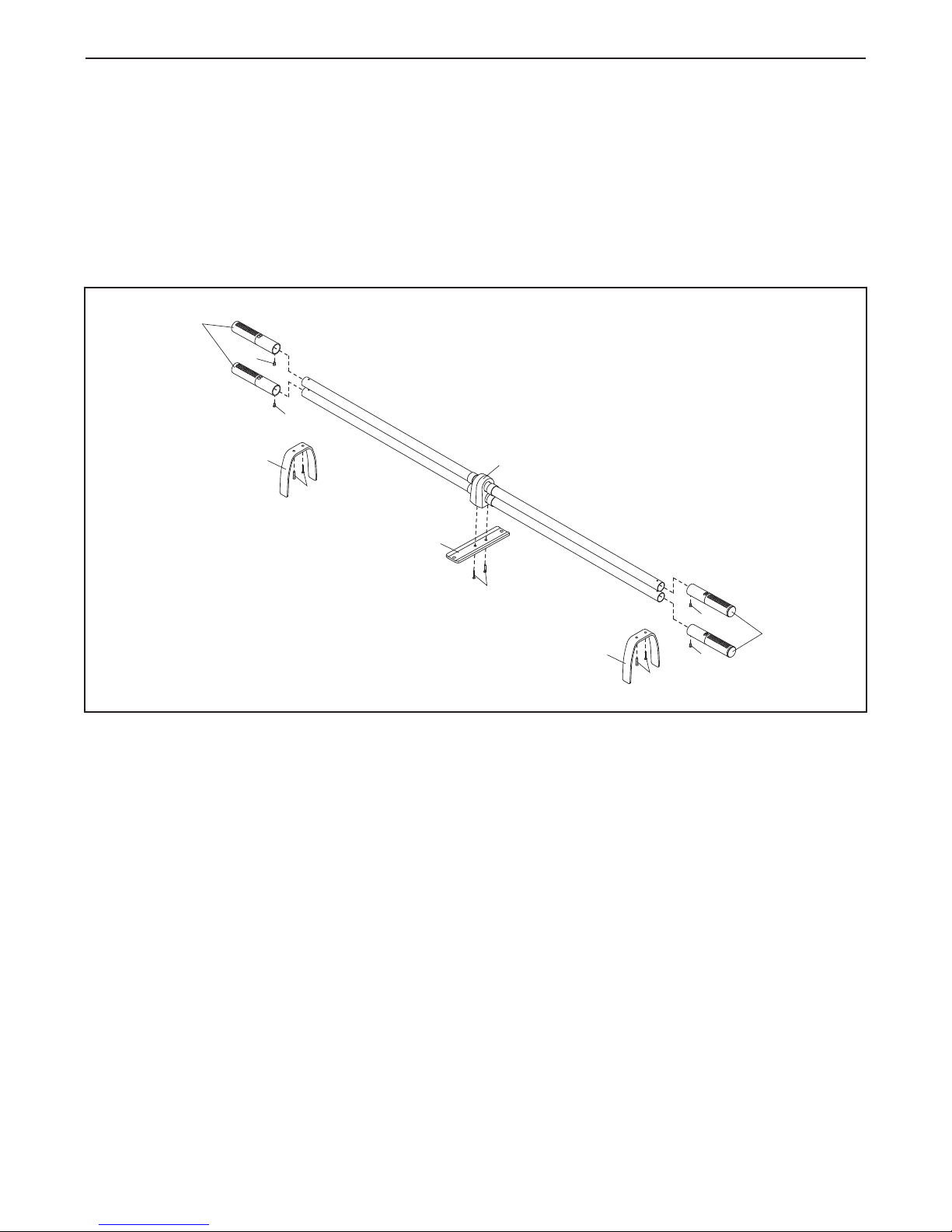

Attach a Cap (2) to one end of the Resistance

Bars (1) with an M4 x 12mm Flat Head Screw (5).

Attach the other Caps in the same manner.

2. Attach the Cover Plate (3) to the Resistance Bars

(1) with two 1/4" x 25mm Flat Head Screws (6).

Make sure the Cover Plate is oriented with the

edges up.

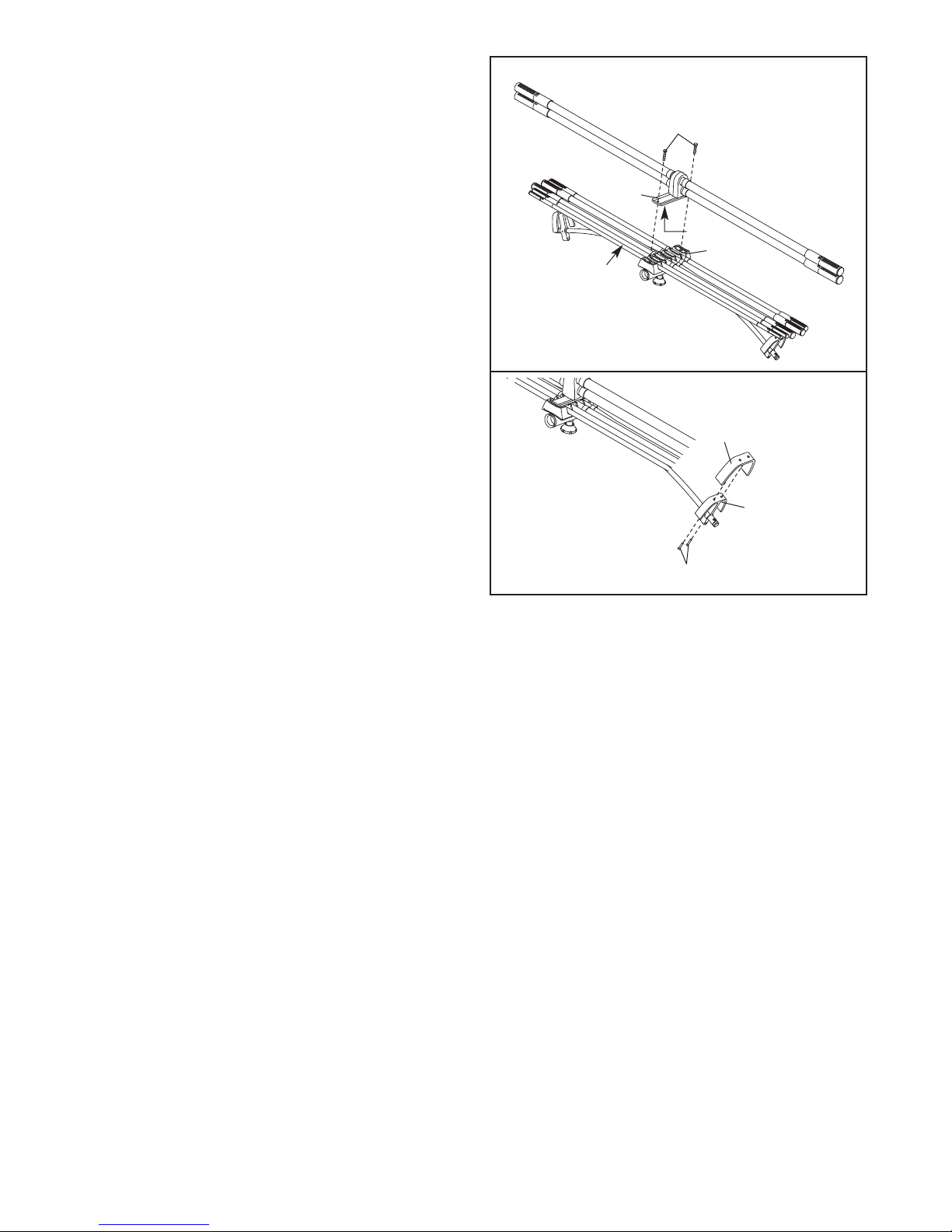

3. Locate the Tray (B) on the resistance system.

Remove the two indicated Button Head Screws

Cover Plate aside. Note: The resistance bar

assembly is shown removed from the resis-

tance system for clarity.

Before beginning assembly, make sure that

you have read and understand the informa-

tion in the box above.

Edges

Before beginning assembly, carefully read the

following information and instructions:

•Assembly requires two people.

•Tighten all parts as you assemble them, unless

instructed to do otherwise.

•Make sure all parts are oriented as shown in the

drawings.

•Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materials until assembly is completed.

The following tools (not included) are required

for assembly:

• One standard screwdriver

• One Phillips screwdriver

• One Allen wrench (included

with the MAX by WEIDER

resistance system)

Assembly will be more convenient if you have a

socket set, a set of open-end or closed-end

wrenches, or a set of ratchet wrenches.

5. Attach a “U”-channel Extension (4) to a “U”-chan-

nel (D) with two 1/4" x 12mm Flat Head Screws

(7).

Attach the other “U”-channel Extension (4) to

the other “U”-channel (D) in the same manner.

6. Make sure that all parts have been properly tightened. To use the MAX PACK to add resistance, refer

to ADJUSTING THE RESISTANCE in the resistance system user’s manual.

4. Attach the Cover Plate (3) to the Tray (B) with the

two Button Head Screws (C) that were removed

instep 3. Note: Make sure the decal is over the

indicated resistance bars

Decal

Resistance

Bars

PART LIST/EXPLODED DRAWING—Model No. WEMC0942.1 R1005A

1 1 Resistance Bars

24 Cap

3 1 Cover Plate

4 2 “U”-channel Extension

5 4 M4 x 12mm Flat Head Screw

62 1/4" x 25mm Flat Head Screw

7 4 1/4" x 12mm Flat Head Screw

# 1 User’s Manual

Key No. Qty. Description Key No. Qty. Description

Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice.

To order replacement parts, see the front cover of this manual. To help us assist you, please be prepared to give

the following information:

• the MODEL NUMBER of the product (WEMC0942.1)

•the NAME of the product (MAX by WEIDER resistance system MAX PACK accessory)

• the SERIAL NUMBER of the product (see the front cover of this manual)

• the KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST and EXPLODED DRAWING on page

6of this manual)

ORDERING REPLACEMENT PARTS

ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and

material, under normal use and service conditions. ICON warrants the resistance bars for the lifetime of

the product, and all other parts for five (5) years. This warranty extends only to the original purchaser.

ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the product

through one of its authorized service centers. All repairs for which warranty claims are made must be pre-

authorized by ICON. If the product is shipped to a service center, freight charges to and from the service

center will be the customer’s responsibility. For in-home service, the customer will be responsible for a

minimal trip charge. This warranty does not extend to any product or damage to a product caused by or

attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an

ICON authorized service center; products used for commercial or rental purposes; or products used as

store display models. No other warranty beyond that specifically set forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con-

nection with the use or performance of the product or damages with respect to any economic loss, loss

of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other

consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of inci-

dental or consequential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of

merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth

herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above

limitation may not apply to you.

This warranty gives you specific legal rights. You may also have other rights which vary from state to state.

ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813

LIMITED WARRANTY
