USER’S MANUAL

Model No. WESY97310

Serial No.

The serial number is found in the

location shown below. Write the

serial number in the space above.

Serial

Number

Decal

Patent Pending

Visit our website at

www.weiderfitness.com

new products, prizes,

fitness tips, and much more!

QUESTIONS?

If you have questions, or if there

are missing or damaged parts,

we will guarantee complete satis-

faction through direct assistance

from our factory.

TO AVOID UNNECESSARY

DELAYS, PLEASE CALL DIRECT

TO OUR TOLL-FREE CUSTOMER

HOT LINE. The trained techni-

cians on our customer hot line

will provide immediate assis-

tance, free of charge to you.

CUSTOMER HOT LINE:

1-800-999-3756

Mon.–Fri., 6 a.m.–6 p.m. MST

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

Important Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Cable Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Trouble-shooting and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Weight Resistance Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Ordering Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

Note: A PART LIST/EXPLODED DRAWING and a PART IDENTIFICATION CHART are attached in the center of

this manual. Remove the PART LIST/EXPLODED DRAWING and the PART IDENTIFICATION CHART before

beginning assembly.

Table of Contents

Important Precautions

WARNING: To reduce the risk of serious injury, read the following important precau-

tions before using the home gym.

1. It is the responsibility of the owner to ensure

that all users of the home gym are adequate-

ly informed of all precautions.

2. Read all instructions in this manual and in

the accompanying literature before using the

home gym.

3. If you feel pain or dizziness at any time while

exercising, stop immediately and begin cool-

ing down.

4. Use the home gym only on a level surface.

Cover the floor or carpet beneath the home

gym for protection.

5. Inspect and tighten all parts often. Replace

any worn parts immediately.

6. Make sure the cables remain on the pulleys

at all times. If the cables bind while you are

exercising, stop immediately and make sure

the cables are on all of the pulleys.

7. Always stand on a foot plate when perform-

ing an exercise that could cause the home

gym to tip.

8. Keep hands and feet away from moving parts.

9. Keep children under the age of 12 and pets

away from the home gym at all times.

10. Always wear athletic shoes for foot protec-

tion when exercising.

11. Never release the press arms, butterfly arms,

leg lever, lat bar or ab strap while weights are

raised. The weights will fall with great force.

12. Always disconnect the lat bar or ab strap

from the home gym when performing an

exercise that does not use the attachments.

13. The home gym is intended for home use only.

Do not use the home gym in a commercial,

rental or institutional setting.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. ICON assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

ASSEMBLED

DIMENSIONS:

Height: 77 in.

Width: 80 in.

Depth: 55 in.

Low Pulley

Station

Foot Plate

Leg

Lever

Press Arms

Backrest

Curl Pad

Butterfly

Arms

Ab Pulley

Station

Weight

Stacks

Leg

Press

Lever

Thank you for selecting the innovative and versatile

WEIDER®PRO 9940 home gym. The WEIDER®PRO

9940 offers a unique selection of weight stations

designed to develop every major muscle group of the

body. Whether your goal is to tone your body, build

dramatic muscle size and strength or improve your

cardiovascular system, the WEIDER®PRO 9940

makes it easy to achieve the results you want.

For your benefit, read this manual carefully before

using the WEIDER®PRO 9940 home gym. If you

have additional questions, please call our Customer

Service Department toll-free at 1-800-999-3756,

Monday through Friday, 6 a.m. until 6 p.m. Mountain

Time (excluding holidays). To help us assist you,

please note the product model number and serial

number before calling. The model number is

WESY97310. The serial number can be found on a

decal attached to the home gym (see the front cover

of this manual).

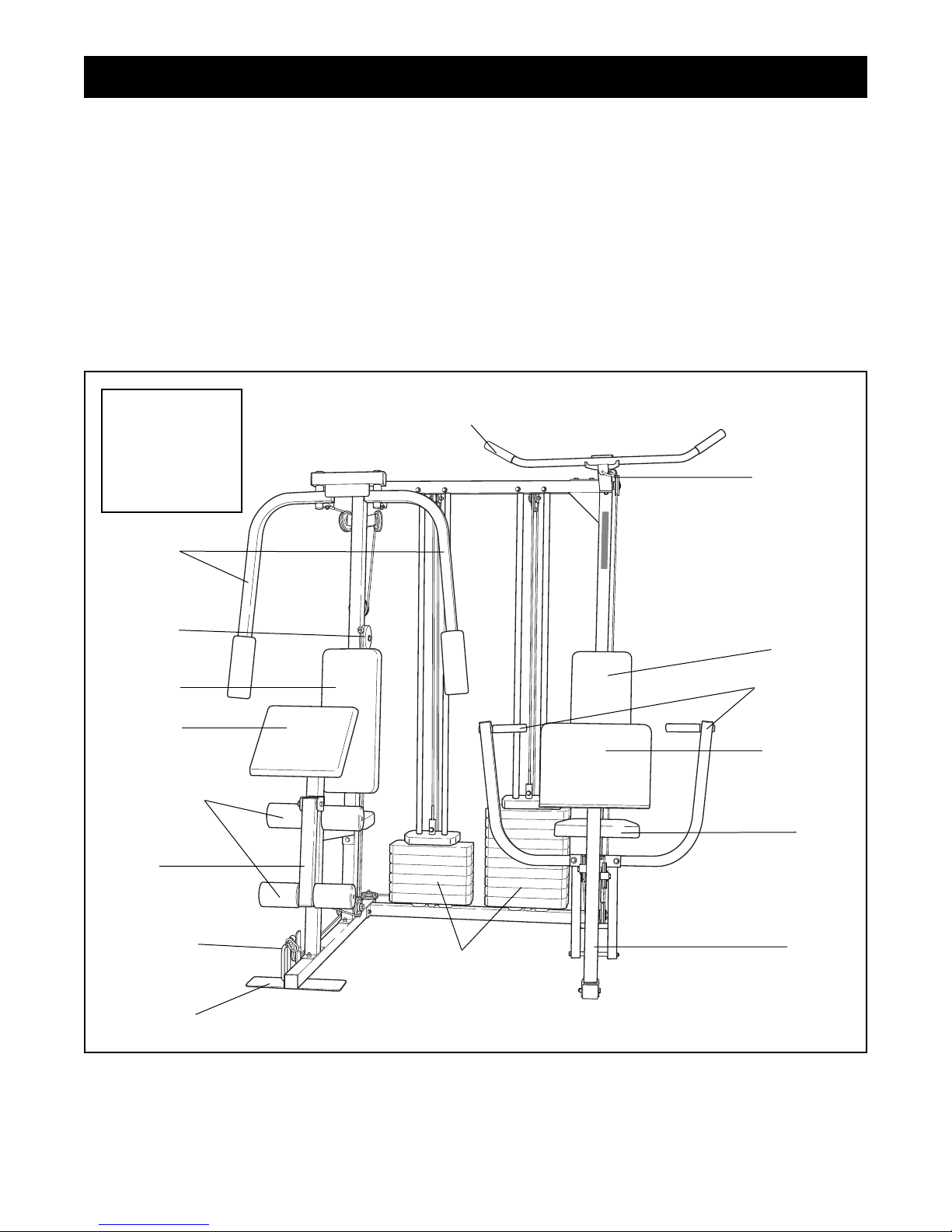

Please use the drawing below to familiarize your-

self with the major parts and how they fit together.

Before You Begin

Foam Pads

Leg Press

Plate

Backrest

Seat

High Pulley

Station

Lat Bar

Note: This introduction will save you more time

than it takes to read it!

Identifying Parts

To help you identify the small parts used in assem-

bly, we have included a PART IDENTIFICATION

CHART located in the center of this manual. Place

the chart on the floor or work table and use it to

quickly identify different parts as you open the pack-

ages for each step. Note: Some small parts may

have been pre-attached for shipping. If a part is not

in the parts bag, check to see if it has been pre-

attached.

Orienting Parts

As you assemble this product, be sure that all parts

are oriented as shown in the drawings.

Tightening Parts

Tighten all parts as you assemble them, unless

instructed to do otherwise.

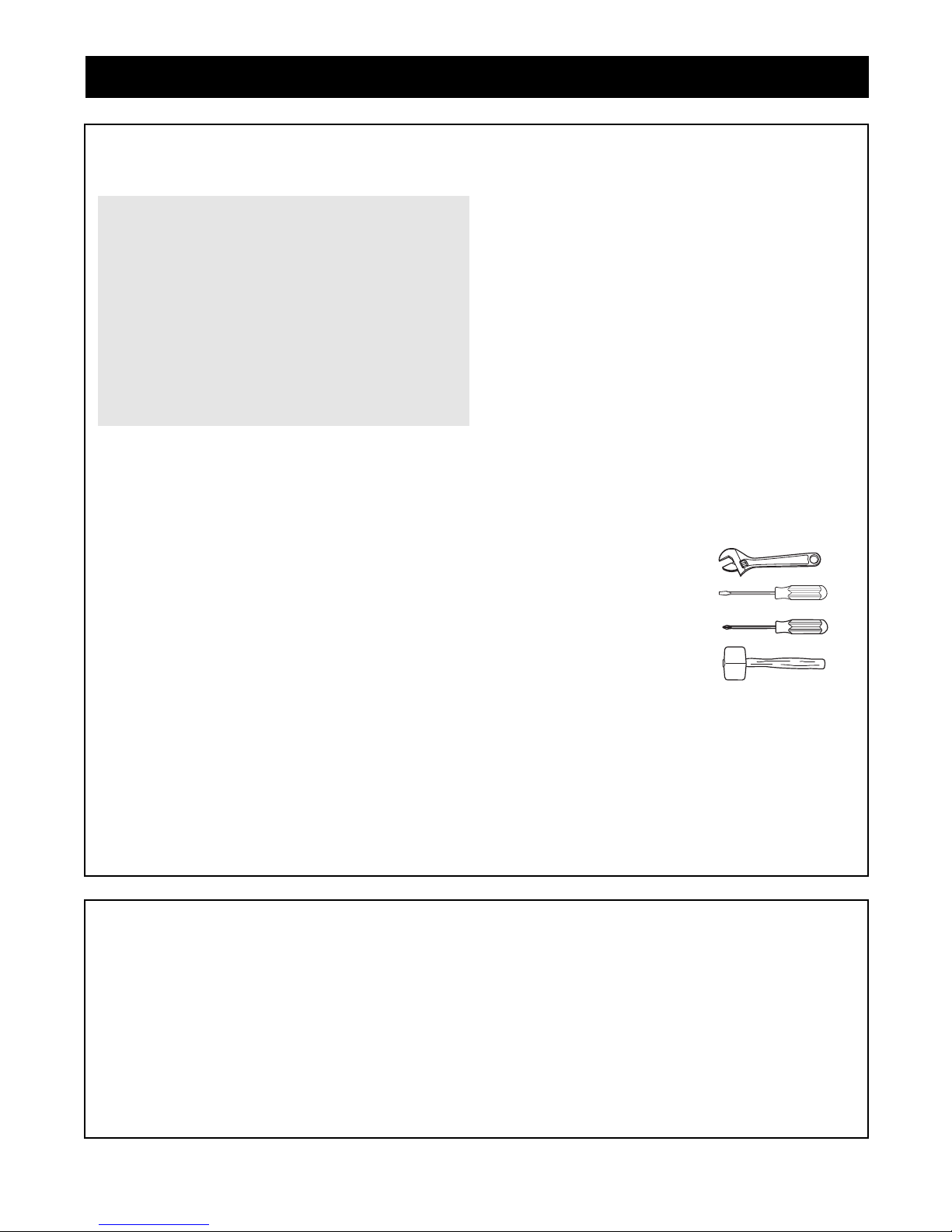

Lining Up the Tools

Assembly requires the following tools (not included):

• Two (2) adjustable wrenches

• One (1) standard screwdriver

• One (1) phillips screwdriver

• One (1) rubber mallet

• Lubricant, such as grease or petroleum jelly,

and soapy water

• Tape, such as clear tape or masking tape

Assembly will be more convenient if you have a

socket set, a set of open-end or closed-end wrenches

or a set of ratchet wrenches.

Some assembly steps require two people.

Giving Yourself a Good Start

Before you begin the assembly process itself, take

the time to complete the steps outlined here.

Clearing the Workspace

Clear a workspace that is large enough to hold all

parts and allow you to walk all the way around the

assembled equipment.

Unpacking the Box

To make the assembly process as smooth as possi-

ble, we have broken it into separate stages. All parts

used in each stage are found in individual packages

in the shipping box. Place all parts in a cleared area

and remove the packing materials. Do not dispose of

the packing materials until assembly is completed.

Important: Wait until you begin each assembly

stage to open the parts bag labeled for that

assembly stage.

Assembly

Making Things Easier for Yourself

Everything in this manual is designed to ensure

that our products can be assembled successfully

by anyone. However, it is important to realize

that your new equipment is a sophisticated prod-

uct with many small parts. The assembly process

will take time—possibly several hours. Most peo-

ple find that by setting aside plenty of time, and

by deciding to make the task enjoyable, assem-

bly will go smoothly. You may want to complete

the process over a couple of evenings.

The Four Stages of the Assembly Process

Frame Assembly

You will begin by assembling the base and the

upright frames that serve as the skeleton of the

equipment.

Arm Assembly

This stage completes the press and butterfly arms

that you operate while you are exercising.

Cable Assembly

This stage completes the cables and pulleys that

connect the moving arms with each other and with

the weights.

Seat Assembly

This final stage completes the seat and backrest

that support your body while you are exercising.

1. Before beginning, make sure that you have read

and understood the information on page 4.

Locate and open the parts bag labeled “FRAME

ASSEMBLY.”

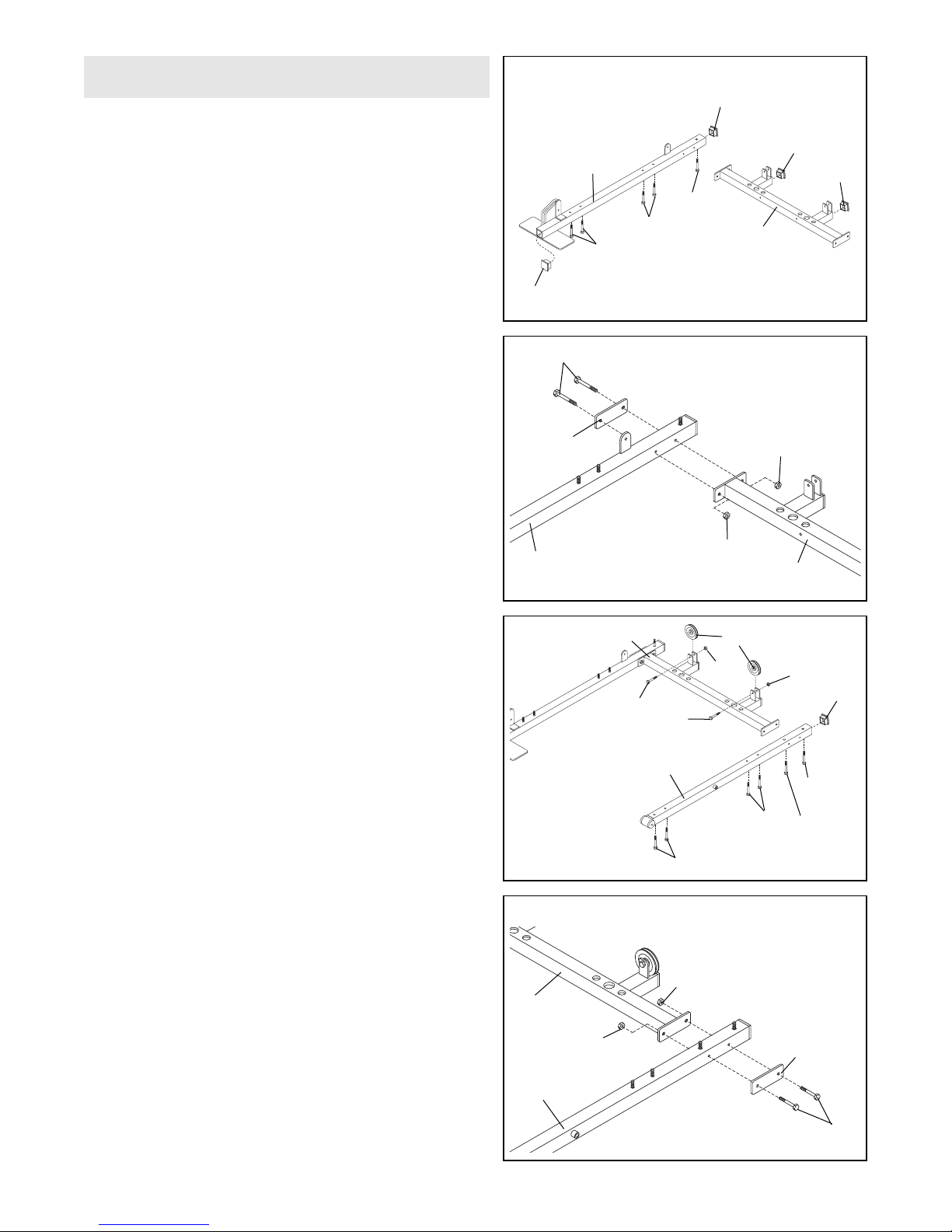

See drawing 1a. Press a 2” Square Inner Cap (28)

into each end of the Butterfly Base (4). Press two 2”

Square Inner Caps (28) into the Weight Base (5).

Insert four 5/16” x 2 1/2” Carriage Bolts (92) up

through the indicated holes in the Butterfly Base (4).

Insert a 3/8” x 3 1/2” Carriage Bolt (95) up through

the hole at the end of the Butterfly Base. Note: If the

Bolts fall out, secure them by putting a small

piece of tape over the head of each Bolt. Place the

Butterfly Base flat on the floor.

See drawing 1b. Attach the Weight Base (5) to the

Butterfly Base (4) with two 5/16” x 2 3/4” Bolts (89), a

Support Plate (93) with 3 1/2” center holes, and two

5/16” Nylon Locknuts (64). Do not tighten the Nylon

Locknuts yet.

Note: There are three kinds of support plates. The

main difference between them is the distance

between the holes. When you need a support

plate, find the type with holes that will fit over the

bolts you are using.

2. See drawing 2a. Press a 2” Square Inner Cap (28)

into the end of the Press Base (6).

Attach a 3 1/2” Pulley (24) to each of the brackets on

the Weight Base (5) with a 3/8” x 1 3/4” Bolt (57) and

a 3/8” Nylon Jamnut (63).

Insert four 5/16” x 2 1/2” Carriage Bolts (92) up

through the indicated holes in the Press Base (6).

Insert a 3/8” x 2 1/2” Carriage Bolt (101) and a 3/8 x

4” Carriage Bolt (102) up through the indicated holes

at the end of the Press Base (6).

See drawing 2b. Attach the Press Base (6) to the

Weight Base (5) with two 5/16” x 2 3/4” Bolts (89), a

Support Plate with 3 1/2” center holes (93), and two

5/16” Nylon Locknuts (64). Do not tighten the Nylon

Locknuts yet.

Frame Assembly

102

101

57 57

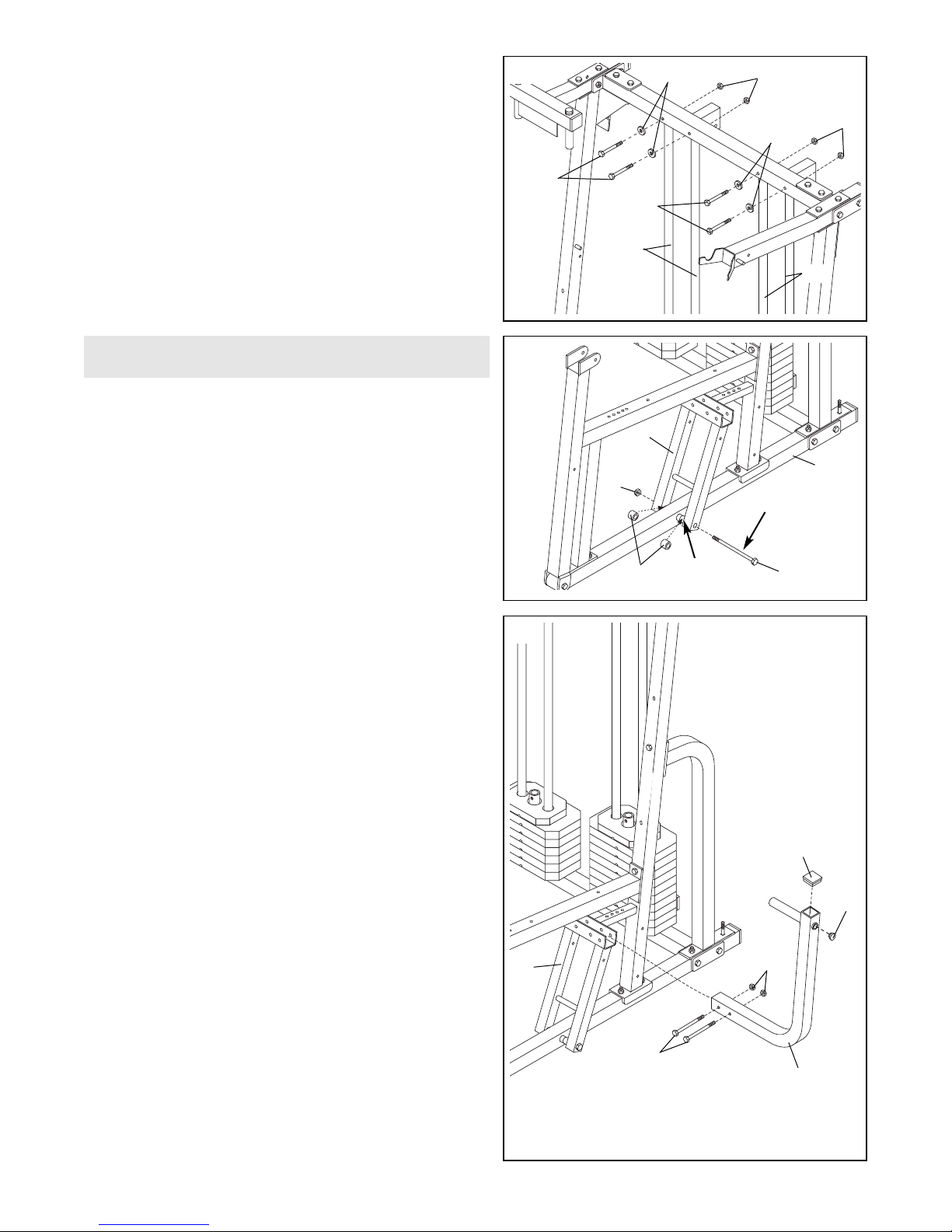

3. Place the bracket on the lower end of the Butterfly

Upright (1) over the indicated 5/16” x 2 1/2” Carriage

Bolts (92) in the Butterfly Base (4). Hand tighten two

5/16” Nylon Locknuts (64) onto the Bolts. Do not

tighten the Nylon Locknuts yet.

4. Press three 2” Square Inner Caps (28) into the

Butterfly Top Frame (33). Press two 1” Round Inner

Cap (86) into the top of the Butterfly Top Frame (33).

Attach the Butterfly Top Frame (33) to the indicated

bracket at the top of the Butterfly Upright (1) with two

5/16” x 2 3/4” Bolts (89), a Support Plate with 3 1/2”

center holes (93), and two 5/16” Nylon Locknuts (64).

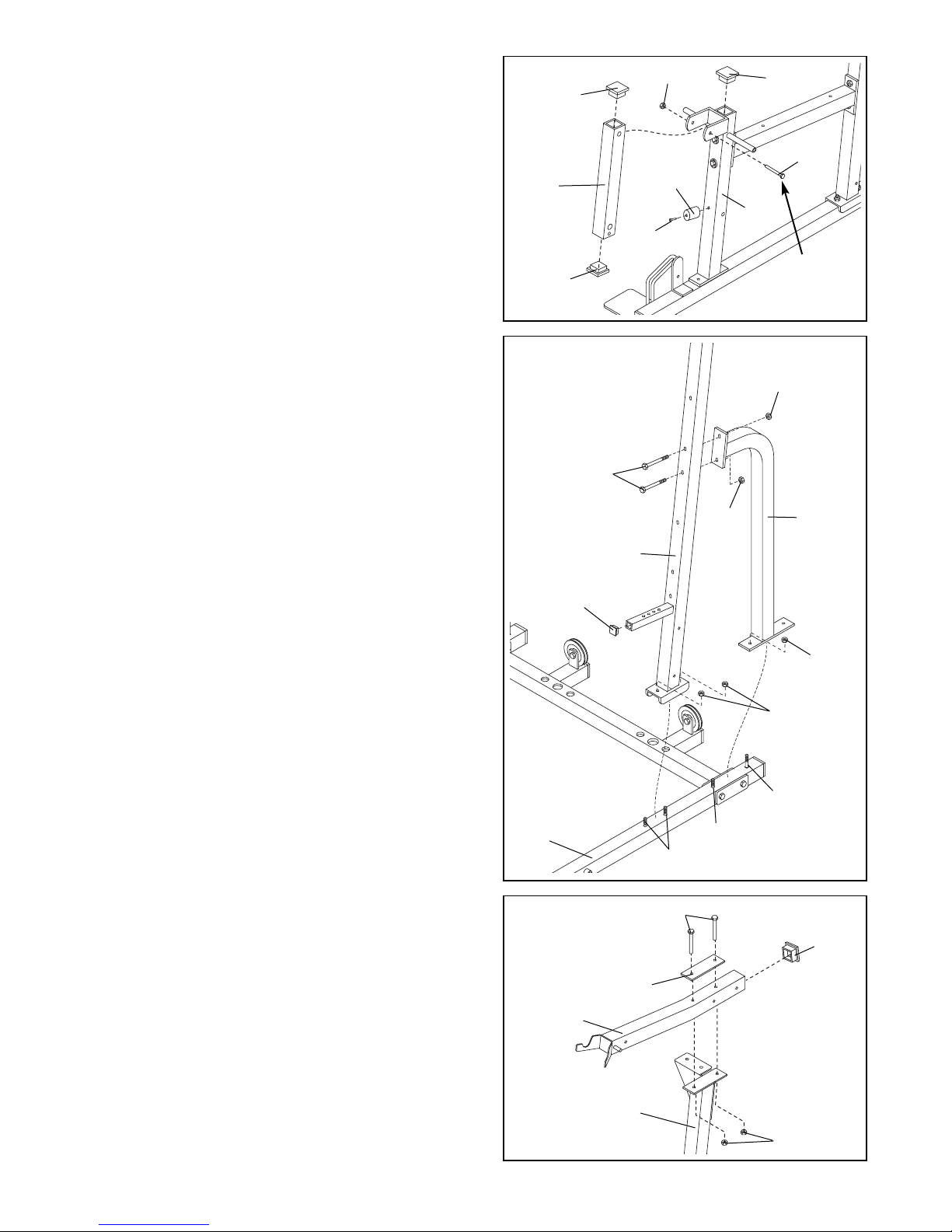

5. Attach the Butterfly Seat Frame (14) to the Front Leg

(20) with two 5/16” x 2 3/4” Bolts (89), two 5/16”

Washers (36), and two 5/16” Nylon Locknuts (64). Do

not tighten the Nylon Locknuts yet.

Slide the bracket on the Front Leg (20) onto the two

5/16” x 2 1/2” Carriage Bolts (92) in the Butterfly Base

(4). Hand tighten two 5/16” Nylon Locknuts (64) onto

the Bolts. Do not tighten the Nylon Locknuts yet.

Attach the Butterfly Seat Frame (14) to the Butterfly

Upright (1) with two 5/16” x 2 3/4” Bolts (89), two

5/16” Washers (36) and two 5/16” Nylon Locknuts

(64). Do not tighten the Nylon Locknuts yet.

7. Press a 1” Square Inner Cap (98) into the small tube

on the Press Upright (2).

Place the bracket on the lower end of the Press

Upright (2) over the indicated 5/16” x 2 1/2” Carriage

Bolts (92) in the Press Base (6). Hand tighten two

5/16” Nylon Locknuts (64) onto the Bolts. Do not

tighten the Nylon Locknuts yet.

Place the bracket on the lower end of the Support

Frame (3) over the indicated 3/8” x 2 1/2” Carriage

Bolt (101) and the 3/8” x 4” Carriage Bolt (102) in the

Press Base (6). Hand tighten a 3/8” Nylon Jamnut

(63) onto the 3/8” x 2 1/2” Carriage Bolt (101). Do not

tighten the Nylon Jamnut yet.

Note: Do not thread a Jamnut (63) onto the 3/8” x

4” Carriage Bolt (102) yet.

Attach the Support Frame (3) to the Press Upright (2)

with two 5/16” x 2 1/2” Carriage Bolts (92) and two

5/16” Nylon Locknuts (64). Do not tighten the Nylon

Locknuts yet.

6. Press a 2” Square Inner Cap (28) half way into the

top of the Front Leg (20). Press a 2” Square Inner

Cap (28) into each end of the Small Leg Lever (41).

Attach the Bumper (40) to the indicated hole in the

Front Leg (20) with a 1” Tap Screw (80).

Lubricate the 3/8” x 3 1/4” Bolt (62). Attach the Small

Leg Lever (41) to the bracket on the Front Leg (20)

with the Bolt and a 3/8” Nylon Jamnut (63). Do not

overtighten the Nylon Jamnut; it must be easy to

pivot the Leg Lever.

101

102

41 40

Lubricate

8. Press a 2” Square Inner Cap (28) into the Press Top

Frame (9).

Attach the Press Top Frame (9) to the indicated

bracket at the top of the Press Upright (2) with two

5/16” x 2 3/4” Bolts (89), a Support Plate with 3 1/2”

center holes (93), and two 5/16” Nylon Locknuts (64).

10. Lubricate the 3/8” x 3” Bolt (88). Attach the Leg Press

Lever (83) to the Press Base (6) with the Bolt and a

3/8” Nylon Locknut (50). Do not overtighten the

Nylon Locknut; the Leg Press Lever must pivot

easily.

11. Place two Weight Bumpers (51) over the indicated

holes in the Weight Base (5). Slide a Weight Guide

(15) into each of the holes.

Attach the indicated Weight Guide (15) to the Weight

Base (5) with a 3/8” x 2 3/4” Bolt (46), two 3/8” Flat

Washers (48), and a 3/8” Nylon Locknut (50).

Slide six Weights (21) onto the Weight Guides (15).

Make sure the Weights are turned so the pin

grooves point towards the floor.

Press a Weight Tube Bumper (18) into the lower end

of the Short Weight Tube (17). Slide the Weight Tube

into the center holes in the Weights (21).

Slide a Top Weight (16) onto the Weight Guides (15).

Note: Make sure the Top Weight is turned so the

groove fits over the welded pin on the Weight

Tube (17).

Lubricate

Groove

Grooves

9. Press a 2” Square Inner Cap (28) into the Press Seat

Frame (7).

Slide the bracket on the Press Seat Frame (7) onto

the indicated 5/16” x 2 1/2” Carriage Bolts (92) in the

Press Base (6). Hand tighten two 5/16” Nylon

Locknuts (64) onto the Bolts. Do not tighten the

Nylon Locknuts yet.

Attach the Press Seat Frame (7) to the Press Upright

(2) with two 5/16” x 2 3/4” Bolts (89), two 5/16”

Washers (36), and two 5/16” Nylon Locknuts (64). Do

not tighten the Nylon Locknuts yet.

64 64

548

14. Attach the Weight Top Frame (66) to the Press Top

Frame (9) with one 3/8” x 2 3/4” Bolt (46), a Support

Plate with 4” center holes (94), and a 3/8” Nylon

Locknut (50). Slide a 3 1/2” Pulley (24) with a Cable

Trap (25) onto a 3/8” x 4” Bolt (78). Insert the Bolt

through the Support Plate (94) and hand tighten a

3/8” Nylon Locknut (50) onto it.

Attach the Weight Top Frame (66) to the bracket on

the Press Upright (2) with two 3/8” x 2 3/4” Bolts (46),

a Support Plate with 2 1/2” center holes (34) and two

3/8” Nylon Locknuts (50). Do not tighten the Nylon

Locknuts yet.

12. Place two Weight Bumpers (51) over the indicated

holes in the Weight Base (5). Slide a Weight Guide

(15) into each of the holes.

Attach the indicated Weight Guide (15) to the Weight

Base (5) with a 3/8” x 2 3/4” Bolt (46), two 3/8” Flat

Washers (48), and a 3/8” Nylon Locknut (50).

Slide ten Weights (21) onto the Weight Guides (15).

Make sure the Weights are turned so the pin

grooves point towards the floor.

Press a Weight Tube Bumper (18) into the lower end

of the Long Weight Tube (70). Slide the Weight Tube

into the center holes in the Weights (21).

Slide a Top Weight (16) onto the Weight Guides (15).

Note: Make sure the Top Weight is turned so the

groove fits over the welded pin on the Weight

Tube (70).

51 51

13. Place the Weight Top Frame (66) on the indicated

brackets on the Uprights (1 and 2). Note: The four

Weight Guides (15) must be behind the Weight

Top Frame, as shown in step 14.

Attach the Weight Top Frame (66) to the Butterfly Top

Frame (33) with two 3/8” x 2 3/4” Bolts (46), a

Support Plate with 4” center holes (94), and two 3/8”

Nylon Locknuts (50). Do not tighten the Nylon

Locknuts yet.

Attach the Weight Top Frame (66) to the bracket on

the Butterfly Upright (1) with two 3/8” x 2 3/4” Bolts

(46), a Support Plate with 2 1/2” center holes (34),

and two 3/8” Nylon Locknuts (50). Do not tighten the

Nylon Locknuts yet.

Groove

Brackets

Grooves

15. Attach each of the four Weight Guides (15) to the

Weight Top Frame (66) with a 3/8” x 3 3/4” Bolt (59),

a 3/8” Flat Washer (48), and a 3/8” Nylon Locknut

(50).

Important: Go back and fully tighten all Nylon

Locknuts used in steps 1 through 15.

17. Press a 1 3/4” Square Inner Cap (35) into the top of a

Press Arm (77). Press a 1” Round Inner Cap (76) into

the indicated hole in the Press Arm.

Attach the Press Arm (77) to the bracket on the Press

Frame (8) with two 5/16” x 2 1/2” Bolts (87) and two

5/16” Nylon Locknuts (64).

Repeat this step to assemble the second Press Arm

(77, not shown).

100

Welded

Tube

Lubricate

Arm Assembly

16. Locate and open the parts bag labeled “ARM

ASSEMBLY.”

Press a Plastic Bushing (100) onto each welded tube

on the Press Frame (8).

Lubricate the 3/8” x 8” Bolt (52). Attach the Press

Frame (8) to the welded tubes on the Press Base (6)

with the Bolt and a 3/8” Nylon Locknut (50). Do not

overtighten the Nylon Locknut; it must be easy to

pivot the Press Frame.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Weider Salle de sport à domicile

Weider

Weider Powerguide Home Gym Sy X2s Manuel utilisateur

Weider

Weider XT20 Manuel utilisateur

Weider

Weider Body Works Pro 2.0 Bench Manuel utilisateur

Weider

Weider 220 W Bench Manuel utilisateur

Weider

Weider 4990 I Guide de l'utilisateur

Weider

Weider Club 190 W Bench Manuel utilisateur

Weider

Weider 340 Classic Bench Manuel utilisateur

Weider

Weider 214 Bench Manuel d'utilisation et d'entretien

Weider

Weider CORe 600 831.15715.0 Manuel utilisateur

Weider

Weider 2uprtw/leg Curlcobra Bench Manuel utilisateur

Weider

Weider Stepshaper WE000130 Manuel utilisateur

Weider

Weider 190 Tc Bench Manuel utilisateur

Weider

Weider Easy Compact 90 Manuel utilisateur

Weider

Weider WESY85201 Manuel utilisateur

Weider

Weider Pro 120 Bench Manuel du système

Weider

Weider WESY19510 Manuel utilisateur

Weider

Weider Power glide WCCR44060 Manuel utilisateur

Weider

Weider 240 Tc Bench Manuel utilisateur

Weider

Weider Tc 150 Bench Manuel utilisateur

Weider

Weider Body Works Pro 2.0 Bench Guide de démarrage rapide

Weider

Weider MEDALLION M125 Manuel utilisateur

Weider

Weider Flat Bench Sa 10-4 Manuel utilisateur

Weider

Weider 340 Lc Bench Guide de l'utilisateur

Weider

Weider 184 Bench Manuel d'utilisation et d'entretien

Manuels Salle de sport à domicile populaires d'autres marques

Horizon Fitness

Horizon Fitness OXFORD 6 Manuel utilisateur

Energetics

Energetics Multi Trainer 5.1 Manuel utilisateur

Matrix

Matrix MG-PL Series Manuel utilisateur

Reebok

Reebok Tbr2i Manuel d'utilisation et d'entretien

Pure Fitness

Pure Fitness 8526HE Manuel utilisateur

Bowflex

Bowflex Sport 001-6961 Manuel utilisateur

NordicTrack

NordicTrack E8200 Competition Bench Guide de démarrage rapide

Body Solid

Body Solid GHYP-345 Manuel utilisateur

Evo

Evo TAHOE 5105 Manuel utilisateur

cardiobull

cardiobull RA17 Manuel utilisateur

ParaBody

ParaBody 40 Manuel utilisateur

JLL

JLL Ventus Pro Air Power Manuel utilisateur

Trojan

Trojan Colorado 370 Manuel utilisateur

Octane Fitness

Octane Fitness xRide xR650 Manuel utilisateur

Precor

Precor Discovery Series Manuel utilisateur

Insportline

Insportline RW600 Manuel utilisateur

Stamina

Stamina 55-1532 Manuel utilisateur

Tunturi

Tunturi R25 Manuel utilisateur
