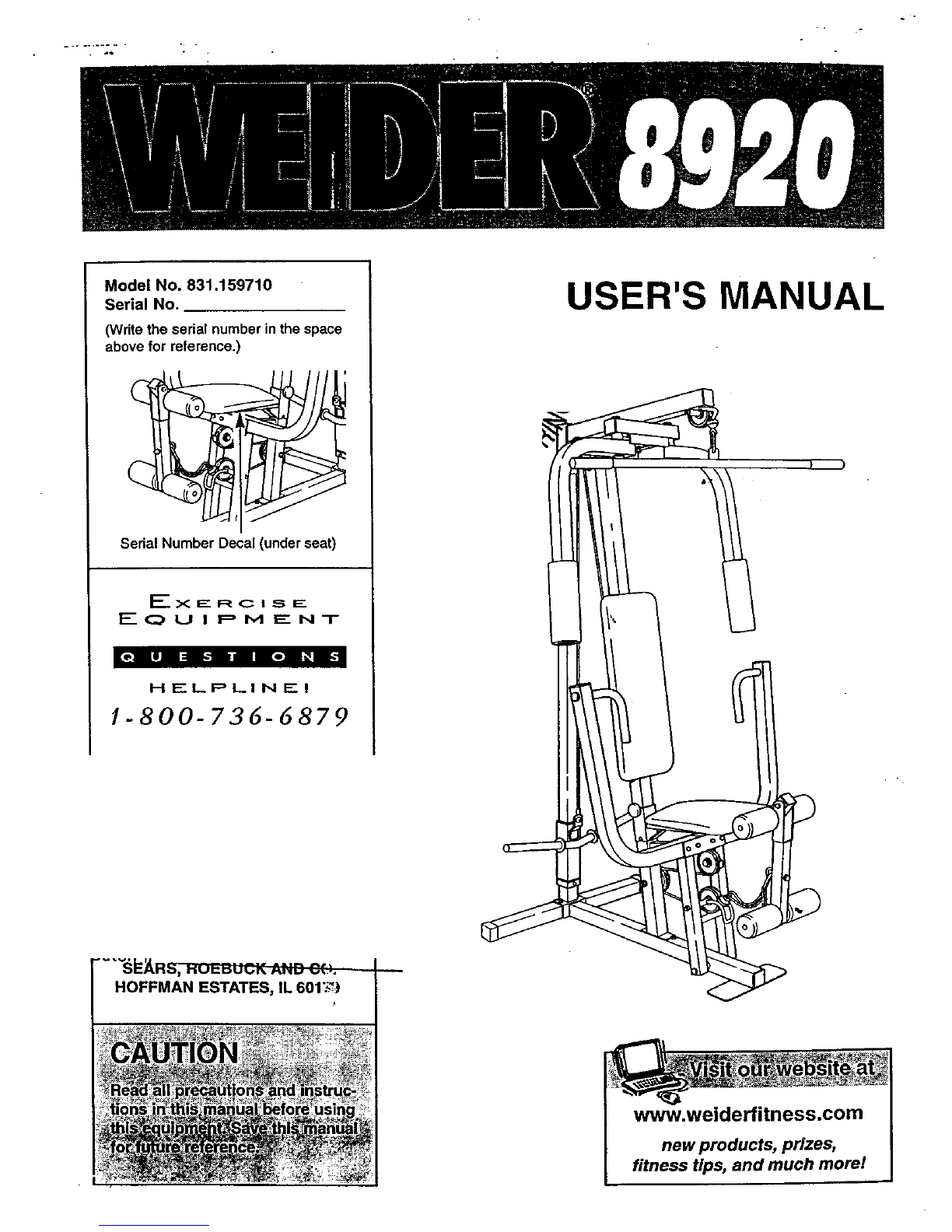

Weider 8920 Manuel utilisateur

= • ..

Model No. 831.159710

Serial No.

(Writethe serialnumberin thespace

above for reference.)

Serial Number Decal (under seat)

F-XERCISE

I=- C_, U I p M E NT

HELPLINEI

I=800-736-6879

"-'_I=_RS, HO==_L;CK A;;_ C;.'.

HOFFMAN ESTATES, IL 601"_-_)

USER'S MANUAL

www.weiderfitness.com

new products, prizes,

fitness tips, and much morel

TABLE OF CONTENTS

FULL 90-DAY WARRANTY ............................................................... 2

IMPORTANT PRECAUTIONS ............................................................. 3

BEFORE YOU BEGIN .................................................................. .4

•ASSEMBLY ........................................................................... 5

ADJUSTMENT ........................................................................ 15

TROUBLE-SHOOTING AND MAINTENANCE ................................................ 18

CABLE DIAGRAM ..................................................................... 19

PART LIST ........................................................................... 22

EXPLODED DRAWING ................................................................. 23

ORDERING REPLACEMENT PARTS ................................................ Back Cover

Note: A PART IDENTIFICATION CHART is attached in the center of this manual. Remove the PART IDENTIFI-

CATION CHART before beginning assembly.

[ FULL 90 DAY WARRANTY 1

For 90 days from the date of purchase, if failure occurs due to defect in material or workmanship in this

SEARS WEIGHT SYSTEM EXERCISER, contact the nearest SEARS Service Center throughout the

United States and SEARS will repair or replace the WEIGHT SYSTEM EXERCISER, free of charge.

This warranty does not apply when the WEIGHT SYSTEM EXERCISER is used commercially or for

rental purposes.

This warranty gives you specific legal rights, and you may also have other rights which vary from state

to state.

SEARS, ROEBUCK AND CO., DEPT. 817WA, HOFFMAN ESTATES, IL 60179

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of serious injury, read the following important precautions

using the home gym.

1. Read all instructions in tbis manual and in wel

the accompanying literature before using the

home gym. 13.

2. It is the responsibility of the owner to ensure

that all users of the home gym are adequate- 1-4

ly informed of all precautions. •• • .

• "1tended for homeuse

leyS at all times: If the

12: Do not place more than 125 pounds;on thb ;_

WARNING: Before beginning this or any exercise progra_ consu!t

important for persons over the age of 35 or persons with _r_ ;ti

instructions before using. SEARS assumes no responsibility for personal injury

sustained by or through the use of this product.

hands and

Place this

decal on the

seat frame

facing the

user

BEFORE YOU BEGIN

Thank you for selecting the versatile WELDER®8920

home gym. The WELDER • 8920 offers a selection of

weight stations designed to develop every major mus-

•cle group of the body. Whether your goal is to tone

your body, build dramatic muscle size and strength, or

improve your cardiovascular system, the WELDER®

8920 will help you to achieve the specific results you

want.

For your benefit, read this manual carefully before

using the WELDER e8920 home gym. If you have

additional questions, please call our toll-free

HELPLINE at 1-800-736-6879, Monday through

Saturday, 7 a.m. until 7 p.m. Central "13me(excluding

holidays). To help us assist you, please note the prod-

uct model number and serial number before calling.

The model number is 831.159710. The serial number

can be found on a decal attached to the WELDER®

8920 (see the front cover of this owner's manual).

Before reading further, please review the drawing

below and familiarize yourself with the parts that are

labeled•

ASSEMBLED

DIMENSIONS:

Height: 76 in.

Width: 37 in.

Length: 48 in.

Backrest

Seat

Weight Carriage

High Pulley Station

) ) Lat Bar

Butterfly Arms

Press Arm

Leg Lever

Low Pulley Station

Foot Plate

ASSEMBLY

Before beginning assembly, carefully read the

following information and instructions:

•Place all parts of the home gym in a cleared area

and remove the packing materials; do not dis-

pose of the packing materials until assembly is

completed.

• Assembly is divided into four stages: 1) frame

assembly, 2) press and butterfly arm assembly, 3)

cable and pulley assembly, and 4) seat and back-

rest assembly. The hardware for each stage is

packaged separately.

• Wait until you begin each assembly stage to open

that parts bag.

• For help identifying the small parts used in

assembly, use the PART IDENTIFICATION

CHART located in the center of this manual_

Note: Some small parts may have been pre-

attached for shipping. If a part is not in the parts

bag, check to see if it has been pre-attached.

• As you assemble the home gym, be sure that all

parts are oriented as shown in the drawings.

•Tighten all parts as you assemble them, unless

instructed to do otherwise.

THE FOLLOWING TOOLS (NOT INCLUDED) ARE"

REQUIRED FOR ASSEMBLY:

•Two (2) adjustable wrenches

•One (1) standard screwdriver ,=-,-...==(_

• One (1) Phillips screwdriver

•One (1) rubber mallet I _-_ _

•Lubricant, such as grease or petroleum jelly,

and soapy water will also be needed.

Assembly will be more convenient if you have the

following tools: A socket set, a set of open-end or

closed-end wrenches, or a set of ratchet wrenches.

1. Before beginning assembly, be sure that

you have read and understand the infor-

mation in the box above.

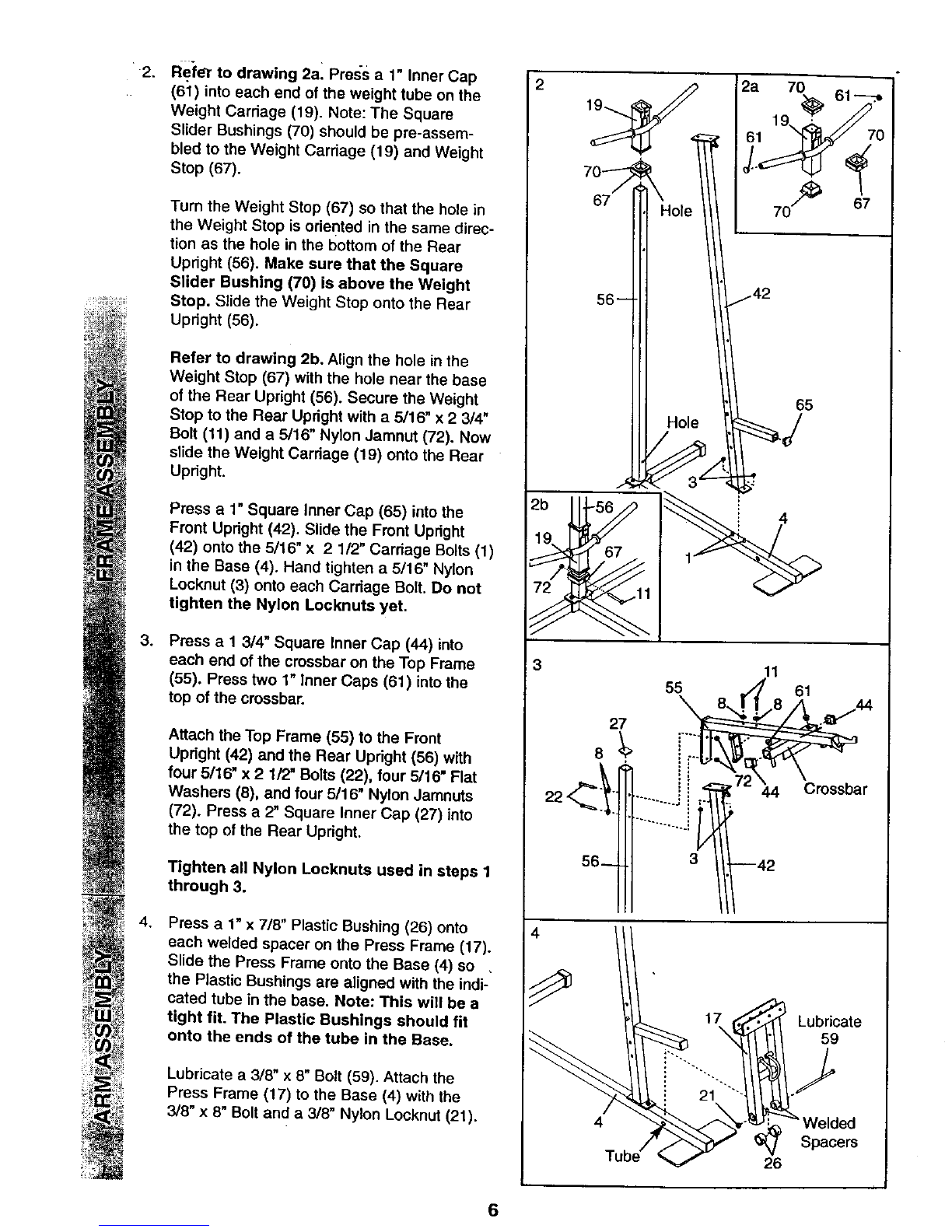

Press a 2" Square Outer Cap (51) onto each

end of the Stabilizer (5). Press a 2" Square

Inner Cap (27) into the end of the Base (4).

Insert two 5/16" x 2 3/4" Cardage Bolts (14)

up through the Stabilizer (5). Insert two 5/16"

x 2 1/2" Carriage Bolts (1) up through the

Base (4).

Slide the bracket end of the Base (4) onto

the 5/16" x 2 3/4" Carriage Bolts (14) in the

Stabilizer (5). Slide the Rear Upright (56)

onto the Cardage Bolts. Hand tighten a 5/16"

NyTon Locknut (3) onto each Carriage Bolt.

m56

I51

"2.

f'ii

Reler to drawing 2al Press a1" Inner Cap

(61) into each end of the weight tube on the

Weight Carriage (19). Note: The Square

Slider Bushings (70) should be pre-assem-

bled to the Weight Carriage (19) and Weight

Stop (67).

Turn the Weight Stop (67) so that the hole in

the Weight Stop is oriented in the same direc-

tion as the hole in the bottom of the Rear

Upright (56). Make sure that the Square

Slider Bush|ng (70) is above the Weight

Stop. Slide the Weight Stop onto the Rear

Upright (56).

Refer to drawing 2b. Align the hole in the

Weight Stop (67) with the hole near the base

of the Rear Upright (56). Secure the Weight

Stop to the Rear Upright with a 5/16" x 2 3/4"

Bolt (11) and a 5116" Nylon Jamnut (72). Now

slide the Weight Carriage (19) onto the Rear

Upright.

Press a 1" Square Inner Cap (65) into the

Front Upright (42). Slide the Front Upright

(42) onto the 5/16" x 2 112" Carriage Bolts (1)

in the Base (4). Hand tighten a 5116" Nylon

Locknut (3) onto each Carriage Bolt. Do not

tighten the Nylon Locknuts yet.

.Press a 13/4" Square Inner Cap (44) into

each end of the crossbar on the Top Frame

(55). Press two 1" inner Caps (61) into the

top of the crossbar.

Attach the Top Frame (55) to the Front

Upright (42) and the Rear Upright (56) with

four 5/16" x 2 1/2" Bolts (22), four 5/16" Flat

Washers (8), and four 5/16" Nylon Jamnuts

(72). Press a 2" Square Inner Cap (27) into

the top of the Rear Upright.

Tighten all Nylon Locknuts used in steps 1

through 3.

4_ Press a1" x 7/8" Plastic Bushing (26) onto

each welded spacer on the Press Frame (17).

Slide the Press Frame onto the Base (4) so

the Plastic Bushings are aligned with the indi-

cated tube in the base. Note: This will be a

tight fit. The Plastic Bushings should fit

onto the ends of the tube in the Base.

Lubricate a 3/8" x 8" Bolt (59). Attach the

Press Frame (17) to the Base (4) with the

3/8" x 8" Boltand a 3/6- Nylon Locknut (21).

70----"

677

56--

Hole

55\

11 61

Crossbar

17 Lubricate

4Spacers

Press a 1 3/4" Square Inner Cap (44) into the

top of one of the Press Arms (46). Press a 1"

Round Inner Cap (49) into each end of the

handle on the Press Arm. Attach the Press

Arm to one side of the Press Frame (17) with

two 5/16" x 2 112" Bolts (22) and two 5/16"

Nylon Locknuts (3).

Assemble the other Press Arm (46) in the

same manner.

Identify the Right Arm (48) and the LeftArm

(47). Note the position of the welded bracket

on each Arm. Arm identification Is very

important for step 7.

7. Lubricate both axles on the Top Frame (55).

Slide the Right Arm (48) onto the right axle.

Note: Be careful not to confuse the Right

Arm with the Left Arm (47); refer to step 6

to Identify the Right Arm. Be sure that the

upper end of the Right Arm is behind the

indicated bracket on the Top Frame (55).

Tap two 1" Retainers (63) and a 1" Round

Cover Cap (62) onto the right axle. Be sure

that the teeth on the Retainers bend

toward the Cover Cap, as shown in the

inset drawing.

Attach the Left Arm (47) in the same manner.

Press 1 3/4" Square Inner Caps (44) into the

lower ends of the Right and Left Arms (47,

48). Wet the lower end of each Arm with

soapy water. Slide a Foam Pad (45) onto the

lower end of each Arm.

44.

49-

46--

_------44

/49 ---46

Welded

Brackets 47

48_

44.._, _" "__

45_ \ "-'__ 63

_ L---'--'-"-_62

8. DUring stepsgthro0_h _.,refer tothe

CABLE DIAGRAM on page 19 of this manual

to verify proper cable muting. Before begin-

ning this section, identify the Short Cable (23)

and the Long Cable (58) by comparing the

lengths and the ends of the cables.

IMPORTANT: While assembling the cables,

do not overtighten the bolts and nuts

securing the pulleys. The pulleys must

turn freely.

g. Locate the Long Cable (58). Route the Long

Cable around a3 1/2" Pulley (15).

Using a 3/8" x 3 112" Bolt (16) and a 3/8"

Nylon Jamnut (25), attach the 3 1/2" Pulley

(15) inthe indicatedlocation Onthe Top Frame

(55). Be sure that the end of the Cable with

the ball is on the indicated side of the

Pulley and that the Cable is between the

Pulley and the hook on the Top Frame

(55).

10. Wrap the Long Cable (58) around a "V"-Pulley

(6). Attach the =V"-Pulley and a Long Cable

Trap (50) to the indicated bracket on the

Front Upright (42) with a 3/8" x 2 1/2" Bolt (7)

and a 3/8" Nylon Locknut (21). Be sure that

the Long Cable Trap is positioned to hold

the Cable in place.

11, Route the Long Cable (58) around a "V"-

Pulley (6). Attach the "V"-Pulley (6) and a

Long Cable Trap (50) to the Left Arm (47)

with a 3/8" x 2 1/2" Bolt (7) and a 3/8" Nylon

Locknut (21). Be sure that the Cable is in

the groove of the Pulley and that the Long

Cable Trap (50) is positioned to hold the

Cable in place.

25, 15

ook 16 1_

11 50

58 47

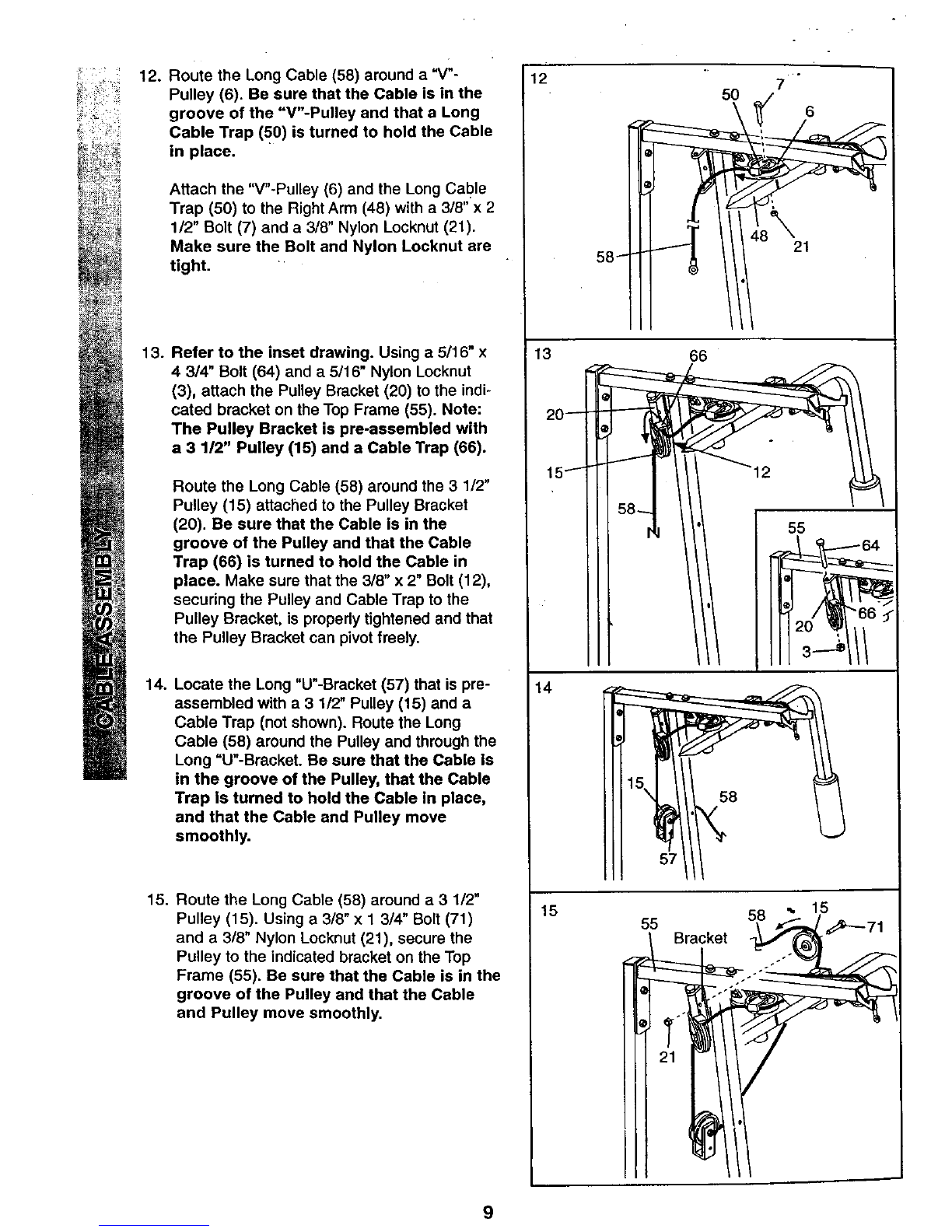

12. Route the Long Cable (58) around a "V"-

Pulley (6). Be sure that the Cable is in the

groove of the "V"-Pulley and that a Long

Cable Trap (50 ) is turned to hold the Cable

in place.

Attach the "V"-Pulley (6) and the Long Cable

Trap (50) to the Right Arm (48) with a3/8" x 2

112" Bolt (7) and a 3/8" Nylon Locknut (21).

Make sure the Bolt and Nylon Locknut are

tight.

13. Refer to the inset drawing. Using a 5/16" x

4314"Bolt (64) and a 5/16" Nylon Locknut

(3), attach the Pulley Bracket (20) to the indi-

cated bracket on the Top Frame (55). Note:

The Pulley Bracket is pre-assembled with

a 3 112" Pulley (15) and a Cable Trap (66).

Route the Long Cable (58) around the 31/2"

Pulley (15) attached to the Pulley Bracket

(20). Be sure that the Cable is in the

groove of the Pulley and that the Cable

Trap (66) is turned to hold the Cable in

place. Make sure that the 3/8" x 2" Bolt (12),

securing the Pulley and Cable Trap to the

Pulley Bracket, is properly tightened and that

the Pulley Bracket can pivot freely.

14. Locate the Long "U"-Bracket (57) that is pre-

assembled with a 3 1/2" Pulley (15) and a

Cable Trap (not shown). Route the Long

Cable (58) around the Pulley and through the

Long "U"-Bracket. Be sure that the Cable Is

in the groove of the Pulley, that the Cable

Trap Is turned to hold the Cable in place,

and that the Cable and Pulley move

smoothly.

15. Route the Long Cable (58) around a 31/2"

Pulley (15). Using a 3/8" xI 3/4" Bolt (71)

and a 3/8" Nylon Locknut (21), secure the

Pulley to the indicated bracket on the Top

Frame (55). Be sure that the Cable is in the

groove of the Pulley and that the Cable

and Pulley move smoothly.

50 6

58 _" 15

55 B

6:--Atlach-theL6ng°C_ble.(58) 1othe Weight

-Carriage (19) with a 3/8" x 3/4" Bolt (69) and

a3/8" Nylon Locknut (21)• Make sure that

the Bolt and the Nylon Locknut are tight.

17. Using a 3/8" x 3 1/2" Bolt (16), a 3/8" Flat

Washer (9), and a 3/8" Nylon Locknut (21),

secure a 3 !/2" Pulley (15) and a Cable Trap

(66) to the upper hole in the Press Frame

(17). Make sure that the Cable Trap and th_

Pulley are oriented as shown.

Hold a 3 1/2" Pulley (15) inside the indicated

bracket on the Press Frame (17). Using a 3/8"

x 8" Bolt (59), two 318"Flat Washers (9), and

a3/8" Nylon Locknut, attach the 3 1/2" Pulley

to the Press Frame as shown.

18. Locate the Short Cable (23). Route the

Short Cable under the indicated 31/2" Pulley

(15). Be sure that the end of the Cable with

the ball is between the Pulley and the

crossbar on the Press Frame (17).

Autres manuels pour 8920

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Weider Salle de sport à domicile

Weider

Weider MEDALLION M125 Manuel utilisateur

Weider

Weider WESY59930 Manuel utilisateur

Weider

Weider Pro 9640 Manuel utilisateur

Weider

Weider Pro 2250 Manuel utilisateur

Weider

Weider 190 Rx Bench Guide de l'utilisateur

Weider

Weider Pro 2000 Guide de démarrage rapide

Weider

Weider 220 W Bench Manuel utilisateur

Weider

Weider C101predator Manuel utilisateur

Weider

Weider 354.156340 Manuel utilisateur

Weider

Weider WESY19001 Manuel utilisateur

Weider

Weider D631 Home Trainer Manuel utilisateur

Weider

Weider WESY39522 Manuel utilisateur

Weider

Weider C500 Manuel utilisateur

Weider

Weider Pro 235 831.150300 Manuel utilisateur

Weider

Weider WESY29510 Manuel utilisateur

Weider

Weider Pro 120 Bench Manuel d'utilisation et d'entretien

Weider

Weider 244 Bench Manuel utilisateur

Weider

Weider Pro 545 Manuel utilisateur

Weider

Weider 340 Classic Bench Manuel utilisateur

Weider

Weider Black inversion system WBBE21690.0 Manuel utilisateur

Weider

Weider Pro 256 831.15791.1 Manuel utilisateur

Weider

Weider ABShaper DRMC20062 Manuel utilisateur

Weider

Weider E8001 Manuel utilisateur

Weider

Weider Cross Bow By 1500x Manuel utilisateur

Manuels Salle de sport à domicile populaires d'autres marques

Horizon Fitness

Horizon Fitness OXFORD 6 Manuel utilisateur

Energetics

Energetics Multi Trainer 5.1 Manuel utilisateur

Matrix

Matrix MG-PL Series Manuel utilisateur

Reebok

Reebok Tbr2i Manuel d'utilisation et d'entretien

Pure Fitness

Pure Fitness 8526HE Manuel utilisateur

Bowflex

Bowflex Sport 001-6961 Manuel utilisateur

NordicTrack

NordicTrack E8200 Competition Bench Guide de démarrage rapide

Body Solid

Body Solid GHYP-345 Manuel utilisateur

Evo

Evo TAHOE 5105 Manuel utilisateur

cardiobull

cardiobull RA17 Manuel utilisateur

ParaBody

ParaBody 40 Manuel utilisateur

JLL

JLL Ventus Pro Air Power Manuel utilisateur

Trojan

Trojan Colorado 370 Manuel utilisateur

Octane Fitness

Octane Fitness xRide xR650 Manuel utilisateur

Precor

Precor Discovery Series Manuel utilisateur

Insportline

Insportline RW600 Manuel utilisateur

Stamina

Stamina 55-1532 Manuel utilisateur

Tunturi

Tunturi R25 Manuel utilisateur
