Weider 831.150850 Manuel utilisateur

USER’S MANUAL

Model No. 831.150850

Serial No.

Write the serial number in the

space above for reference.

Serial Number Decal

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference. SEARS, ROEBUCK AND CO., HOFFMAN ESTATES, IL 60179

PATENT PENDING

FULL 90 DAY WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

PART IDENTIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

USING THE WEIGHT BENCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

For 90 days from the date of purchase, if failure occurs due to defect in material or workmanship in this

SEARS WEIGHT BENCH EXERCISER, contact the nearest SEARS Service Center throughout the United

States and SEARS will repair or replace the WEIGHT BENCH EXERCISER, free of charge.

This warranty does not apply when the WEIGHT BENCH EXERCISER is used commercially or for rental

purposes.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to

state.

SEARS, ROEBUCK AND CO., DEPT. 817WA, HOFFMAN ESTATES, IL 60179

Full 90 Day Warranty

Table of Contents

WEIDER is a registered trademark of ICON Health & Fitness, Inc.

1. Read all instructions in this manual before

using the weight bench.

2. Use the weight bench only as described in

this manual.

3. It is the responsibility of the owner to ensure

that all users of the weight bench are ade-

quately informed of all precautions.

4. Use the weight bench only on a level surface.

Cover the floor beneath the weight bench for

protection.

5. Inspect and tighten all parts each time you

use the weight bench. Replace any worn

parts immediately.

6. Keep children under the age of 12 and pets

away from the weight bench at all times.

7. Always use an equal amount of weight on

each side of your barbell (not included).

8. Do not use a barbell that is longer than five

feet with the weight bench.

9. When you are using the leg lever, place a

barbell with the same amount of weight on

the weight rests to balance the bench.

10. Always wear athletic shoes for foot protec-

tion while exercising.

11. Keep hands and feet away from moving parts.

12. The weight bench is designed to support a

maximum of 360 pounds, including the user,

a weight bar, and weights. Do not place more

than 110 pounds, including a weight bar and

weights, on the weight rests; do not place

more than 50 pounds on the leg lever for nor-

mal use; the leg lever can support 100

pounds when stationary.

13. When using the backrest in an inclined posi-

tion, make sure that the support tube is fully

seated in the adjustment brackets on the

uprights.

14. If you feel pain or dizziness at any time while

exercising, stop immediately and begin cool-

ing down.

15. The weight bench is intended for home use

only. Do not use the weight bench in any

commercial, rental or institutional setting.

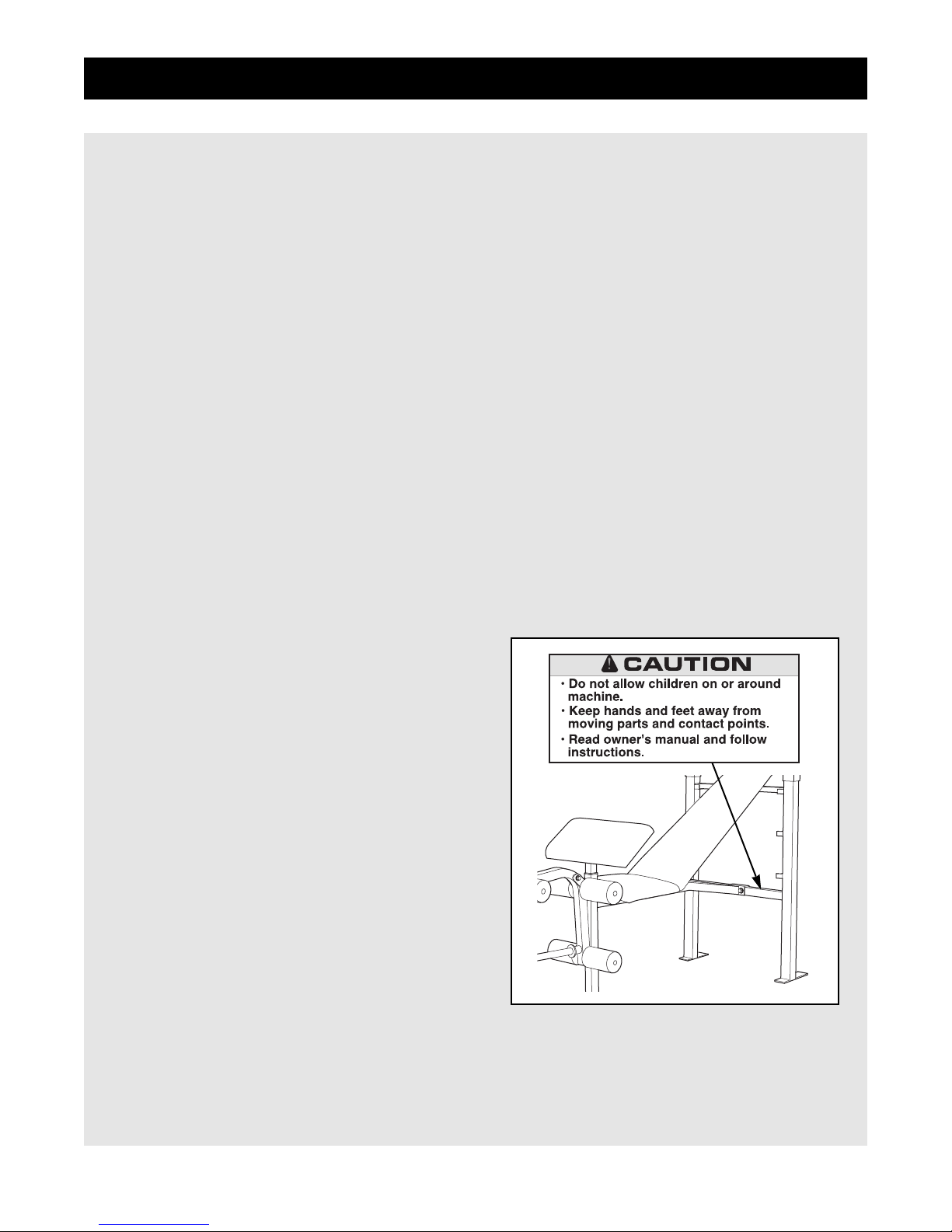

16. WARNING DECAL PLACEMENT: The decal

shown below has been placed on the weight

bench. If the decal is missing, or if it is not

legible, please call our Customer Service

Department toll-free at 1-800-736-6879,

Monday through Saturday, 7 a.m. until 7 p.m.

Central Time, to order a replacement decal.

Apply the replacement decal in the location

shown.

WARNING: Before beginning this or any exercise program, consult your physician. This is especially

important for persons over the age of 35 or persons with pre-existing health problems. Read all

instructions before using. ICON assumes no responsibility for personal injury or property damage

sustained by or through the use of this product.

Decal shown at 75%

To reduce the risk of serious injury, read the following important precautions

before using the weight bench.

WARNING:

Important Precautions

Backrest

Support Tube

Weight Rests

Seat

Weight Tube

Leg Lever

Thank you for selecting the versatile WEIDER®145

Weight Bench. The WEIDER®145 Weight Bench is

designed to let you develop every major muscle group

of the body. Whether your goal is a shapely figure, dra-

matic muscle size and strength, or a healthier cardio-

vascular system, the WEIDER®145 Weight Bench will

help you to achieve the specific results you want.

For your benefit, read this manual carefully before

using the WEIDER®145 Weight Bench. If you have

additional questions, please call our Customer

HELPLINE toll-free at 1-800-736-6879, Monday

through Saturday, 7 a.m. until 7 p.m. Central Time

(excluding holidays). To help us assist you, please note

the product model number and serial number before

calling. The model number is 831.150850. The serial

number can be found on a decal attached to the WEI-

DER®145 Weight Bench (see the front cover of this

manual).

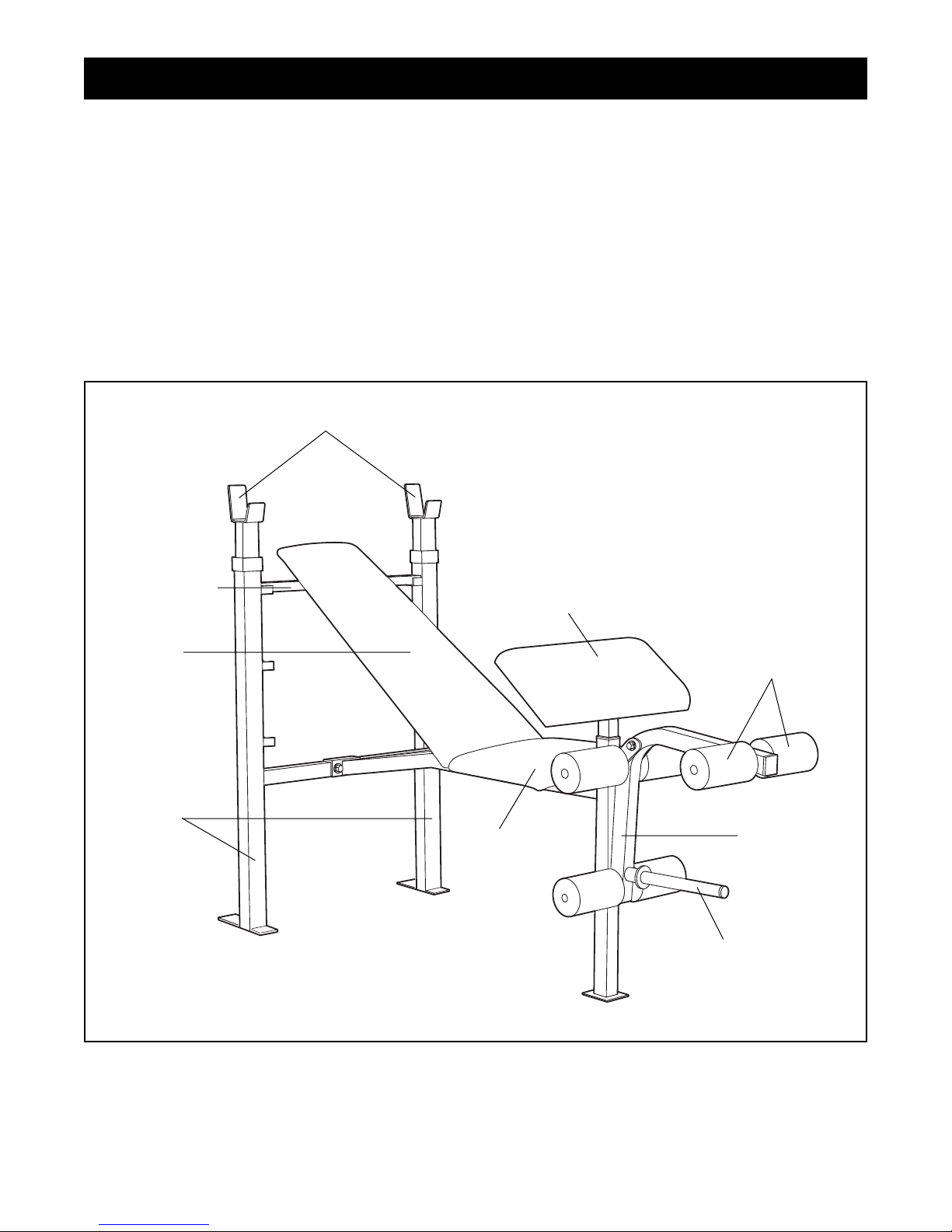

Before reading further, please review the drawing

below and familiarize yourself with the parts that are

labeled.

Before You Begin

Uprights

Foam Pads

Curl Pad

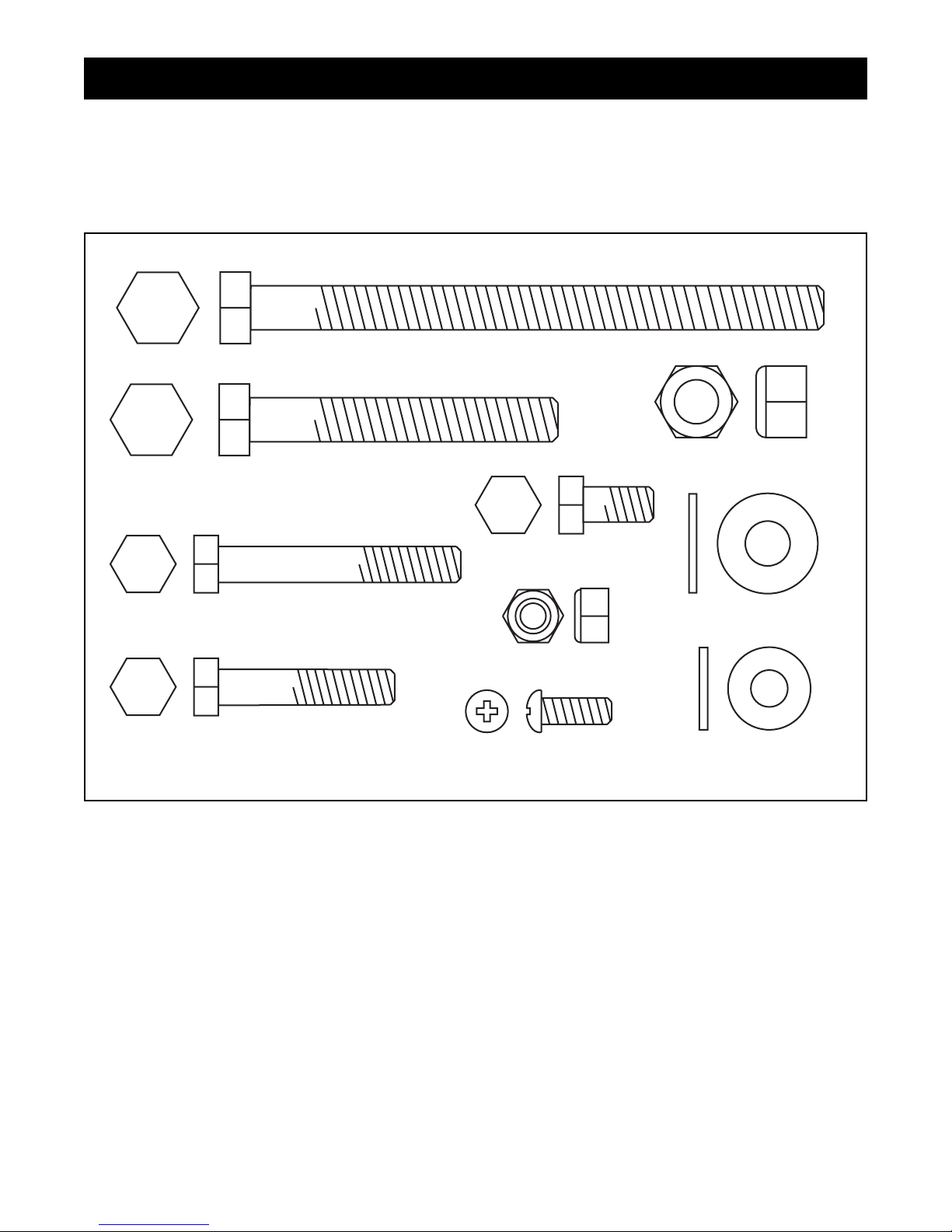

M10 x 130mm Bolt (9)–1

M8 Washer (17)–11

M10 Washer (29)–4

M10 Nylon Locknut (30)–6

M10 x 70mm Bolt (26)–5

M8 x 16mm Bolt (28)–3

M8 x 40mm Bolt (27)–8

M8 x 55mm Bolt (25)–2

M8 Nylon Locknut (34)—2

M6 x 16mm Screw (24)–2

This chart is provided to help you identify the small

parts used in assembly. Important: Some parts may

have been pre-assembled for shipping purposes. If

you cannot find a part in the parts bags, check to

see if it has been pre-assembled. The number in

parenthesis below each part refers to the key number

of the part. The second number refers to the quantity

needed for assembly.

Part Identification Chart

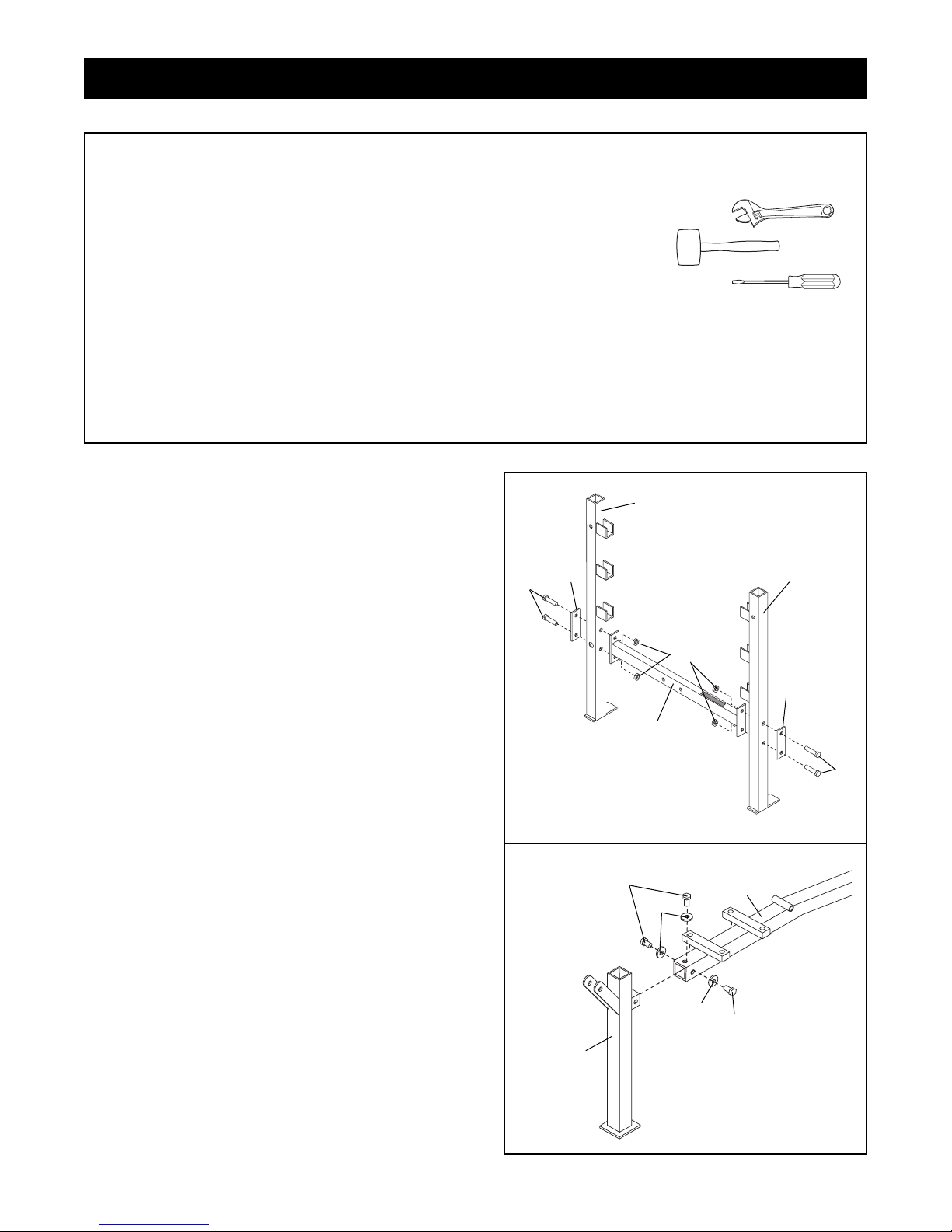

Before beginning assembly, carefully read the

following information and instructions:

•Place all parts in a cleared area and remove the

packing materials; do not dispose of the packing

materials until assembly is completed.

•Tighten all parts as you assemble them, unless

instructed to do otherwise.

•For help identifying the small parts used in

assembly, use the PART IDENTIFICATION

CHART on the page 5.

•As you assemble the weight bench, be sure that

all parts are oriented as shown in the drawings.

THE FOLLOWING TOOLS (NOT INCLUDED) ARE

REQUIRED FOR ASSEMBLY:

• Two (2) adjustable wrenches

• One (1) rubber mallet

• One (1) standard screwdriver

• Lubricant, such as grease or petroleum jelly

plus soapy water.

Assembly will be more convenient if you have the

following tools: A socket set, a set of open-end or

closed-end wrenches or a set of ratchet wrenches.

1. Before assembling this product, be sure that

you have read and understand the information

in the box above.

Position the Crossbar with the warning decal facing

up as shown. Attach the Crossbar (3) to Upright A

(1) with two M10 x 70mm Bolts (26), a Support

Plate (14) and two M10 Nylon Locknuts (30). The

Upright must be oriented as shown.

Attach the Crossbar (3) to Upright B (15) in the

same manner.

2. Attach the Front Leg (8) to the Frame (2) with three

M8 x 16mm Bolts (28) and three M8 Washers (17).

Assembly

26 14

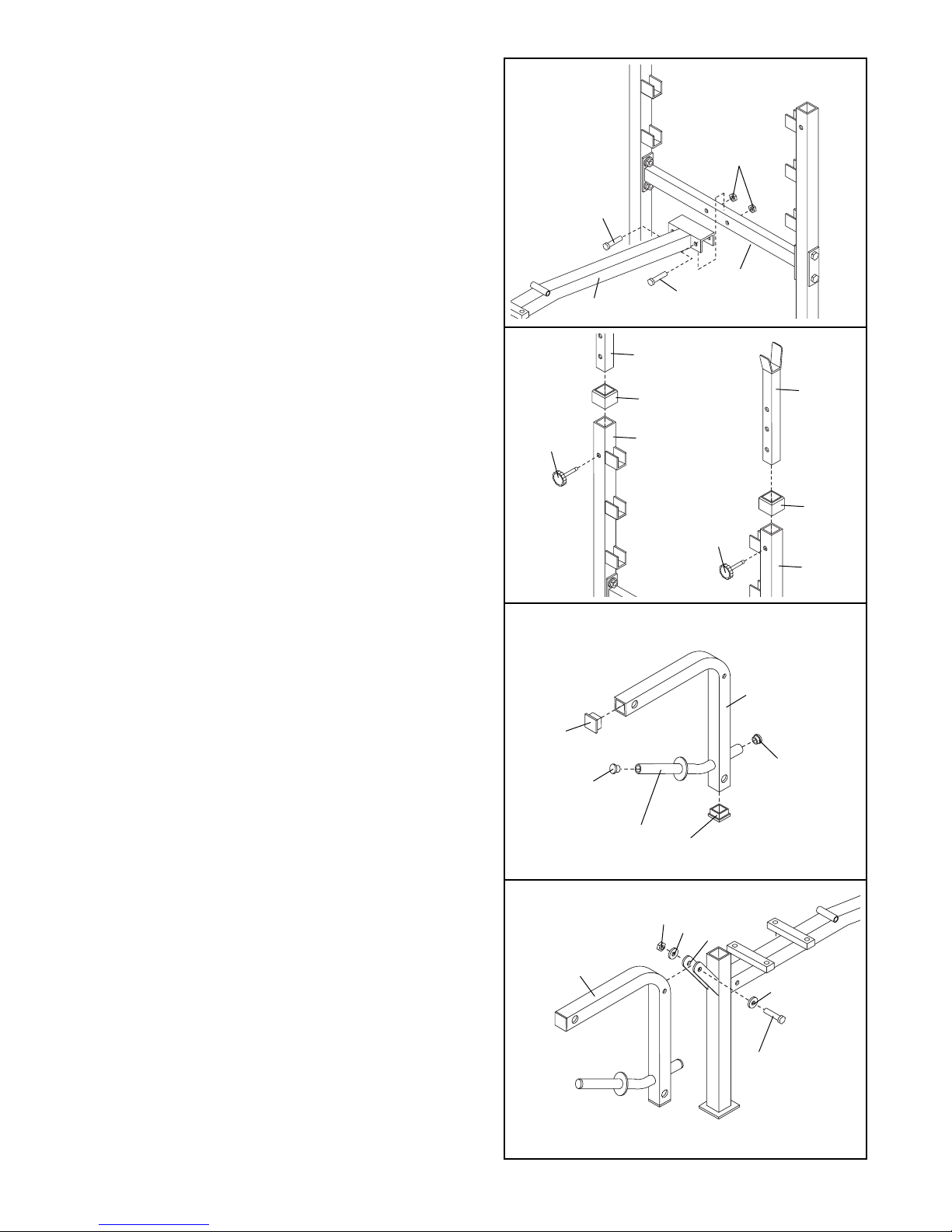

3. Attach the Frame (2) to the Crossbar (3) with two

M8 x 55mm Bolts (25) and two M8 Nylon Locknuts

(34).

4. Press a 50mm Square Bushing (31) onto each

Upright (1, 15) and tap them in place with a rubber

mallet.

Slide a Weight Rest (16) into Upright A (1). Align

one of the adjustment holes in the Weight Rest with

the adjustment hole in the Upright. Tighten the

Large Threaded Knob (20) into the adjustment hole

in the Upright.

Attach the other Weight Rest (16) to Upright B (15)

in the same manner.

5. Tap a 38mm Square Inner Cap (32) into each end

of the Leg Lever (4).

Tap a 25.4mm Round Inner Cap (21) into each end

of the weight tube.

6. Lubricate the M10 x 70mm Bolt (26). Attach the Leg

Lever (4) to the Front Leg (8) with the Bolt, two M10

Washers (29) and the M10 Nylon Locknut (30).

26–Lubricate

29 8

Weight Tube

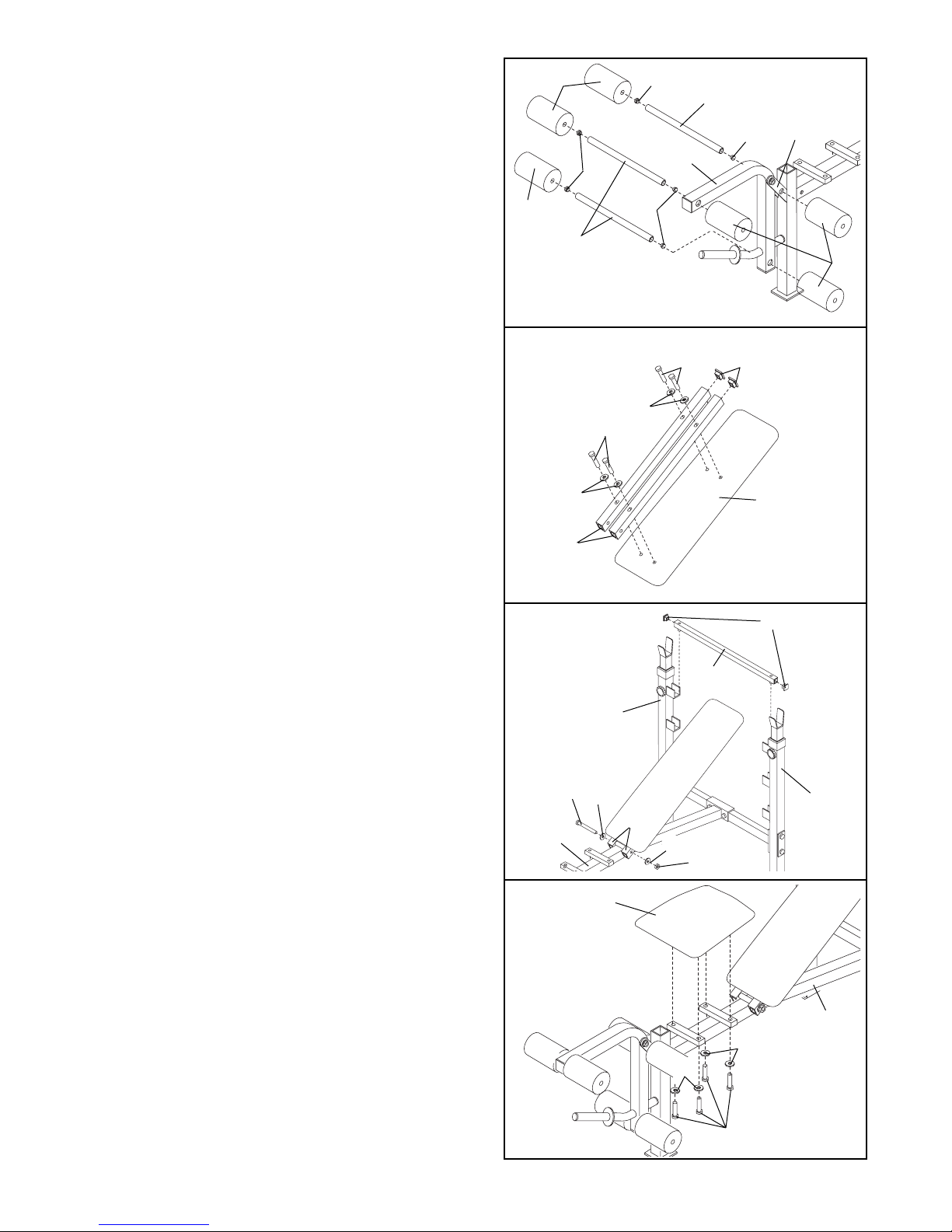

7. Press two 19mm Round Inner Caps (33) into each

Short Pad Tube (10). Press two 19mm Round Inner

Caps into the Long Pad Tube (23).

Insert the Short Pad Tubes (10) into the holes in the

Leg Lever (4). Slide two Foam Pads (22) onto each

Pad Tube.

Insert the Long Pad Tube (23) into the holes in the

bracket on the Front Leg (8). Slide a Foam Pad (22)

onto each end of the Long Pad Tube.

8. Press a 1” Square Inner Cap (18) into the indicated

end of each Backrest Tube (5).

Attach each Backrest Tube (5) to the Backrest (6)

with two M8 x 40mm Bolts (27) and two M8

Washers (17). The Backrest Tubes must be ori-

ented as shown.

Do not tighten the four Bolts yet.

9. Press a 1” Square Inner Cap (18) into each end of

the Support Tube (7). Set the Support Tube into the

highest set of adjustment brackets on the Uprights

(1, 15).

Lubricate the M10 x 130mm Bolt (9). Attach the

Backrest Tubes (5) to the Frame (2) with the Bolt,

two M10 Washers (29) and an M10 Nylon Locknut

(30). Do not overtighten the Nylon Locknut.

Rest the Backrest (6) on the Support Tube (7).

Tighten the four M8 x 40mm Bolts (27) securing the

support tubes to the seat (see Step 8).

10. Attach the Seat (11) to the seat support brackets on

the Frame (2) with four M8 x 40mm Bolts (27) and

four M8 Washers (17).

33 8

27 18

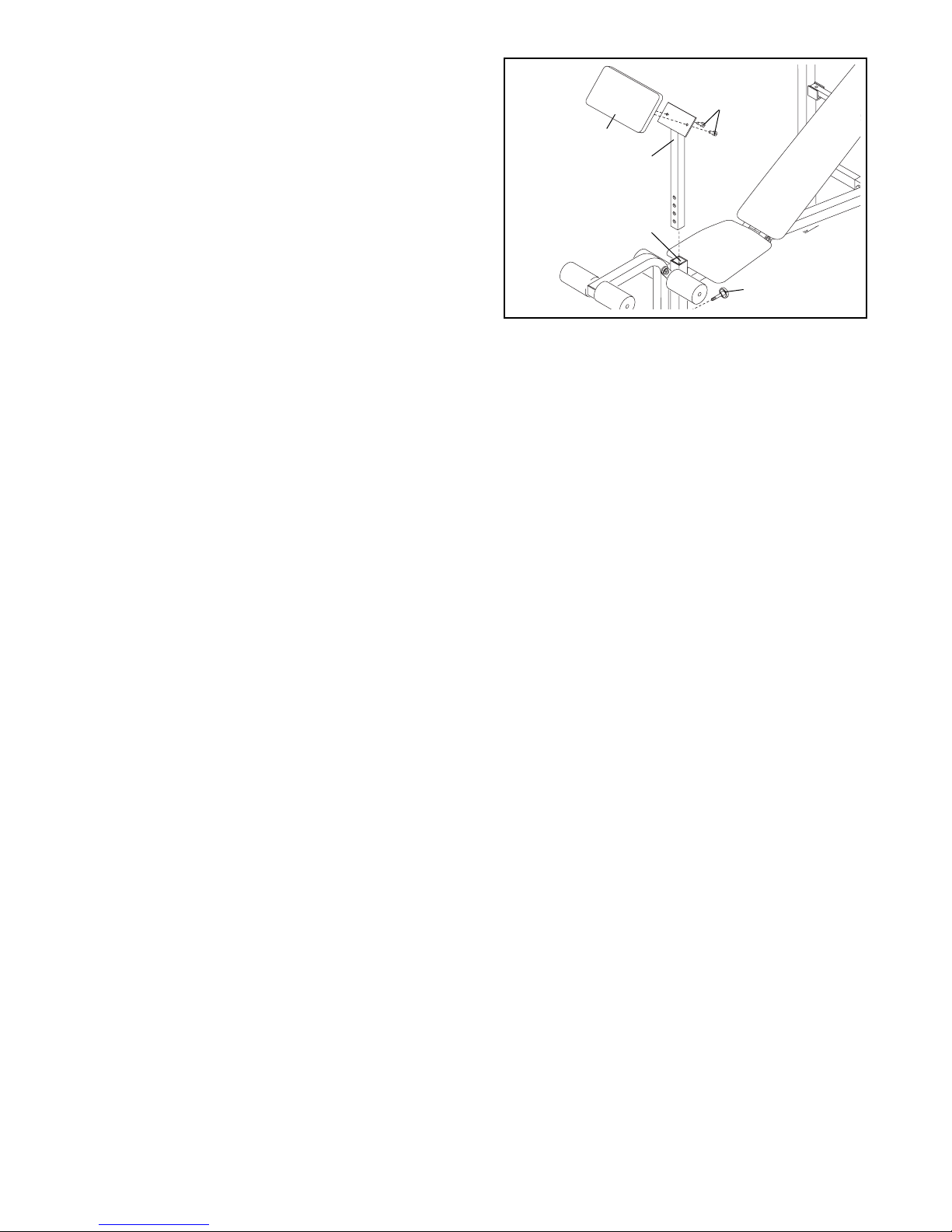

11. Attach the Curl Pad (12) to the Curl Upright (13)

with two M6 x 16mm Screws (24).

Slide the Curl Upright (13) into the Front Leg (8).

Align one of the adjustment holes in the Curl

Upright with the adjustment hole in the Front Leg.

Tighten the Small Threaded Knob (19) into the

adjustment hole in the Front Leg.

12. Make sure that all parts are properly tightened

before you use the weight bench.

Weight Tube

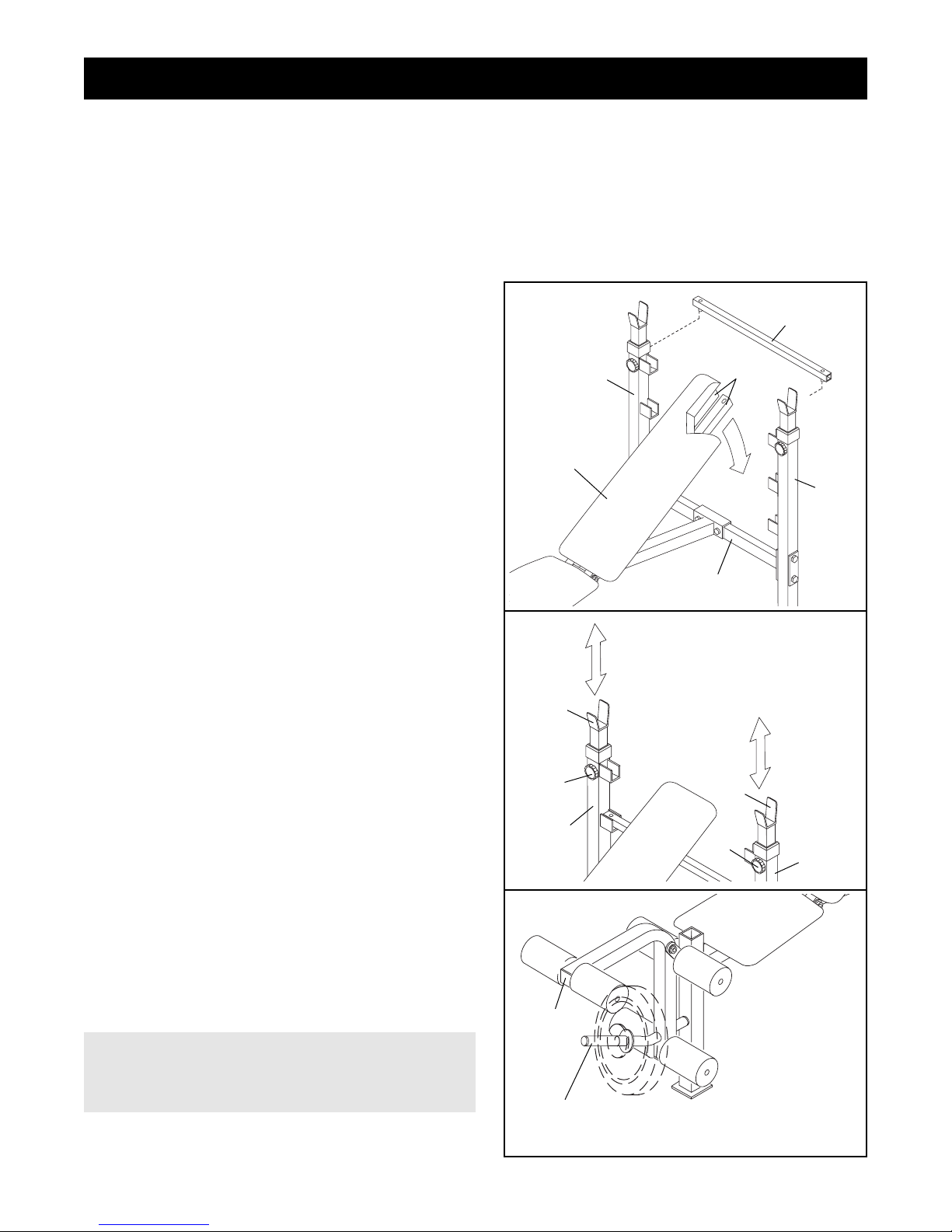

ADJUSTING THE BACKREST

The Backrest (6) can be used in a level position, two

incline positions or a decline position. To use the

Backrest in a level position, first lift the Backrest. Insert

the Support Tube (7) into the lowest set of adjustment

brackets in the Uprights (1, 15). Lay the Backrest Tubes

(5) on the Support Tube.

To use the Backrest (6) in an incline position, first lift the

Backrest. Insert the Support Tube (7) into one of the two

upper sets of adjustment brackets in the Uprights (1,

15). Lay the Backrest Tubes (5) on the Support Tube.

To use the Backrest (6) in a decline position, lift the

Backrest and remove the Support Tube. Lay the

Backrest Tubes (5) on the Crossbar (3).

ADJUSTING THE WEIGHT RESTS

To adjust the Weight Rests (16), remove the Large

Threaded Knobs (20) from the Uprights (1, 15). Move

the Weight Rests to the desired height. Replace the

Large Threaded Knobs. The Weight Rests must be set

to the same heights.

ATTACHING WEIGHTS TO THE WEIGHT BENCH

Note: Remove the Curl Upright before using the Leg

lever (see Assembly, step 11 on page 9).

To use the Leg Lever (4), slide the desired weights (not

included) onto the weight tube.

The weight bench is designed to be used with your own weight set (not included). The steps below explain how

the weight bench can be adjusted. See EXERCISE GUIDELINES on page 11 for important exercise information

and refer to the accompanying exercise poster to see the correct form for each exercise. Refer also to the exer-

cise information accompanying your weight set (not included) for additional exercises.

Inspect and tighten all parts each time you use the weight bench. Replace any worn parts immediately. The

weight bench can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use solvents.

Using the Weight Bench

WARNING: Do not place more than 50 pounds

on the Leg Lever for normal use.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Weider Salle de sport à domicile

Weider

Weider Pro 136 Bench Manuel utilisateur

Weider

Weider 340 Lc Bench Guide de l'utilisateur

Weider

Weider Platinum Plus 831.15407.0 Manuel utilisateur

Weider

Weider 9300 PRO Manuel utilisateur

Weider

Weider 190 Tc Bench Manuel du système

Weider

Weider 215 Bench Guide de démarrage rapide

Weider

Weider 9250 Guide de démarrage rapide

Weider

Weider WESY38320 Manuel utilisateur

Weider

Weider PRO 260 Manuel utilisateur

Weider

Weider WESY17010 Manuel utilisateur

Weider

Weider 8700 I Guide de démarrage rapide

Weider

Weider 8800hard Drive Sys Manuel utilisateur

Weider

Weider FLEX-CTS WESY20318.0 Manuel utilisateur

Weider

Weider Pro 255 L Bench Manuel utilisateur

Weider

Weider Club 4870 Manuel utilisateur

Weider

Weider 831.159720 Manuel utilisateur

Weider

Weider CRUNCHTRAINER 004005 Manuel utilisateur

Weider

Weider Body Works Pro 2.0 Bench Manuel

Weider

Weider D710 Ultra Manuel utilisateur

Weider

Weider 245 Bench Guide de l'utilisateur

Weider

Weider WEBE0635.0 Manuel utilisateur

Weider

Weider PRO 4850 Manuel utilisateur

Weider

Weider Flex 8960 Manuel utilisateur

Weider

Weider 831.159360 Manuel utilisateur

Manuels Salle de sport à domicile populaires d'autres marques

Horizon Fitness

Horizon Fitness OXFORD 6 Manuel utilisateur

Energetics

Energetics Multi Trainer 5.1 Manuel utilisateur

Matrix

Matrix MG-PL Series Manuel utilisateur

Reebok

Reebok Tbr2i Manuel d'utilisation et d'entretien

Pure Fitness

Pure Fitness 8526HE Manuel utilisateur

Bowflex

Bowflex Sport 001-6961 Manuel utilisateur

NordicTrack

NordicTrack E8200 Competition Bench Guide de démarrage rapide

Body Solid

Body Solid GHYP-345 Manuel utilisateur

Evo

Evo TAHOE 5105 Manuel utilisateur

cardiobull

cardiobull RA17 Manuel utilisateur

ParaBody

ParaBody 40 Manuel utilisateur

JLL

JLL Ventus Pro Air Power Manuel utilisateur

Trojan

Trojan Colorado 370 Manuel utilisateur

Octane Fitness

Octane Fitness xRide xR650 Manuel utilisateur

Precor

Precor Discovery Series Manuel utilisateur

Insportline

Insportline RW600 Manuel utilisateur

Stamina

Stamina 55-1532 Manuel utilisateur

Tunturi

Tunturi R25 Manuel utilisateur
