Weider 184 Bench Manuel utilisateur

Model: WEEMBE0525.0

Serial No.

Serial Number

Decal

USER'S MANUAL

CAUTION

Read all precautions and instruc-

tions in this manual before

using this equipment. Save this

manual for future reference.

QUESTIONS?

As a manufacturer,we are com-

mitted to providing complete

customer satisfaction. If you

have questions, or if there are

missing or damaged parts,

please call:

Or write:

ICON Health & Fitness, Ltd.

Customer Service Department

Unit 4

Revie Road Industrial Estate

Revie Road

Beeston

Leeds, LS118JG

email: [email protected]

08457 089 009

www.iconeurope.com

Visit our website at

TABLE OF CONTENTS

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

PART LIST AND EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

WARNING DECAL PLACEMENT

WEIDER is a registered trademark of ICON IP, Inc.

The decals shown here have

been placed on the bench. If a

decal is missing or illegible,

please call the telephone num-

ber on the front cover of this

manual and order a free

replacement decal. Apply the

replacement decal in the loca-

tion shown.

BEFORE YOU BEGIN

Thank you for selecting the innovative WEIDER®184

bench. The WEIDER 184 bench is designed to help

you develop your upper and lower abdominal muscles

to give you a firm, flat stomach in only minutes a day.

For your benefit, read this manual carefully before

using the bench. If you have questions after reading

this manual, see the front cover of this manual. To

help us assist you, note the product model number

and serial number before calling. The model number is

WEEMBE0525.0. The serial number can be found on

adecal attached to the bench (see the front cover of

this manual).

WARNING: Toreduce the risk of serious injury, read the following important precautions

before using the bench.

1. Read all instructions in this manual and all

warnings on the bench before using the

bench.

2. It is the responsibility of the owner to ensure

that all users of the bench are adequately

informed of all precautions.

3. The bench is intended for home use only. Do

not use the bench in any commercial, rental,

or institutional setting.

4. Keep the bench indoors, away from moisture

and dust. Place the bench on a level surface,

with a mat beneath it to protect the floor or

carpet. Make sure that there is enough clear-

ance around the bench to mount, dismount,

and use the bench.

5. Keep children under 12 and pets away from

the bench at all times.

6. Inspect and properly tighten all parts regular-

ly. Replace any worn parts immediately.

7. Keep hands and feet away from moving parts.

8. Always wear athletic shoes for foot protection.

9. The bench is designed to support a maxi-

mum user weight of 186 kg (410 lbs.). The

bench is not designed to be used with

weights.

10. If you feel pain or dizziness at any time whilst

exercising, stop immediately and begin cool-

ing down.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. ICON assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

IMPORTANT PRECAUTIONS

1. Before beginning assembly, make sure that you

have read and understand the information

above.

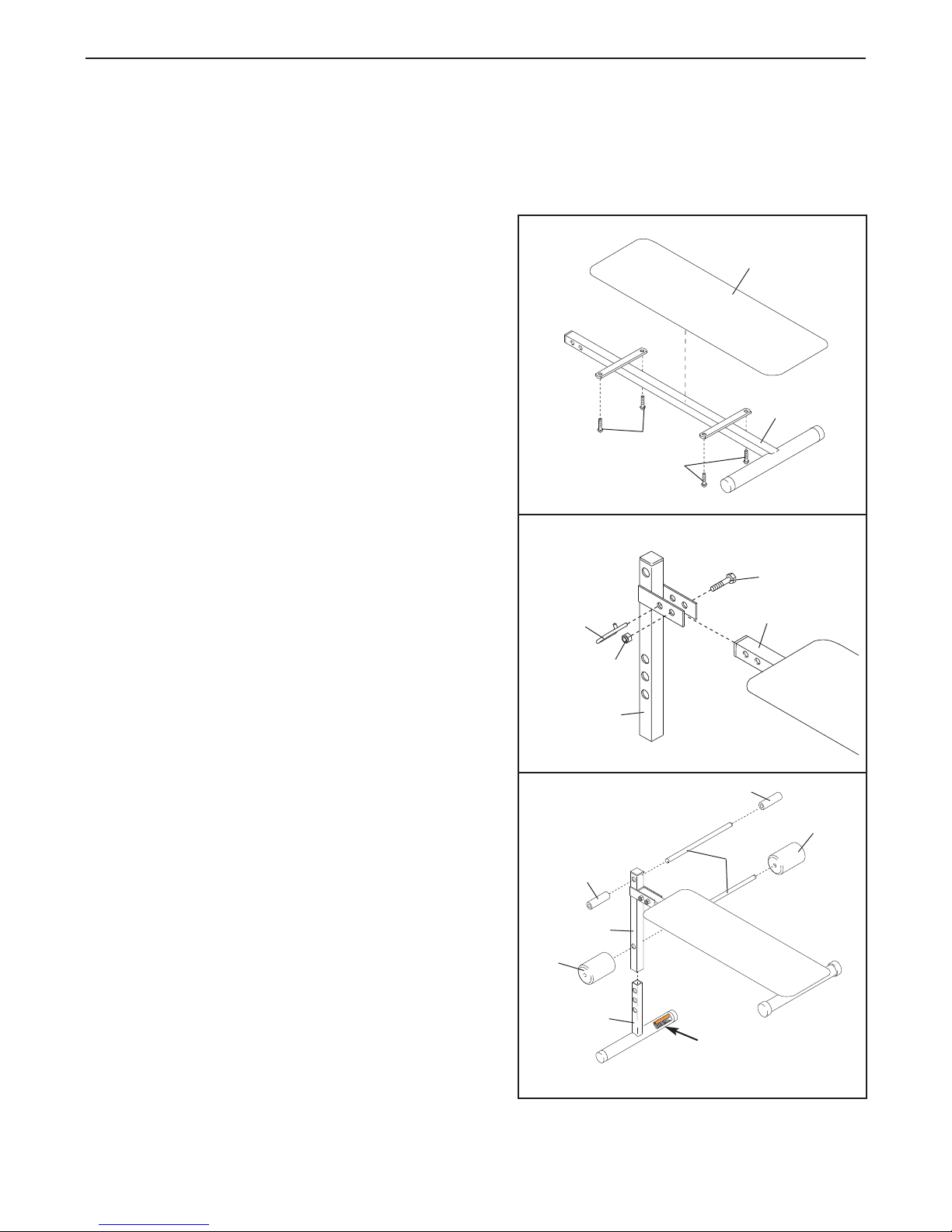

Attach the Backrest (3) to the Frame (1) with four

M6 x 16mm Screws (5).

2. Attach the Leg (2) to the Frame (1) with an M10 x

57mm Bolt (12), an M10 Nylon Locknut (13), and the

Adjustment Pin (14). Do not overtighten the Nylon

Locknut; the Leg should pivot freely. Make sure

that the Adjustment Pin is rotated until the bent

end is over the Frame.

ASSEMBLY

Place all parts in a cleared area and remove the packing materials; do not dispose of the packing materials until

assembly is completed. Read each assembly step before you begin. During assembly, make sure that all parts

are oriented as shown in the drawings. A Phillips screwdriver (not included) and two spanners (not included)

are required for assembly.

3. Insert a Pad Bar (4) into the upper hole in the Leg

(2). Slide the two Small Foam Pads (6) onto the

Pad Bar.

Insert the Adjustment Foot (8) into the Leg (2) with

the warning decal in the indicated position. Insert

the remaining Pad Bar (4) into the lower hole in the

Leg and the Adjustment Foot. Slide the two Large

Foam Pads (7) onto the Pad Bar.

WARNING

Warning Decal

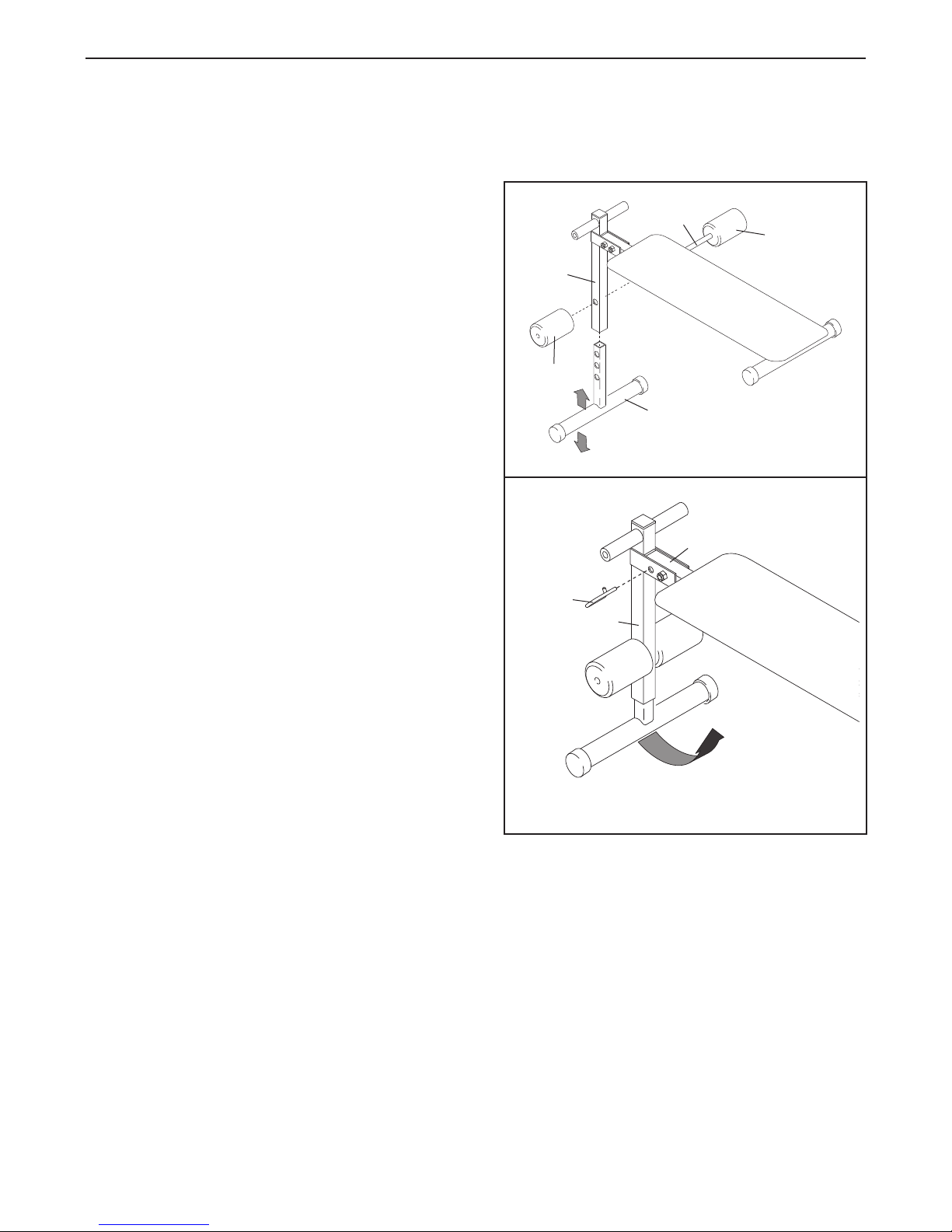

ADJUSTING THE ANGLE OF THE BENCH

To adjust the bench, first remove a Large Foam Pad (7)

from the lower Pad Bar (4). Remove the Pad Bar from

the Leg (2). Adjust the Adjustment Foot (8) to the

desired height and reinsert the Pad Bar into the Leg

and the Adjustment Foot. Then, slide the Large Foam

Pad onto the Pad Bar.

FOLDING THE BENCH

To fold the bench, remove Adjustment Pin (14). Fold the

Leg (2) in the indicated direction. When the bench is

in use, make sure the Adjustment Pin is fully insert-

ed through the Leg and the Frame (1).

ADJUSTMENT

Make sure that all parts are properly tightened each time the bench is used. Replace any worn parts immediate-

ly. The bench can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use solvents.

EXERCISE GUIDELINES

LEG RAISES

Lie on the bench, grasp the small foam pads, and extend your legs as shown. Lift your legs with a slow,steady

motion—avoid rapid or jerky movements. Return to the starting position. Repeat.

CRUNCHES

Lie on the bench and tuck your feet under the large foam pads as shown. Bend forward at the waist, keeping

your back straight, and sit up as shown. Return to the starting position. Repeat.

The bench will help you shape your upper and lower

abdominal muscles. Be careful not to overdo it during

the first few weeks of your exercise program.

Toget the most from your exercise, proper form is

important. As you perform each repetition, use your

abdominal muscles to pull yourself up, moving in a

smooth continuous motion.

Always begin and end each workout with a few min-

utes of stretching. Remember to keep plenty of water

nearby as you exercise, and drink periodically to avoid

dehydration. If you feel faint, dizzy, or short of

breath at any time during exercise, stop immedi-

ately and begin cooling down.

WARNING: Before beginning this

or any exercise program, consult your physi-

cian. This is especially important for persons

over the age of 35 or persons with pre-exist-

ing health problems.

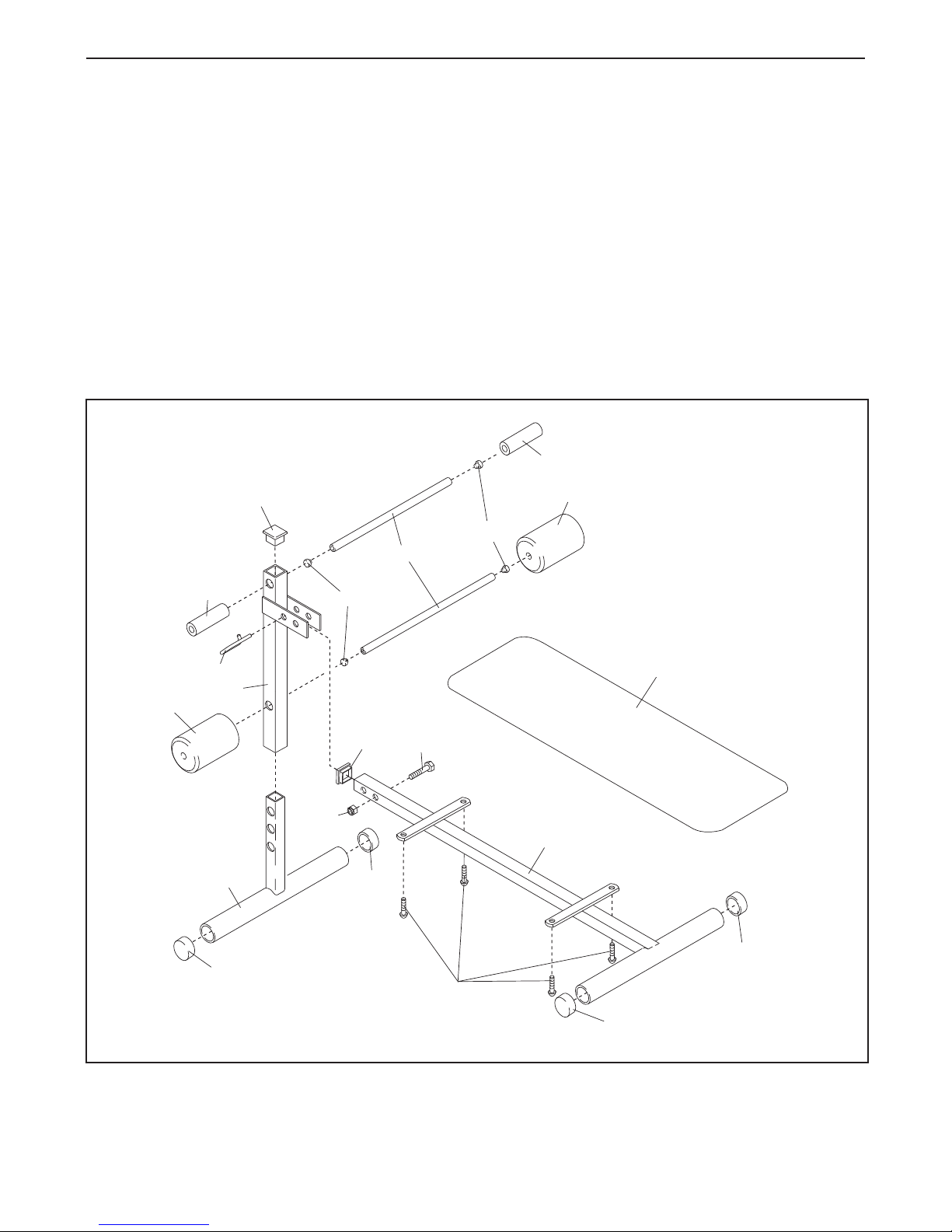

PART LIST AND EXPLODED DRAWING R0306A

Model No. WEEMBE0525.0

Note: "#" indicates a non-illustrated part. Specifications are subject to change without notice.

1 1 Frame

2 1 Leg

3 1 Backrest

4 2 Pad Bar

5 4 M6 x 16mm Screw

6 2 Small Foam Pad

7 2 Large Foam Pad

8 1 Adjustment Foot

9 4 38mm Round Outer Cap

10 2 38mm Square Inner Cap

11 4 19mm Round Inner Cap

12 1 M10 x 57mm Bolt

13 1 M10 Nylon Locknut

14 1 Adjustment Pin

# 1 User’s Manual

Key No. Qty. Description Key No. Qty. Description

,Inc.

To order replacement parts, contact the ICON Health & Fitness, Ltd. office, or write:

ICON Health & Fitness, Ltd.

Customer Service Department

Unit 4

Revie Road Industrial Estate

Revie Road

Beeston

Leeds, LS118JG

Tel:

Outside the UK: 0 (044) 113 387 7133

Fax: 0 (044) 113 387 7125

Tohelp us assist you, please be prepared to give the following information:

• the MODEL NUMBER of the product (WEEMBE0525.0)

• the NAME of the product (WEIDER 184 bench)

• the SERIAL NUMBER of the product (see the front cover of this manual)

• the KEY NUMBER and DESCRIPTION of the part(s) (see page 7 in this manual)

08457 089 009

HOW TO ORDER REPLACEMENT PARTS
