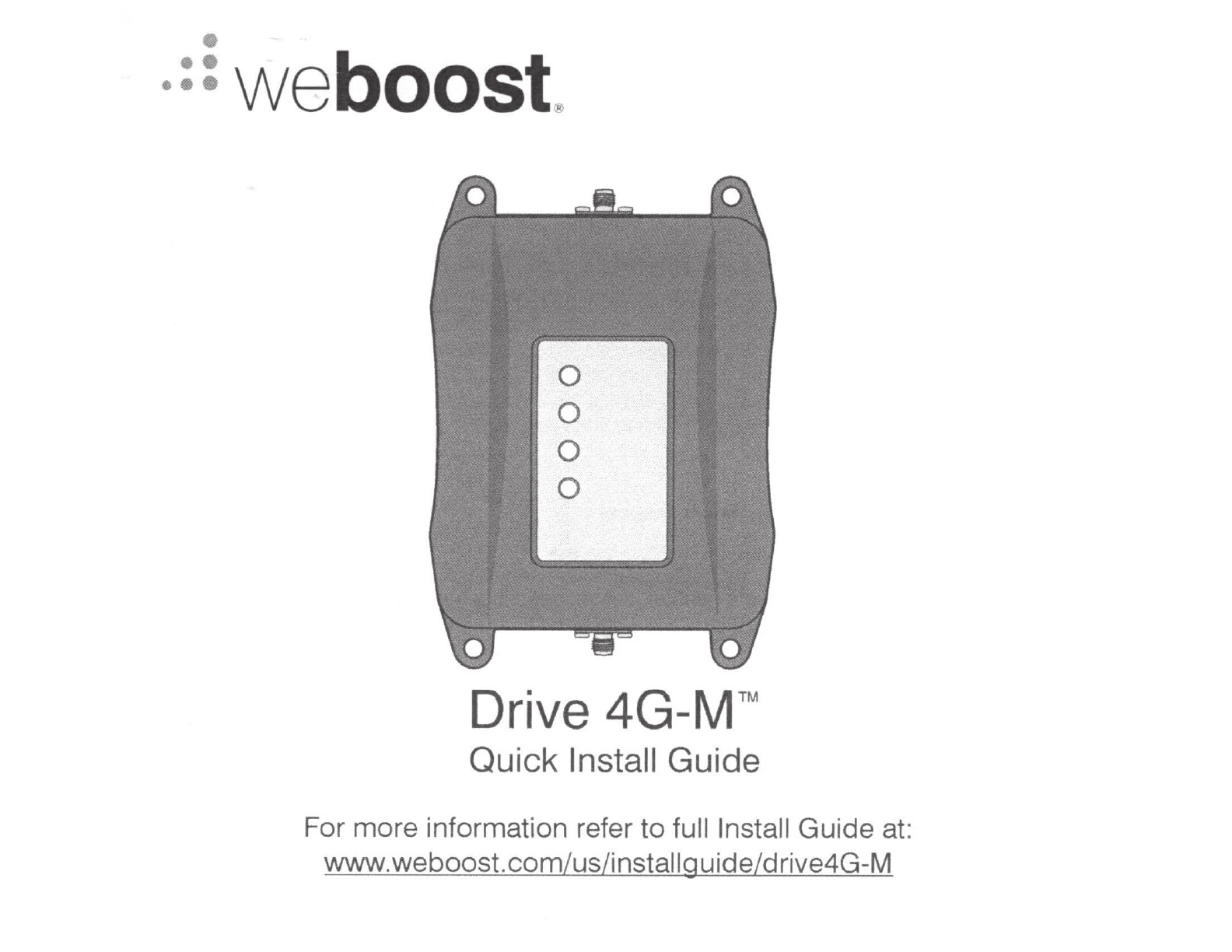

weboost®

Drive

4G-M™

Quick Install Guide

For more information refer

full Install Guide

at:

www.weboost.com/us/installguide/drive4G-M

Package

Contents

Drive 4G-M Signal Booster

Mini-Mag Mount Antenna Slim Low Profile Antenna

DC Power Supply

Quick

Install

Diagram

Connect Cables

Drive 4G-M I Power Supply Cord

Connect Power Supply

1 Outside Antenna Installation

Select a location

top of the vehicle

mountthe Mini-Mag

Mount Antenna that

is:

• Near the center ofthe vehicle's

roof.

• At least 12 inches from any

other antennas.

Mini-Mag MountAntenna

• Free of obstructions.

• At least 6 inches from any

windows (including sunroofs).

2 Running Antenna Cable

Run the Outside Antenna cable into the car. The cable is strong

enough that it may be shut in most vehicle doors without damaging

the cable. For a cleaner look, carefully pull

down

the

door

seal, run

the cable underthe seal, and push the seal back into place. This

method reduces wear on the cable as the

door

opens and closes.

l /

\ ,f

·'

3 Inside Antenna Installation

Identify a place on the side of the seat

mount the Slim Low

Profile Antenna. The location should be at least 18 inches but

more than 36 inches from where the cellular device will be used.

Peel

off the backing of the Velcro® and attach

seat.

4 Connect Coax Cables

Drive 4G-M

Select a location for the Drive 4G-M that is free from excessive

heat, direct sunlight and moisture and that has properventilation.

Good locations include underneath a seat or underthe dashboard.

Connect the cable from the Mini-Mag Mount Antenna

the port

labeled "Outside Antenna" on the Drive 4G-M and connect the

cable from the Slim Low Profile Antenna

the port labeled "Inside

Antenna" on the booster.

Slim

Low

ProfileAntenna Mini-Mag MountAntenna

5 Connect Power

Supply

Drive 4G-M

Connectthe power supply cord

the end

the Drive 4G-M

labeled "Power." NOTE: Do NOT connect the power

the Signal

Booster until you have connected both the Inside and Outside

Antennas.

Power

Supply

6 Connect

Power

Supply

Plug the power adapter into vehicle's 12V

power supply. Power

your Drive 4G-M

flipping the switch on the back

the DC

power adapter on. If your Drive 4G-M is working correctly, the

lights will be green.

NOTE: Iflights are not green on your weBoost booster, please refer

to the full install guide online

contact customer support at

1-866-294-1660

email at [email protected].

How

Works

Your cell phone

an essential part of your life. weBoost

here to

ensure you have seamless connections on all your cellular devices.

The Drive 4G-M cellular signal booster

a effective solution to all

those times you have lost a call while driving your vehicle due to a

weak cell signal. Installation

simple and can be completed with

minimal tools.

\ Outside Antenna

\~·~';:)

' \

i Power

Supply

)

S1gnal

Received and

Transmitted

Note:

THE

ALUMINUM

CASING

YOUR

SIGNAL

BOOSTER

WILL

ADJUST

THE

TEMPERATURE

ITS

ENVIRONMENT,

BUT

DESIGNED

PROTECT

THE

SIGNAL

BOOSTER

TECHNOLOGY

FOR

EXAMPLE,

THE

SUMMER,

THE

SIGNAL

BOOSTER

CASE

MAY

HOT

150

DEGREES

INSIDE

YOUR

VEHICLE

THESE

HIGH

TEMPERATURES

WILL

NOT

DAMAGE

THE

SIGNAL

BOOSTER

NOR

THEY

POSE

FIRE

RISK

THE

VEH

CLE.

AGAIN,

SURE

PLACE

YOUR

SIGNAL

BOOSTER

LOCATION

WITH

ADEQUATE

VENTILATION

AND

AWAY

FROM

DIRECT

SUNLIGHT

MOISTURE

THE

DRIVE

4G-M

SIGNAL

BOOSTER

MAY

REMAIN

ON,

VEHICLES

WHOSE

12V

POWER

SOURCES

NOT

AUTOMATICALLY

SHUTDOWN

WHEN

THE

VEHICLE

TURNED

OFF.

THIS

COULD

RESULT

DISCHARGING

THE

VEHICLES

BATTERY

ONE

TWO

DAYS
