Installation Guide
______
Index
Package Contents 1
STEP 1: Select Mounting Location &
Assemble the Outside Antenna 2
STEP 2: Mount The Antenna 5
STEP 3: Route Antenna Cable & Connect Booster 7
STEP 4: Route Fixed Booster Cable & Connect To Cradle 8
STEP 5: Connect System To Power 9
STEP 6: Insert Your Phone Into Cradle 10
Troubleshooting 11
Safety Guidelines 12
Antenna Kit Options 13
Specifications 14
Warranty 15
Insert Your Phone Into Cradle
DRIVE SLEEK OTR CELL SIGNAL BOOSTER FOR TRUCKS 1
________
Package
Contents
Sleek
Cradle
3-Way Antenna
Mount
Antenna
Spring
Thread Lock
Packets
Cable
Adapter
Cradle
Mount
Outside
Antenna
Mast Extensions,
Side-Exit Adapter
Power
Supply
Signal
Booster
Insert Your Phone Into Cradle
2CELL SIGNAL BOOSTER FOR TRUCKS DRIVE SLEEK OTR
______
Step 1: Select Mounting
Location & Assemble the
Outside Antenna
Depending on the type of truck, there may be built-in antenna
mounting points. If the vehicle does not have built-in mounting
points, the antenna includes a 3-way mount that will work on
vehicles with mirror rails. The antenna will also work with third
party CB antenna mounts.
Select mounting location on vehicle. The outside antenna can
be mounted in any CB mount or antenna mounting point on the
vehicle. For best performance mount the antenna above the
metal cab (it does not need to be above cab wind deflector).
NOTE: Mount at least 12 inches from any other antennas. Free of obstructions.
NOTE: If the vehicle is using two CB antennas with co-phase wiring, removing
one antenna will cause reduced performance of the remaining CB antenna.
Typical Antenna
Mounting Points
DRIVE SLEEK OTR CELL SIGNAL BOOSTER FOR TRUCKS 3
Mast
Extension
Mast
Extension
Mast
Extension
OR
Antenna
Side Exit
Adapter
cable
cable
from antenna
OTR
Antenna
Thread Lock
Thread Lock
Once you have determined the
best location for the outside
antenna and have determined
if mast extensions are needed,
insert cable through mast.
If using mast extension(s) add
thread locker (packets provided)
to thread point(s). Screw into
place.
Add thread locker (packets
provided) to thread point and
screw on the side exit adapter.
NOTE: Mast extensions may not be
needed depending on your mounting
point.
NOTE: Be sure the antenna is the correct
height before applying thread locker.
NOTE: When adding the side exit adapter
hold the antenna vertically and screw the
adapter from the bottom up. This reduces
cable twisting.
______
(STEP 1 cont.)
4CELL SIGNAL BOOSTER FOR TRUCKS DRIVE SLEEK OTR
______
(STEP 1 cont.)
13” Mast13” Mast13” Mast
18” Mast
Side Exit
Adapter
c
a
b
l
e
c
a
b
l
e
c
a
b
l
e
Antenna Spring
(can be used
optionally)
Antenna Spring
(should not be used
on this length)
DRIVE SLEEK OTR CELL SIGNAL BOOSTER FOR TRUCKS 5
______

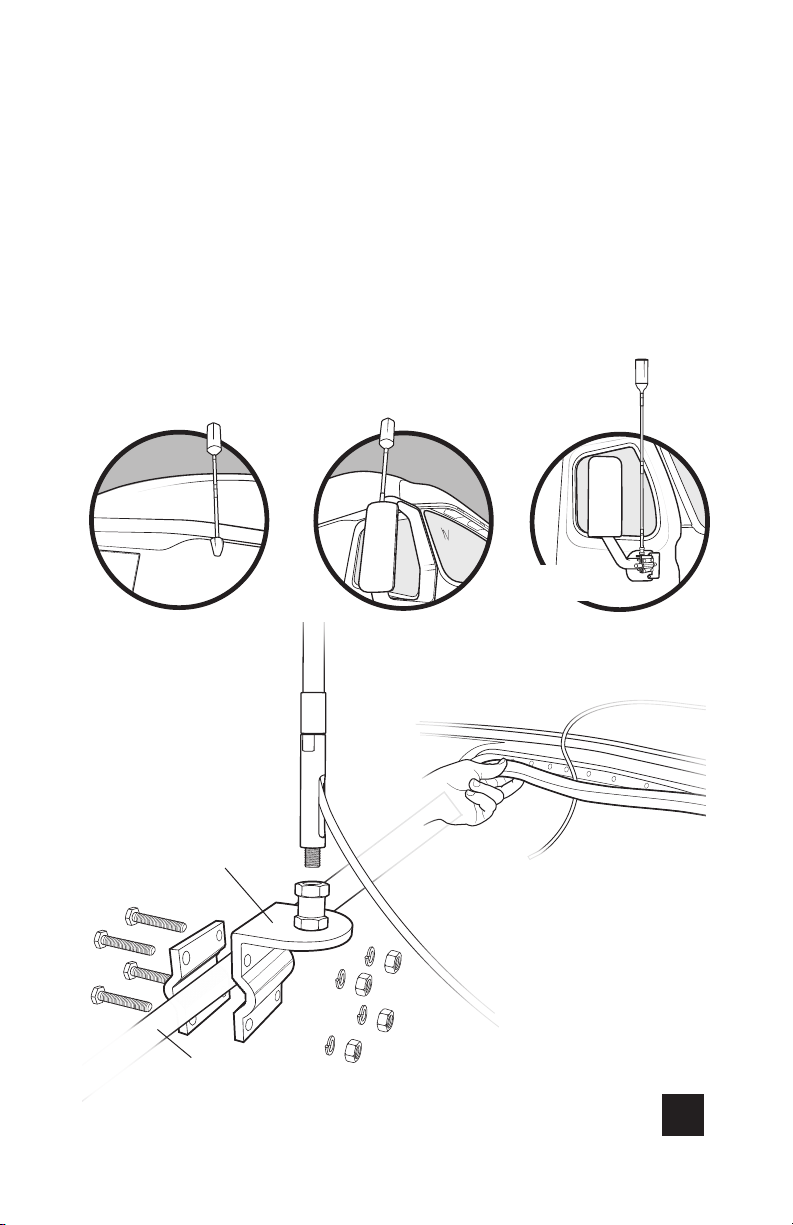

Step 2: Mount The Outside
Antenna
These are some typical antenna mounting points. If the vehicle
does not have built-in mounting points, a 3-way mount is
included that will work on vehicles with mirror rails.
3-Way
Antenna Mount
mirror rail
or bird perch mount
The cable is strong enough
that it may be shut in most
vehicle doors without
damaging the cable.
Side Exit
Adapter
Mast
Top of Mirror Mirror ArmUpper Side
3-Way Mount
on bird perch
6CELL SIGNAL BOOSTER FOR TRUCKS DRIVE SLEEK OTR
______
(STEP 3 cont.)
Side Exit Adapter must
be used with Spring
Add thread lock on
all threads with tube
provided
Remove nut &
shakeproof washer
Mount disc washer with
lip in the DOWN position
Fasten nut with lip in
the UP position
Remove bolt, lock
washer & plastic
washer
If installing with the antenna spring, disassemble and
reassemble the 3-way mount as shown below.
Disassemble
Reassemble
Antenna
Spring
Side Exit
Adapter
DRIVE SLEEK OTR CELL SIGNAL BOOSTER FOR TRUCKS 7
______

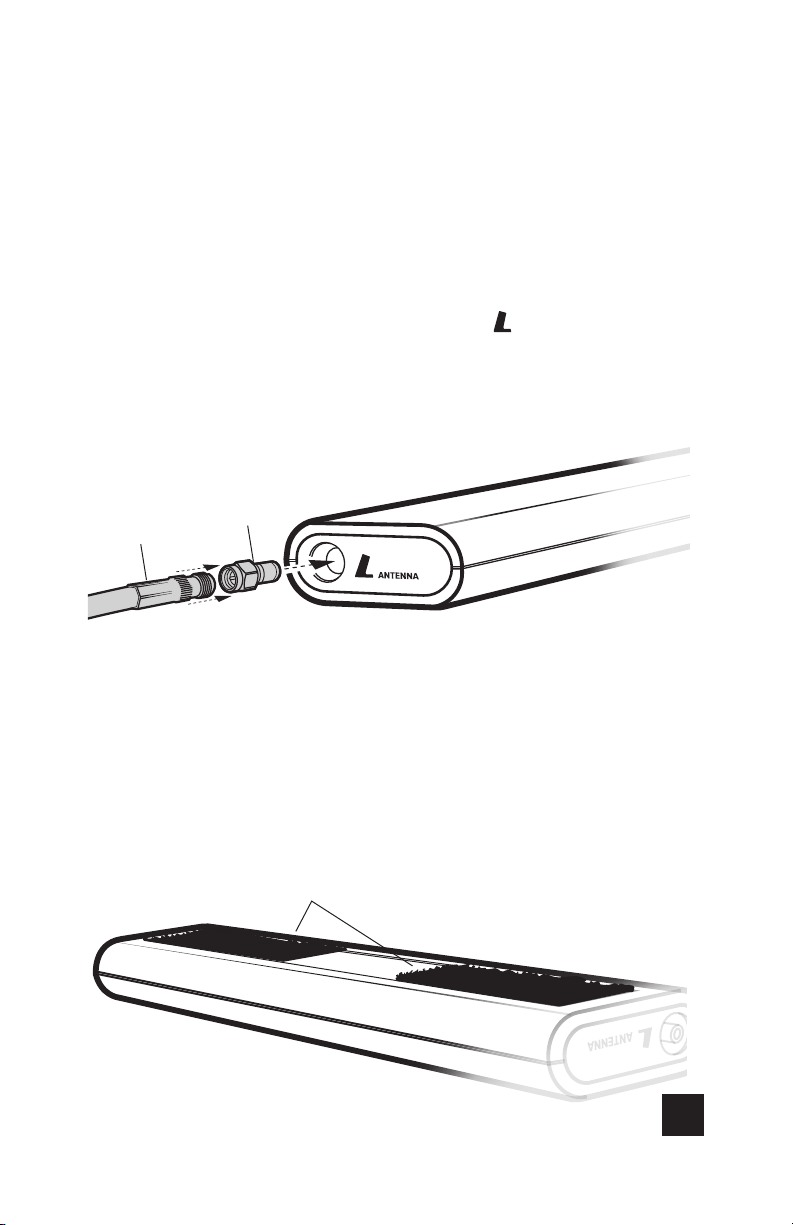

Step 3: Route Outside Antenna
Cable & Connect Booster
The included Velcro®can be used to mount the booster
out-of-the way on the floor under a seat or mounted in the
back of the cab. It is best to mount in a place where the
cables cannot be tripped over or snagged (damaging
the booster).
Connect the cable from the outside antenna to the cable
adapter then to the booster port labeled
ANTENNA
by simply
pressing the connector in until you hear a “click”.
ANTENNA
cable from
Outside Antenna
Booster
Cable
Adapter
Velcro®
NOTE: Connecting cable from outside antenna to booster does not
take much force.
NOTE: The “hook” side of the Velcro®(already on the booster) can be
used to attach to the carpet of many vehicles.
bottom side of Booster
8CELL SIGNAL BOOSTER FOR TRUCKS DRIVE SLEEK OTR
______
Step 4: Route Fixed Booster
Cable & Connect To Cradle
Place booster behind seats or in back area of vehicle and
route the 15 foot fixed cable to the front of the vehicle
where the cradle will be located.
Connect booster cable to sleek cradle cable.
snap-in
connectors
Sleek
Cradle
