WeBoost Destination RV Manuel utilisateur

Installation Guide

Destination RV

RV Cellular Signal Booster

with Telescoping Pole

Home MultiRoom

ENGLISH FRANÇAIS

Index

Package Contents ........................................................... 1

STEP 1 Mount Outside Antenna to Telescoping Pole.............................. 2

STEP 2 Mount Telescoping Pole to Side of RV................................... 2

STEP 3 Mount Booster and Route Cable ....................................... 5

STEP 4 Mount Inside Antenna ................................................ 6

STEP 5 Connect Coax Cables to Booster ....................................... 7

STEP 6 Connect Power Supply to Booster ...................................... 7

Booster Light Patterns ....................................................... 8

Troubleshooting ............................................................ 10

Safety Guidelines ........................................................... 12

Antenna Info ............................................................... 14

Speciﬁcations .............................................................. 16

Warranty................................................................... 17

ENGLISH

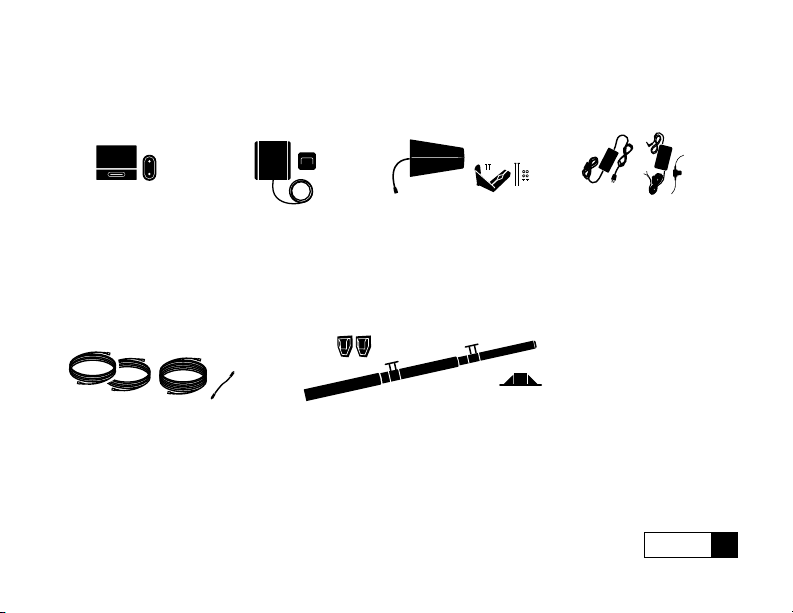

Package Contents

Booster &

Mounting

Bracket

Inside Antenna

& Mounting

Bracket

Outside Antenna

& Mounting

Bracket

Power Supply,

Hardwire Power

Supply & In-line

Fuse Holder

Telescoping Pole, Wall

Mount Brackets &

Ground Mount

2 Qty. 15 ft. (4.5 m),

1 Qty. 30 ft. (9 m),

Coax Cables & Flat

Entry Cable

2ENGLISH

Mount outside antenna to telescoping

pole with mounting bracket. Connect

the 30 foot (9 meters) coax cable to

outside antenna.

Determine where you want to mount

the telescoping pole on your RV. We

recommend mounting near slide out or

toy hauler ramp door on the side.

STEP 1 Mount Outside Antenna

to Telescoping Pole

STEP 2 Mount Telescoping

Pole to Side of RV recommended

placement

ATTENTION: Do not install pole on RV until stabilizer jacks and

wheel chocks are in place and RV is immobilized.

Telescoping

Pole

Outside Antenna

Mounting Bracket

connectcoax cable

ENGLISH

Attach both wall mounts to the pole

feet located on the pole and fully

extend the pole.

Insert the attached pin into the hole on

the lower bracket to secure wall mount.

Adjust the pole foot bracket so there is

at least 4 feet (1.25 meters) of

separation between the top and

bottom pole feet and wall mounts.

WARNING: Check for and avoid any

powerlines or overhead obstructions.

When the pole is mounted, do not

move the RV. Pole should be taken

down prior to winds over 35 mph (56

kph) and lightning occurances.

(STEP 2 cont.) upper Pole

Foot

Wall Mount

Twist each

upper section

counter-clockwise,

extend, and then

turn clockwise to

lock into place.

NOTE: Use an app

like Opensignal to

point the outside

antenna toward the

nearest cell phone

tower.

Pole Foot

4 ft. (1.25 m)

Wall Mount

lower Pole

Foot

Wall

Mount

4ENGLISH

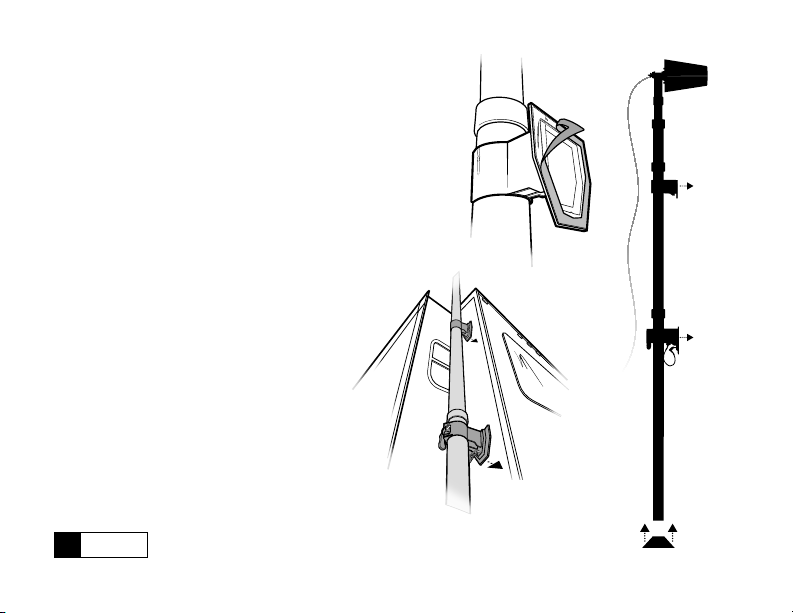

(STEP 2 cont.) remove adhesive

backer

attach to side

of RV

attach to side

of RV

press ﬁrmly

Ground

Mount

Clean surface of RV where wall mounts

will attach and remove the adhesive

backer on both the upper and lower

wall mounts.

NOTE: The wall mounts must be attached

for the ﬁrst-time setup of the

Destination RV.

Slide ground mount on bottom of pole

and ﬁrmly attach the upper wall mount

to the RV, then attach the lower wall

mount.

IMPORTANT: Wall mounts must be

applied to a clean and smooth surface.

Press ﬁrmly and let it cure for at least

20 minutes.

ENGLISH

Find a location to place the booster

inside the RV. A cabinet near a power

source would be best. Be sure it’s in

a location that the 9 meter outside

antenna coax cable can reach. Use 3M

Command™ Strips to secure mounting

bracket into place and mount booster by

sliding onto bracket.

Route the outside antenna cable into

the RV. We recommend routing the cable

through the slide out gasket or through

the back door of a toy hauler (ﬂat entry

cable included).

IMPORTANT: Do not fully extend the

slide out until the cable is routed all the

way through.

STEP 3 Mount Booster and

Route Cable

cabinet

Bracket

Booster

6ENGLISH

Mount inside antenna using the 3M

Command™ Strips and connect coax cable.

Be sure to have at least 20 feet (6 meters)

vertical distance between the antennas.

Then, check that the antennas point away

from each other.

STEP 4 Mount Inside Antenna

Inside

Antenna

3M Command™

Strips

connect

Wall

Bracket

Booster

20 ft. (6 m) min. vertical distance /

max horizontal distance

Inside

Antenna

ENGLISH

cable from

Inside Antenna cable from

Outside Antenna

Connect the cable from the outside

antenna to the port labeled “Outside

Antenna” on the booster and connect

the cable from the inside antenna to

the port labeled “Inside Antenna” on

the booster.

Connect AC power supply to end of booster

labeled “ ”. Plug the power supply into

a 120V power outlet in the RV.

STEP 5 Connect Coax Cables

to Booster

STEP 6 Connect Power Supply

to Booster

8ENGLISH

SOLID GREEN

This indicates that the booster is functioning properly, and there are no issues with

installation.

SOLID RED

Band has shuto. This is due to a feedback loop condition called oscillation. This is a

built-in safety feature that causes a band to shut o to prevent harmful interference

with a nearby cell tower. Refer to Troubleshooting.

BLINKING GREEN & RED

Band has reduced gain. This is due to a feedback loop condition called oscillation.

This is a built-in safety feature to prevent harmful interference with a nearby cell tower.

If you are already experiencing the desired signal boost, then no further adjustments

are necessary. If you are not experiencing the desired boost in coverage, then refer to

Troubleshooting.

BLINKING GREEN & YELLOW

Band has reduced gain. This is a built-in safety feature to prevent harmful interference

with a nearby cell tower. If you are already experiencing the desired signal boost, then

Booster Light Patterns
