Wali 1742LM Manuel utilisateur

55lbs

(25kg)

Please confirm that your TV

weight do not exceed 25kg

Warning:Please do not

exceed the maximum

load-bearing capacity, which

may cause equipment failure.

For 17”-42”

62-480mm

Full-featured TV Bracket

What material is your wall made of?

Is it a wood wall? Please read the instructions thoroughly and have a good understanding of the entire

installation process. Reading the instructions for your TV to see whether there have

any special instructions for using the brackets or not.

WARNING: Avoid potential personal injury and property damage.

1. Please check your wall fastness, suitable for general wood and brick, not

plasterboard wall

2. The wall must be able to carry 5 times the weight (total of the TV plus the bracket)

3. Our company does not bear the loss and damage caused by improper use.

Confirm the VESA distance of the

hole on the back of your TV.

Installation step 1 Installation Step 2

Please confirm your TV hole pitch is

100x100mm or 200x200mm

Model:1742LM

Installation tools

Screwdriver Pencil

Impact Drill 10MM Drill Bit Wrench

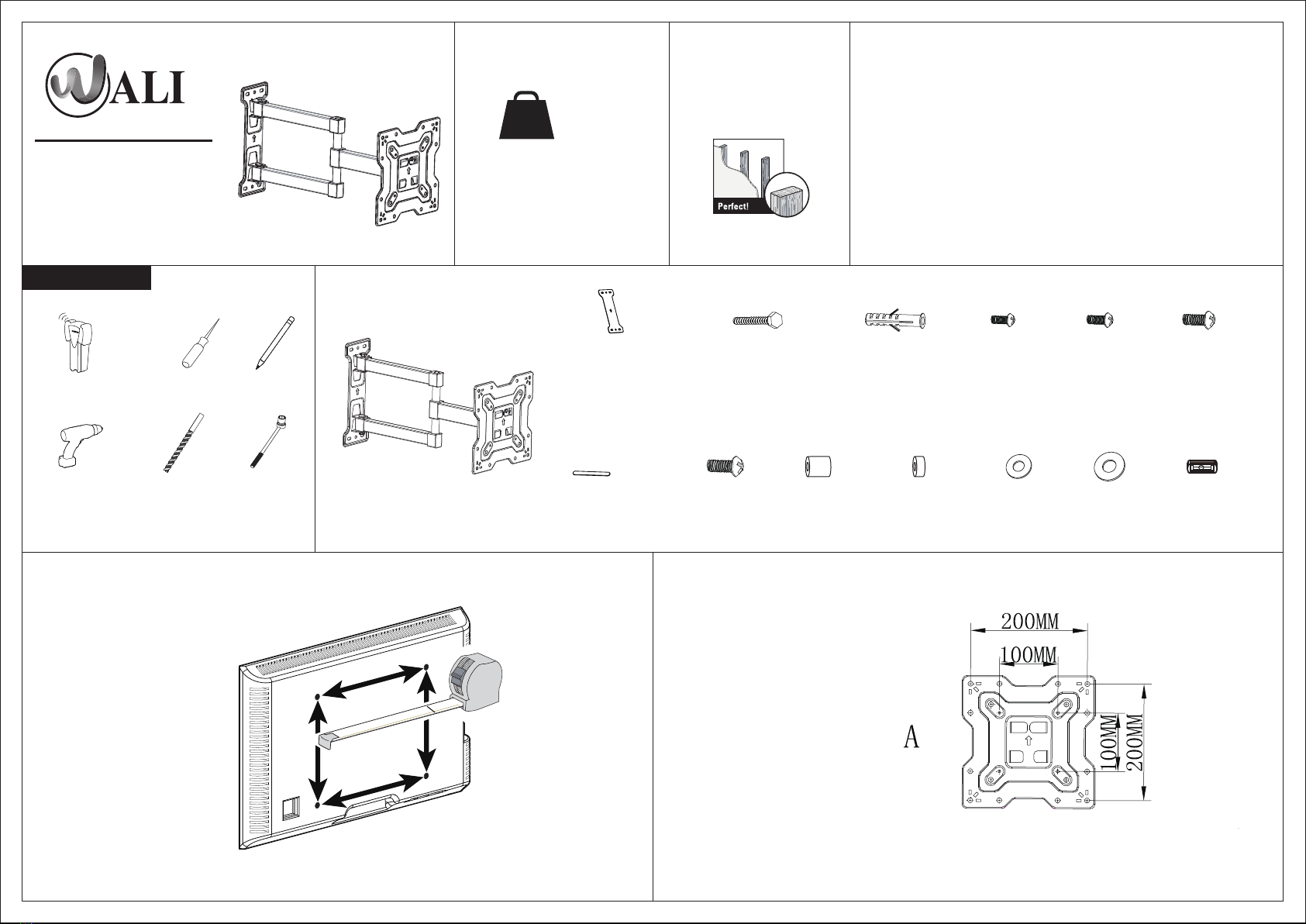

Parts List

①

Bracket (x1)

②

Punched cardboard (x1)

③

Cable tie*3

Self-tapping screw (x4)

M4*20 (x4)

M5*25 (x4)

M6*25 (x4)

M8*25 (x4)

big spacer (x4)

small spacer (x4)

D5 gasket (x4)

D6 gasket (x4)

Stud Finder

Plastic ancher (x4)

Bubble (x1)

Need someone to carry the TV

TV back TV back / Extension washer

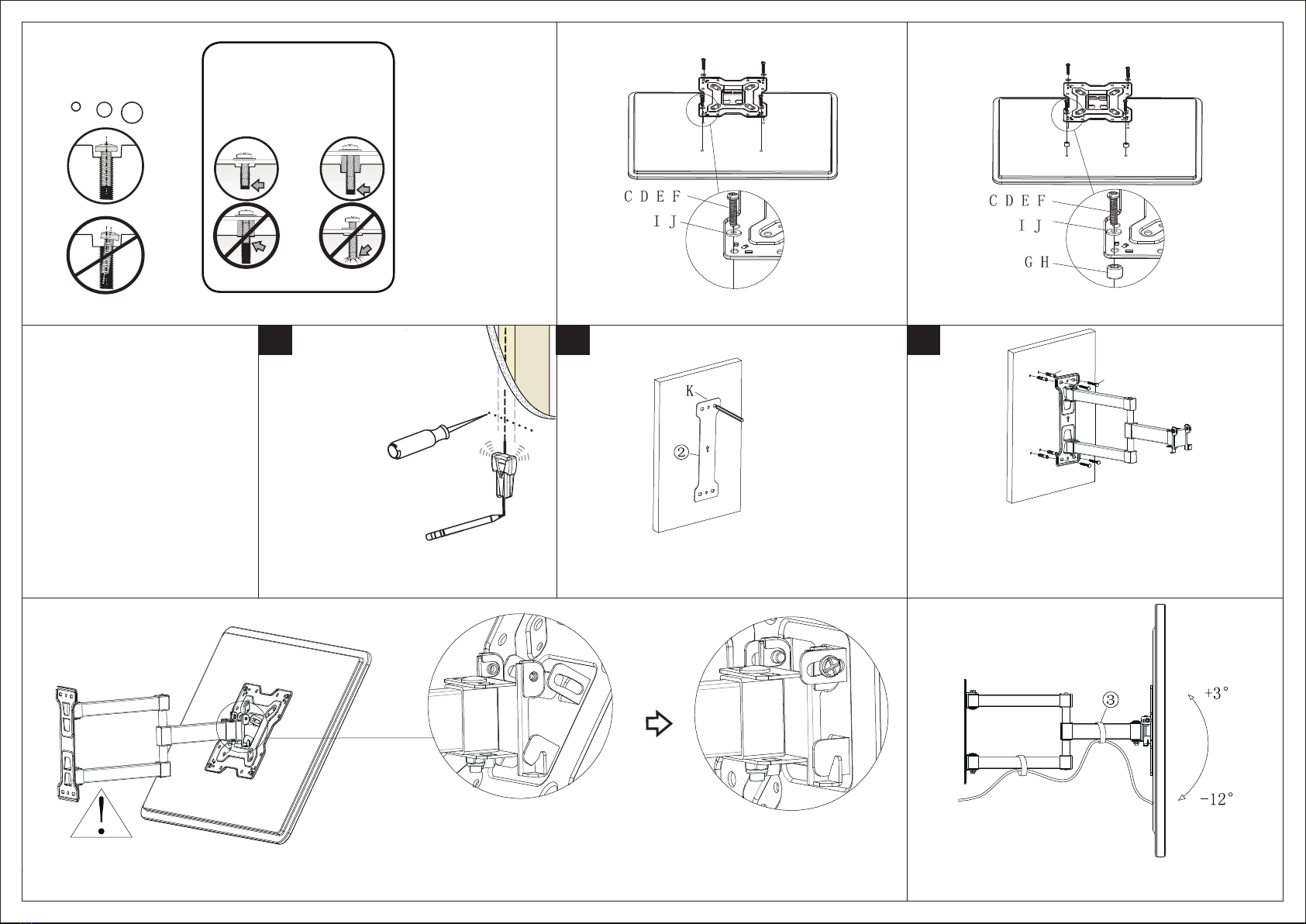

Installation step 4 wall mounting

Please make sure the wall is safe and

then install as shown .

Use a stud finder to find out if there

are other wires in the wall, and install the

base as far as possible to avoid the

wires.

Use a pencil to draw the installed hole on the wall

and use the level to ensure the level.

Installation step 5

4-1 4-2 4-3

Remove the pre-installed screws.

As shown in the picture, the TV is

hooked into the head frame and

pushed in.Then screw back in the removed screw. Complete the installation as shown

M5 M6 M8

Installation step 3

Use screws below

Warning: Correct screw

and washer usage

- Too short to fix the TV

- Too long to damage the TV

The method of

connecting the TV,

A or B which is

shown in figure 1.

Make sure your screw

is right on this TV

hole to screw into the

TV. Safely tightening

screws can be used

with or without

washers. Make sure

the screws are

tightened before

proceeding to the

next step.

Short Long

Correct

If it is a wood wall, please use the self-tapping

screw A directly. If it is a cement wall, please

firstly insert the plastic anchor B into the wall,

then tighten with the self-tapping screw A.

Use the cable tie 3 to complete the routing
