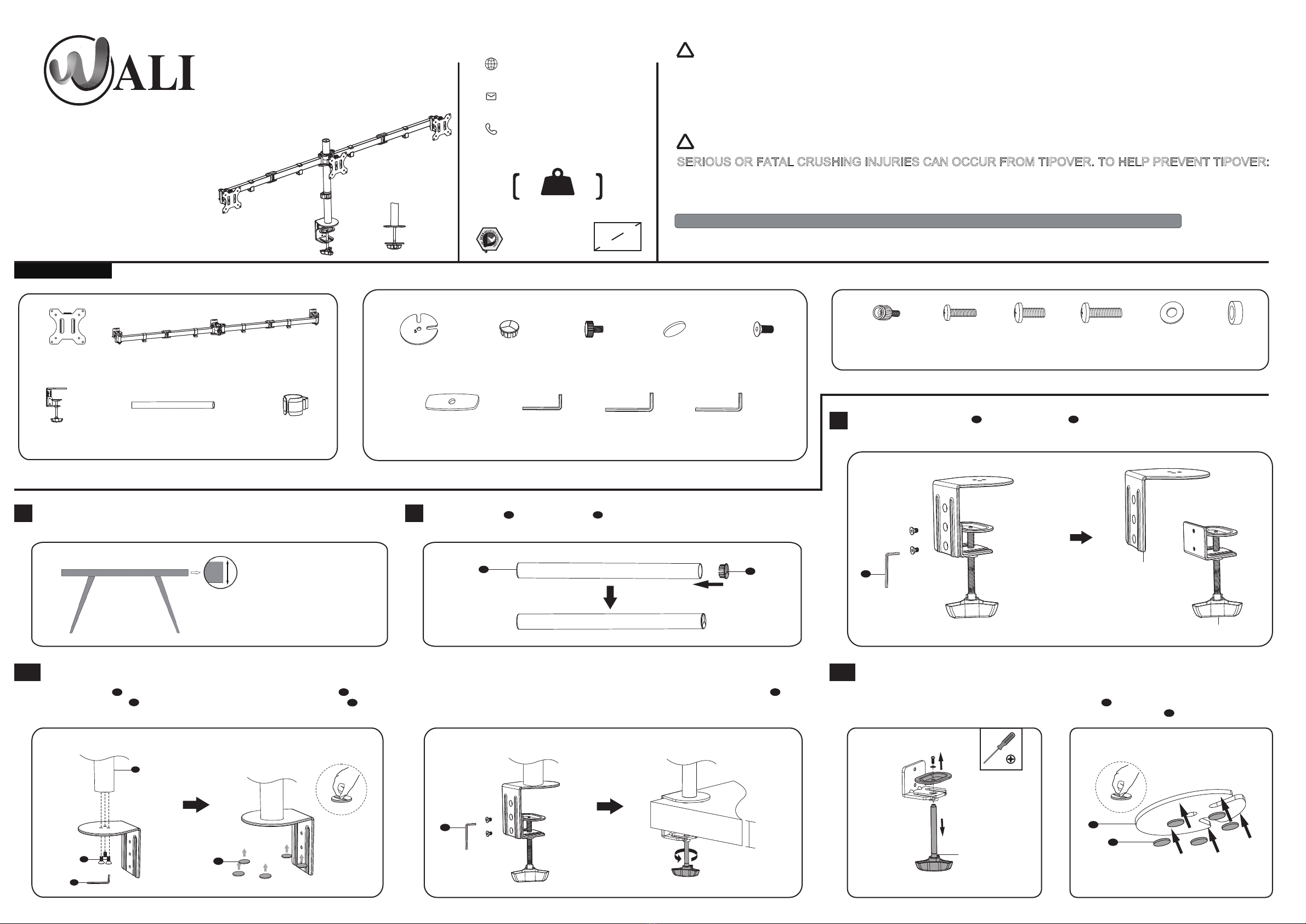

Wali M003S Manuel utilisateur

M003S

Measure the thickness of your mounting surface or desk

Option A : Clamp Installation Option B: Grommet Base Installation

4A 4B

1 2

Triple Monitor Desk Mount

75x75\100x100

VESA Plate

A (x3)

Arm

B (x1)

C-Clamp

C (x1)

Pole

D (x1)

Tool Holder

E (x1)

Grommet Base Plate

F (x1)

Pole Cover

G (x1)

Top Screw

H (x3)

Anti-skid Pad

I (x5)

M6x12 Bolt

J (x3)

Support Plate

K (x1)

Allen Key 4mm

L (x1)

Allen Key 5mm

M (x1)

Allen Key 6mm

N (x1)

M4x12 Bolt

M-A (x12)

M4x16 Bolt

M-B (x12)

M5x12 Bolt

M-C (x12)

M5x16 Bolt

M-D (x12)

D5 Washer

M-E (x12)

Spacer

M-F (x12)

Fit clamp: 0.39”-3.3”

Grommet: 0.39”-3”

C-Clamp Brace

Clamp

L0.39”-3.3”

Hand knob

Press Pole Cover Ginto the top of Pole D.

1.Connect Pole Dand C-Clamp Brace from the bottom using M6x12 Bolt Jand tighten

with Allen Key 4mm L.Tear off the protect paper and attach Anti-Skid Pads Ito the

bottom designated position of C-Clamp Brace as image shown.

2. Connect C-Clamp to C-Clamp Brace using the bolts and tighten with Allen Key 4mm L.

Rotate the hand knob clockwise to fasten for stability.

1. Loosen the screw to release the hand

knob using a screwdriver as image shown.

(Screwdriver not included)

2. Tear off the protect paper and attach Anti-Skid

Pads Ito the bottom designated position of

Grommet Base Plate Fas image shown.

Loosen the bolts on C-Clamp Cusing Allen Key 4mm L.

INSTALLATION MANUAL

1-844-SATTLER (18447288537)

[email protected]

www.walielectric.com

(7kg/15.4lbs)x2

RATED

MAX 24”

Supplied Parts List

WARNING

！

USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIP OVER.

SMALL PARTS- NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a

qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may

cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.

Do not exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect

assembly or inappropriate use.

SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:

TIPOVER WARNING

● NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR STAND.

● USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL.

Note: Please make sure two arms are aligned and balanced.

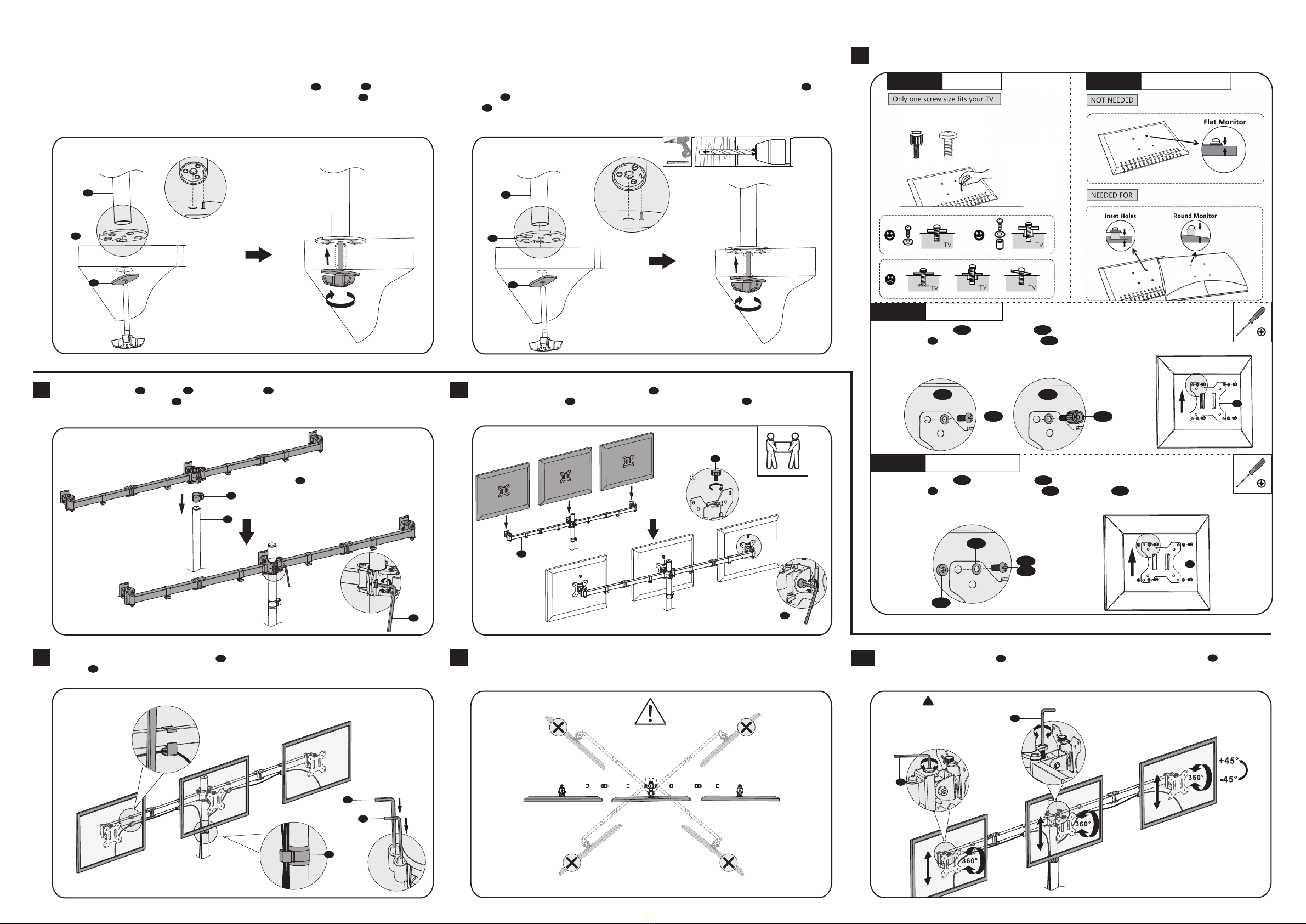

Adjust the three VESA Plates Ato the highest or lowest level using Allen Key 5mm M.

Manually swivel, tilt, and rotate the monitor for the best viewing angle.

3a.Existing Grommet Hole Installation 3b.Self-drilled Grommet Hole Installation 5

0.39”-3”

ø 10mm

(ø ")3/8

M4x12 M5x12

Hand thread screws

into the threaded

insertson the backof

your TVto determine

which screw diameter

(M4x12 or M5x12) to use.

M-C M-A

M-E M-E

M-E

M-F

M-B

M-D A

Mark the position of the hole on your mounting surface. Drill a 3/8"(10mm) diameter hole at

the marked position through the mounting surface. Place the Grommet Base Plate Fand

Pole Dto the grommet hole. Insert the hand knob through the center hole of Support Plate

Kand desk hole, rotate the hand knob clockwise to fasten for stability.

If the existing grommet hole comes with a plastic protector, remove it to ensure a flat surface

before installing the desk mount. Place the Grommet Base Plate Fand Pole Dto the

grommet hole. Insert the hand knob through the center hole of Support Plate Kand desk hole,

rotate the hand knob clockwise to fasten for stability.

Put the Tool Holder Eand Arm Bthrough the Pole D, adjust the preferred height and

tighten using Allen Key 5mm M.

Guide the cable through the Tool Holder Eand wire clips. Store the Allen Keys in the Tool

Holder E.

Put the assembled TV/Monitor onto the Arm Band ensure stability, tighten the VESA

plate using Top Screw H. Adjust the tilt angle using Allen Key 6mm N.

9For safety, please do not extend the arms too far forward or backward. This may cause

instability and tip over.

0.39”-3”

Step 5.1

Select TV Screws

Step 5.2

Select Spacers( if needed )

Step 5.3a

Step 5.3b

Select M4x12 Bolt M-A or M5x12 Bolt M-C according to your TV/Monitor, connect

VESA Plate Atogether with D5 Washer M-E into the mounting holes on the back of

TV/Monitor, tighten with a screwdriver. (Screwdriver not included)

Select M4x16 Bolt M-B or M5x16 Bolt M-D according to your TV/Monitor, connect

VESA Plate Atogether with D5 Washer M-E and Spacer M-F into the mounting

holes on the back of TV/Monitor, tighten with a screwdriver. (Screwdriver not included)

Flat Back Monitor

Curved Back Monitor

Caution: Please make sure the three monitors are stable on the same level.

！
