VOLT® 18” Hardscape Mounting Bracket (Stainless Steel)

VAC-HS-6718-YMP

Important Safety Instructions: Read Before Installation

INSTALLATION INSTRUCTIONS

www.voltlighting.com

This luminaire is intended for installation in accordance with local codes and

the National Electric Code (NEC). Failure to adhere to these codes and

instructions may result in serious injury, property damage and void the

warranty.

These instructions do not intend to cover all variations in installation, opera-

tion maintenance or mounting situations.

1. Make sure that the power is turned OFF before installing or servicing this

luminaire.

2. Warning: risk of electrical shock. Install all luminaires 10 feet (3.05M) or

more from pool, spa or fountain.

3. This luminaire is intended to be used only with a power supply

(transformer) rated maximum of 300 watts (25 AMPS) at 15 volts.

4. DO NOT INSTALL in walls where the capstones overhang the wall less

than 3/4” [19mm] or under stairs where the tread overhangs the riser

less than 3/4” (19mm).

5. Wiring connections must be made with UL listed wire connectors that is

suitable for outdoor use.

6. Position the low voltage wire and UL listed wire connector so that it is

located within 6 inches (15.2 cm) from a building structure, a luminare,

or tting.

7. The main low voltage cable is intended for shallow burial - less than 6

inches (152 mm).

- 2 -

Product Dimensions

Package Contents

A. (1) Luminaire

B. (2) Stainless Steel Screws

19”

[email protected] • 813.978.3700

- 3 -

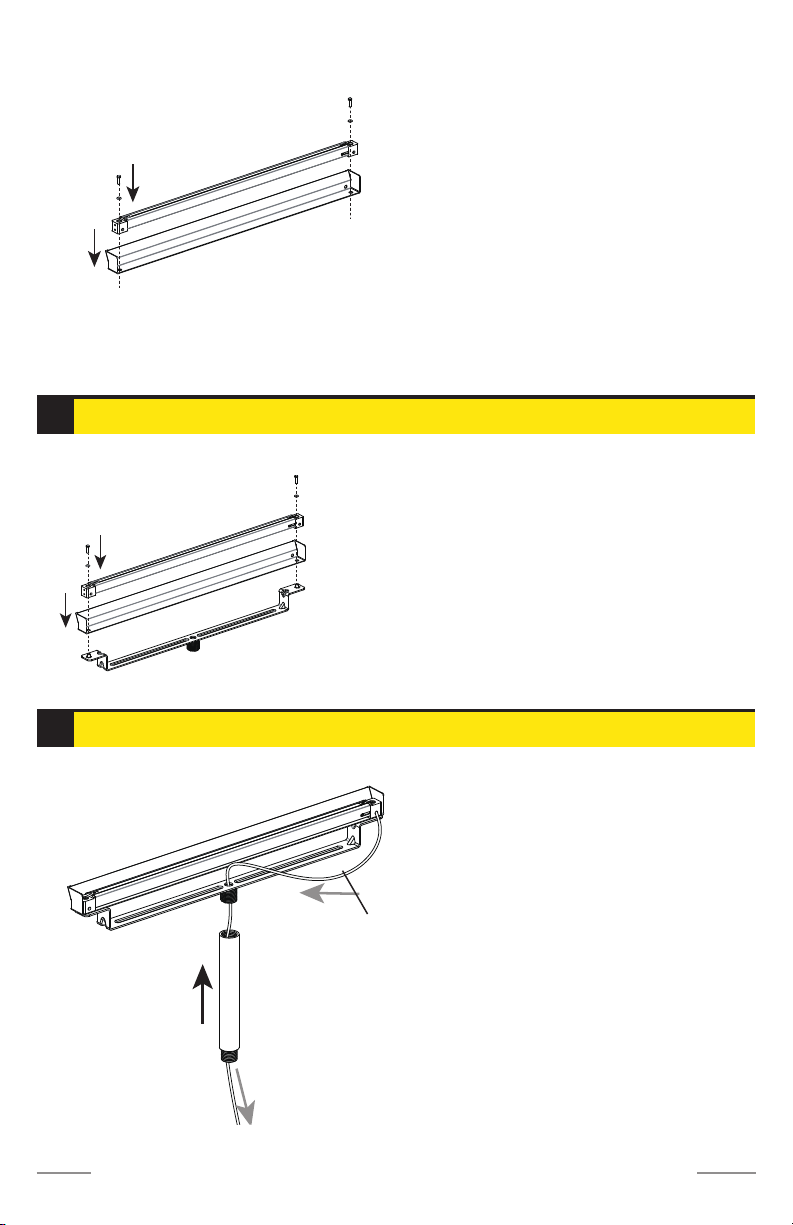

Optional: Install Glare Guard Before Installation

If you choose, you can attach the

glare guard rst before mounting

the xture.

Use the screws and washers to

secure the glare guard onto the

xture. Tighten with a

screwdriver.

Screw

Washer

Install Luminaire toY Bracket

Determine Luminaire Location

Place the luminaire onto the

Y bracket using the rubber

washers and screws.Tighten

with a screwdriver.

Y Bracket

Luminaire

Screw

Rubber Washer

Install Riser

Luminaire

Pass the supply wire from the

luminaire through the center

hole on the Y bracket and the

riser.Then thread the riser

onto the Y bracket and hand

tighten until snug.

Supply Wire

Riser

Y Bracket

www.voltlighting.com

INSTALLATION INSTRUCTIONS

- 4 -

VOLT® 18” Hardscape Mounting Bracket (Stainless Steel)

VAC-HS-6718-YMP

Install Stake

Determine the desired location

for mounting the stake. Hammer

the stake into the ground until

ange of stake is ush to grade.

To avoid damage to the stake,

place a board on top of the stake

while hammering.

Note: If the ground is hard and

the stake is difcult to install,

make a crosscut in the ground

using a at shovel.

Board

Ground

Soil

Stake

Intsall Riser to Stake

Supply Wire

Clear away area in the ground

at wireway slot on the top of

the stake. Pass the xture supply

wire through the center hole of the

stake and lay it into

the wireway slots.Thread the

riser onto the stake. Hand

tighten until snug.

Riser

Ground

Soil

Stake

[email protected] • 813.978.3700

- 5 -

Wire Connections

Strip both leads from the luminaire pigtail. Using two UL listed wire

connectors (sold separately), connect the leads from the luminaire to

the main supply cable leads.

* We recommend ace heat shrink style connectors for hardscape

connections.

Main Low Voltage

Supply Cable

Luminaire Wires

Wire Connectors

Adjust Lamp Direction

Allen Wrench

Set Screw

Set Screw Lamp

Using an Allen wrench, loosen the set screws on the ends of the

lamp and then rotate the lamp to the desired direction. Always

tighten the set screws after adjustments.

www.voltlighting.com

INSTALLATION INSTRUCTIONS

- 6 -

VOLT® 18” Hardscape Mounting Bracket (Stainless Steel)

VAC-HS-6718-YMP

[email protected] • 813.978.3700

- 7 -

IS-VAC-HS-6718-YMP-ver1.pdf

Specications and product details subject to change without notice.

reserved. [email protected] • 813.978.3700

www.voltlighting.com

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

- 8 -
