Volt VWL-705-BBZ Manuel utilisateur

VOLT®Low Voltage Landscape Lighting

VOLT®Salty Dog Brass MR16 Well Light

VWL-705-BBZ

INSTALLATION INSTRUCTIONS

Specications and product details subject to change without notice.

reserved. [email protected] • 813.978.3700

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

–1–

VOLT®Salty Dog Brass MR16 Well Light

VWL-705-BBZ

INSTALLATION INSTRUCTIONS

www.voltlighting.com [email protected] • 813.978.3700

Package Contents

Parts Required (sold separately)

A. (1) Fixture

A. (1) MR16 Lamp

B. (1) PVC Tube

Product Dimensions

Important: Please Read Before Installation

Important Safety Instructions

This luminaire is intended for installation in accordance with local

codes and the National Electric Code (NEC). Failure to adhere to these

codes and instructions may result in serious injury, property damage

and void the warranty.

These instructions do not intend to cover all variations in installation,

operation maintenance or mounting situations.

1. Make sure that the power is turned OFF before installing or servicing

this luminaire.

2. WARNING: risk of electrical shock. Install all luminaires 10 feet (3.05M)

or more from pool, spa or fountain.

3. This luminaire is intended to be used only with a power supply

(transformer) rated maximum of 300 watts (25 AMPS) at 15 volts.

4. Wiring connections must be made with UL listed wire connectors that

are suitable for outdoor use.

5. Position the low voltage wire and wire connector so that it is

located within 6 inches (15.2 cm) from a building structure, a luminaire

or tting.

6. The main low voltage cable is intended for shallow burial - less than 6

inches (152 mm).

7. If additional lengths of low voltage cable are required, please call

1-813-978-3700.

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS

Lighted lamp is HOT!

WARNING – TO REDUCE THE RISK OF FIRE OR INJURY TO PERSONS.

1. Turn o/unplug and allow to cool before replacing lamp.

2. Lamp gets HOT quickly! Contact only switch/plug when turning on.

3. Do not touch the hot lens, guard or enclosure.

4. Keep lamp away from materials that may burn.

5. Do not touch lamp at any time. Use a soft cloth. Oil from skin may

damage lamp.

6. Do not operate the luminaire tting with a missing or damage shield.

–2– –3–

8.25”

6.25”

5.5”

INSTALLATION INSTRUCTIONS

www.voltlighting.com [email protected] • 813.978.3700

VOLT®Salty Dog Brass MR16 Well Light

VWL-705-BBZ

–4– –5–

Install Lamp

Remove Faceplate and Lens

Wire Connection

Install Lens and Faceplate

Dig Hole

3”3”

3”

PVC Tube

Hole

Soil

Loosen the thumb screws and

slide the housing down to

the end of the bars. Unscrew

the screws and remove the

faceplate, gasket, and lens from

the housing.

Screw

Faceplate

Gasket

Lens

Thumb Screw

Housing

Insert the lamp with the correct

wattage and type marked on the

xture label.

CAUTION: Do not exceed maximum

wattage marked on luminaire label.

NOTE: DO NOT touch lamp with

bare hands. Use soft cloth to handle

lamp.

MR16 Lamp

Socket

Place the lens, gasket and

faceplate back onto the housing.

Secure them with the screws

previously removed. Hand tighten

until snug, then use a screwdriver

to secure the screws using a star

pattern. Adjust housing to your

desired height and angle, then

secure it in place with the thumb

screws.

Screw

Faceplate

Gasket

Lens

Thumb Screw

Housing

Dig a hole in the ground making

sure there is approximately

3 inches of room on all sides

surrounding the PVC tube for pea

gravel or sand.

Place the xture onto the PVC

Tube. Pass the luminaire pigtail

through the PVC tube.

Strip both leads from the

luminaire pigtail. Using two wire

connectors (sold seperately),

connect the leads from the

luminaire to main supply cable

leads.

PVC Tube

Wire Connector

Main Supply Wire

Soil

Pigtail

Fixture

INSTALLATION INSTRUCTIONS

www.voltlighting.com

VOLT®Salty Dog Brass MR16 Well Light

VWL-705-BBZ

–6–

Fill Pea Gravel or Sand

[email protected] • 813.978.3700

–7–

Soil

PVC Tube

with Fixture

Pea Gravel

or Sand

Install the PVC tube with

xture in the hole and ll the

extra space with pea gravel or

sand for proper water drainage.

IS-VWL-705-BBZ-ver2.pdf

Specications and product details subject to change without notice.

reserved. [email protected] • 813.978.3700

www.voltlighting.com

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

–8–

Ce manuel convient aux modèles suivants

Autres manuels Volt Éclairage paysager

Volt

Volt VPL-1006 Manuel utilisateur

Volt

Volt VHS-67 Series Manuel utilisateur

Volt

Volt VPL- 398 Manuel utilisateur

Volt

Volt 390 Series Manuel utilisateur

Volt

Volt VAC-STK-PWR-PGR Manuel utilisateur

Volt

Volt VAC-AL-GGT1-BBZ Manuel utilisateur

Volt

Volt STK-17LI Series Manuel utilisateur

Volt

Volt VAL-1004-4-BBZ Manuel utilisateur

Volt

Volt VPL-1039-BXX Manuel utilisateur

Volt

Volt All-Star Brass Tommy Light Manuel utilisateur

Volt

Volt VWL-7125-BBZ Manuel utilisateur

Volt

Volt VPL-1048-4-BBZ Manuel utilisateur

Volt

Volt Sedona VHT-306-11-BBZ Manuel utilisateur

Volt

Volt All-Star VAL-1814-40-BBZ Manuel utilisateur

Volt

Volt BRASS BULLY VWL-5 Series Manuel utilisateur

Volt

Volt Guardsman VPL-1011 Manuel utilisateur

Volt

Volt VAL-9501-4036-BBZ Manuel utilisateur

Volt

Volt VFL-450X-BBZ Manuel utilisateur

Volt

Volt VFL-120V Series Manuel utilisateur

Volt

Volt VAL-1052-BBZ Manuel utilisateur

Volt

Volt VPL-1047-4-BBZ Manuel utilisateur

Volt

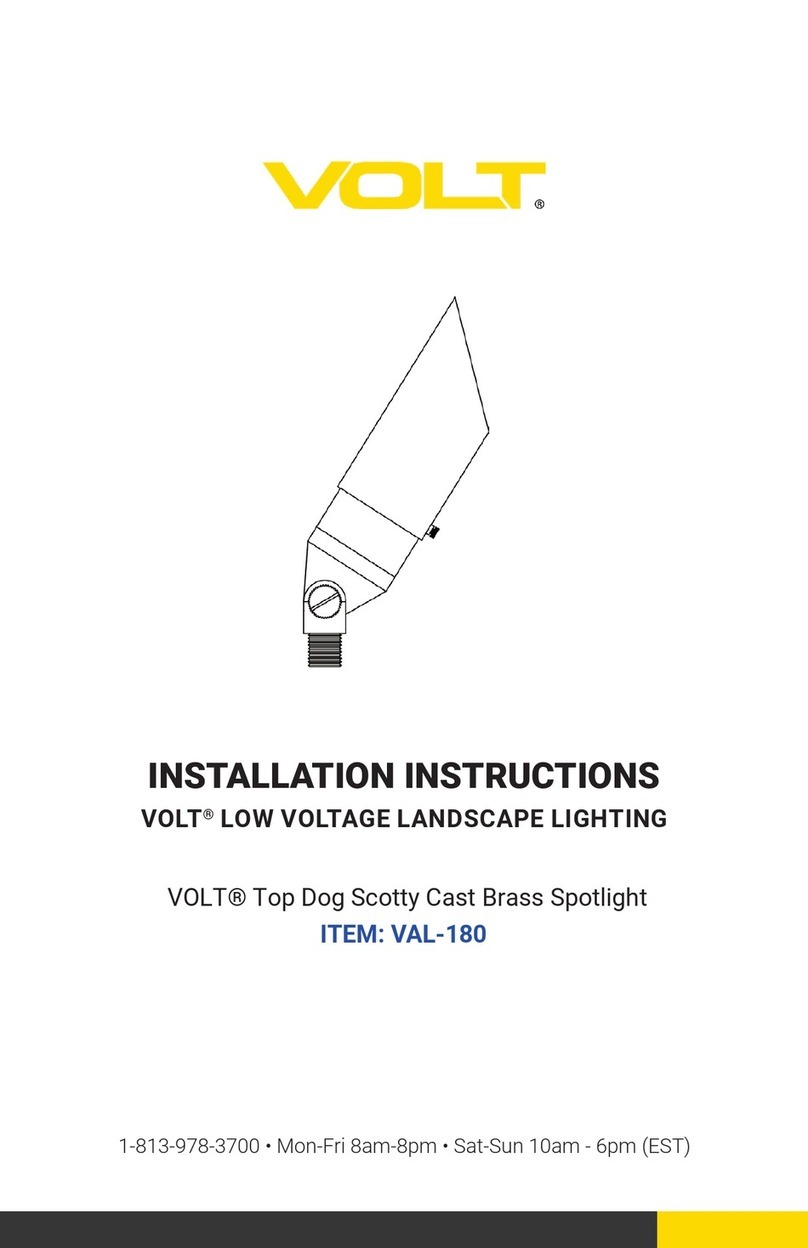

Volt VAL-180 Manuel utilisateur
